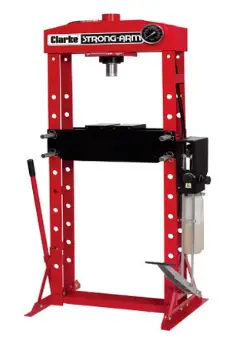

Clarke CSA30FPB 30 Tonne Hydraulic Press

Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-pro

INTRODUCTION

Thank you for purchasing this CLARKE 30 Tonne Hydraulic Press. Before attempting to operate the machine, it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the press giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not effect your statutory rights.

SAFETY SYMBOLS

  • Hazard;-shattered workpiece
  • Wear Safety Shoes
  • Read the instruction manual before use
  • Hazard:- crushed hands
  • Wear safety glasses
  • Wear protective gloves

The above safety symbols appear on the product.

SAFETY PRECAUTIONS

  • Due to the weight of the press, lifting equipment and the help of an assistant will be required during installation. Secure the press to a firm level floor using suitable anchor bolts (not supplied).
  • Before starting work, check for cracked welds, loose or missing bolts, a damaged screen (if fitted), or any structural damage. Do not operate if any of these conditions exist. Have repairs made only by your service center.
  • Before work, always ensure that hydraulic hoses and couplings are completely sound.
  • NEVER tamper with the press components or modify them. The safety valve is calibrated and sealed at the factory; do not attempt to change the setting.
  • Use only the recommended hydraulic oil.
  • The components of this press are designed to withstand the rated load. Do not substitute any other components or exceed the rated load of the press.
  • Before applying pressure, ensure the workpiece is firmly secure and stable.
  • ALWAYS clean up spills of hydraulic oil immediately as this can be dangerous in a workshop environment.
  • DO NOT let any person who is unfamiliar with hydraulic presses use the press unless they are under direct supervision.
  • Keep children and unauthorized personnel away from the work area.
  • ALWAYS position the (optional) safety screen directly in front of the workpiece.
  • ALWAYS apply the load under the center of the ram. Offset loads can damage the ram and may cause the workpiece to be ejected.
  • ALWAYS ensure the workpiece is properly supported by the press bed.
  • When using accessories such as pressing plates, be certain they are centered below the ram and are in full contact with the bed.
  • Parts being pressed may shatter or be ejected from the press. Always use adequate guards, and wear eye protection and protective clothing when using this press.
  • Keep hands and fingers away from parts that may pinch or shift.
  • NEVER use extension tubes to increase the length of the pump handle. Excessive effort can cause damage and/or accidents.
  • Wear approved impact safety goggles and heavy-duty work gloves.
  • Failure to heed these warnings may result in damage to the equipment or serious personal injury.

UNPACKING & INVENTORY

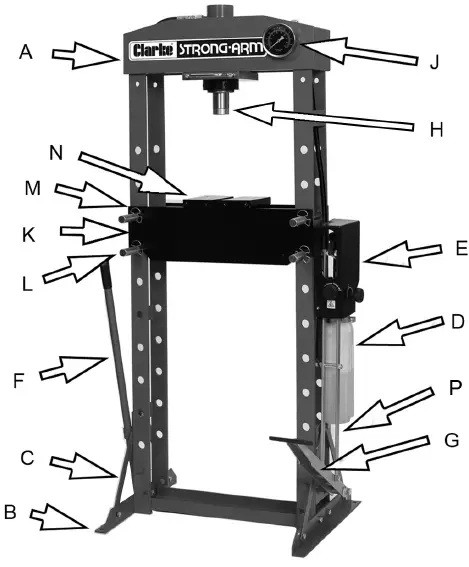

Ensure the press and its components suffered no damage during transit and that all components are present. Should any loss or damage become apparent, please contact your CLARKE dealer immediately. The following items should be present in their packaging.Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-1

AFrame with pump assembly
BBase Supports
CStay Bars
DOil reservoir
EPump assembly
FPump Handle
GFoot Pedal
HRam cylinder
JPressure Gauge
KPressing Bed
LBed Support Pins
MRetaining Butterfly Clips
NBed Blocks
PFoot Pedal Connecting Bars
Fixing Kit (bolts, nuts, washers)
1.5L bottle of hydraulic oil

ASSEMBLY

WARNING: DUE TO THE WEIGHT OF THE PRESS, LIFTING EQUIPMENT OR THE HELP OF AN ASSISTANT WILL BE REQUIRED DURING INSTALLATION.

TOOLS REQUIRED

  • Wrench/socket set
  • PTFE tape
  • Hex key set

LOCATING THE PRESS

The press must be firmly secured to a firm and level floor using expansion bolts (not supplied). Holes are provided in the feet for this purpose. Do not locate your press where it will be open to the elements, as severe weather conditions will damage the hydraulic parts.

ASSEMBLY PROCEDURE

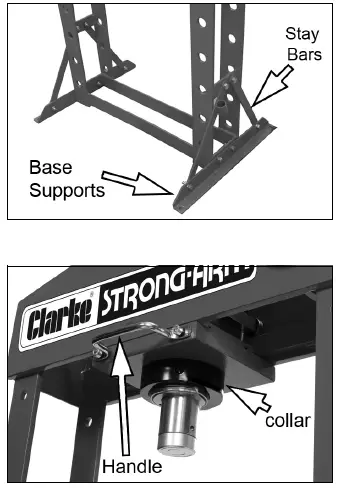

  1. With the help of an assistant, attach the base supports to the frame using the nuts, bolts, and washers.
  2. Add the stay bars to each side and bolt them into place.
  3. With the help of an assistant if required, lift the frame assembly upright and maneuver it to its intended location in the workshop.
  4. Install the ram by passing it through the top carriage and securing it with the retaining collar.
  5. Fit the carriage positioning handle to the front of the carriage using the hex bolts as shown.Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-2

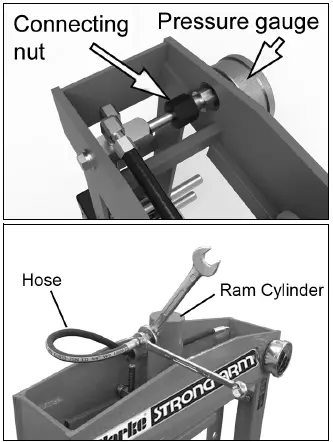

  6. Remove the travel plug and install the pressure gauge.
  7. Fit the gauge through the frame and secure it with the nut supplied.
    • We recommend sealing all threads with PTFE tape where hydraulic oil is to be contained. Take care not to let any oil escape while connecting the hoses.
  8. Connect the ram hose to the ram cylinder.Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-3
  9. 9. Bolt the foot pedal to the frame using the long bolt, spacer tube, nut and washers.Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-4
  10. Insert the bed support pins into the holes in the frame side supports at a height of your choosing. Secure them in position using the butterfly spring clips.
  11. Lift the pressing bed into position on the pins.
    NOTE: Due to the weight of the bed, we recommend that you get assistance from another person.

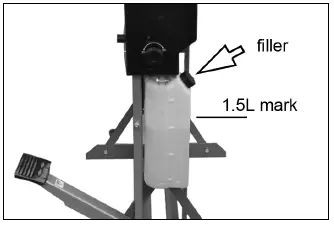

  12. Fill the oil reservoir with oil from the container supplied, up to the 1.5L mark.Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-5

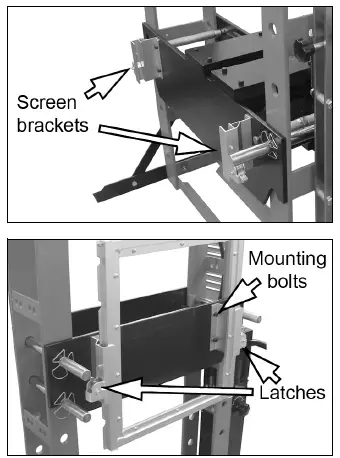

PROTECTIVE SCREENS (OPTIONAL)

Protective screens (CPS30T part number 7615260) are available from your CLARKE dealer.

  1. If the protective screens have been purchased, bolt the mounting brackets supplied to the pressing bed as shown.
  2.  Fit the protective screen to the pressing bed and ensure it can be set in one of the available positions using the latches on each side.Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-6

PREPARATION FOR USE

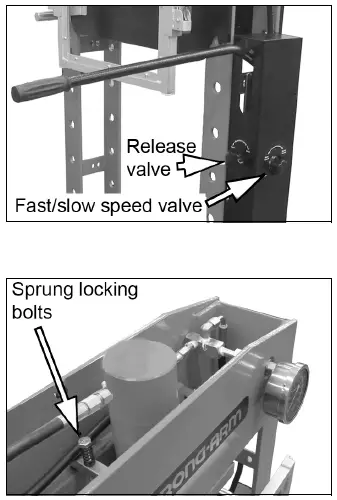

PURGING THE HYDRAULIC SYSTEM

  1. Insert the pump handle into the actuating lever.
  2. Open the release valve by turning anti-clockwise.
  3. Pump several full strokes to eliminate any air bubbles from the system. Use either the handle or the foot pedal.
  4. Close the release valve by turning clockwise.

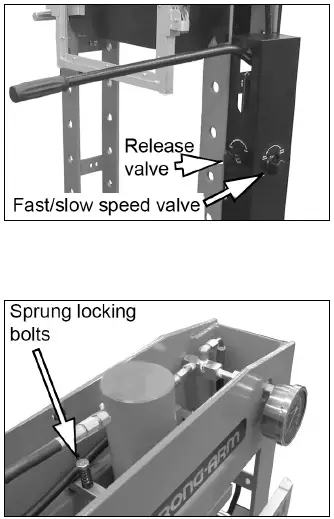

POSITIONING THE RAM

  1. Slide the carriage along the cross-beam.
  2. Lock it in position with the four sprung locking bolts.
    IMPORTANT: Always position the ram directly above the workpiece. Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-7

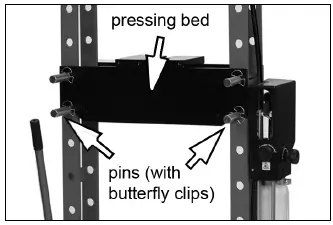

POSITIONING THE PRESSING BED

IMPORTANT: Due to the weight of the press bed, we recommend that you get assistance from another person when adjusting the bed height.

  1. Position the pressing bed so that it will be as close as possible to the ram when the workpiece is mounted on it.
  2. Raise one side of the bed and insert a bed supporting pin into the next locating hole.
  3. Repeat at the other end to level the bed.Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-8
  4. 4. Repeat until the bed is at the required height, with the bed supporting pins are secured using the spring butterfly clips.

CAUTION: THE BED HEIGHT SHOULD ONLY BE RAISED OR LOWERED ONE HOLE AT A TIME, WORKING ALTERNATELY FROM ONE SIDE AND THEN THE OTHER, FAILURE TO WORK IN THIS WAY MAY CAUSE THE BED TO FALL AND CAUSE INJURY TO THE OPERATOR.

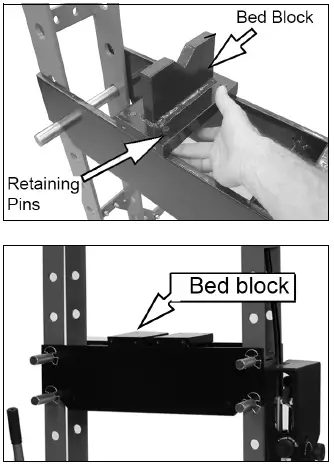

POSITIONING THE PRESSING BLOCKS

The bed blocks can be placed on the bed with either the flat face or the V-supports facing upwards. They are prevented from slipping out of position by the retaining pins which drop down within the confines of the bedside members. Check all parts are secure and correctly aligned before using the press.Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-9

OPERATION

  1. Place the workpiece on the bed. It must be completely stable and supported by packing or shims where required. Pressing plates (bed blocks) are supplied, which are located on the bed. Place the workpiece on these to give it stability.
    CAUTION: DO NOT POINT LOAD SUCH ACCESSORIES AS THEY ARE NOT DESIGNED TO TAKE THE FULL FORCE OF THE RAM IN ONE SPOT. ENSURE THEY ARE ADEQUATELY SUPPORTED.
    NOTE: Any packing pieces or shims used MUST be capable of withstanding the pressure that will be brought to bear, and MUST be of sufficient size with sufficient surface area, so as to avoid the possibility of slipping or springing out. Mating surfaces MUST be horizontal so that the force being exerted will NOT be at an angle.
  2. Close the release valve by turning clockwise until tightly closed.
  3. Select either SLOW SPEED or FAST SPEED using the knob on the side of the pump cover.Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-10NOTE: Fast speed allows faster movement but greater effort will be required.
  4. Pump the handle or foot pedal to bring the ram very lightly into contact with the workpiece.
  5. Maneuver the workpiece or loosen the locking bolts and slide the ram to one side so that the desired point of contact is directly beneath the center of the ram.
  6. Slowly pump the handle or foot pedal so that the ram begins to exert pressure on the workpiece.
  7. Continue to pump the handle and constantly monitor the process, ensuring the ram and work remain completely in line and there is no risk of slipping.
    • KEEP HANDS AND FINGERS AWAY FROM PARTS THAT MAY PINCH OR SHIFT
  8. Observe the reading on the pressure gauge and take care not to exceed the rated working pressure of the press.
    NOTE: The scale from 30 metric tonnes upward is highlighted in red, indicating pressure being applied above the rated maximum working pressure.
  9. When the pressing task is complete, turn the release valve anticlockwise in small increments to release ram pressure and allow removal of the workpiece.

TROUBLESHOOTING

ProblemProbable CauseRemedy
The pump will not work.Dirt on valve seat/worn seals.Bleed pump unit or have unit overhauled with new seals by your dealer.
The pump will not produce pressure.

The pump feels hesitant under load.

Air-lock.Open the release valve and pump the handle a couple of full strokes.

Close the release valve.

The pump feels hesitant under load.The pump cup seal could be worn out.Have the cup seal replaced by your dealer?
The pump will not lower completely.Air-lock.Release air by removing the filler plug.

MAINTENANCE

ROUTINELY

A visual inspection must be made before each use of the press, checking for leaking hydraulic fluid and damaged, loose, or missing parts. Owners and/or users should be aware that the repair of this equipment requires specialized knowledge and facilities. It is recommended that a thorough annual inspection of the press is made and that any defective parts be replaced with genuine CLARKE parts. If the press appears to be damaged in any way, is found to be badly worn, or operates abnormally SHOULD BE REMOVED FROM SERVICE until the necessary repairs are made. If the press is not to be used for any length of time, store it with the ram piston withdrawn to protect the surface of the moving parts.

PERIODICALLY

Check the press to make sure all bolts are tight and inspect for cracked welds, bent, loose or missing parts. Clean any foreign material from the ram carrier. Keep the protective screen (if fitted) clean at all times. Check the hydraulic connections for leaks. Replace or properly repair any damaged or leaking hydraulic components before using. Note any loss of oil and if oil is seen to become foul, replace using CLARKE hydraulic oil, Part No. 3050830. If any rust is apparent on the structure it must be removed completely and the paint restored.

DISPOSAL OF UNWANTED MATERIALS

One of the most damaging sources of environmental pollution is oil products. Never throw away used oil with domestic refuse or flush it down a sink or drain. Collect any oil in a leak-proof container and take it to your local waste disposal site. Should hydraulic components become completely unserviceable and require disposal, draw off the oil into an approved container and dispose of the product and the oil according to local regulations.

TECHNICAL SPECIFICATIONS

Capacity30 Tonne (30,000 kg)
Hose Operating Pressure68 Mpa
Ram Travel215 mm
Ram Shaft Diameter54 mm
Net Weight135 kg
Dimensions D x W x H760 x 560 (exc pump) x 1700 mm
Throat Width510 mm
No of bed positions10
Throat Depth (Ram to pressing plate)Platform at highest;- 0 mm Platform at middle;- 250 mm Platform at lowest;- 940 mm
Ram travel per stroke4.54 mm
No of strokes to full extension31
Pressure Gauge typeAccuracy class 2.5
Pressure Gauge range0-45 tonnes
Length of Handle930 mm
Pump oil capacity1.2 litres
Oil typeVG13

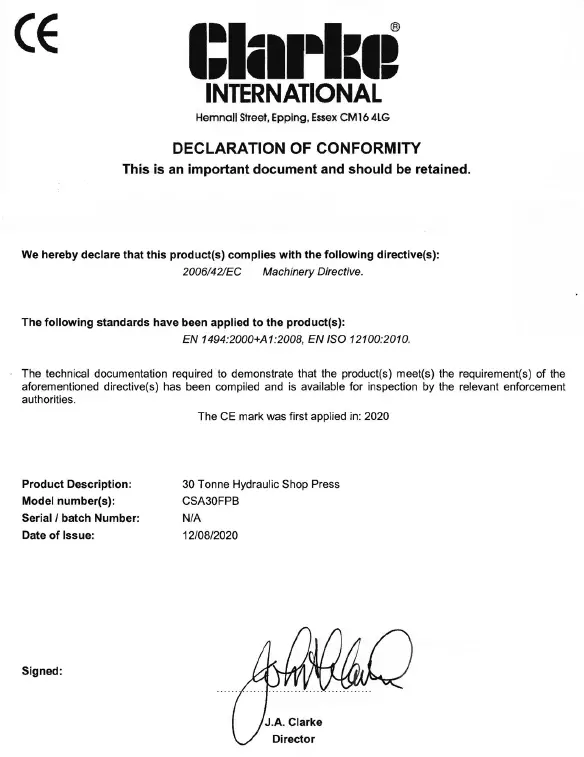

DECLARATION OF CONFORMITY

Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-11

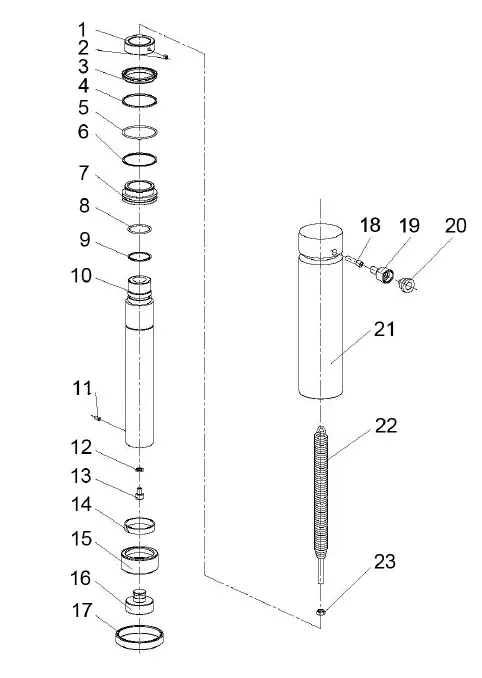

RAM PARTS DIAGRAM

Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-12

NODESCRIPTION
1Spacing ring
2Screw M6x6
3Y-ring
4Back ring
5O-ring
6Nylon ring
7Piston ring
8O-ring
9Ring
10Piston
11Screw
12Sealing washer
NODESCRIPTION
13Bolt M8x10
14Guide ring
15Upper collar
16Toe
17Lower securing collar
18Bolt
19Coupling
20Dust cap
21Cylinder
22Spring
23Nut M8

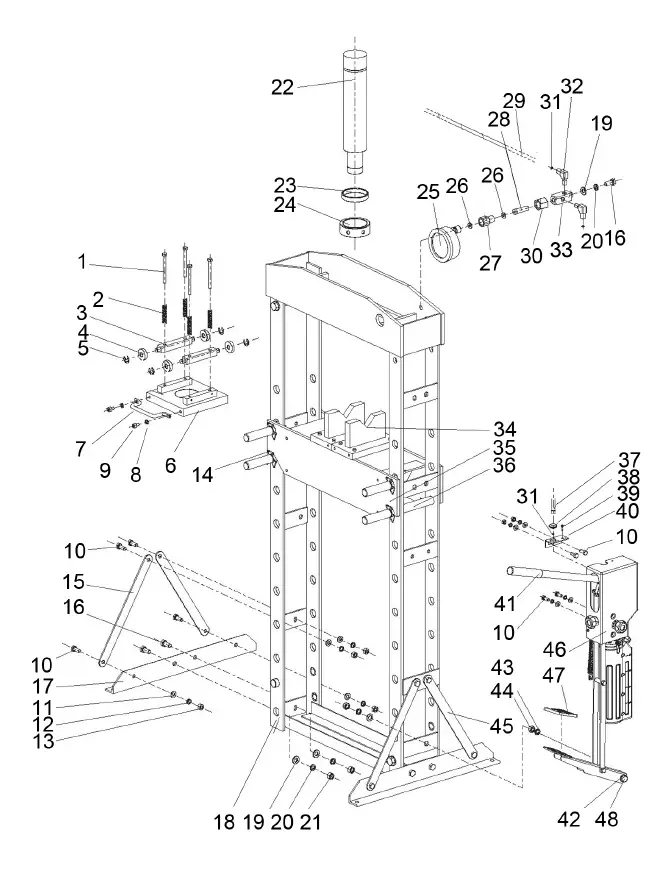

GENERAL ASSEMBLY PARTS DIAGRAM

Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-13

GENERAL ASSEMBLY PARTS LIST

NODESCRIPTION
1Bolt M10 x 110mm
2Spring
3Roller shaft
4Bearing
5Circlip
6Cylinder fixing plate
7Cylinder moving handle
8Spring washer 8mm
9Bolt M8x10mm
10Bolt M10 x 25mm
11Washer 10mm
12Spring washer 10mm
13Nut M10
14Butterfly spring clip
15Stay bar
16Bolt M12 x 25mm
17Base section
18Frame
19Washer 12mm
20Spring washer 12mm
21Nut M12
22Cylinder assembly
23Protecting ring
24Securing collar
NODESCRIPTION
25Pressure gauge
26Sealing ring
27Gauge connector
28Joining piece
29Hydraulic hose
30Gauge connecting nut
31O-ring
32T- connector
33Straight connector
34Pressing block
35Bed frame
36Bed frame pin
37Hydraulic hose
38Hose fixing sleeve
39Rivet
40Hose mounting plate
41Handle
42Washer 14
43Spring washer 14
44Nut M14
45Tie bar
46Pump peddle
47Pedal pad
48Screw

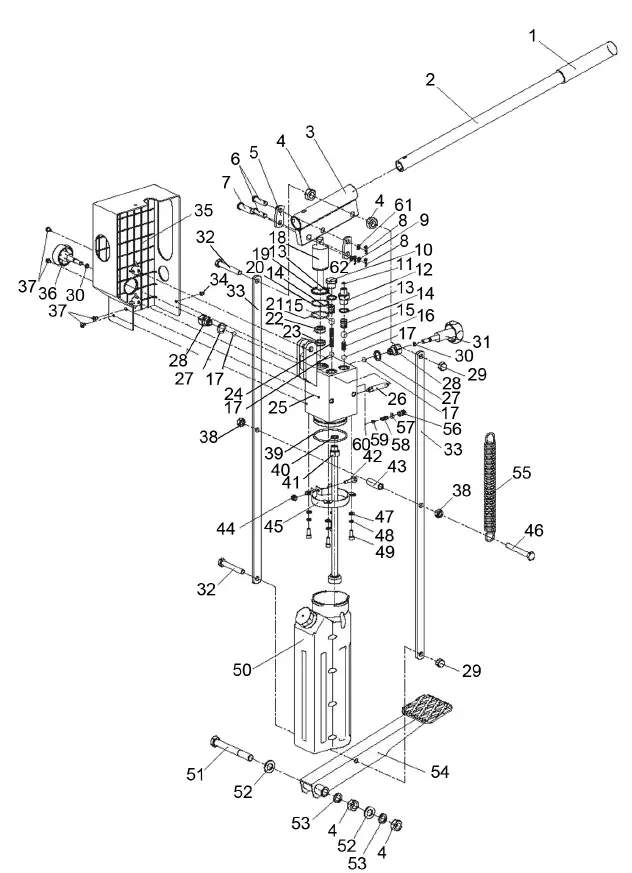

PUMP PARTS DIAGRAM

Clarke-CSA30FPB-30-Tonne-Hydraulic-Press-14

PUMP PARTS LIST

NODESCRIPTION
1Handle Sleeve
2Handle
3Handle Socket
4Nut M14
5Connector
6Connector pin
7Handle socket pin
8Torsion spring bolt A
9Torsion spring bolt B
10High pressure oil plug
11O-ring 5 x 1.8
12Hose connector
13High pressure washer
14High pressure oil spring
15Steel ball 13.5mm
16Low pressure oil sucking spring
17Steel ball 9.5mm
18Pump core
19Star O-ring
20Pump core back ring
21Pump core O-ring
22Pump core sleeve
23Pump core Y-ring
24High pressure oil sucking spring
25Base unit
26Support rod
27Oil return sleeve copper pad
28Return valve stem sleeve
29Lock nut M10
30O-ring 5.7 x 1.9
31Oil release stem part
NODESCRIPTION
32Bolt M10 x 70
33Connecting rod
34Cap nut M5
35Plastic protective shell
36Speed regulator valve part
37X-headed screw M5x8
38Nut M10
39O-ring
40End Ring
41Oil pick-up pipe assembly
42Shaft M6 x 25
43Bush
44Lock nut M6
45Hoop
46Shaft M10x80
47Flat washer 6mm
48Spring washer
49Inner hex bolt M6 x 16
50Oil reservoir
51Reformed bolt
52Flat washer 14
53Spring washer 14
54Foot pedal
55Tension spring
56Pressure regulating screw
57O-ring
58Pressure regulating spring
59Spring base
60Steel ball 3mm
61Flat washer 10
62Flat washer 12
