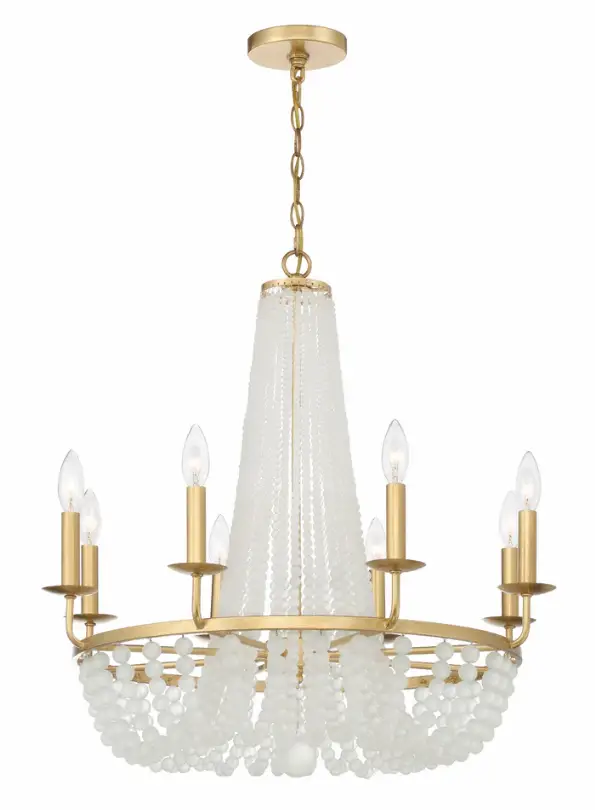

CRYSTORAMA BLA-10668-GA Bella Eight Light Chandelier
Product Information
- Product Model: BLA-10668-GA
- Manufacturer: Crystorama.com
WARNING:
All electrical components must be Installed by a licensed electrlclan in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 8 ·Candelabra Base Bulb 40 Watts Recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED
How to Install
- Screw the center stem kit (Part H) onto the coupler on the top of the frame.
- Decide the preferred hanging height and choose the correct length of chain (Part F) needed.
- Install the mounting strap (Part A) onto the outlet box.
- Raise the frame up over the mounting strap and do the wire connections. Secure the canopy (Part B) with the collar loop ring (Part D).
- Install the bulb onto the socket.

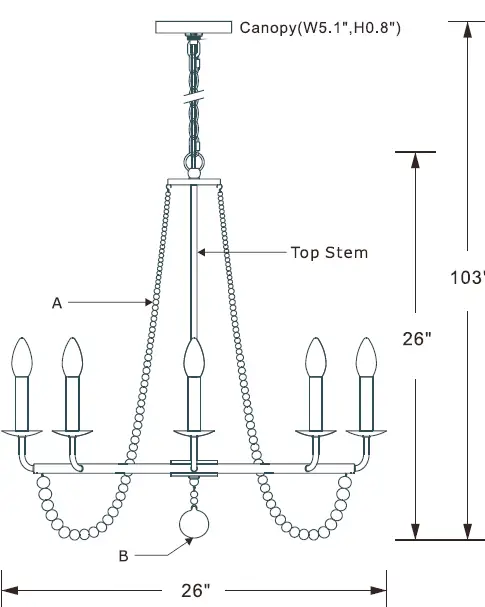

- Dress the crystals as illustrated.

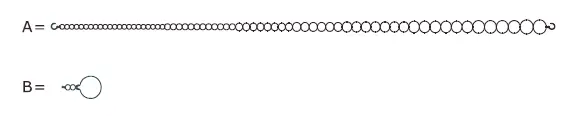

Crystal Sets
- A.32 Sets.
- (22)8mm + (12)10mm + (8)12mm
- + (6)14mm + (7)16mm + (6)18mm
- + (4)20mm + (2)22mm
- (22)8mm + (12)10mm + (8)12mm
- B.1 Set.
- (2)12mm + (l)SOmm
- (2)12mm + (l)SOmm

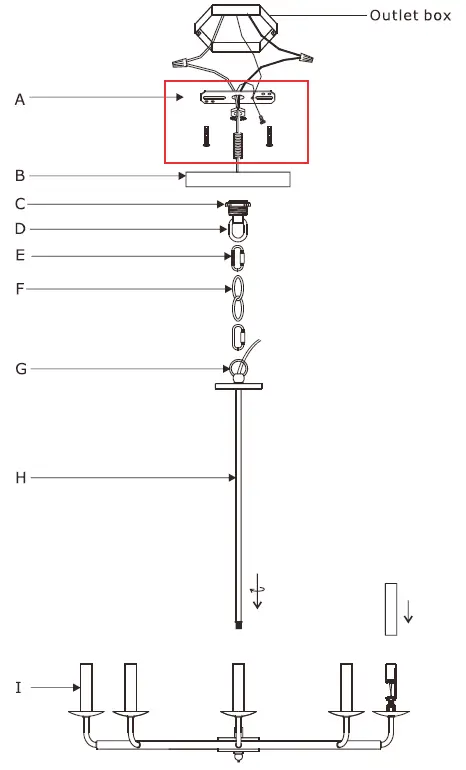

Product Parts
| Part | Description | Part Number |
|---|---|---|
| A | Mounting Hardware | N/A |
| B | Canopy | #XRE10668GACAN5.1IN |
| C | Collar Ring | N/A |
| D | Collar Loop | N/A |
| E | Quick Link | N/A |
| F | Hanging Chain | #XRE10668GACHA4MM |
| G | Fixture Loop | #10668GALOOP |
| H | Center Stem Kit | #XRE10668GASTEM |
| I | Candle Sleeve | #XRE10668GACDL3.94IN |
Part Number
- (1) – Mounting Hardware
- (1) – Canopy(W5.1”, H0.8”) #XRE10668GACAN5.1IN
- (1) – Collar Ring
- (1) – Collar Loop
- (2) – Quick Link
- (1) – Hanging Chain(72”,4mm) #XRE10668GACHA4MM
- (1) – Fixture Loop #10668GALOOP
- (1) – Center Stem Kit #XRE10668GASTEM
- (1) – Candle sleeve(W0.87”, H3.94”) #XRE10668GACDL3.94IN
Crystorama Lighting
