CRYSTORAMA LogoLIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION MODEL #GAB-B7305-GACRYSTORAMA GAB B7305 GA Gabrielle Six Light Chandelier

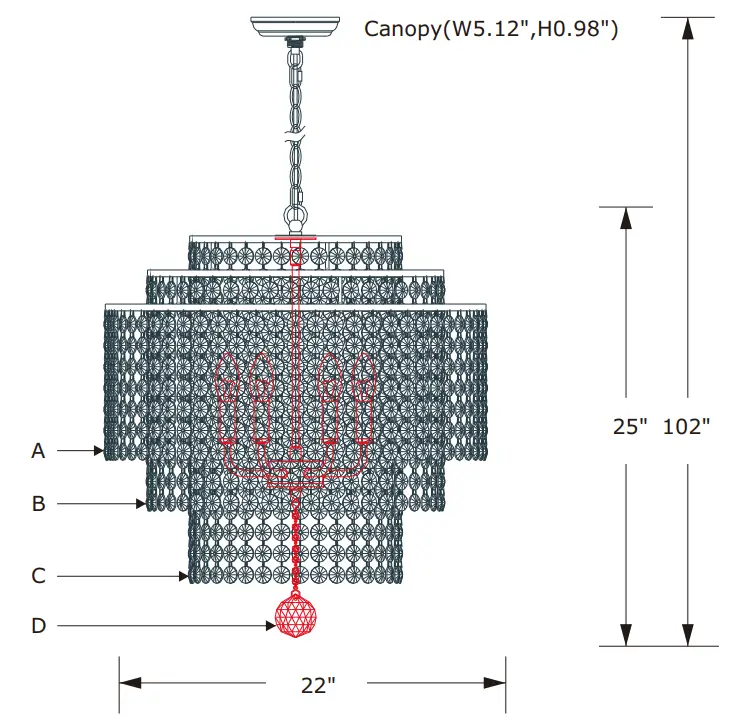

GAB-B7305-GA Gabrielle Six Light Chandelier

CRYSTORAMA GAB B7305 GA Gabrielle Six Light Chandelier  - Figure

CRYSTORAMA GAB B7305 GA Gabrielle Six Light Chandelier  - Icon

All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.CRYSTORAMA GAB B7305 GA Gabrielle Six Light Chandelier  - Icon 1
You will need 6-Candelabra Base Bulb 40 Watts Recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE This fixture is DAMP rated

How to install

  1. Do a complete inventory of all parts and components before you start installation.
  2. Attach the center stem onto the wiring house.
  3. Attach the top of the center stem onto the swivel.
  4. Place the candle sleeve onto the socket and insert recommended bulb (not included).
  5. Dress the fixture with crystal as illustrated.

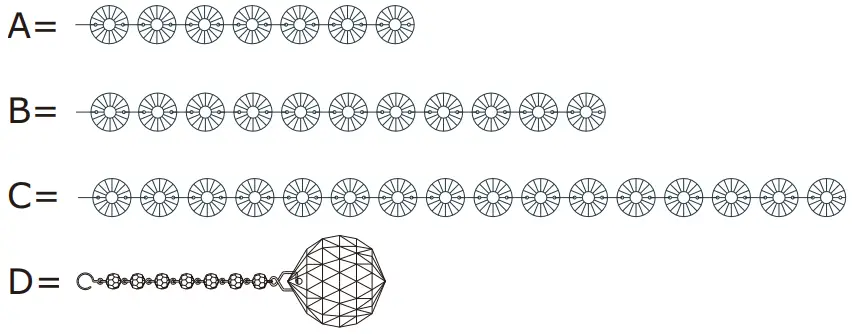

Bead Sets
A.60 Sets (7)25mm
B.45 Sets (11)25mm
C.35 Sets (16)25mm
D.1 Set (7)12mm + (1)60mm
Warning icon WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Wamings.ca.gov.

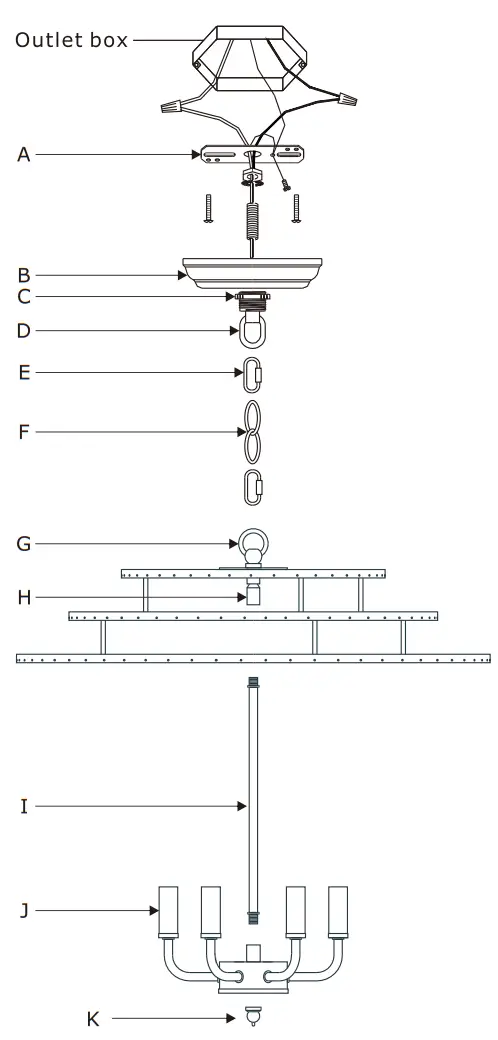

CRYSTORAMA GAB B7305 GA Gabrielle Six Light Chandelier  - Figure 1

Part Number

A. (1) – Mounting Hardware
B. (1) – Canopy(W5.12″,H0.98″) #XRE7305GACAN5.12IN
C. (1) –
D. (1) – Collar Loop
E. (2) – Quick Link
F. (1) – Hanging Chain(72″,4mm) #XRE7304GACHA4MM
G. (1) – Fixture Loop
H. (1) – Swivel
I. (1) – Center Stem(10.79″, 9.5mm) #XRE7305GASTEM10.79IN
J. (6) – Candle Sleeve(W0.87″,H2.36″) #XRE7304GACDL2.36IN
Collar Ring
K. (1) – Finial #XRE7305GAFIN

CRYSTORAMA GAB B7305 GA Gabrielle Six Light Chandelier  - QR CodeCrystorama.com
