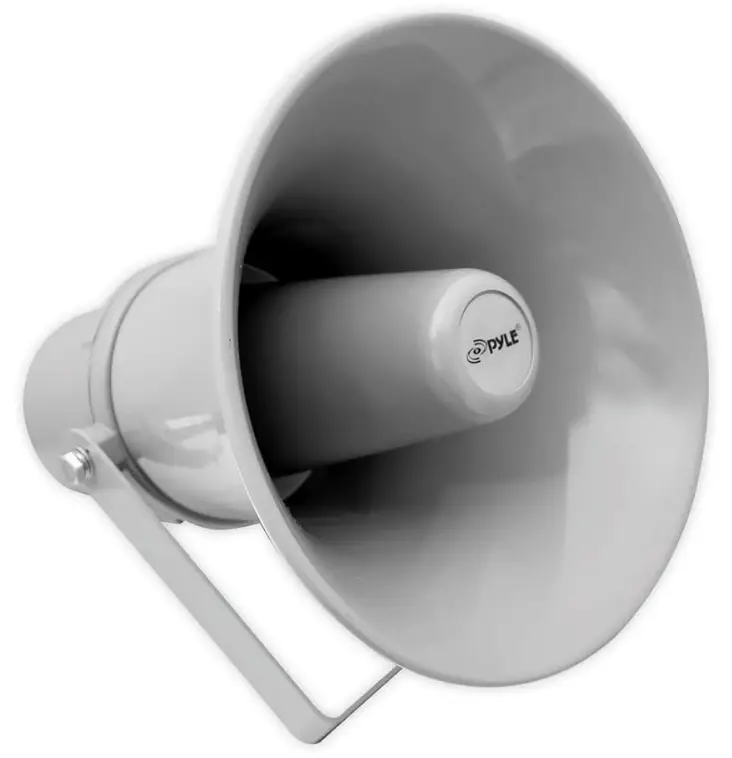

Pyle PHSP101T Indoor Outdoor PA Horn Speaker
Specifications
- SPL (1W/1m) for aluminum housing is:
- Rating for Power/Load: 20 Watts
- RMS-Mounting: Hardware & Bracket Nominal
- Impedance: 8 Ohms
- Dimensions: 70 Volt
- Transformer Tapping: 20/10/5, 9.7″ H x 9.7″ W x 11.3″, Grey
- Range of frequencies: 400 Hz to 5 KHz
- Speaker Type:7-Inch Indoor/Outdoor
- Special Feature: Speakers
- Recommended Uses For Product: For Music Players
- Item Weight: 5 pounds
- Item model number: PHSP101T
Descriptions
- 7-Inch Indoor/Outdoor PA Horn Speaker with 70 Volt
Features
WATT POWER 20
This robust PA horn speaker will amplify your voice clearly. It provides a powerful 20 watt sound that is sufficient to reach the desired loudness so you may play your favourite music as loudly and stylishly as you like.
Frequency response between 400Hz and 5 KHz
This 9.7-inch mini horn pa outdoor loudspeaker audio horn speaker has an 8-ohm impedance, 102dB SPL, and a frequency range of 400Hz to 5KHz for full-range sound reproduction.
AUDIO SYSTEM FOR 70V
For your 70 V audio system, the Pyle horn pa speaker horn indoor/outdoor megaphone works great. Ideal for outdoor PA systems when you need a big audience to hear you. Contains a 70-volt transformer with switches for 20, 15, and 5 watts.
SIMPLE INSTALLATION
The mounting bracket and accessories for the outdoor public address power horn speaker are included to make installation simpler. The power horn’s complete dimensions are 9.7″ H x 9.7″ W x 11.3″ D, and it only weighs 5.97 lbs.
ALUMINUM HOUSING
The housing of this small horn speaker for music is made of aluminum. It is incredibly simple to mount and add to your existing sound system because to the heavy-duty housing and structure, which provides a firm base.
Note
Products with electrical plugs are made with American consumers in mind. Because outlets and voltage vary from country to country, this device might need an adapter or converter to be used where you are travelling. Before buying, kindly verify compatibility.
How to use?
- When more than two speakers are operating at once, careful attention to the polarity is necessary to prevent the reproduction of sounds with poor quality and/or low sound pressure.The connection should be done using the same polarity for a parallel connection and a different polarity for a series connection, much like with a battery.
- When extensive wire is required, the low impedance connection invites significant power loss, which results in ineffective speaker operation.
- Use the appropriate high impedance and a matching transformer if the wiring is longer than 50 metres.For low impedance connections, the output impedance of the amplifier should match the total impedance of the speakers.
- For a high impedance connection, connect the speakers such that their combined input power (wattage) and amplifier output power are equivalent. It denotes matching of impedance.
Can I use a PA speaker for music?
PA speakers are excellent for music as well as for speaking out or performing musical instruments. For the maximum possible audio output in terms of quality, power, and clarity, PA system speakers are produced.
Warranty and Support
You can get in touch with the manufacturer directly or find out more information on their website if you’d want a copy of the warranty for a product you saw on Amazon.com. Manufacturer’s warranties might not always be applicable, depending on things like how the product is used, where it was bought, and who sold it to you. If you have any issues, please read the guarantee, and then get in touch with the seller.
Frequently Asked Questions
It ought to, considering how frequently I use them for outdoor applications. It must have a 70v amp that can push the required wattage.
The coloured wires are the hot leads, and the black wire is the common wire. Each color has its own output power tap, which can be 5, 15, or 20 watts. Connect one of the wires to the + or hot of the amplifier and the black to the amp’s negative or ground. It’s a good assumption that the red wire is for 20 watts even if I’m not sure which wire is for what power.
Yes. It has an indoor speaker and an outside speaker.
No such thing as an 110v amp exists. Additionally, the 70v, which stands for 70 volt output, refers to one of the speaker output taps. When using multiple speakers, both this tap and the 25 V tap are used. The 4, 8, and occasionally 16 ohm standard output of, let’s say, a stereo amplifier (amp) should only be utilized when one speaker is connected to each channel, as in stereo.
Hello, this response is accurate. Although you can play music through them, their primary purpose is intercom.
No, that would be a 70V PA speaker. A PA amplifier with a 70V output is necessary. You can connect speakers in series on a 70V system without affecting the impedance. Most likely, the MP3 player you have can only drive speakers with an 8 ohm output.
In a system with numerous speakers, you can change the volume of each speaker individually using 5, 10, or 20 W taps.
Be aware that you can change the volume of individual speakers in a system with several speakers using the 5, 10, or 20 W taps. A maximum power of 60 W is applied to the parallel wiring of the speakers. For instance, you might use up to twelve speakers with 5 W taps or three speakers with 20 W taps each to get a variety of levels from each speaker.
Hello, it is made to work with a 70 volt amplifier. Visit our website, pyleaudio.com, to view the unit’s further specifications.
Hello, the device must be attached to a 70 volt receiver or a speaker output port. Visit our website, pyleaudio.com, to view the unit’s further specifications. For further information, enter the model number PHSP121T in the search box. I’m grateful.
Hello, you need to connect your 70 volt amplifier to the speaker. Visit our website, pyleaudio.com, to view the unit’s further specifications. For further information, enter the model number PHSP121T in the search box. I’m grateful.
The neutral wire is black, and all of the coloured wires have distinct outputs.
NO !!! A 20 watt spkr is what it is. You’re referring to a whole different horn.
Hello, a 70 volt amp is required for this item. Check out the PT210 model. Visit our website, pyleaudio.com, to view the unit’s further specifications. For further information, enter the model number in the search box. I’m grateful.
