PHSP6K – PHSP8K – PHSP12K
Indoor/Outdoor PA Horn Speaker
How to use
- Careful attention should be required to the polarity when more than two speakers are in operation at the same place, otherwise, the sound of poor quality and/or sound pressure of low level will be reproduced. Connection should be made in the same way as in the case of the battery, same polarity with parallel connection and different polarity with the series connection.
- When long wiring is called for, the low impedance connection invites large power loss, resulting in inefficient operation of speakers, in case wiring becomes longer than 50 meters, equip matching transformer and use with proper high impedance.
- For a low impedance connection, the total impedance of speakers should be equal to the output impedance of the amplifier.
- Do not operate the unit for an extended period of time with the sound distorting. This is an indication of a malfunction, which in turn can cause heat to generate and result in fire.

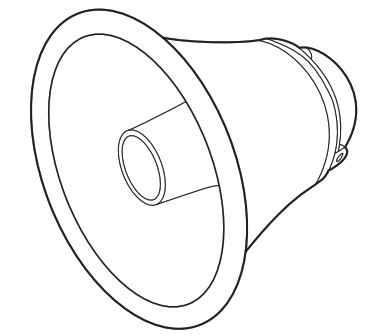

Speaker

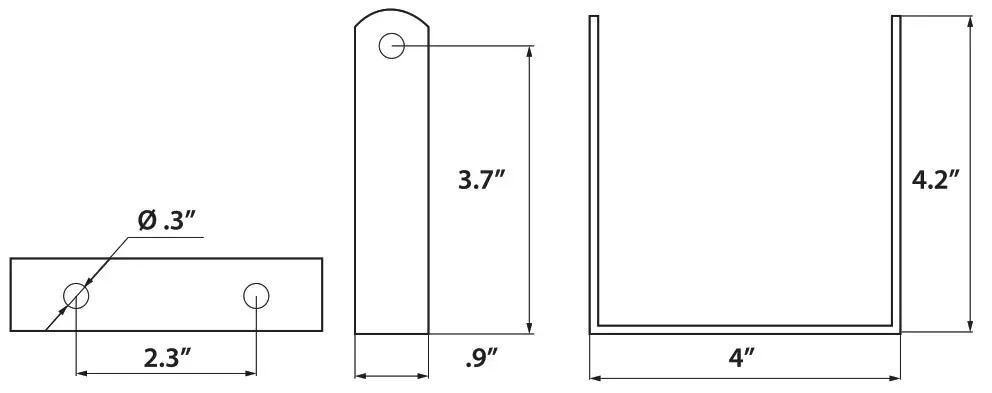

Bracket
Bracket
| Technical Data | PHSP6K | PHSP8K | PHSP12K |
| Load rating | 25W | 50W | 55W |
| Nominal impedance | 8 ohms | 8 ohms | 8 ohms |
| Freaquency range | 400Hz-6KHz | 400Hz-6KHz | 400Hz-5KHz |
| SPL( 1W/m) | 100 dB | 103 dB | 105 dB |

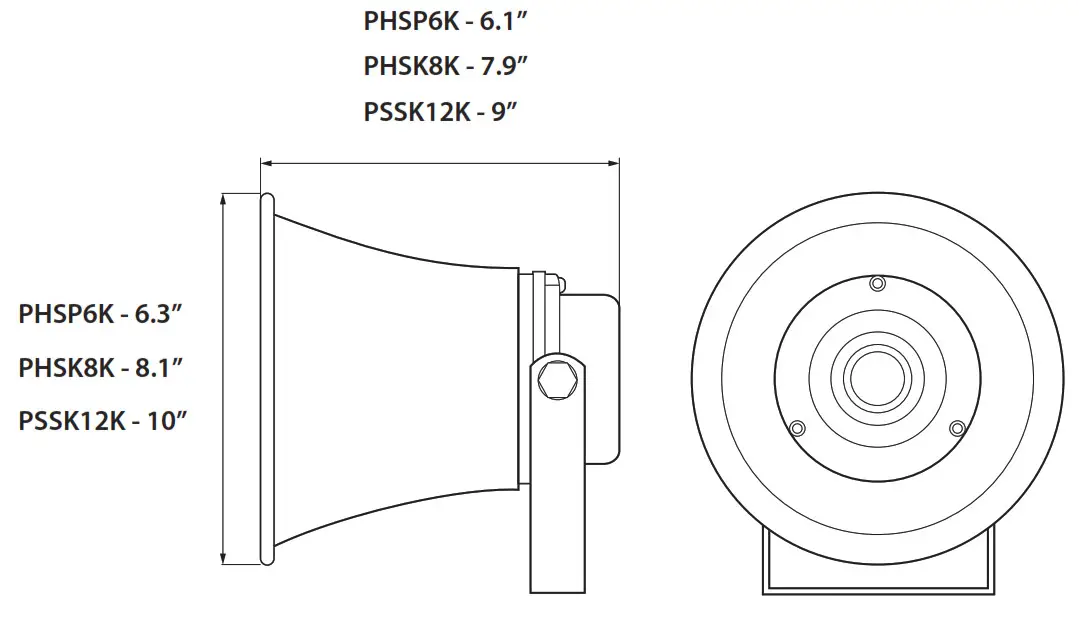

| Dimension ø xD (mm) | ø160x155mm | ø206x200mm | ø260x228mm |
| Material | ALU | ALU | ALU |
