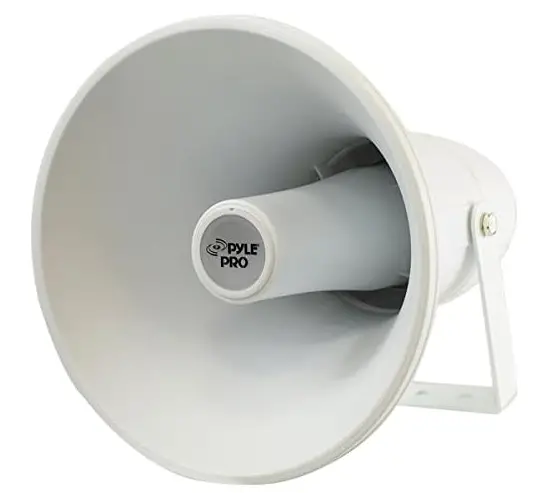

Pyle PHSP30TA Indoor Outdoor PA Horn Speaker
How to use
- Careful attention should be required for the polarity when more than two speakers are in operation at the same place, otherwise, the sound of poor quality and/or sound pressure of low level will be reproduced . Connection should be made in the same way as in the case of the battery, same polarity with parallel connection and different polarity with the series connection.
- When long wiring is called for, the low impedance connection invites large power loss, resulting in inefficient operation of speakers, In case wiring becomes longer than 50 meters. equip matching transformer and use with proper high impedance.
- For a low-impedance connection, the total impedance of the speakers should be equal to the output impedance of the amplifier.
- Connect the speakers to equal the total input power ( wattage ) to the output power of the amplifier for a high-impedance connection. It means impedance matching.

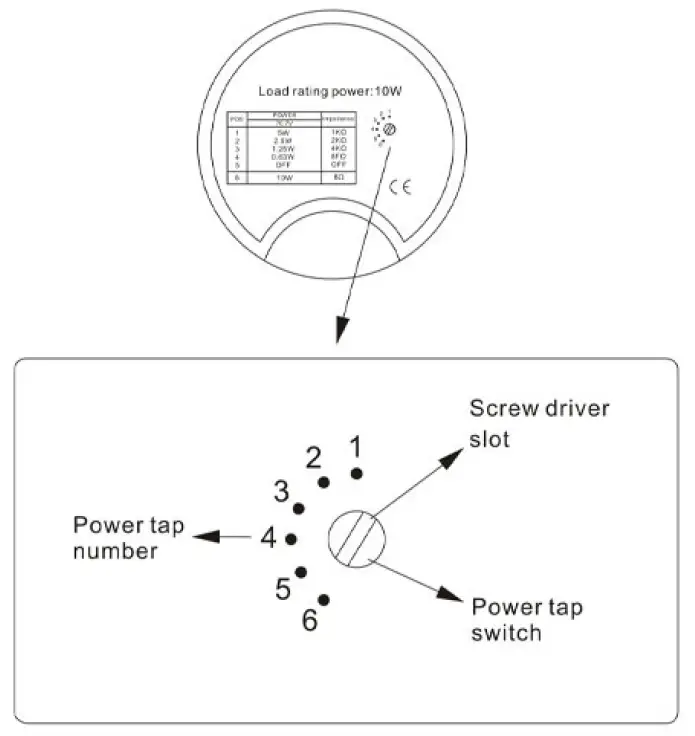

- When setting the power tap switch, be certain to use the proper positions for either 70 V systems, to prevent horn damage. (FOR PHSP1 OTA, PHSP1 STA, PHSP30TA)
Chang Impedance
See instructions on HORN LABEL

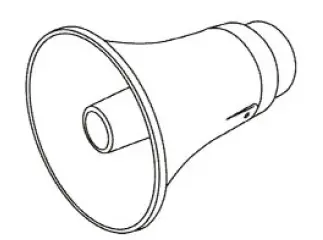

Speaker
- PHSP10TA – 5.6” x 5.6” x 8.3”
- PHSP15TA – 8.2” x 8.2” x 10.8” PHSP30TA – 9.4” x 9.4” x 12”

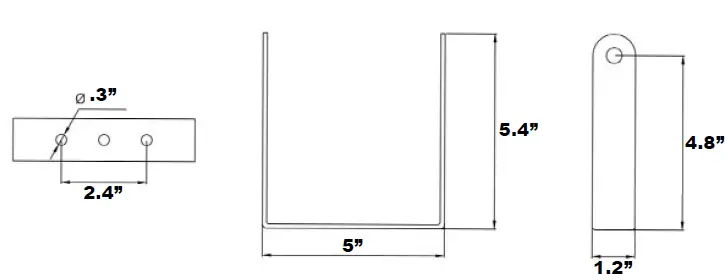

Bracket

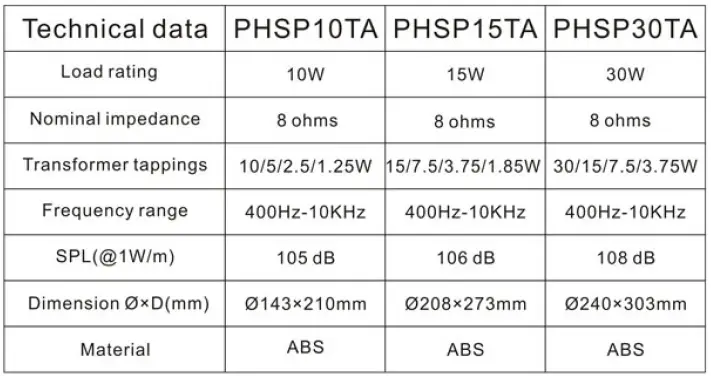

Specifications
FREQUENTLY ASKED QUESTIONS
