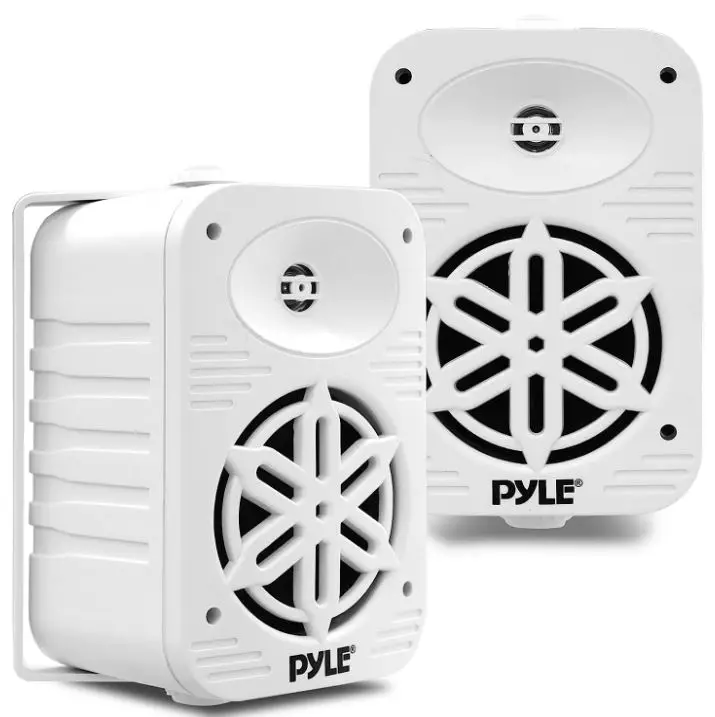

Pyle PDWR55WT Indoor Outdoor Speakers
DESCRIPTION
The weather-resistant speakers known as the Pyle PDWR55WT Indoor/Outdoor Speakers are intended for use both inside and outside the home. They have a sturdy design that enables them to survive a wide range of weather conditions, which qualifies them for use in outdoor settings such as patios, decks, gardens, and other similar areas. The power handling capability of these speakers is listed in the product specifications, and the product specs also note that they deliver high-quality sound reproduction. Mounting brackets, which are included with the PDWR55WT speakers, make it possible to quickly and easily attach the speakers to walls or other surfaces. Speaker wire may be used to make the connection to a stereo receiver or amplifier, and they are often offered for sale in pairs. The Pyle PDWR55WT Indoor/Outdoor Speakers are a dependable option for providing music pleasure to both indoor and outdoor settings thanks to their adaptable design and characteristics that make them resistant to the effects of the weather.
MOUNTING THE BRACKET
- Remove the bracket knobs and the bracket from the speaker
- Hold the bracket up to the mounting surface. “PDWR” can be mounted either horizontally or vertically, hold the bracket so that the speaker wire fits through the large, circular wire hole in the bracket, and align the bracket to be square with the surrounding (Use A level for accuracy)
- Mark the locations of the three shaped screw holes, use all of the holes
- Drill pilot holes into the mounting surface
- Gently pull the speaker wire through the wire hole in the center of the mounting bracket, bracket so that the holes all line up.
- Use your hardware to attach the bracket to the mounting surface.
FINAL ADJUSTMENTS
- After checking that the speaker is in-phase and works correctly, angle the speaker for the best sound.
- Hand-tighten the bracket knobs only, power tools may over-tighten the knob, and strip the threads of the insert.
- Check that the entire installation is safe and secure.

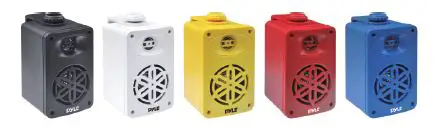

Technical Specs
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Color |
| PDWR35WT | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | White |
| PDWR35BK | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | Black |
| PDWR35YL | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | Yellow |
| PDWR35RD | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | Red |
| PDWR35BL | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | Blue |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Color |
| PDWR45WT | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | White |
| PDWR45BK | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | Black |
| PDWR45YL | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | Yellow |
| PDWR45RD | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | Red |
| PDWR45BL | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | Blue |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Color |
| PDWR55WT | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | White |
| PDWR55BK | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | Black |
| PDWR55YL | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | Yellow |
| PDWR55RD | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | Red |
| PDWR55BL | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | Blue |
California Prop 65 Warning
WARNING:
This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
Questions? Issues?
We are here to help!
- Phone: (1) 718-535-1800
- Email: [email protected]
FREQUENTLY ASKED QUESTIONS
What are the Pyle PDWR55WT Indoor/Outdoor Speakers?
The Pyle PDWR55WT are weather-resistant speakers designed for both indoor and outdoor use, providing high-quality sound reproduction.
Are the Pyle PDWR55WT speakers wireless?
No, the Pyle PDWR55WT speakers are typically wired speakers that require a physical connection to an audio source or amplifier.
Are the Pyle PDWR55WT speakers suitable for outdoor use?
Yes, the Pyle PDWR55WT speakers are specifically designed for outdoor use and are built to withstand various weather conditions.
Can I use the Pyle PDWR55WT speakers in a bathroom or near a pool?
Yes, the Pyle PDWR55WT speakers are suitable for use in damp environments, including bathrooms and pool areas.
What is the power handling of the Pyle PDWR55WT speakers?
The power handling of the Pyle PDWR55WT speakers is typically mentioned in the product specifications, indicating the maximum power they can handle.
Do the Pyle PDWR55WT speakers come with mounting brackets?
Yes, the Pyle PDWR55WT speakers usually come with mounting brackets, allowing for easy installation on walls, ceilings, or other surfaces.
Can I connect the Pyle PDWR55WT speakers to a stereo receiver or amplifier?
Yes, the Pyle PDWR55WT speakers can be connected to a stereo receiver or amplifier using a speaker wire.
What is the frequency response of the Pyle PDWR55WT speakers?
The frequency response of the Pyle PDWR55WT speakers is typically provided in the product specifications, indicating the range of frequencies they can reproduce.
Are the Pyle PDWR55WT speakers magnetically shielded?
The Pyle PDWR55WT speakers are typically not magnetically shielded, so caution should be taken when placing them near sensitive electronic devices.
Can I use the Pyle PDWR55WT speakers with a home theater system?
Yes, the Pyle PDWR55WT speakers can be used as part of a home theater system by connecting them to a compatible amplifier or receiver.
Are the Pyle PDWR55WT speakers sold as a pair?
Yes, the Pyle PDWR55WT speakers are usually sold as a pair.
Do the Pyle PDWR55WT speakers have built-in amplifiers?
No, the Pyle PDWR55WT speakers are typically passive speakers that require an external amplifier or receiver for power.
Can I use the Pyle PDWR55WT speakers with my TV or computer?
Yes, the Pyle PDWR55WT speakers can be used with a TV or computer by connecting them to the audio output of the respective device.
Are the Pyle PDWR55WT speakers suitable for commercial installations?
Yes, the Pyle PDWR55WT speakers can be used in commercial installations such as restaurants, bars, or outdoor venues.
Can I connect multiple sets of Pyle PDWR55WT speakers together?
Yes, you can connect multiple sets of Pyle PDWR55WT speakers in parallel, provided that your amplifier or receiver can handle the speaker load.
Can I use the Pyle PDWR55WT speakers with a Bluetooth adapter?
The Pyle PDWR55WT speakers do not typically have built-in Bluetooth connectivity. However, you can use an external Bluetooth adapter to connect them wirelessly to compatible devices.
DOWNLOAD THE PDF LINK: Pyle PDWR55WT Indoor Outdoor Speakers User Manual
