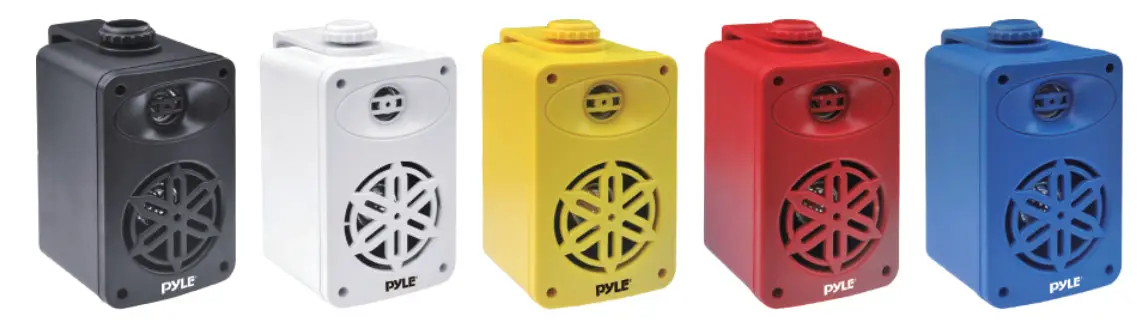

PDWR35BK 2-Way Indoor-Outdoor Speaker System
User Guide

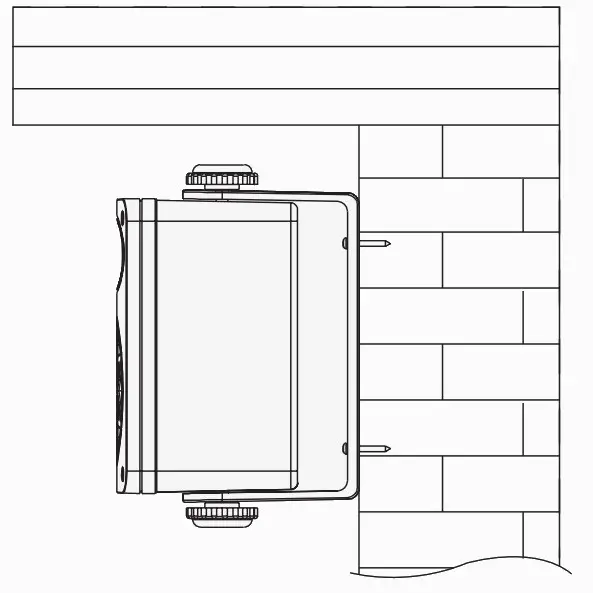

MOUNTING THE BRACKET
- Remove the bracket knobs and the bracket from the speaker
- Hold the bracket up to the mounting surface.
“PDWR” can be mounted either horizontally or vertically, hold the bracket so that the speaker wire fits through the large, circular wire hole in the bracket, align the bracket to be square with the surrounding (Use A level for accuracy) - Mark the locations of the three shaped screw holes, use all of the holes
- Drill pilot holes into the mounting surface
- Gently pull the speaker wire through the wire hole in the center of the mounting bracket, the bracket so that the holes all line up.
- Use your hardware to attach the bracket to the mounting surface.
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: [email protected]
Technical Specs
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Colour |
| PDWR35WT | 200 Watt | 100 Watt | 3.5″ | 1.75″ | 0.5″ | 70-21 kHz | 24 Oz | 8 Ohm | White |
| PDWR35BK | 200 Watt | 100 Watt | 3.5″ | 1.75″ | 0.5″ | 70-21 kHz | 24 Oz | 8 Ohm | Black |
| PDWR35YL | 200 Watt | 100 Watt | 3.5″ | 1.75″ | 0.5″ | 70-21 kHz | 24 Oz | 8 Ohm | Yellov. |
| PDWR35RD | 200 Watt | 100 Watt | 3.5″ | 1.75″ | 0.5″ | 70-21 kHz | 24 Oz | 8 Ohm | Red |
| PDWR35BL | 200 Watt | 100 Watt | 3.5″ | 1.75″ | 0.5″ | 70-21 kHz | 24 Oz | 8 Ohm | Blue |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Colour |
| PDWR45WT | 300 Watt | 150 Watt | 1.75″ | 0.5″ | 60-21 kHz | 30 Oz | 8 Ohm | White | |
| PDWR45BK | 300 Watt | 150 Watt | 1.75″ | 0.5″ | 60-21 kHz | 30 Oz | 8 Ohm | Black | |
| PDWR45YL | 300 Watt | 150 Watt | 1.75″ | 0.5″ | 60-21 kHz | 30 Oz | 8 Ohm | Yellov. | |
| PDWR45RD | 300 Watt | 150 Watt | 1.75″ | 0.5″ | 60-21 kHz | 30 Oz | 8 Ohm | Red | |
| PDWR45BL | 300 Watt | 150 Watt | 1.75″ | 0.5″ | 60-21 kHz | 30 Oz | 8 Ohm | Blue | |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Colour |
| PDWR55WT | 500 Watt | 250 Watt | 5.25″ | 1.75″ | 0.5″ | 50-21 kHz | 40 Oz | 8 Ohm | White |
| PDWR55BK | 500 Watt | 250 Watt | 5.25″ | 1.75″ | 0.5″ | 50-21 kHz | 40 Oz | 8 Ohm | Black |
| PDWR55YL | 500 Watt | 250 Watt | 5.25″ | 1.75″ | 0.5″ | 50-21 kHz | 40 Oz | 8 Ohm | Yellow |
| PDWR55RD | 500 Watt | 250 Watt | 5.25″ | 1.75″ | 0.5″ | 50-21 kHz | 40 Oz | 8 Ohm | Red |
| PDWR55BL | 500 Watt | 250 Watt | 5.25″ | 1.75″ | 0.5″ | 50-21 kHz | 40 Oz | 8 Ohm | Blue |
VISIT US ONLINE: Have a question?
Need service or repair?
Want to leave a comment?
PyIeUSA.com/ContactUs
California Prop 65 Warning.
WARNING: This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
