PYLE 265728065907 2-Way Indoor Outdoor Wireless BT Speaker System

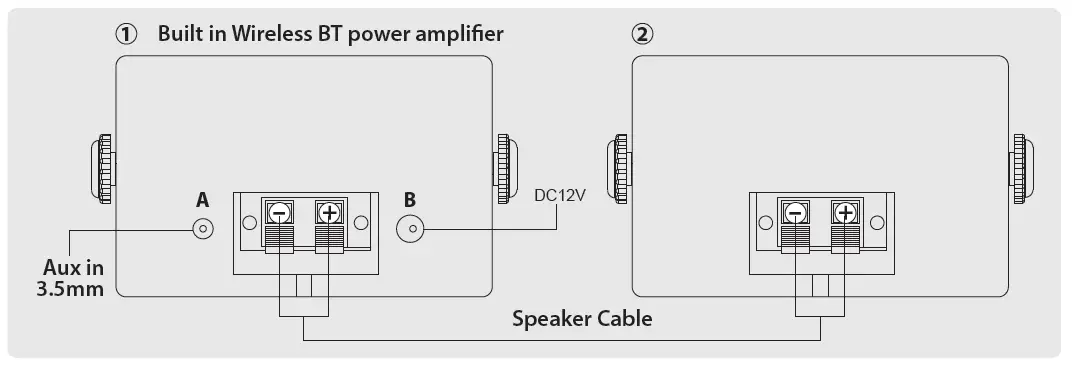

Wireless BT Connection Diagram
- As shown in diagram, will be the rst two speakers docking, red lead to the positive, black lead to the negative.
- As shown in diagram 1, A port is 3.5mm AUX IN, B port is DC12V, the connection is complete.
Wireless BT Connectivity
- Built-in Wireless BT Streaming Receiver
- Simple & Hassle-Free Connection Works with All of Today’s Latest Devices (Smartphone, Tablet, Laptop, Computer, etc.)
- Wireless BT Version: 4.0
- Wireless BT Network Name: ‘Pyle’
- Wireless BT Network Password: ‘0000’ (4 Zeroes)
- Wireless Range: 30’+ ft.
Technical Specs
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Power | Colour |
| PDWRBT36WT | 200 Watt | 100 Watt | 3.5” | 1.75” | 1.0” | 70-21 kHz | 24 Oz | 8 Ohm | DC12V | White |
| PDWRBT36BK | 200 Watt | 100 Watt | 3.5” | 1.75” | 1.0” | 70-21 kHz | 24 Oz | 8 Ohm | DC12V | Black |
| PDWRBT36YL | 200 Watt | 100 Watt | 3.5” | 1.75” | 1.0” | 70-21 kHz | 24 Oz | 8 Ohm | DC12V | Yellow |
| PDWRBT36RD | 200 Watt | 100 Watt | 3.5” | 1.75” | 1.0” | 70-21 kHz | 24 Oz | 8 Ohm | DC12V | Red |
| PDWRBT36BL | 200 Watt | 100 Watt | 3.5” | 1.75” | 1.0” | 70-21 kHz | 24 Oz | 8 Ohm | DC12V | Blue |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Power | Colour |
| PDWRBT46WT | 300 Watt | 150 Watt | 4” | 1.75” | 1.0” | 60-21 kHz | 30 Oz | 8 Ohm | DC12V | White |
| PDWRBT46BK | 300 Watt | 150 Watt | 4” | 1.75” | 1.0” | 60-21 kHz | 30 Oz | 8 Ohm | DC12V | Black |
| PDWRBT46YL | 300 Watt | 150 Watt | 4” | 1.75” | 1.0” | 60-21 kHz | 30 Oz | 8 Ohm | DC12V | Yellow |
| PDWRBT46RD | 300 Watt | 150 Watt | 4” | 1.75” | 1.0” | 60-21 kHz | 30 Oz | 8 Ohm | DC12V | Red |
| PDWRBT46BL | 300 Watt | 150 Watt | 4” | 1.75” | 1.0” | 60-21 kHz | 30 Oz | 8 Ohm | DC12V | Blue |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Power | Colour |
| PDWRBT56WT | 500 Watt | 250 Watt | 5.25” | 1.75” | 1.0” | 50-21 kHz | 40 Oz | 8 Ohm | DC12V | White |
| PDWRBT56BK | 500 Watt | 250 Watt | 5.25” | 1.75” | 1.0” | 50-21 kHz | 40 Oz | 8 Ohm | DC12V | Black |
| PDWRBT56YL | 500 Watt | 250 Watt | 5.25” | 1.75” | 1.0” | 50-21 kHz | 40 Oz | 8 Ohm | DC12V | Yellow |
| PDWRBT56RD | 500 Watt | 250 Watt | 5.25” | 1.75” | 1.0” | 50-21 kHz | 40 Oz | 8 Ohm | DC12V | Red |
| PDWRBT56BL | 500 Watt | 250 Watt | 5.25” | 1.75” | 1.0” | 50-21 kHz | 40 Oz | 8 Ohm | DC12V | Blue |
VISIT US ONLINE: Have a question? Need service or repair? Want to leave a comment? PyleUSA.com/ContactUs
