PPHD210
10” Portable Wireless BT PA Speaker System
Karaoke Speaker with LED Lights, USB/Micro SD/
FM/BT/Aux/Remote Control/Mic & Guitar Inputs,
Built-in Rechargeable Battery, w/ Wheels and Handle Bar (1200 Watt)

PLEASE READ THE INSTRUCTION MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE

WARNING

	1. DO NOT place objects on top of the device, as objects may scratch the device.		5. DO NOT use the device in the rain
	2. DO NOT expose the device to dirty or dusty environments.		6. Please check with your Local Authority or retailer for proper disposal of electronic products.
	3. DO NOT insert any foreign objects in the device.		7. DO NOT disassemble the device. Only a certified service technician should perform the repair.
	4. DO NOT expose the device to a strong magnetic or electrical field.		8. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

The illegal operation may cause personal injury, which could be fatal and may cause damage to property.

Contents hide

1 REMOTE CONTROL Functions

2 Control Board Functions

3 Troubleshooting and Warning

4 Features:

5 Documents / Resources

6 Related Posts

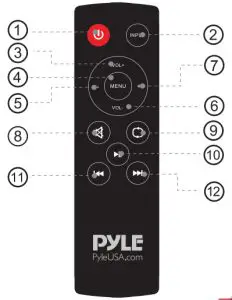

REMOTE CONTROL Functions

POWER OFF ONLY
CHOOSE SIGNAL INPUT
INCREASE MUSIC VOLUME
MENU
PREVIOUS LED MODE
DECREASE MUSIC VOLUME
NEXT LED MODE
MUTE
REPEAT
. PLAY/PAUSE KEY
PREVIOUS SONG/CHANNEL
NEXT SONG/CHANNEL
www.PyleUSA.com

For MENU:
N(0–30) Microphone volume adjustment
E(0–30) Microphone echo volume adjustment
d(0–12) Microphone delay volume adjustment
9(0–30) Guitar volume adjustment
(LED(0–1) LED OFF/ON

TWS-TRUE WIRELESS STEREO SETUP

Turn on two same PA speakers that you’re attempting to pair together and switch both units to Wireless BT mode.
Choose one of the units to begin to pairing process.
Press down on the NEXT button for 3 seconds until you hear a chiming sound; This means the unit is ready to pair with another unit.
Move onto the second unit and repeat step 3.
Now begin playing your music through a Wireless BT-enabled mobile device. The speakers will begin to play your music simultaneously.

Control Board Functions

Microphone volume knob
Guitar volume knob
6.5 MM microphone input jack
6.5MM guitar input jack
3.5MM audio input jack
USB jack for DC 5V/1A output
Reset button
Micro SD jack
USB jack for Mp3 play
Echo volume knob for microphone
Delay volume knob for microphone
Input signal choosing
3 kinds of EQ function
Record function on USB/Micro SD mode
Repeat song function
Last song on USB/Wireless BT mode, last channel for FM mode
Short press for next song on USB/ Wireless BT mode, next channel for FM mode, press, and hold for TWS -connection
LED light swift
Different effect choose
Master volume control for music
Stop/Play song on USB/Wireless BT mode, automatically scan channel for FM mode
Power ON/OFF button
15V/2A DC charge and LED indicator phone volume knob

Troubleshooting and Warning

Fault	Possible Cause	Solution
_{No sound}	1. No input sound source 2. Volume is too low	1. Use a better music signal 2. Adjust the volume
Distortion of sound	1. Volume too high 2. Speaker may be damaged	1. Turn down the volume 2. If the speaker is damaged, repair or replace it
Karaoke does not work	1. Microphone plug is not fully inserted. 2. Microphone switch is not on 3. Microphone volume knob is at the lowest position	1. Plug microphone properly into the socket 2. Turn on the microphone switch 3. Adjust microphone volume properly
MP3 does not play	1. The song format in the U disc is incorrect 2. Improper operation has caused a processing disorder 3. USB disc is disconnected	1. Transform song format into Mp3 format 2. Reboot the machine 3. Insert USB disc properly

PPHD210
10” Portable Wireless BT PA Speaker System
Karaoke Speaker with LED Lights, USB/Micro SD/FM/BT/Aux/Remote Control/Mic & Guitar Inputs, Built-in Rechargeable Battery, w/ Wheels & Handle Bar (1200 Watt)

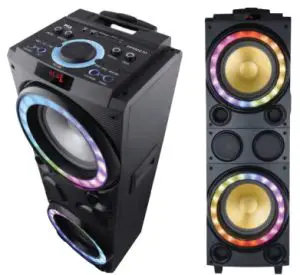

Features:

True Wireless Stereo Function
Simple DJ Sound Effect and EQ Adjustable
USB Charging Power Function
Portable PA Speaker System
High-Powered Loudspeaker Design
Master Volume, Mic Volume, and Mic Echo Adjustable
(2) 1/4” -inch (6.5mm) Microphone/Guitar Instrument Inputs
ON/OFF Switch to Control LED Lights
Wireless BT Music Streaming Ability
Multi-Color Flashing LED Party Lights

This product can expose you to a chemical or group of chemicals, which may include ”Lead and lead compounds” which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
