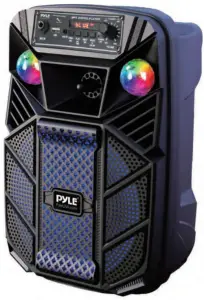

PYLE PPHP838B 8-Inch Wireless BT Portable PA Speaker

WARNING

	1. DO NOT place objects on top of the device, as objects may scratch the device.
	2. DO NOT expose the device to dirty or dusty environments.
	3. DO NOT insert any foreign objects into the device.
	4. DO NOT expose the device to strong magnetic or electrical eld
	5. DO NOT use the device in the rain
	6. Please check with your Local Authority or retailer for proper disposaI of electronic products.
	7. DO NOT disassemble the device. Only a certied service technician should perform repair.
	8. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result

Illegal operation may cause personal injury, which could be fatal and may cause damage to property.

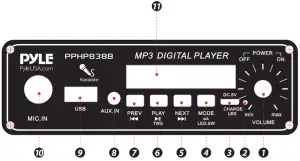

FRONT PANEL FUNCTIONS

Master volume control
Charge LED indicator
DC 5V input jack
Short press to choose input signal, press and hold to turn ON/OFF light
Next/select saved radio station.
Play/Pause/TWS function/In FM mode, press and hold to search radio station automatically and save.
Previous/select saved radio station
AUX input jack
USB input jack
Microphone input jack
Display screen

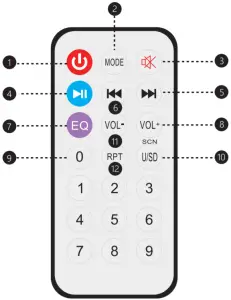

REMOTE CONTROL FUNCTIONS

Power: Used to turn on and off the MP3 player power
MODE: Used to switch the AUX/ USB/Wireless BT/Radio
Mute button
Play/Pause/Press and hold for TWS/ In FM mode, press and hold to search radio station automatically and save
Next song/In FM mode, short press to select saved radio station
Previous song /In FM mode, short press to select saved radio station
EQ solution
Increase volume
Choose song number directly/In FM mode, choose FM Frequency directly
Choose USB or SD signal directly (Only suitable for models with USB & SD both)
Decrease volume
Repeat song

TWS FUNCTION

For increase sound effect, our unit provides TWS function as follows:

Step-1: Turn ON BT mode on your device and connect the machine.
Step-2: Press and hold each control board “TWS” button more than 3’s, and you will see “ON” on display, unit will start to connect the other unit automatically, now you can enjoy stereo sound, and adjusting one unit volume will affect the other unit.

Remark:
1. After connection, press and hold again one of control board “TWS” button more than 3’s, you will see “OFF” on display, unit’s TWS disconnection.

TROUBLESHOOTING

Fault	Possible Cause	Solution
No sound	No input sound source. Volume is too low.	Use a better music signal. Adjust volume.
Distortion of sound	Volume too high. Speaker may be damaged	Turn down the volume. If speaker is damaged, repair or replace it.
Karaoke does not work	Microphone plug is not fully inserted. Microphone switch is not on. Microphone volume knob is at the lowest position.	Plug microphone properly into the socket. Turn on microphone switch. Adjust microphone volume properly.
MP3 does not play	The audio format in the U disc is incorrect. Improper operation has caused a process disorder. USB disc is disconnected	Convert audio format into Mp3 format. Reboot the machine. Insert USB disc properly.

Features

True Wireless Stereo System
Portable Speaker System · High-Powered PA Loudspeaker Style
Wireless BT Music Streaming Ability
Multi-Color Flashing LED Party Lights
Built-in Rechargeable Battery
FM Radio with Digital LED Display
Connect & Stream Audio from External Devices
Aux (3.5mm) Input Connector Jack
USB Flash Memory Reader · 6.5mm Microphone input
Battery Level LED Indicator Lights
Rugged & Durable Molded Cabinet Design
Convenient Extendable Carry Handle
For Indoor / Outdoor Use

Wireless BT Streaming

Built-in BT for Wireless Music Streaming
Simple & Hassle-Free Pairing
Works with All of Today’s Latest Devices
Smartphones, Tablets, Laptops, Computers, etc.
Wireless BT Version: 4.2
Wireless BT Network Name: `PYLEUSA’
Wireless Range: Up to 32′ ft.

What’s in the Box

PA Speaker System
Remote Control
Power Adapter

Technical Specs

Material: Polypropylene (PP)
Max Power Output: 300 Watt Max
Sound System: 8” -inch Subwoofer + 1″Tweeter
Impedance: 3.0 Ohm
Frequency Response: 50Hz-12KHz
USB Interface Type: 2.0
Digital Audio File Support: MP3
Maximum USB Flash Support: 32GB
Remote Control Battery Operated, 1 Piece Button Cell Battery CR-2025 (Included)
Battery Life: Up to 2 Hours (Charge Time: Approx. 4 Hours)
Rechargeable Battery: 3.7V, 1800mAh 6.66 Wh
Power Supply: 120/240V, Switchable (5V/2A Power Adapter)
Dimensions (L x W x H): 8.9” x 7.4” x 13.2” -inches

WARNING

This product can expose you to a chemical or group of checmicals, which may include “Lead and lead compounds” which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
