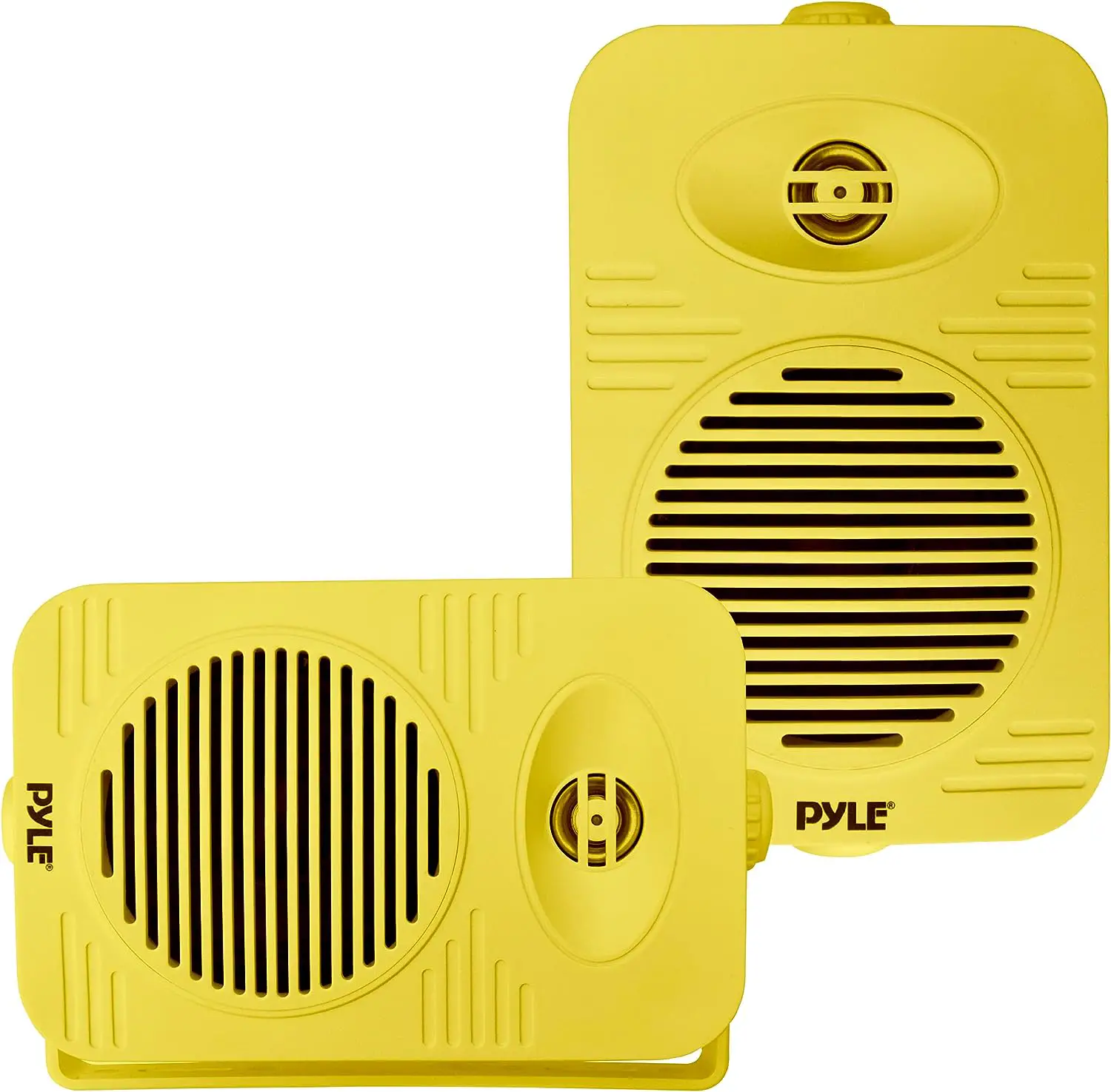

Pyle PDWR55YL.1 Indoor-Outdoor Speaker System

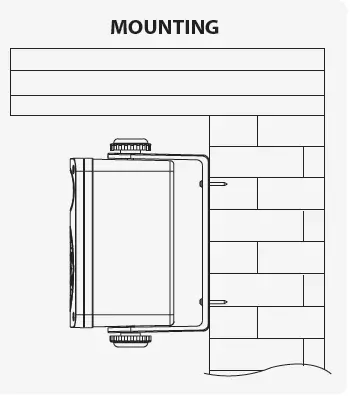

MOUNTING THE BRACKET
- Remove the bracket knobs and the bracket from the speaker
- Hold the bracket up to the mounting surface. “PDWR” can be mounted either horizontally or vertically, hold the bracket so that the speaker wire fits through the large, circular wire hole in the bracket, and align the bracket to be square with the surrounding (Use A level for accuracy)
- Mark the locations of the three shaped screw holes, use all of the holes
- Drill pilot holes into the mounting surface
- Gently pull the speaker wire through the wire hole in the center of the mounting bracket, bracket so that the holes all line up.
- Use your hardware to attach the bracket to the mounting surface.
FINAL ADJUSTMENTS
- After checking that the speaker is in-phase and works correctly, angle the speaker for the best sound.
- Hand-tighten the bracket knobs only, power tools may over-tighten the knob, and strip the threads of the insert.
- Check that the entire installation is safe and secure.
Technical Specs
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Colour |
| PDWR35WT | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | White |
| PDWR35BK | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | Black |
| PDWR35YL | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | Yellow |
| PDWR35RD | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | Red |
| PDWR35BL | 200 Watt | 100 Watt | 3.5” | 1.75” | 0.5” | 70-21 kHz | 24 Oz | 8 Ohm | Blue |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Color |
| PDWR45WT | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | White |
| PDWR45BK | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | Black |
| PDWR45YL | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | Yellow |
| PDWR45RD | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | Red |
| PDWR45BL | 300 Watt | 150 Watt | 4” | 1.75” | 0.5” | 60-21 kHz | 30 Oz | 8 Ohm | Blue |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Response | Magnet | Impedance | Colour |
| PDWR55WT | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | White |
| PDWR55BK | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | Black |
| PDWR55YL | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | Yellow |
| PDWR55RD | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | Red |
| PDWR55BL | 500 Watt | 250 Watt | 5.25” | 1.75” | 0.5” | 50-21 kHz | 40 Oz | 8 Ohm | Blue |
