Pyle Pphp1249kt Wireless Portable Pa Speaker System User Guide (+ PDF)

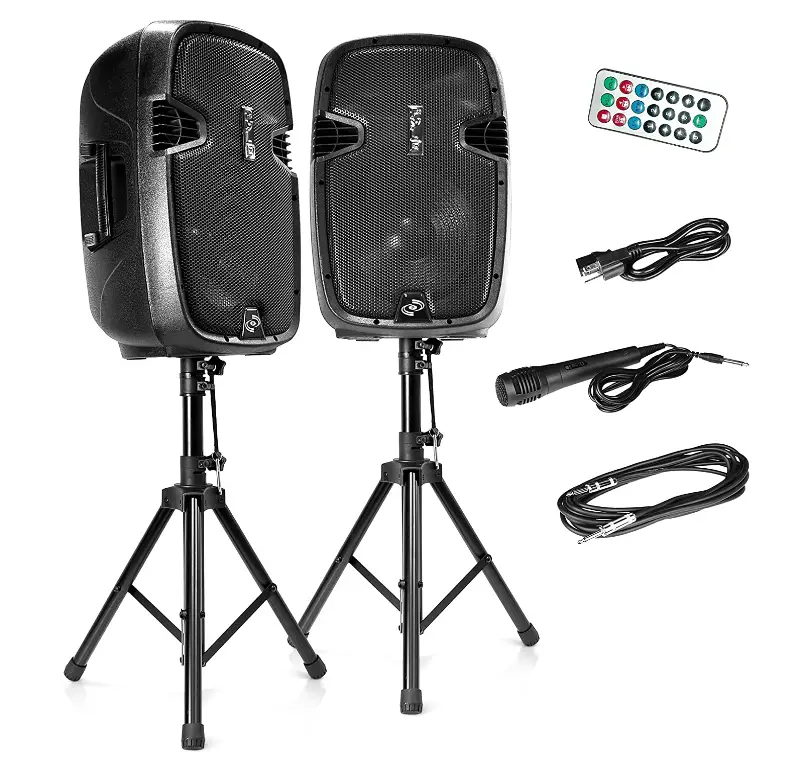

Pyle PPHP1249KT Wireless Portable PA Speaker System

Introduction

You may play your favorite songs as loud and stylishly as you like with this portable high-powered 2 way full-range audio projection loudspeaker PA system, which has a maximum power output of 1800 watt peak power / 900 watt RMS. For surround stereo sound reproduction and powerful bass response, this active plus passive pair PA speaker kit is outfitted with 12″ subwoofers, high performance 1″ tweeters, and compression drivers with titanium diaphragms. This Bluetooth-enabled PA loudspeaker is compatible with iPhone, Android smartphones, iPad, tablets, and PCs for wireless audio streaming. Ideal for usage by an individual indoors at home or at an outdoor DJ party.

This high powered heavy duty PA system has a 35mm stand mount, comes with 2 stands, a remote, a microphone, and a power cable. It also has a USB flash drive and SD card reader so it can function as an MP3 player, a 3.5mm AUX input, a 1/4″ SpeakOn Input, and an XLR microphone input for karaoke. It also has a digital LCD display and a rear panel rotary dial / button control center to adjust.

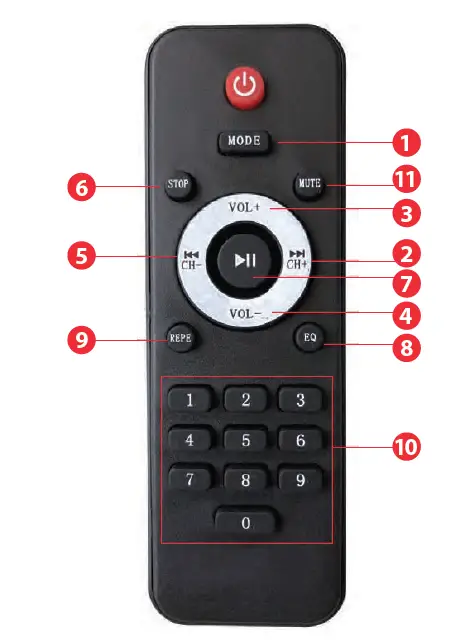

REMOTE CONTROL

MODE : USB/SD/BT/FM CONVERTER
: In USB/SD : Previous Song, Press and hold for fast rewind In FM : switch to backward
VOL + : Increase volume
VOL – : Decrease volume
: In USB/SD : next Song, Press and hold for fast forward In FM : switch to next channel
: Stop Switch the MP3 player off.
/SCAN : Play / Pause In FM : Auto search
EQ : NORMAL, ROCK, POP, CLASS, JAZZ.
REP : Shot press : Random/Single/Order
0-9 : choosing music by numbers
MUTE : Mute the sound of the MP3 player

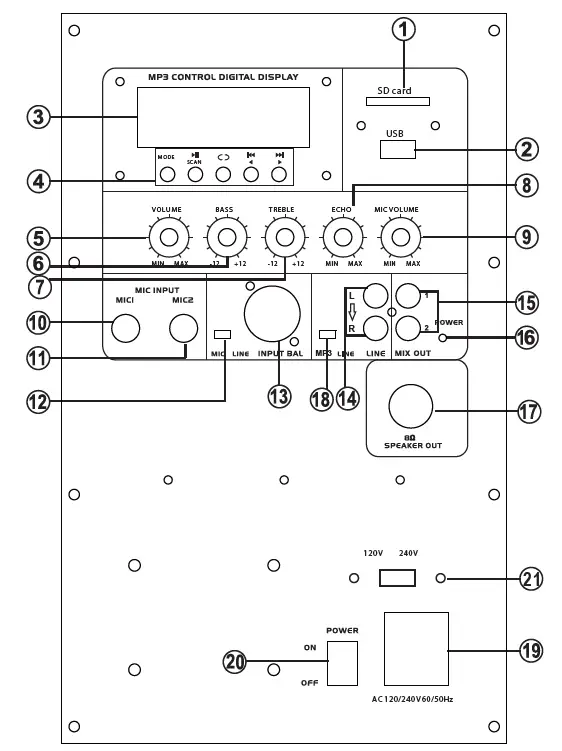

PPHP1249KT

SD card input
USB input
LCD screen
MP3 control

MODE : USB/SD/FM/BT convertor

: Previous songs
PRE/NEXT under FM mode
Next songs: Repeat all / Random / Repeat one
Play/Pause
SCAN: Auto search under FM radio

Volume control
Bass control for low frequencies
Treble control for high frequencies
Echo control
Mic input level control
35 microphone 1 input
35 microphone 2 input
Mic/Line switch
XLR line input
RCA Phone(R+L) line input
35mm line output
Power LED indicator
Speaker out 8 ohm
MP3/Line switch
Fused IEC mains inlet
Main power switch
120V/240V switch

SYSTEM FEATURES

Dual 12-inch High-Powered Loudspeaker PA Systems
Includes (1) Active Speaker, (1) Passive Speaker + (2) Stands
Rugged, Durable & Reliable Sound
Bluetooth Wireless Music Streaming Ability
High-Frequency 1.0” Tweeters
Compression Driver with Titanium Diaphragm
2-Way Full Range Audio Projection
Built-in Digital Audio Amplifier
XLR Microphone Input
1/4’’ SpeakOn (8 Ohm) Input
1/4’’ SpeakOn (8 Ohm) Speaker Output
Aux (3.5mm) Input Jack
Connect & Stream Audio from External Devices
USB Flash Drive & SD Memory Card Readers
Digital LCD Display
Rear Panel Rotary Dial & Button Control Center
Master Volume, Mic Volume, Treble, Bass Adjustable
Integrated Carry Handles
35mm Speaker Stand Mount Compatible
Heavy Duty Engineered ABS Housing

WHAT’S IN THE BOX

12” Active PA Speaker

12” Passive PA Speaker
Speaker Stands
Wired Microphone
Remote Control
Power Cable

BLUETOOTH WIRELESS STREAMING

Instantly Stream Music from Your Bluetooth Devices
Works with All Your Favorite Bluetooth Devices (iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
Bluetooth Version: 4.0
Bluetooth Wireless Range: 100’+ Feet
Bluetooth Network Name: ‘Pyle’

SPEAKER STANDS

Effectively Elevates Speakers for Optimum Sound Performance
Universal Speaker Compatibility (35mm Insert)
Easy Setup and Quick Adjustment Control
Reinforced Steel Support Construction
Speaker Support Arm Extension
Rugged and Reliable
Safety Lock-in Pin
Foldable for Quick Storage and Transport
Rubber-Capped Tripod Feet Base
Perfect for On-Stage or Studio Use
For Professional or Beginner Applications
Speaker Height Adjustable: 59.1” to 82.7”
Load Capacity: 100 lbs. (50 kgs.) -Each

TECHNICAL SPECS

MAX POWER OUTPUT: 1800 Watt
AMPLIFIER: Class D
IMPEDANCE: 8 Ohm
H.D.: <1%
MAGNET: 40 oz.
SENSITIVITY: 96dB (+/-2dB)
MIC INPUT LEVEL: <15mV
LINE INPUT/OUTPUT LEVEL: >250mV
FREQUENCY RESPONSE: 50-18kHz
DIGITAL AUDIO FILE COMPATIBILITY: MP3, WMA
MAXIMUM SD/USB FLASH MEMORY SUPPORT: 32GB
POWER: 120/240V
SINGLE SPEAKER WEIGHT:5 lbs.

FAQs

How does it charge? Do you have to have it plugged in to a power source to work? Need this to be portable even if a power source isn’t available.

the unit doesn’t have a built-in battery. You have to plug it into a wall outlet for it to work.

Does this system come with a manufacturing warranty ?

yes we all have a limited 1-year warranty for our products. You may check other details of the unit by visiting our website pyleaudio.com. Type the model number on the search box PPHP1249KT for more details.

Does the remote work from the front AND back of the speaker?

Front only.

Just purchased & did not come with an owner’s manual, should there be one ?

you may download the user’s manual of our device by simply visiting our website pyleaudio.com. On the search box there type the model number of your unit PPHP1249KT then click search. The picture of your unit will appear click it then go to Manuals and Downloads so you can get a PDF copy of your user’s manual.

Can you add a sub to this

A powered sub yes.

Got a hissing sound in my speakers how do I get rid of that sound just got them yesterday should this be happening?

I’ve had mine for two years I never had a hissing sound at all.

Is there a way to buy only the secondary speaker?

On this particular pair of speakers no. but I’m sure you can buy a passive speaker on Amazon also.

will the passive speaker work with a normal speakon cable that is plugged into a stage?

In my case, no. The passive speaker no matter what it was plugged into or what cord I used, would not work. This is only on the 8in set.

If you order it do you get it with the stand

Yes, the stand is included in the box.

Do you think this can use for a tropical band like Bass congas voice

These do not carry bass very well. vocals might be ok.

can this work with electric guitar

Yes, it works with electric guitar.

Are these good for large gig

Yes, I believe so, because with just one it plays so loud.

Does the 12″ speaker come with 2 speaker stands and 2 speakers 1 passive and 1 powered

Yes, all of these things are included in the package.

Will this work for a lg ck99?

I don’t think it will. But honestly if you were going to get a portable pa I would consider a JBL or upgrade in speaker size because these are super clear and have great high and mid-range but the lower base range just isn’t there.

How long is the cable that goes from speaker to speaker?

it is around 5 ft. For more info, kindly visit our website pyleaudio.com. Type the model number on the search box PPHP1249KT.
