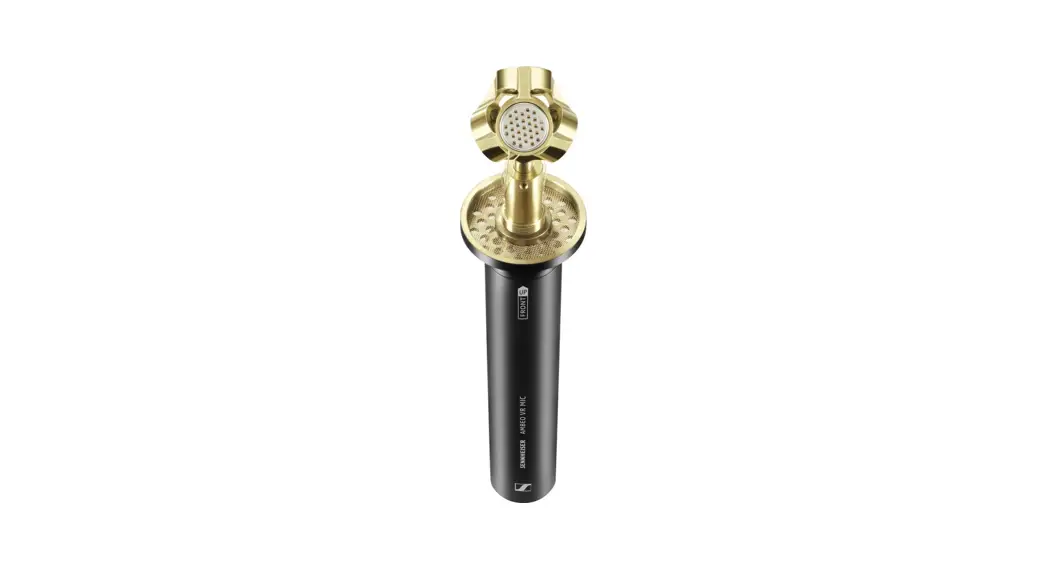

Sennheiser Ambeo Vr Mic Microphone Instructions

Sennheiser Ambeo Vr Mic Microphone Instructions

SENNHEISER - logo
SENNHEISER AMBEO VR Mic Microphone - figAMBEO VR MIC

SENNHEISER AMBEO VR Mic Microphone - fig1

SENNHEISER AMBEO VR Mic Microphone - fig2

Safety Instructions

Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Printed in Germany, Publ. 02/21, 571325/A04

Safety instructions
SENNHEISER AMBEO VR Mic Microphone - icon Read this safety guide carefully and completely before using the product.
SENNHEISER AMBEO VR Mic Microphone - iconAlways include this safety guide when passing the product on to third parties.
SENNHEISER AMBEO VR Mic Microphone - icon Do not use an obviously defective product.
Preventing damage to the product and malfunctions
SENNHEISER AMBEO VR Mic Microphone - iconAlways keep the product dry and do not expose it to extreme temperatures (hairdryer, heater, extended exposure to sunlight, etc.) to avoid corrosion or deformation.
SENNHEISER AMBEO VR Mic Microphone - iconOnly use attachments/accessories supplied or recommended by Sennheiser.
SENNHEISER AMBEO VR Mic Microphone - iconOnly clean the product with a soft, dry cloth.
SENNHEISER AMBEO VR Mic Microphone - icon Never repair or attempt to repair a defective product yourself. Contact your Sennheiser distributor or their Service Department.
Intended use/Liability Intended use includes:
SENNHEISER AMBEO VR Mic Microphone - icon having read this instruction manual, especially the „important safety instructions“ section,
SENNHEISER AMBEO VR Mic Microphone - icon uses the product within the operating conditions and limitations described in this instruction manual.
It is considered improper use when this product is used for any application not named in this instruction manual.
Sennheiser does not accept liability for damage arising from abuse or misuse of this product and its attachments/accessories.

Manufacturer Declarations

Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.
For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.
In compliance with the following requirements
WEEE Directive (2012/19/EU)
SENNHEISER AMBEO VR Mic Microphone - icon2
Please dispose of this product by taking it to your local collection point or recycling center for such equipment. This will help to protect the environment in which we all live.
EU Declaration of conformity
• RoHS Directive (2011/65/EU)
• EMC Directive (2014/30/EU)
The CE Declaration of Conformity is available on our website at www.sennheiser.com/download.
Before putting the product into operation please observe therespective country-specific regulations!

Statements regarding FCC and Industry Canada
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This class B digital apparatus complies with the Canadian ICES-003. Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment.

SPECIFICATIONS

Transducer principlepre-polarized condenser microphone
Pick-up pattern4x cardioid, in Ambisonics A-format arrangement
(1: front-left-up [FLU],
2: front-right-down [FRD],
3: back-left-down [BLD],
4: back-right-up [BRU])
Frequency response20 Hz to 20 kHz
Matrix Referencecenter of the capsule holder
Mixing to B-format• W= FLU + FRD + BLD + BRU
• X= FLU + FORD – BLD – BRU
• Y= FLU – FRD + BLD – BRU
• Z= FLU – FRD – BLD + BRU
Sensitivity31 mV/Pa (-30 dBV) at 1 kHz
Nominal impedanceapprox. 200 Ω
Equivalent noise level18 dB-A as per IEC 61672-1 / 27 dB CCIR as per CCIR 468-3
Max. sound pressure level for K = 1 %130 dB(A) for 1 kHz
Power supply4x phantom powering (P48) as per IEC 61938 (48 ± 4 V), 3.5 mA each
Microphone connectorDIN12M, use the enclosed adapter cable to convert to 4x XLR3M
Polarity: Pin1 (GND), Pin2 (+), Pin3 (-)
Dimensions215 x 49/25 mm (L x D)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature –-20 °C to 70 °C (-4 °F to 158 °F)
Relative humiditymax 90% at 40 °C
