ROLLEASE ACMEDA S45 Roller Shade System
Contents hide

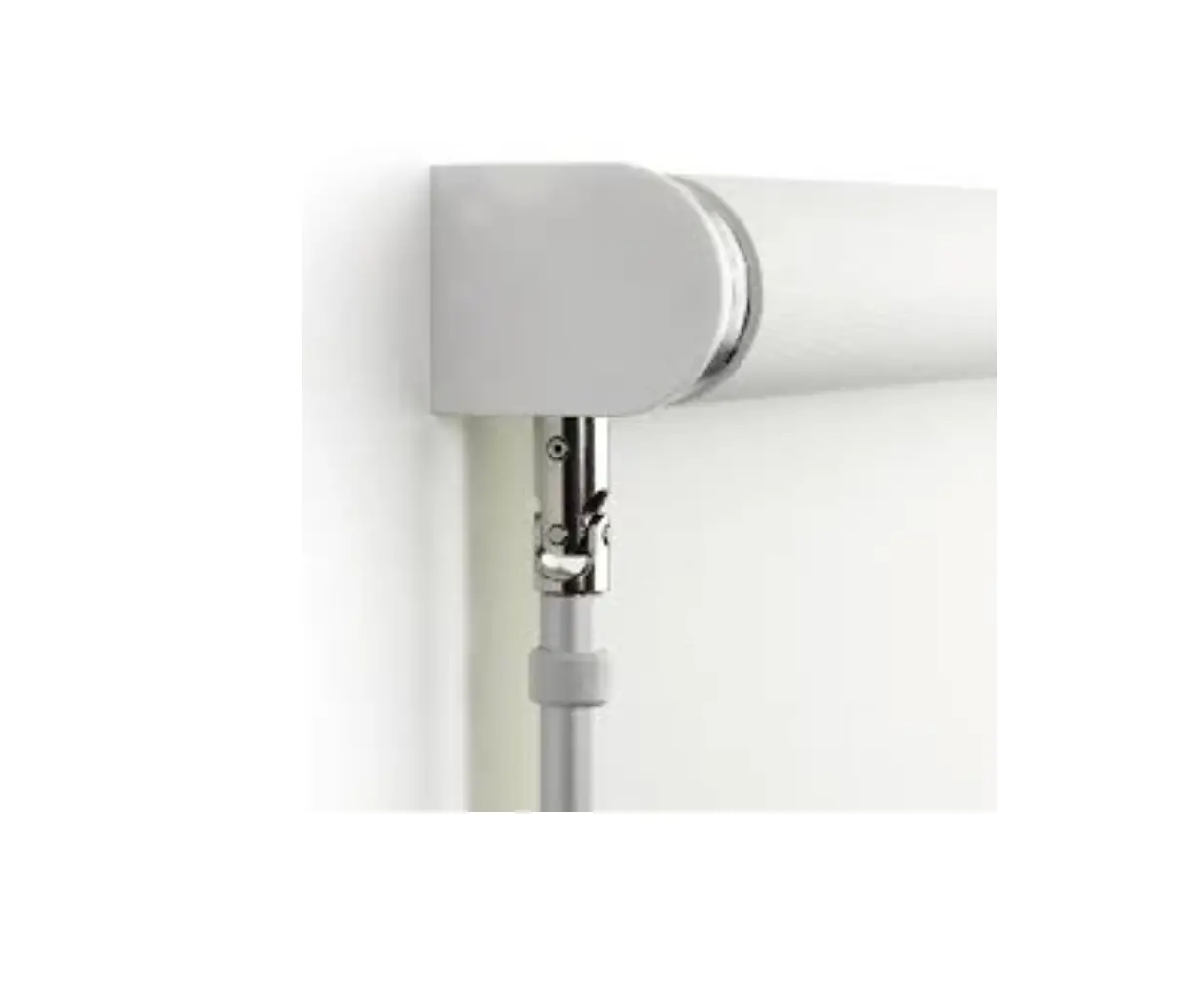

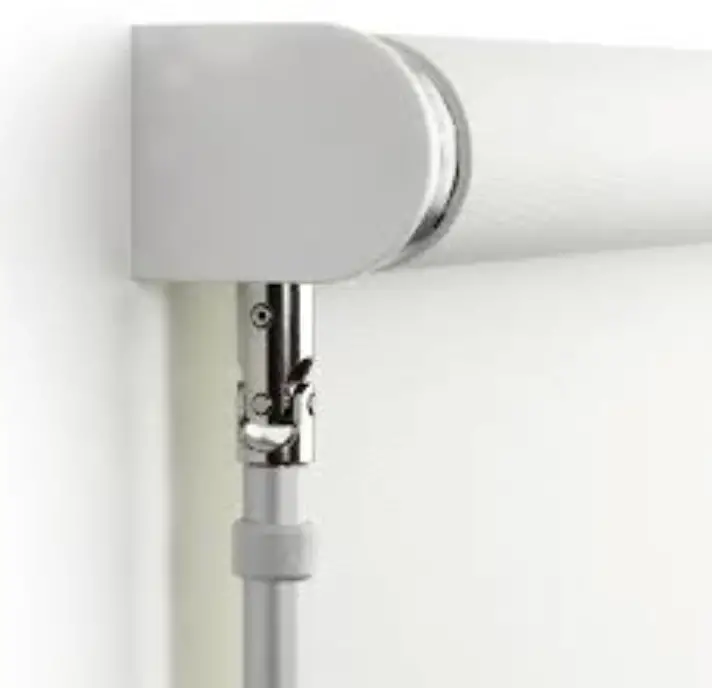

S45 AUTOMATE 1.1Nm | 25mm
The motorized 20mm 0.5Nm S45 roller shade system offers two motors for multiple tube diameters to suit a variety of applications. Featuring ARC (Automate Radio Communication), the motorized 20mm 0.5Nm S45 system provides an intelligent, Li-ion battery or DC powered solution.
AESTHETICAL FEATURES
- Thinner 5V Motor Head
- Motor cap to color match with brackets
PRODUCTION & ASSEMBLY FEATURES
- Greater flexibility with installation with extendable pin end
- Crown, drive and adaptors available to suit multiple tube sizes
- Smaller Motor end deduction
FUNCTIONAL BENEFITS
- 5V Micro USB Charging
- Antennae Wire Retention Feature
- Levelling control
- Simple limit setting and adjustment
- Favorite position
- 3 operational speed settings
- 2-WAY RF communication
- ARC protocol for simple programming
SYSTEM INDEX
1 | Automate Motor | 20mm MT01-1320-069002 – Li-ion 0.5Nm ARC Motor[Ø20/5V/20rpm](S45) |
2 | Motor Cap MT03-0502-xxx001 – Li-ion ZERO |
3 | Brackets RB08-8345-xxx030 – S35 VX/LX Bracket RB09-0352-xxx040 – S45 LX Bracket (40mm) RB09-0352-xxx055 – S45 LX Bracket (55mm) |
4 | Bracket Covers RB08-4151-xxx030 – S35 VX/LX Bracket Cover RB08-4151-xxx040 – S45 LX Bracket Cover (40mm) RB08-4151-xxx055 – S45 LX Bracket COver (55mm) |
5 | Pin End RB08-0501-xxx034 – S35 Tube RB09-0245-xxx001 – S45 Tube |
6 | Crown & Drive Kit MT03-0110-069009 – 25mm crowns MT03-0110-069010 – S35 Tube MT03-0110-069011 – Louvolite 32mm Tube MT03-0110-069012 – Louvolite 38mm Tube |
7 | Aluminum Tube RB93-0333-xxxLLL – S35 STD Tube RB93-0335-xxxLLL – S35 HD Tube RB93-0443-xxxLLL – S45 LT Tube RB93-0444-xxxLLL – S45 STD Tube RB93-0449-xxxLLL – S45 HD Tube |
# = Size | xxx = Color | LLL = Length
CONTROL OPTIONS

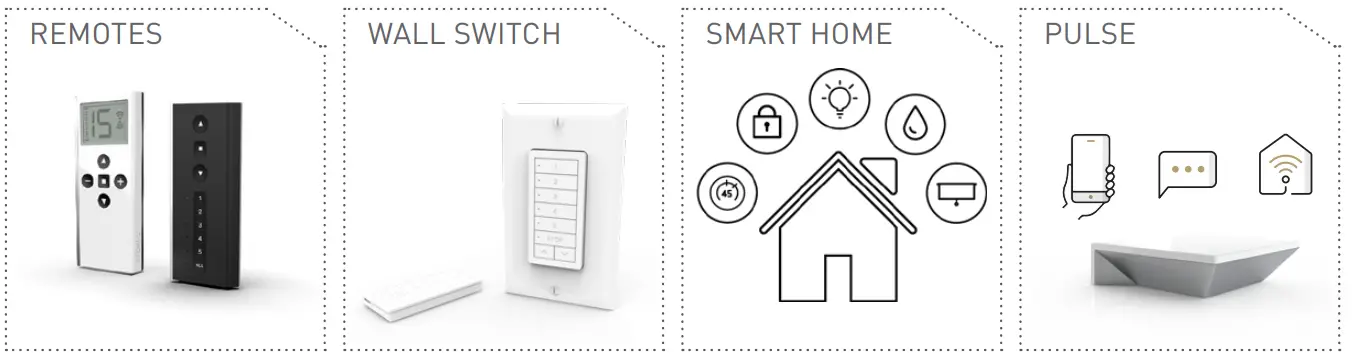

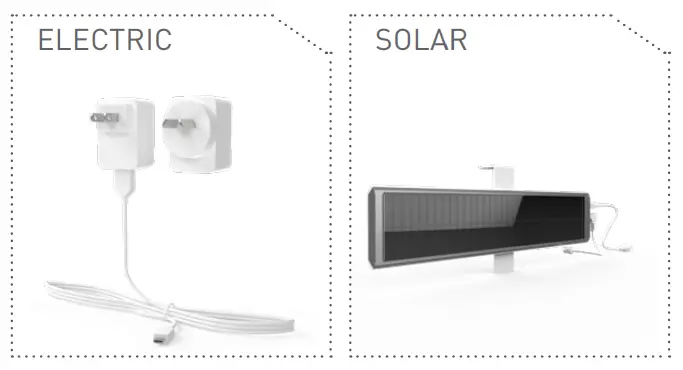

CHARGERS

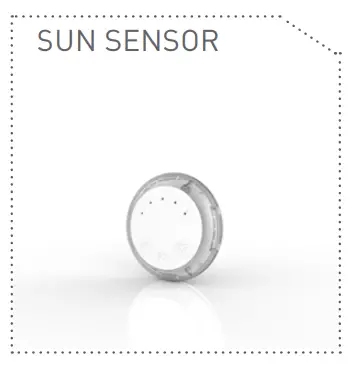

OPTIONS
COLOUR RANGE

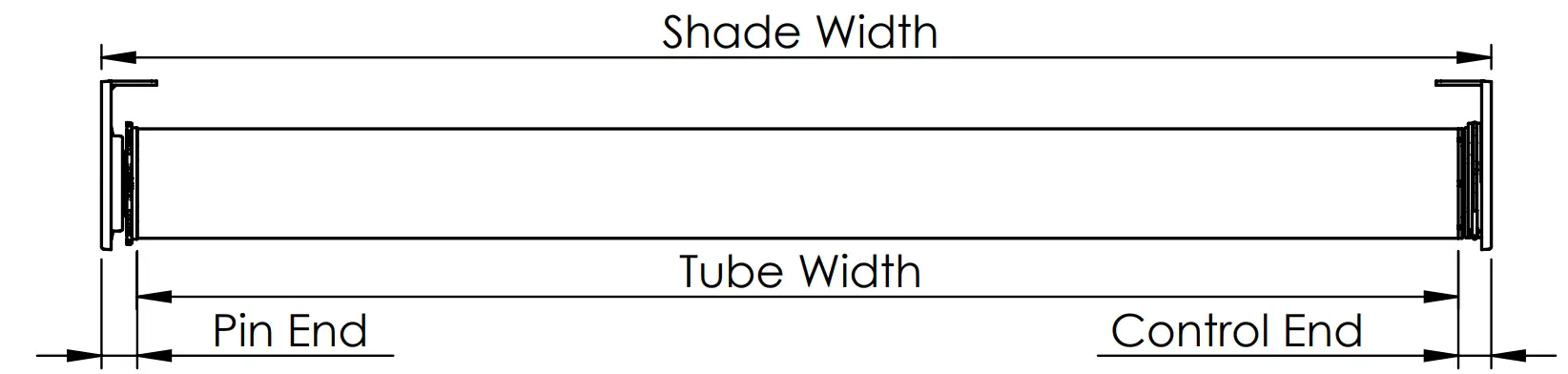

SPECIFICATIONS
DEDUCTION CHART
| TUBE | MOTOR | BRACKETS | DEDUCTIONS | MINIMUM SHADE WIDTH | ||
| CONTROL END | PIN END | TOTAL | ||||
| S35 | MT01-1320-069002 + MT03-0205-069001 | With Covers | 12mm | 14mm | 26mm | 0.560m |
| No Covers | 11mm | 13mm | 24mm | 0.558m | ||
| S45 | MT01-1320-069002 | With Covers | 13mm | 14mm | 27mm | 0.569m |
| No Covers | 12mm | 13mm | 25mm | 0.567m | ||

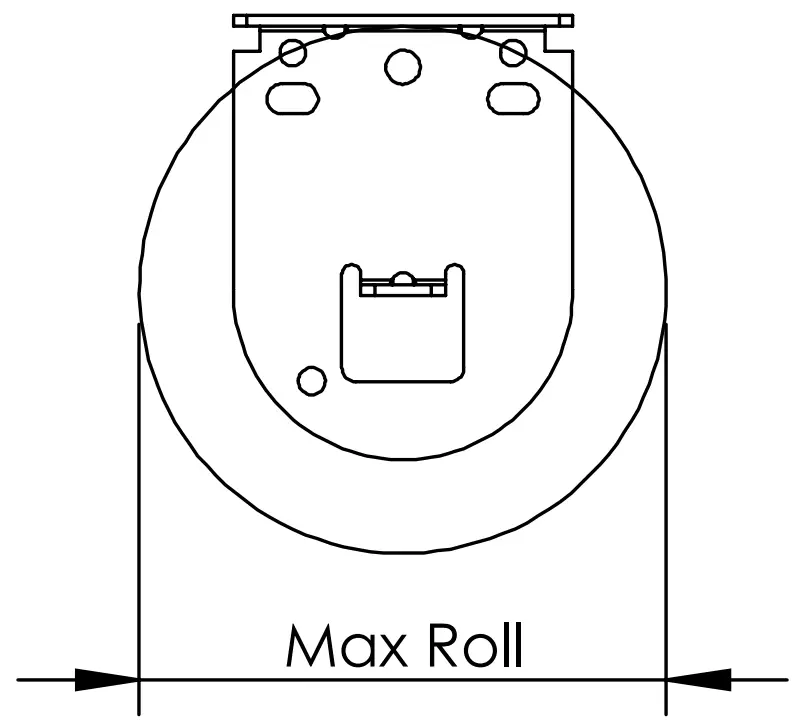

MAX ROLL
| BRACKET | MAX ROLL SIZE |
| RB08-8345-xxx030 | 57mm |
| RB09-0352-xxx040 | 78mm |
| RB09-0352-xxx055 | 107mm |

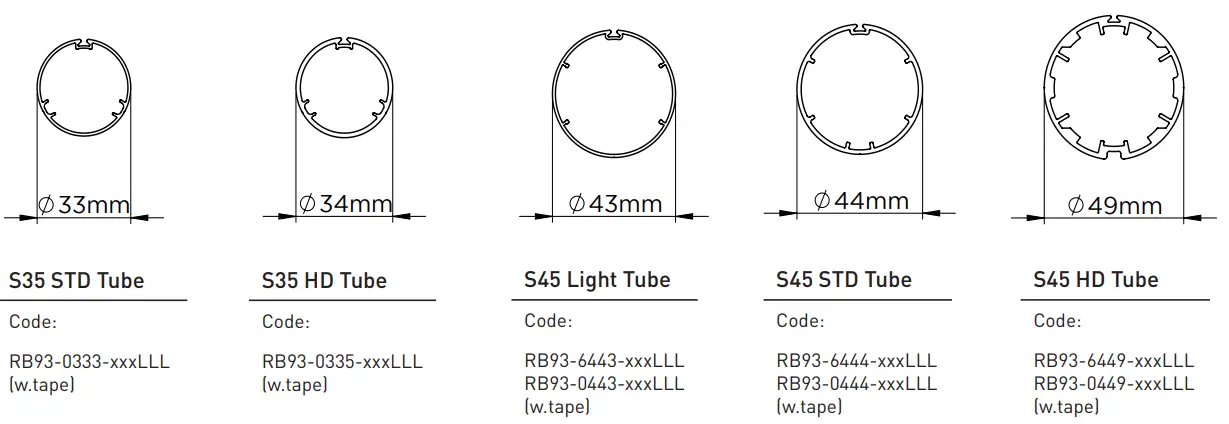

TUBE SPECS
MAX LIFTING CAPACITY | MAX DROP* | |||||
| MOTORS | S35 STD TUBE | S35 HD TUBE | S45 LT TUBE | S45 STD TUBE | S45 HD TUBE | |
| 0.5Nm | 3.1kg | 3.0kg | 2.4kg | 2.3kg | 2.1kg | 4m |
* Recommended Max Drop. Exceeding this value may cause fabric tracking issues

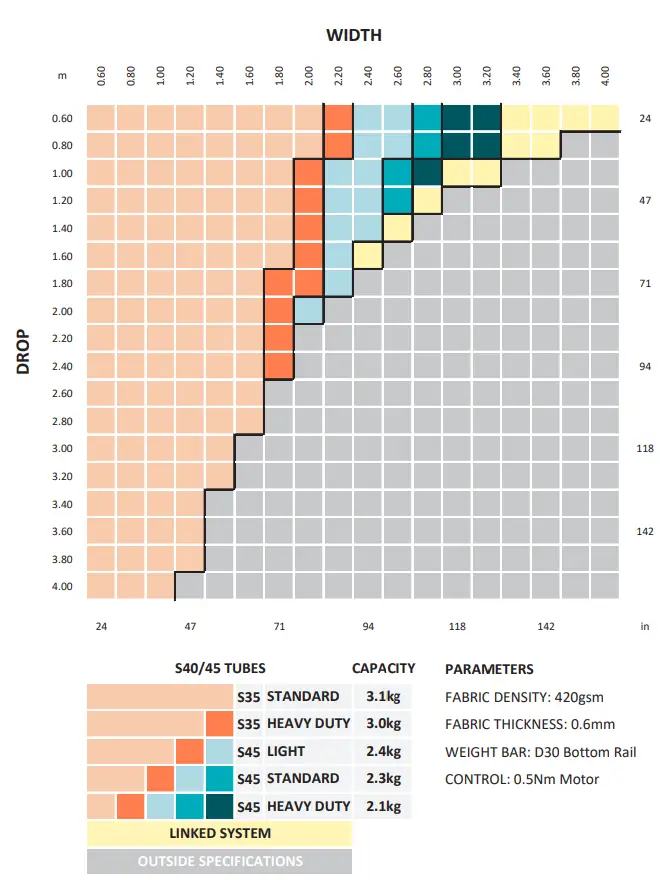

SYSTEM CAPACITY
USA | AUSTRALIA | EUROPE
[email protected] | rolleaseacmeda.com
©Copyright 2021 Rollease Acmeda Group
Rollease Acmeda - Precision in Motion
Rollease Acmeda - Precision in Motion
