Rollease Acmeda Skyline Automate 28mm Roller Shade System User Guide

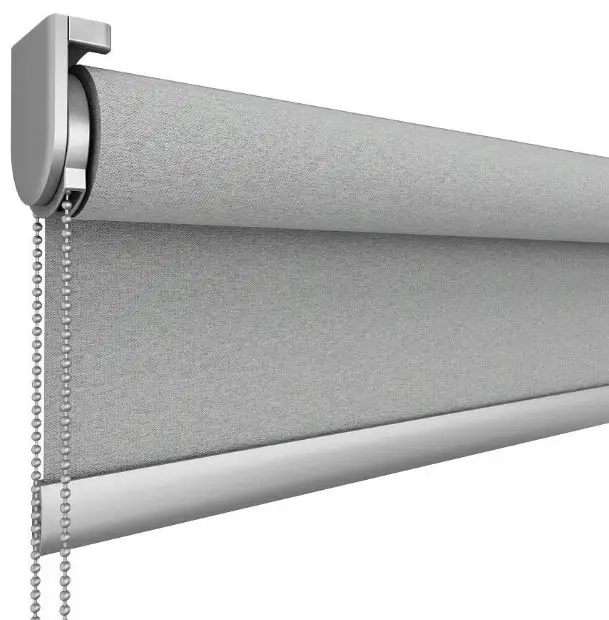

ROLLEASE ACMEDA Skyline Automate 28mm Roller Shade System

The motorized Skyline roller shade system offers two Automate motors for two tube diameters to suit a variety of applications. Featuring ARC (Automate Radio Communication), the 28mm Skyline Automate system provides an intelligent, Li-ion battery or a DC-powered solution.

FEATURES

AESTHETIC FEATURES

• Slim motor head for minimal light gap

ASSEMBLY/PRODUCTION FEATURES

• Greater flexibility with installation with spring-loaded pin end
• Crown, drive, and adapters are available to suit a variety of tube sizes

FUNCTIONAL BENEFITS

• Leveling control
• Simple limit setting and adjustment
• Favorite position
• 3 operational speed settings
• 2-way RF communication
• ARC protocol for simple programming

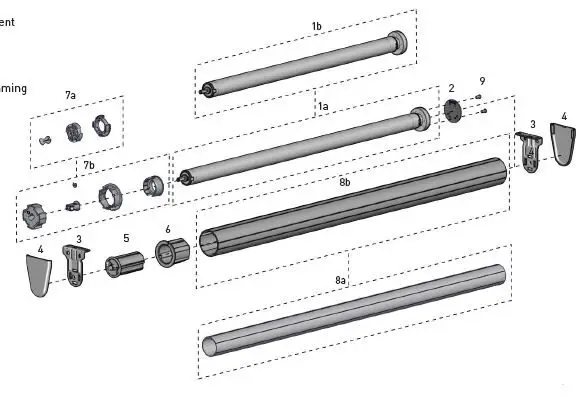

SYSTEM INDEX

1. Automate Motor | 28mm
   • a. MTDCBRFQ28-2 – Li-ion Q2.0
   • b. MTDCRFQ28-2 – DCRF Q2.0
2. Motor Adapter
   • MTAD-252835-SL
3. Brackets
   • SLB###x
   • SLNB###x
4. Bracket Covers
   • SLBC###x
   • SLNBC###x
5. Pin End
   • SLPEHD53xx
6. Adapter
   • RA2xx
7. Crown and Drive Kit
   • a. MTC03-0110-069002 – Kit for 1.5″ tube
   • b. MTCRDR-28-2 – Kit for 2″ tube
8. Aluminium Tube
   • a. RTEA4T## – 1.5″ tube
   • b. RTEA5T## – 2″ tube
9. Screws for Adapter
   • SLAMSCREW

SYSTEM UPGRADES

• CASSETTE 80/100/120
• FASCIA 3″/4″/5″
• LINK SYSTEM
• POCKETS 3″/4″/5″/6″

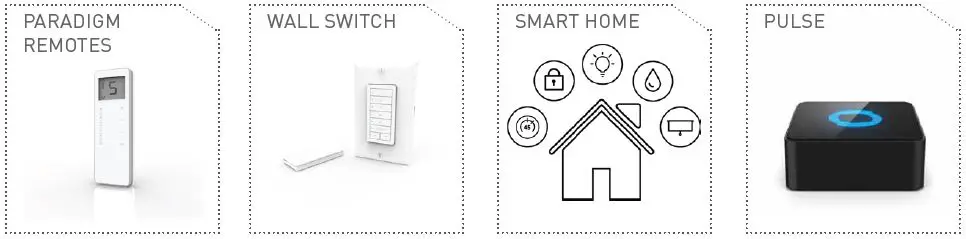

CONTROL OPTIONS

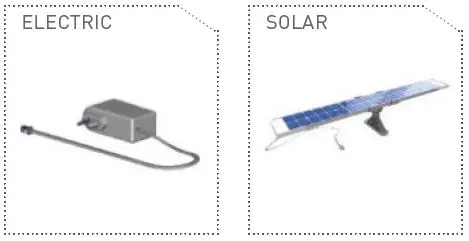

CHARGERS

SPECIFICATIONS

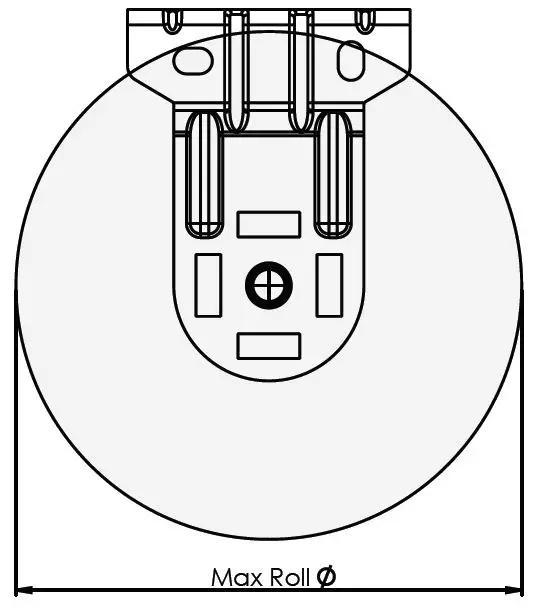

MAX ROLL

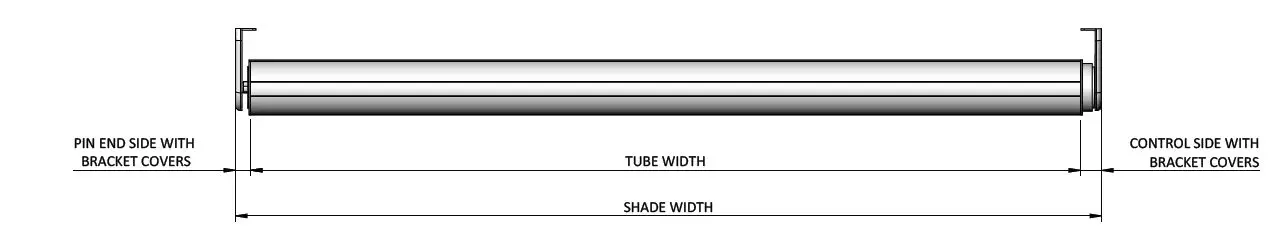

TUBE SPECS

• Recommended Max Drop. Exceeding this value may cause fabric tracking issues
• SLxx650xx ONLY

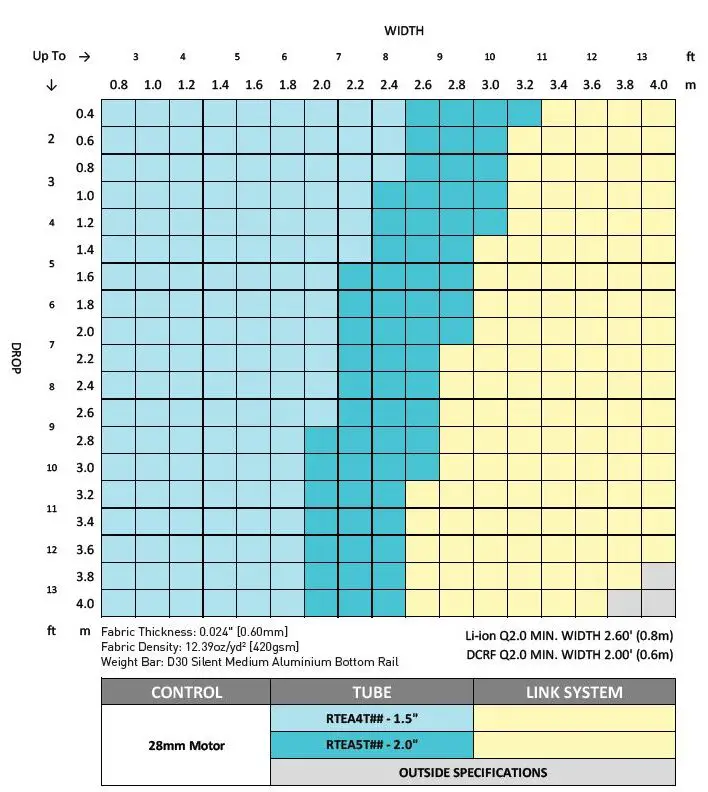

28mm SYSTEM CAPACITY
