DIGITUS DS-55519 HDMI Extender Set

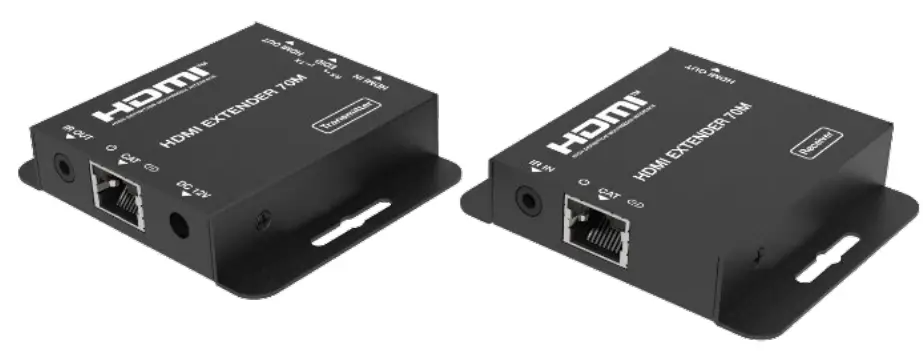

Introduction
The HDMI Extender Set extends Full HD AV signals over a distance of up to 70 m, 4K/30Hz signals can be extended over a distance of up to 40 m using a CAT6 (or higher) network cable. The transmitter unit features an HDMI loop out for connecting a local monitor. Thanks to PoC (Power over Cable), only the transmitter needs to be supplied with power. IR transmission makes it possible to conveniently control the signal source using remote control from the receiver (output screen). Other features include an EDID copy function of the output screen on the receiver or on the HDMI loop out, which can be selected using the changeover switch.
Feature
- Extends HDMI AV signals to a distance of up to 70 m
- Supports resolutions of up to 4K/30 Hz, 4:4:4
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- PoC (Power over Cable) – Only the transmitter requires an external power adapter
- HDMI loop-out / output – Connection of local monitor to the source device
- EDID copy function of the output screen on the receiver or on the HDMI loop out
- HDMI 1.4, HDCP 1.4, DVI 1.0
- IR interface enables remote control of the input source from the output screen
- Video bandwidth: 10.2 Gbps
Package Content
- 1x Transmitter unit
- 1x Receiver unit
- 1x IR transmission cable (1.5 m)
- 1x IR receiver cable (1.5 m)
- 1x Power adapter (DC 12V/1A, 1.15 m)
- 1x User manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2 Gbps |
| Video Resolution | Up to 4K@30Hz |
| Audio Support | Up to 7.1CH HD audio |
| Input TMDS Signal | 3.3 volts |
| Input DDC Signal | 5.0 volts/P-P |
| ESD Protection | Human Body model:
|
| Connection | |
| Transmitter |
(19-pin female) |
| |
|
Receiver |
8-spin female)
|
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 79.5 x 69 x 16.5mm |
| Weight | Transmitter:132g Receiver:130g |
| Power Supply | 12V / 1A DC |
| Power Consumption | Transmitter: 1.86W Receiver: 0.87W |
| Operation Temperature | 32 – 104℉ / 0 – 40°C |
| Storage temperature | -4 – 140℉ / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
Product Overview
Transmitter Panel
| No. | Name | Function Description |
| 1 | HDMI IN | HDMI signal input port. Connect to HDM source device such as DVD or Set-top box. |
|
2 |
EDID DIP switch | The switch is used for selecting EDID Switch to the right position, the extender will copy HDMI loop out display EDID information to signal source; Switch to the left position the extender will copy Receiver display EDID to signal source |
| 3 | HDMI OUT | HDMI signal loop out port Connect to HDMI display device such as HDTV. |
| 4 | IR OUT | Connect to IR blaster cable, the IR signal is from the IR IN port of the receiver. |
| 5 | Power LED | When the transmitter is powered on, the LED will be on |
| 6 | CAT | CAT output port. Connect to the CAT input port of the receiver with CAT5E / 6 cable |
| 7 | Digital signal indicator light |
|
| 8 | DC 12V | DC 12V power supply port |
Receiver Panel
| No. | Name | Function Description |
| 1 | HDMI OUT | HDMI signal loop out port Connect to HDMI display device such as HDTV. |
| 2 | IR IN | Connect to IR receiver cable, the IR signal will emit to the IR OUT port of the transmitter |
| 3 | Power LED | When the transmitter is powered on, the LED will be on |
| 4 | CAT | CAT output port. Connect to the CAT input port of the receiver with CAT5E / 6 cable |
| 5 | Digital signal indicator light |
|
IR Pin Definition

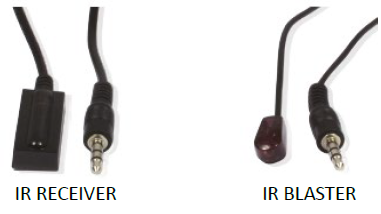

IR Receiver and Blaster pins definition is as below:
- IR Blaster Signal
- Power
- NC
- IR Signal
- Power
- Grounding
Application Example
Transmitter

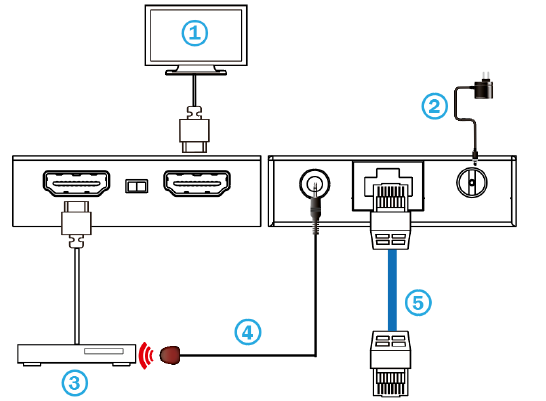

| 1. UHDTV | 2. Power Supply | 3. Blu-ray Player |
| 4. IR Blaster | 5. CAT5E/6 cable | |
Receiver

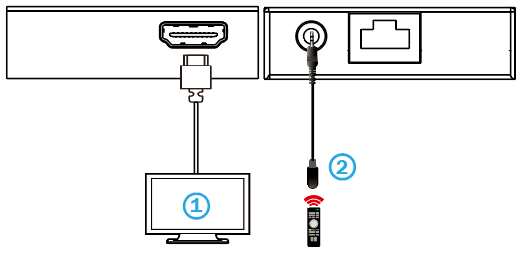

| 1. UHDTV | 2. IR Receiver |
Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
- www.assmann.com Assmann Electronic
ASSMANN Electronic GmbH | Germany
