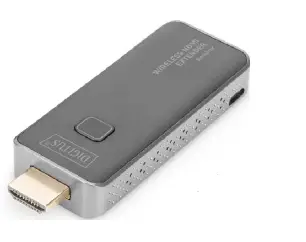

DIGITUS DS-55318 50m Wireless HDMI Extender Set
Introduction
With the Wireless HDMI Extender Set, you can wirelessly transmit HDMI video and audio signals in Full HD over a distance of up to 50 m with an unobstructed view. Operation and installation are super simple. Real Plug & Play – Just plug in and get started. The transmitter and receiver can be supplied with power via your device’s HDMI connection (0.5A required), or alternatively (additionally) with the enclosed Micro USB cable via the USB connection of your notebook, PC, etc. Thanks to the compact design of the transmitter and receiver, installation is easy, quick and can be customized – the perfect solution for meeting and conference rooms. But it can also be used in private applications for spontaneous or temporary installations.
Main Features
- Wireless HDMI signal transmission up to 50 m (with an unobstructed view)
- Point-to-point connection – 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to Full HD (1080p / 60 Hz)
- Easy operation and handling thanks to Plug & Play – Just plug in and get started
- Power supply via Micro-USB
- The transmitter and receiver can be supplied with power via your device’s HDMI connection (> 500 mAh required). To have a safe and stable operation, we recommend using always the Micro USB cable for the power supply of TX and RX
- AES 128 bit encryption
- WPA2 protocol
- The set is ideal for subsequent, spontaneous, or temporary installations in meeting and conference rooms
Package Contents
- 1x Transmitter unit
- 1x Receiver unit
- 2x Micro USB cable (80 cm)
- 2x HDMI extension cable (11 cm)
- 1x QIG
Product Features
| Features | Description |
| Plug and play | Simply connect the transmitter with the PC HDMI ports and connect the receiver with the screen, the transmitter and receiver will connect automatically |
| App Free | DS-55318 doesn’t need any software or app installation, no setup, no IT team |
| All in one | Support Blu-ray DVD player, media player and any devices with HDMI jack |
| Auto Channel Selection | The DS-55318 will select the best Wi-Fi channel automatically after power on to ensure streaming smoothly |
| Fast Speed with 5G AC MIMO Technology | The DS-55318 comes with the fast 802.11ac MIMO technology which increases Wi-Fi speeds by allowing a pair of wireless devices to simultaneously send or receive multiple data streams |
| 1080p High Video Quality | DS-55318 supports 1080p resolution, which means much more clear pictures, rich in details and texture compared with 720p. |
| High Security Protection | No worries about the data security, the DS-55318 supports AES 128-bit security encryption and WPA2/WPA-PSK/WPA2-PSK authentication protocol to protect data. HDCP is supported to protect the content |
Product Specification
| Feature | |
| Video Input | 1920×1080 (1080p60/50/30/25/24， 1080i60/50) 1280×720 (720p60/50) 720×576 (576p50) 720×480 (480p60) |
| Video decode and output | Up to Full HD, 1080p/60 Hz |
| Audio | Stereo, quality 16bits 48KHz |
| Wireless Channel | IEEE 802.11ac, 5GHz, 2T2R |
| Latency | Around 120ms latency |
| HDMI Version | HDMI 1.4 with HDCP1.3 |
| Authentication Protocol | WPA2 (WPAS-PSK / WPA2-Enterprise) |
| Security | AES 128 bit |
| Platform supported | Any devices with HDMI jack |
| Distance | About 50 meters in the clear line of sight |
| Transmitter | |
| Interface | HDMI in jack x 1, micro USB x 1, button x 1 |
| LED | Red/Blue |
| Switch Button | 1 x |
| Power Supply | DC5V/0.5A |
| Power Consumption | About 2,5 W |
| Dimension | 83 x 32 x 13mm |
| Weight | 27.1 g |
| Receiver | |
| Interface | HDMI out jack x 1, micro USB x 1, button x 1 |
| LED | Red and Blue |
| Power Supply | DC5V/0.5A |
| Power Consumption | About 2.5W |
| Dimension | 83 x 32 x 13mm |
| Weight | 27.1 g |
| Temperature Range | |
| Operating | 0°C to +40°C (+32°F to +104°F) |
| Storage | -10°C to +60°C (+14°F to +140°F) |
| Humidty | |
| Operating | 10% to 80% relative humidity |
| Storage | 5% to 90% relative humidity |
Overview

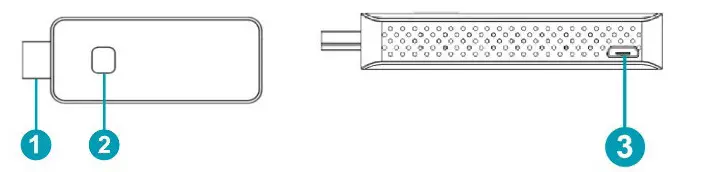

Transmitter Unit
| Authentication Protocol | WPA2 (WPAS-PSK / WPA2-Enterprise) |
| Security | AES 128 bit |
| Platform supported | Any devices with HDMI jack |
| Distance | About 50 meters in the clear line of sight |
| Transmitter | |
| Interface | HDMI in jack x 1, micro USB x 1, button x 1 |
| LED | Red/Blue |
| Switch Button | 1 x |
| Power Supply | DC5V/0.5A |
| Power Consumption | About 2,5 W |
| Dimension | 83 x 32 x 13mm |
| Weight | 27.1 g |
| Receiver | |
| Interface | HDMI out jack x 1, micro USB x 1, button x 1 |
| LED | Red and Blue |
| Power Supply | DC5V/0.5A |
| Power Consumption | About 2.5W |
| Dimension | 83 x 32 x 13mm |
| Weight | 27.1 g |
| Temperature Range | |
| Operating | 0°C to +40°C (+32°F to +104°F) |
| Storage | -10°C to +60°C (+14°F to +140°F) |
| Humidty | |
| Operating | 10% to 80% relative humidity |
| Storage | 5% to 90% relative humidity |
Remark: if the source device has an HDMI with 5V power output, then there is no need to connect a USB cable for power.
| LED indicator of the Transmitter Unit | Description |
| Static red | Transmitter Unit system is booting on |
| Flashing red | Transmitter Unit is searching for Receiver Unit |
| Flashing blue | Waiting for connection |
| Static blue | Connected and started to present |
| Purple | No HDMI in |

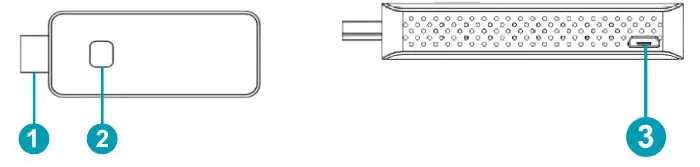

Receiver Unit
| 1. HDMI out | Connect with monitor or projector |
| 2. Button: | Press 10 seconds for factory reset |
| 2. LED | To display different status |
| 3. Micro USB | For power supply |
| LED indicator of the Receiver Unit | Description |
| Flashing blue | Waiting for connection |
| Static blue | Connected |
Installation
Receiver Installation
- Connect the Receiver Unit HDMI with the big screen TV or projectors HDMI port
- Connect the USB port of the Receiver Unit to the USB port of the TV through a USB cable for the power supply
Transmitter Installation
- Connect the Transmitter Unit HDMI to PC HDMI port
Remark: if the source devices HDMI with 5V power output, then no need to connect a USB cable for power, if not, please connect the Transmitter Unit with PC by USB cable for power. To have a safe and stable operation, we recommend to use always the Micro USB cable for the power supply of TX and RX
- The LED indicator of the Transmitter Unit will turn red when it’s booting up
- The LED indicator will become constant blue when the Transmitter Unit and Receiver Unit connected
Pairing Transmitter and Receiver
A set of the Wireless HDMI Extender Set includes one receiver and one transmitter, which are paired before shipment. Normally you don’t need to pair them again thanks to auto-pair feature.
However, if you need to re-pair, you need to follow the instruction below to pair the transmitter with the receiver:
- Power on receiver and connect with display
- Power on the transmitter till the LED turn to flashing red, then press the button up to 5 seconds till the LED becomes fast flashing red, this means the transmitter unit is in factory reset mode.
- Wait around 15 seconds, the button light of the Transmitter Unit will turn to constant blue from the red light, and the pair successful message will be displayed on the Receiver Unit screen.
Frequency Range & Maximum Transmit Power
- WiFi Standard: 802.11b/g/n/ac 5G WiFi
- Channel: 36, 40
- Core Frequency: 5180, 5200
- Range: 5170 ~ 5210MHz
- Bandwidth: 20/40MHz
- Transmitter power: 13dBm max
- SW version: RX: v2.65, TX: v2.3.8
- HW version:
- TX: S100TX-LC01-01
- RX: S100RX-LC01-01
Important safety instructions
Please read the following safety instructions carefully before installation and operation:
- Observe all warnings and instructions concerning this device
- Do not expose the device to rain, moisture, vapors or liquids
- Do not insert any objects into the device
- Do not attempt to repair the unit yourself or open the cabinet. Risk of electric shock!
- Ensure adequate ventilation to prevent damage due to overheating
- Turn off the power supply and make sure the environment is safe before installation
- In the event of thunderstorms, there is a risk of lightning strike and damage to connected electrical equipment due to overvoltage
- Do not install this device during a thunderstorm
- Disconnect the device from the connected electrical appliances during a thunderstorm
- Use the device inside buildings only
- Return the device to your dealer in case of repair
- Dust, moisture, vapors and strong cleaning agents or solvents can damage the device
- Disconnect the device from the power supply and the connected devices before cleaning
- Clean the device with a lint-free cloth
Disclaimer
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below-mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany
