ITEM NO.: SJR30106
Instruction Manual
SJR30106BK-BD 6 Light Unique Globe Pendant

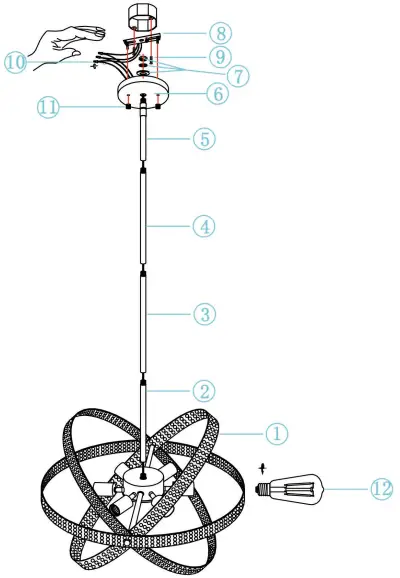

FIXTURE ASSEMBLY STEPS:
| DESCRIPTION | PICTURE | CODE | QTY |
| Mounting Plate |  | 8/11 | 1 SET |
| Mounting Box Screw |  | 9 | 2 PCS |
| P3 Wiring Cap |  | 10 | 3 PCS |
| Canopy |  | 6 | 1PCS |
| Down Rod r+Hooke’s Wm +Redone gaskr + Nut |  | 5/7 | 1 SET |
| Dann Rod 12″ |  | 2/3/4 | 3 PCS |
| Lamp Body |  | 1 | 1 SET |
WARNING – if any Special Control Devices are used with this Fixture, Follow the instructions Carefully to assure fun compliance With N.E.C. requirements. if there are any questions, contact a Qualified Electrical Contractor.
CAUTION – All glass is fragile, use care when handling Glass component(s) and or Lamp(s).
WARNING – This product contains chemicals known to the State of Califia to cause cancer, birth defects and /or other reproductive harm. Thoroughly wash hands after installing. handling. cleaning, or otherwise touching this product
CANOPY MOUNTING & WIRE CONNECTION ASSEMBLY STEPS
Attach(N),(P) to achieve overall desired length.
FIXTURE ASSEMBLY STEPS:
110-120V / 60Hz
E26 6*MAX 60W TYPE S
(Do not contain light bulb)
- AC110-120V,50-60Hz.The Max lamps power is 60W TYPE S Bulb.
- Avoid to scratch the surface of lighting and the wires when install it.

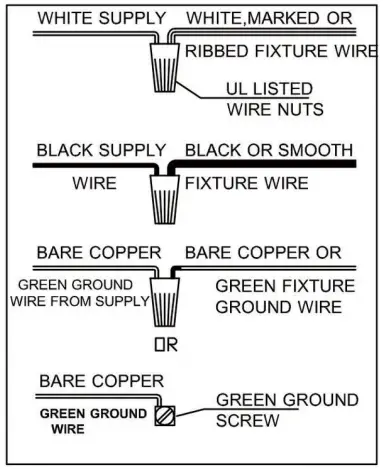

- Printed on the wire : SPT-1/20288 or SPT-2 and other parameters of the line for the positive pole (Connect “”), The wire without mark is the negative pole (Connect “N”). Ground cables are connected to ground cables (Connect “
“), (L- L,N-N.15- 19). - Don’t install it to the ceiling before it’s completely dry, the surrounding around must be ventilated and dry.
- Keep away from the acid, basicity objects and gases, clean withsoft cloth, water washing is not allowed.
- Be careful when you install glass lamp shade
- The lighting must be installed by professional electrician and used indoor only.
- Please keep attention to cut off the power supply when installing, cleaning, and replacing bulb.
“), (L- L,N-N.
