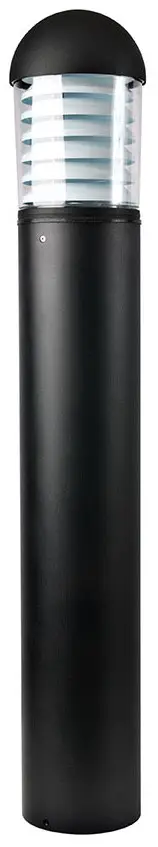

Chilham FIX0053 Flange Plate and Bolts

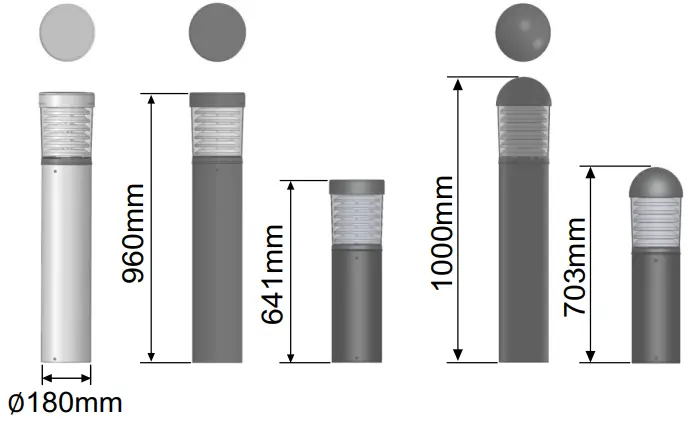

DIMENSION

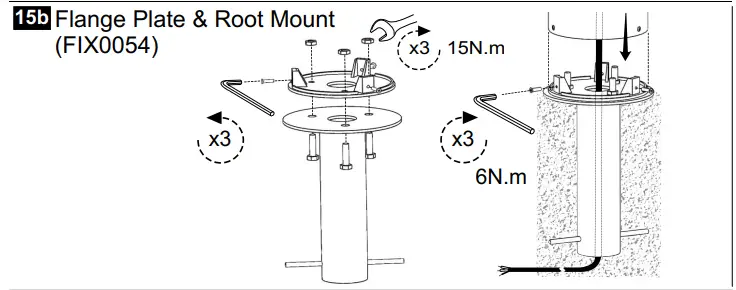

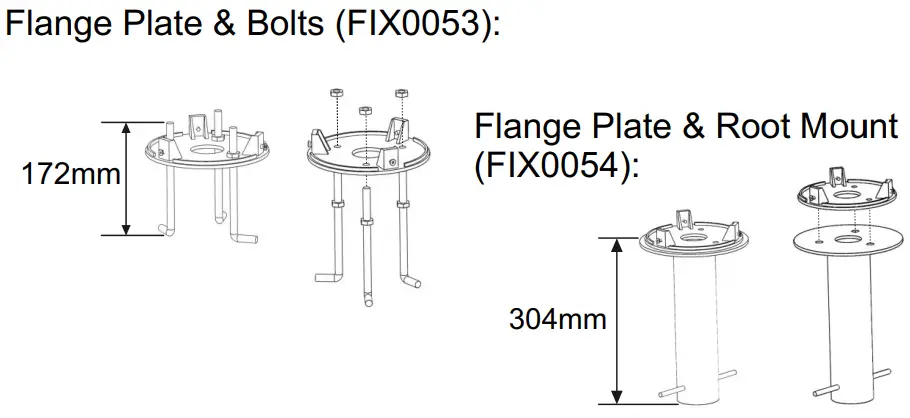

Optional mounting

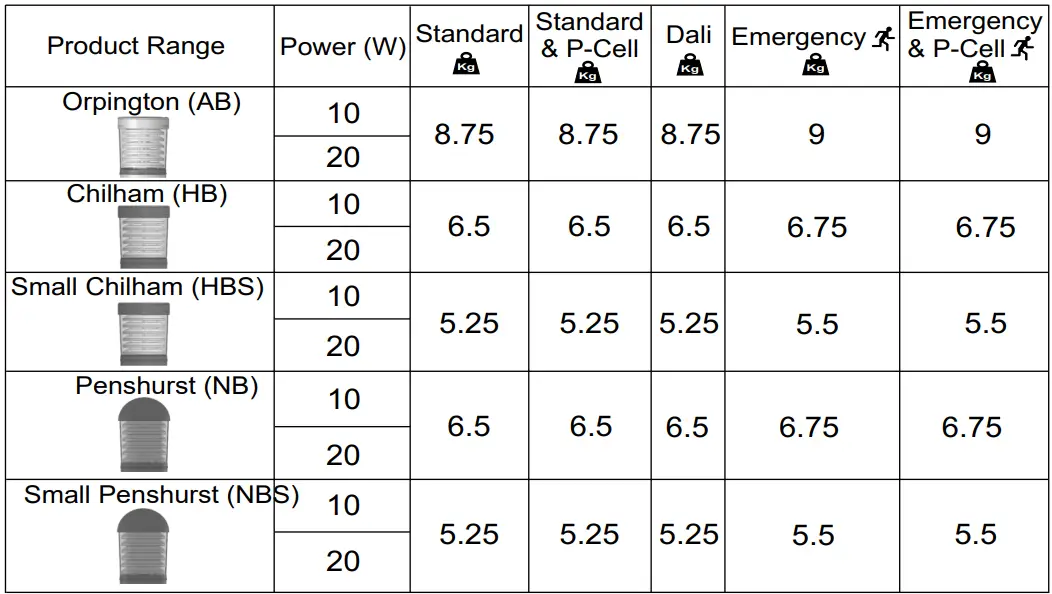

SPECIFICATION

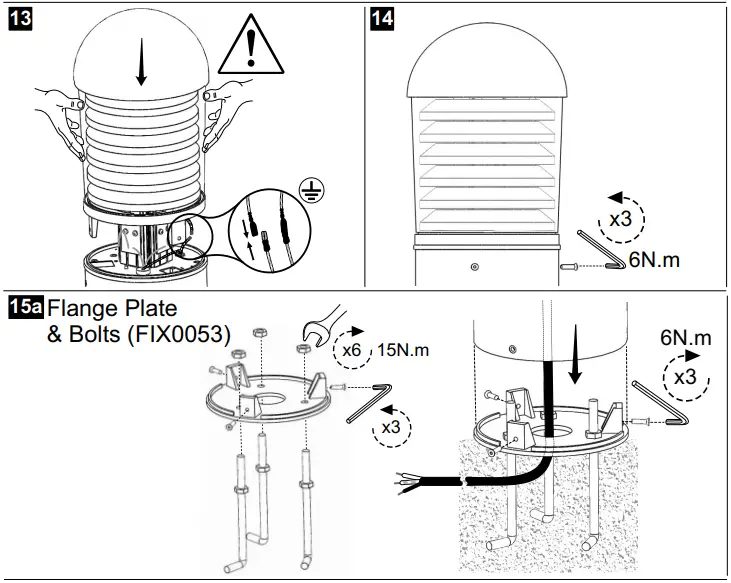

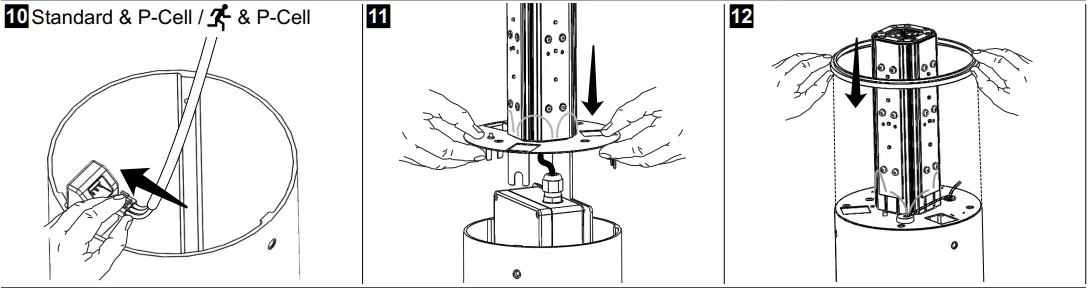

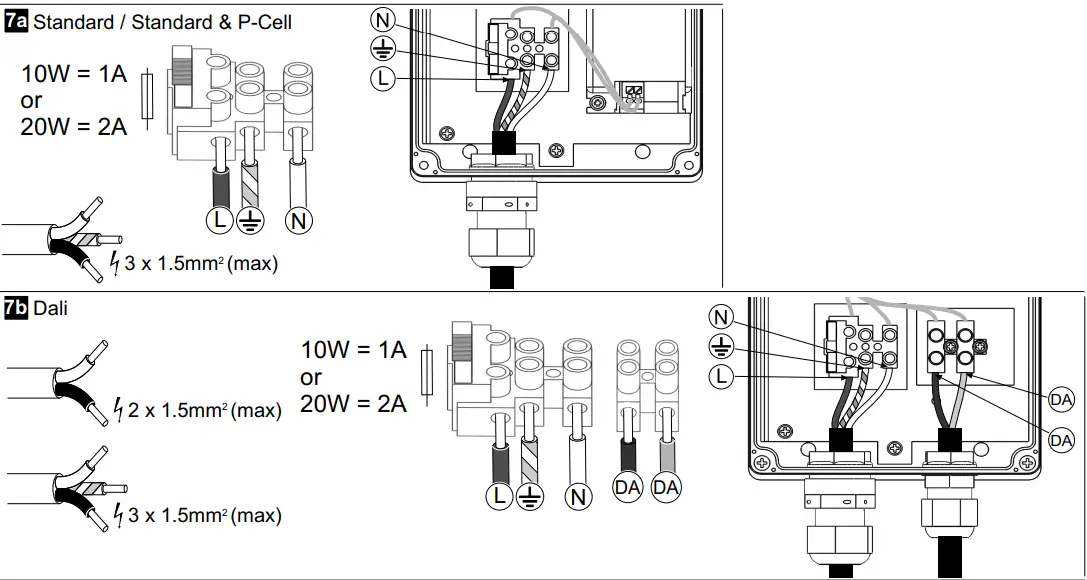

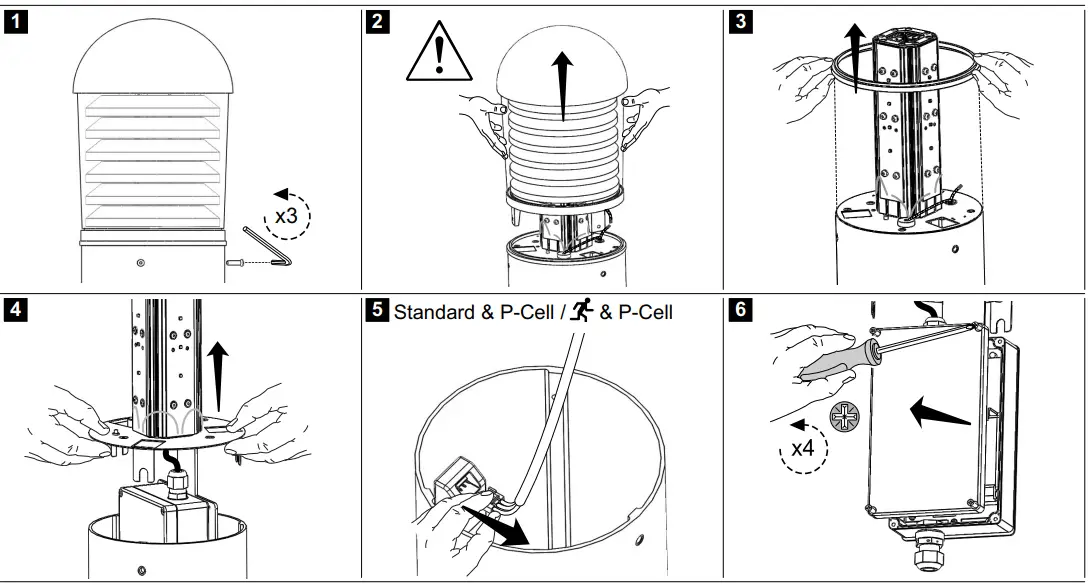

INSTALLATION INSTRUCTION
- Ensure no cables / wires are trapped during bollard assembly.
- Care must be taken when removing / fitting bollard head to prevent LED damage.
- Any alterations to the luminaire, will need to the confirmed with Gemma Lighting. If alterations have been carried out to the luminaire without confirmation the luminaires safety & warranty will be at risk.
Operation & Maintenance
Failed light source should be replaced promptly or the circuit switched off to avoid possible damage to control gear.
Important – Safety
- Before carrying out any servicing on these luminaires, ensure that the mains supply is fully isolated.
- Disconnect the luminaire before insulation testing of the installation.
- Tested to BS EN 60598
- For All Standard / Dali: ta -20OC … 25OC
- For All : ta 0OC … 25OC
- Between the control conductor and low voltage supply the maintained insulation level is basic.
- The light source contained in this luminaire shall only be replaced by the manufacturer or a service agent or a similar qualified person.
