CRAFT F730 Oly Plate Holder Option
Owner’s Manual

for the BodyCraft F730 / F430 (Power Rack) or F738 (RFT)

http://www.bodycraft.com/F735-qr.html

BODYCRAFT

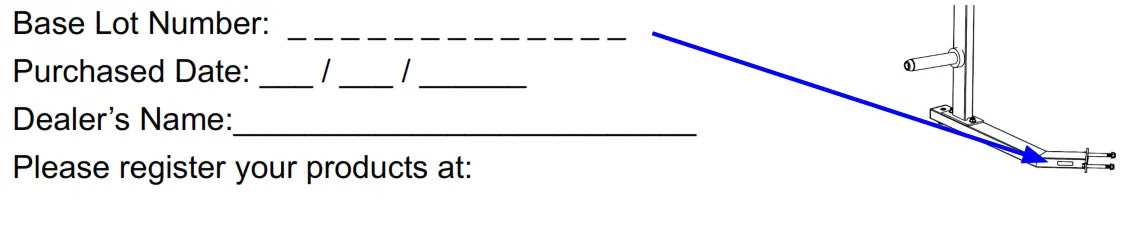

Lot Code: F735 – YYMMDD

https://www.bodycraft.com/product-registration/

Contents hide

1 Assembled Parts List

2 F735 – Product Assembly

3 Detailed Parts Exploded View

4 Documents / Resources

4.1 References

5 Related Posts

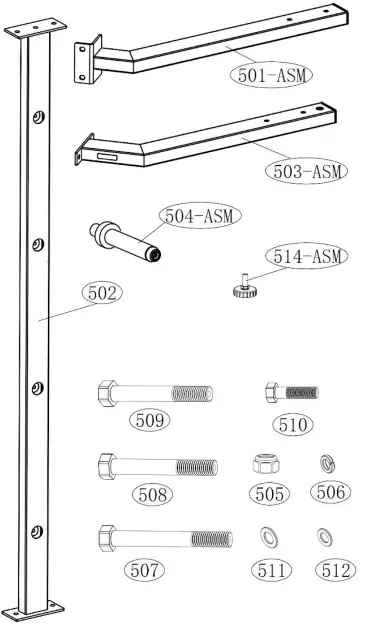

Assembled Parts List

Part #	Assembly Parts List	QTY
F735-501-ASM	Frame, Top, Rt & Lt – Assembly	2
F735-502	Frame, Upright, for Oly Plate Storage	2
F735-503-ASM	Frame, Bottom, Rt & Lt – Assembly	2
F735-504-ASM	Oly Plate Horn – Assembly	8
F735-514-ASM	Adjustable Foot, for Lower Base Frame – Assembly	2

Part #	Assembly Hardware	QTY
F735-505	Nut, Nylon Lock 1/2″ – BLACK	8
F735-506	Washer, Spring 3/8″ – BLACK	8
F735-507	Bolt, Hex Head 1/2″ x 4-1/2″ – BLACK	4
F735-508	Bolt, Hex Head 1/2″ x 3-1/4″ – BLACK	4
F735-509	Bolt, Hex Head 1/2″ x 2-1/2″ – BLACK	8
F735-510	Bolt, Hex Head 3/8″ x 1-1/4″ – BLACK	8
F735-511	Washer, Flat 1/2″ – BLACK	16
F735-512	Washer, Flat 3/8″ – BLACK	8

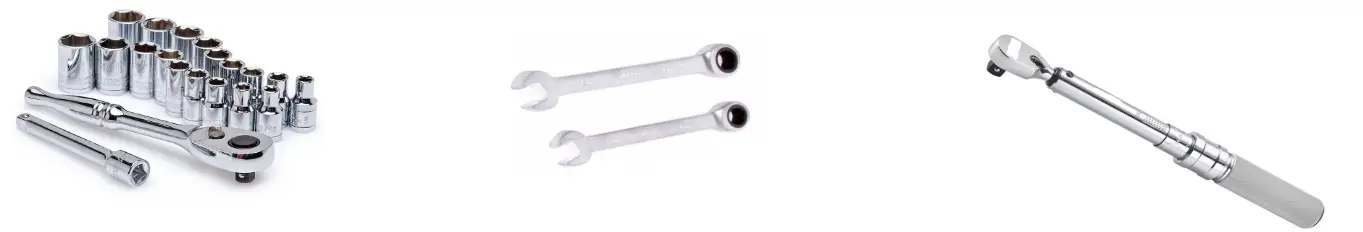

THE FOLLOWING TOOLS ARE RECOMMENDED FOR ASSEMBLY:


SOCKET SET 3/8 DRIVE & 6” EXT (Only 9/16 & 3/4 Sockets are needed)	OPEN & CLOSED WRENCHES (Only 9/16 & 3/4 is needed)	TORQUE WRENCH 3/8 DRIVE

F735 – Product Assembly

TIP: Very stable and safe to start the Assembly STEPS when on its side, horizontally NOT upright.

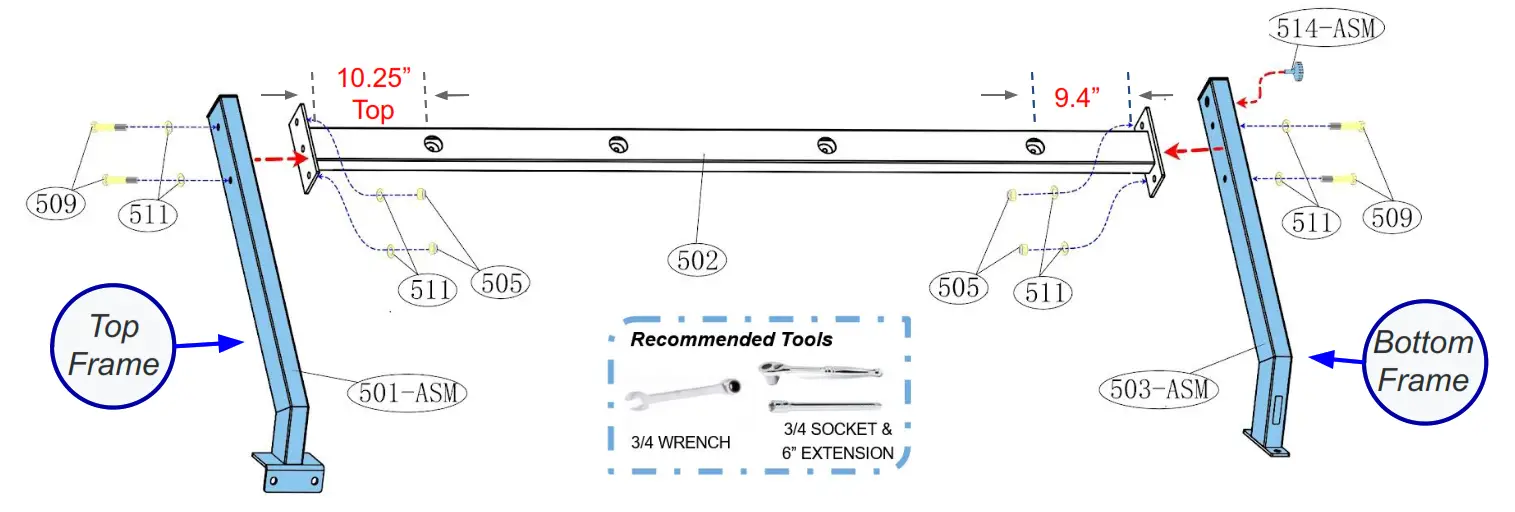

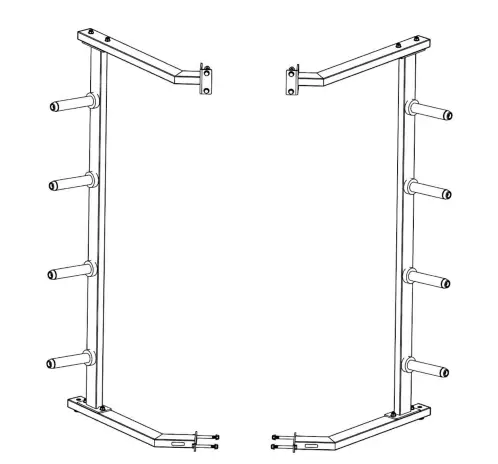

STEP 1: Installation of the Main Frame Assemblies Loosely attach the Frame, Top, Rt & Lt Sides – Assembly (501-ASM) & the Frame, Bottom, Rt & Lt Sides – Assembly (503-ASM) to the Frame, Uprights (502) using:

Eight BOLTS, Hex 1/2″ x 2-1/2” (509)
Sixteen WASHERS, Flat 1/2″ (511)
Eight NUTS, Hex Lock 1/2″ (505)

It is extremely IMPORTANT that #502 is oriented correctly. See measurements below.

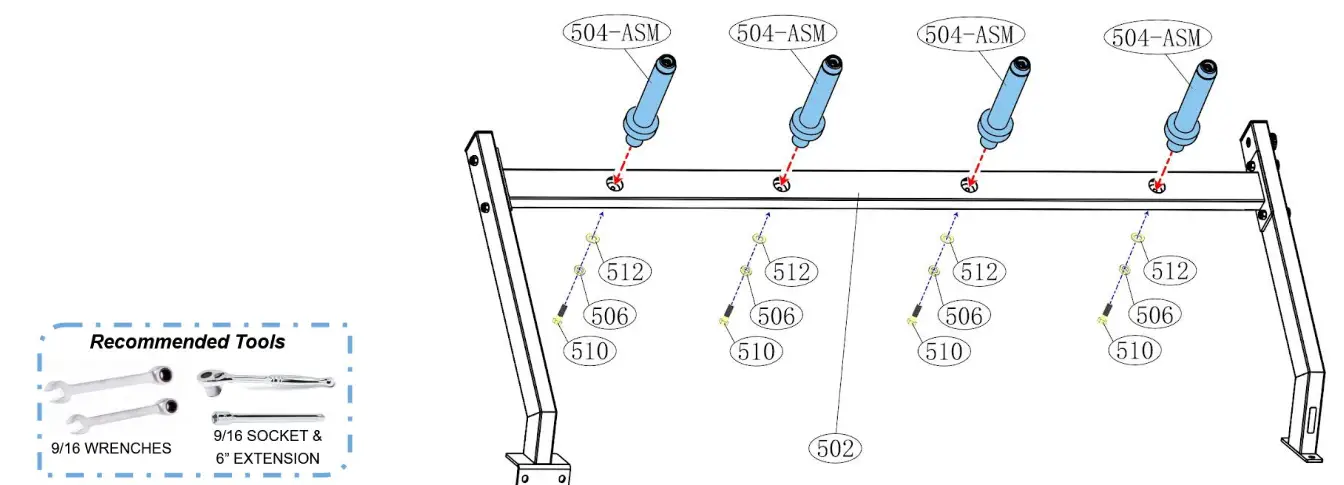

STEP 2: Installation of the Oly Plate Horns
Attach all the Oly Plate Horns (504-ASM) to the Frame, Uprights (502-ASM) using:

Eight BOLTS, Hex 3/8″ x 1-1/4” (510)
Eight WASHERS, Spring 3/8″ (506)
Eight WASHERS, Flat 3/8″ (512)

TIP: Keep bolts loose when installing on an F730 / F430 (Power Rack) or F738 (RFT).
Then level the Bottom Frames with the Adjustable Foot (514-ASM) on both sides.

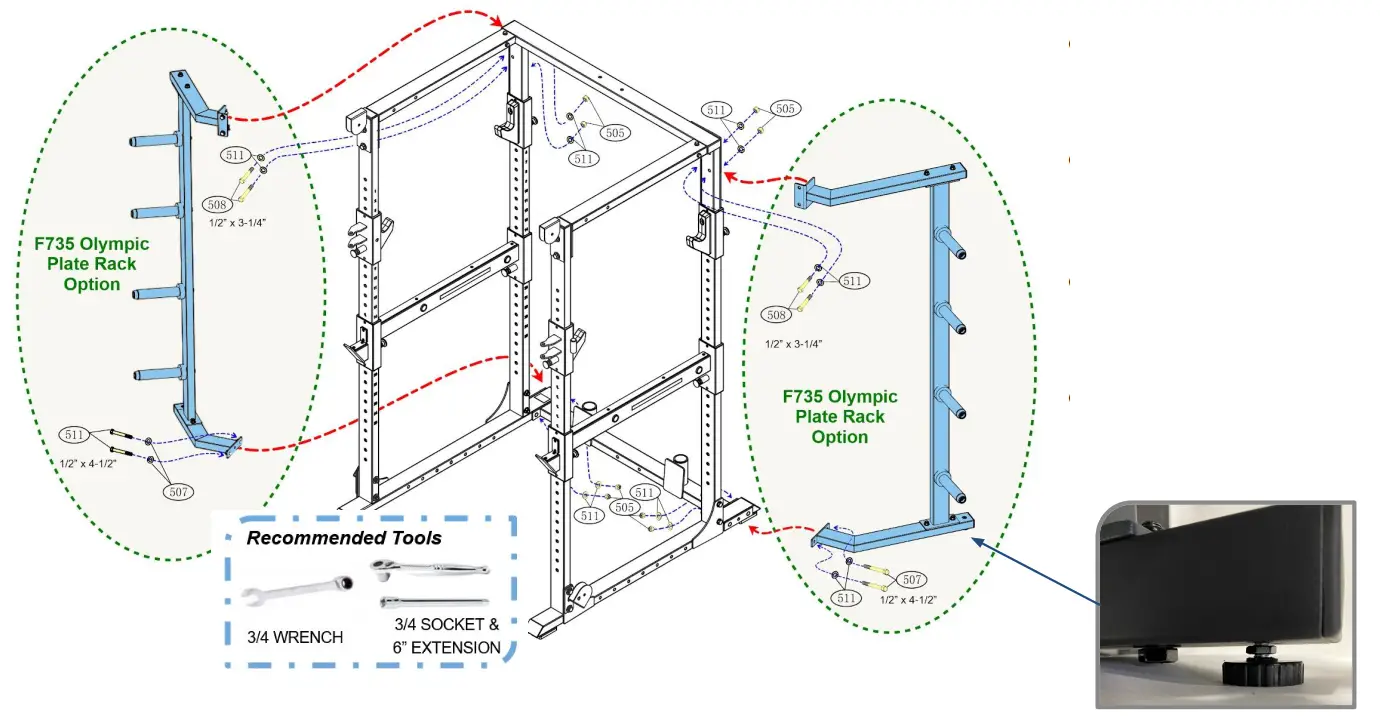

STEP 3: Installation of the F735 Oly Plate Holder to an F730 / F430 (Power Rack) or F738 (RFT) Attach the Olympic Plate Rack Option (F735) to the Upright, Rear, Right & Left Sides (5) using:

Four BOLTS, Hex 1/2″ x 3-1/4” (508)
Four BOLTS, Hex 1/2″ x 4-1/2” (507)
Sixteen WASHERS, Flat 1/2″ (511)
Eight NUTS, Nylon 1/2″ (505)

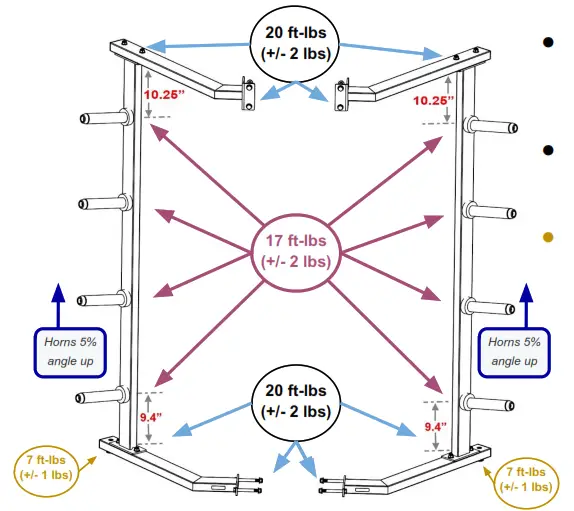

STEP 4: “Torque Time” on all Frames & Oly Plate Horns

Tighten to the recommended torque specs of 20 ft-lbs (+/- 2 lbs) on all 1/2” Bolts & Nuts.
All 8 Bolts (#510) on the Oly Plate Horns to the torque specs of 17 ft-lbs (+/- 2 lbs).
Tighten Jam Nuts on Adjustable Feet @ 7 ft-lbs.

Recommended Tools

TORQUE WRENCH w/ 9/16 & 3/4 SOCKETS & WRENCHES


http://www.bodycraft.com/F730-qr.html	http://www.bodycraft.com/F738-qr.html

F735 – Detailed Parts List & Parts Exploded View

Part #	Detailed Parts List	QTY
F735-501	Frame, Top, Rt & Lt	2
F735-502	Frame, Upright , for Oly Plate Storage	2
F735-503	Frame, Bottom, Rt & Lt	2
F735-504	Oly Plate Horn, Metal Tube	8
F735-505	Nut, Nylon Lock 1/2″ – BLACK	16
F735-506	Washer, Spring 3/8″ – BLACK	8
F735-507	Bolt, Hex Head 1/2″ x 4-1/2″ – BLACK	4
F735-508	Bolt, Hex Head 1/2″ x 3-1/4″ – BLACK	4
F735-509	Bolt, Hex Head 1/2″ x 2-1/2″ – BLACK	8
F735-510	Bolt, Hex Head 3/8″ x 1-1/4″ – BLACK	8

Part	Detailed Parts List	QTY
F735-511	Washer, Flat 1/2″ – BLACK	32
F735-512	Washer, Flat 3/8″ – BLACK	8
F735-513	Nut, Thin, M8 for Adj. Foot – BLACK	2
F735-514	Adjustable Foot, for Lower Base Frame	2
F735-515	End Plug, Rectangular	4
F735-516	Oly Plate Holder, Plastic Sleeve	8
F735-517	Oly Plate Holder, Plastic End Cap – Round	8
F735-518	Oly Plate Holder, Rubber Cushion	8
F735-519	Screw, Hex Recessed Flat Head 3/8″ x 1-1/4″ – BLACK	8
