Technical Data
25 Amp 858 Flex Outlet Plate
Owner’s Manual
858 Flex Outlet Plate
Brief product description:
The subtle design will blend with any décor – suitable for domestic or commercial installations.
Features:
- White moulded round edge, sleek and slim with softly rounded edges
- Easy to install, supplied with fixing screws and installation instructions
- Twin Earth for high integrity circuits
- Cable entry in lower edge with removable reducer and reversible cord grip
- Angled terminals with captive, backed out screws for fast installation
- Screw cover caps for a sleek appearance
- Anti-microbial certified – manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria

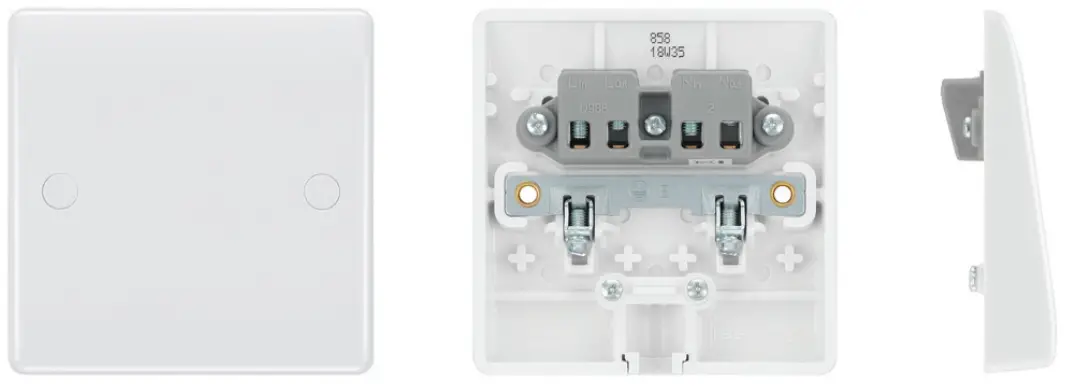

Product Images
858
Technical Specifications
| Standard(s) | BS 5733 |
| Rating | 25 Amp 250V AC |
| Terminal Capacity | 2 x 2.5mm² 1 x 4.0mm² |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 25mm |
| Fixing Centres | 60.3mm |

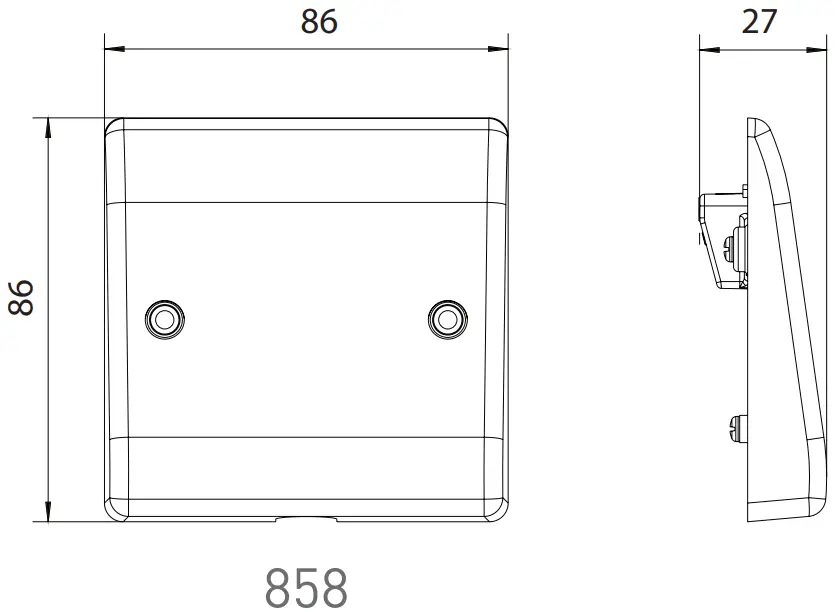

Line Diagrams
Packaging Information
| Cat No. | Description | Packaging Type | Pack Quantity | Barcode | ||||||
| Product | Inner Box | Outer Box | Each | Inner Box | Outer Box | Individual | Inner Box | Outer Box | ||
| 858 | FLEX OUTLET PLATE | Printed Bag | Printed Carton | Printed Carton | 1 | 10 | 100 | 5050765001694 | 5050765001700 | 5050765001717 |
Weights & Dimensions
| Cat No. | Description | Dimensions (H x W x D) cm | Weight (kg) | CBM (m3) | ||||||
| Unpacked Product | Packed Product | Inner Box | Outer Box | Unpacked Product | Packed Product | Inner Box | Outer Box | Outer Box | ||
| 858 | FLEX OUTLET PLATE | 8.6 x 8.6 x 2.7 | 16.5 x 11.0 x 2.8 | 9.5 x 12.7 x 18.2 | 20.1 x 26.3 x 50.3 | 0.078 | 0.082 | 1.06 | 10.88 | 0.02659 |
British General Helpline
03300 249 279
Supplied by
Luceco PLC
Stafford Park 1 Telford TF3 3BD ENGLAND
Visit our website at
www.bgelectrical.uk
