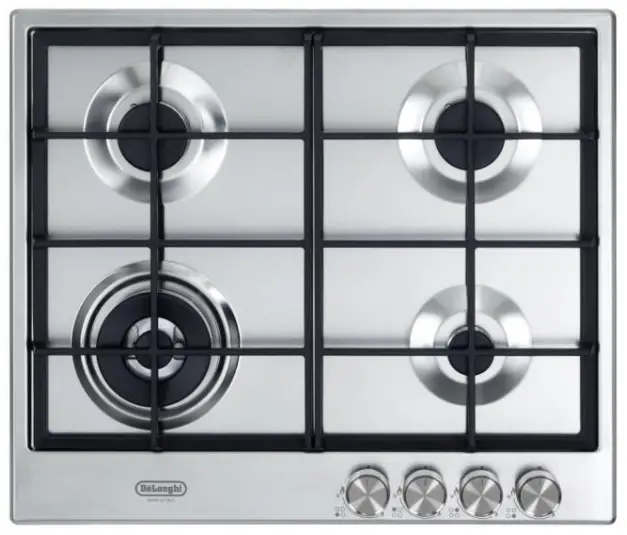

NSL 460 X 60cm 4 Burner Life Slimline Gas Cooktop
Owner’s Manual
NSL 460 X
60cm 4 Burner Life Slimline Gas Cooktop
NSL 460 X 60cm 4 Burner Life Slimline Gas Cooktop
4 burner gas cooktop including:
o Instant Automatic Ignition
o Simmer Control for low heat cooking
o Heavy-Duty cast iron trivets
o Flame Failure safety cut-off on all burners
o Recessed base to catch spills
o Stainless steel slimline design
o Suitable for LPG or Nat Gas (Conversion kit included)

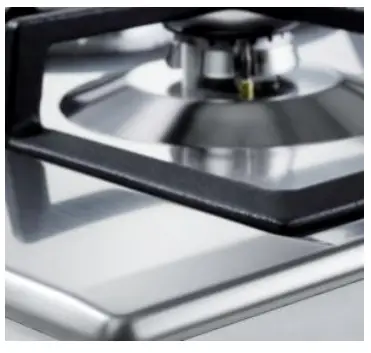

Cast Iron Trivets
Cast iron pan supports provide stability for pots and pans. They are easy to clean and long lasting, providing a professional look for years to come.

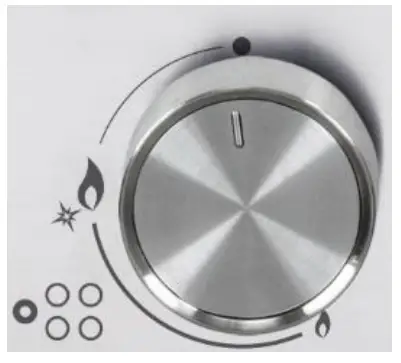

Instant Ignition
With just the push of the knob, an electronic device causes a continuous series of sparks to quickly and easily ignite the selected burner.
Sleek Slim Line Design
A low-profile cooktop designed to integrate into any workbench.
TECHNICAL SPECIFICATIONS
| Product Dimensions (H x W x D) | mm | 49 x 600 x 510 |
| Front Right Auxiliary Burner – LPG / Nat Gas | MJ/h | 4.20 / 4.20 |
| Rear Left Semi-Rapid Burner – LPG / Nat Gas | MJ/h | 6.2 / 6.5 |
| Rear Right Semi-Rapid Burner – LPG / Nat Gas | MJ/h | 6.2 / 6.5 |
| Front Left Double Ring Compact – LPG/ Nat Gas | MJ/h | 9.60/10.70 |
| Total Gas Consumption – LPG | MJ/h | 26.2 |
| Total Gas Consumption – Natural | MJ/h | 27.9 |
| Warranty | 2 years |

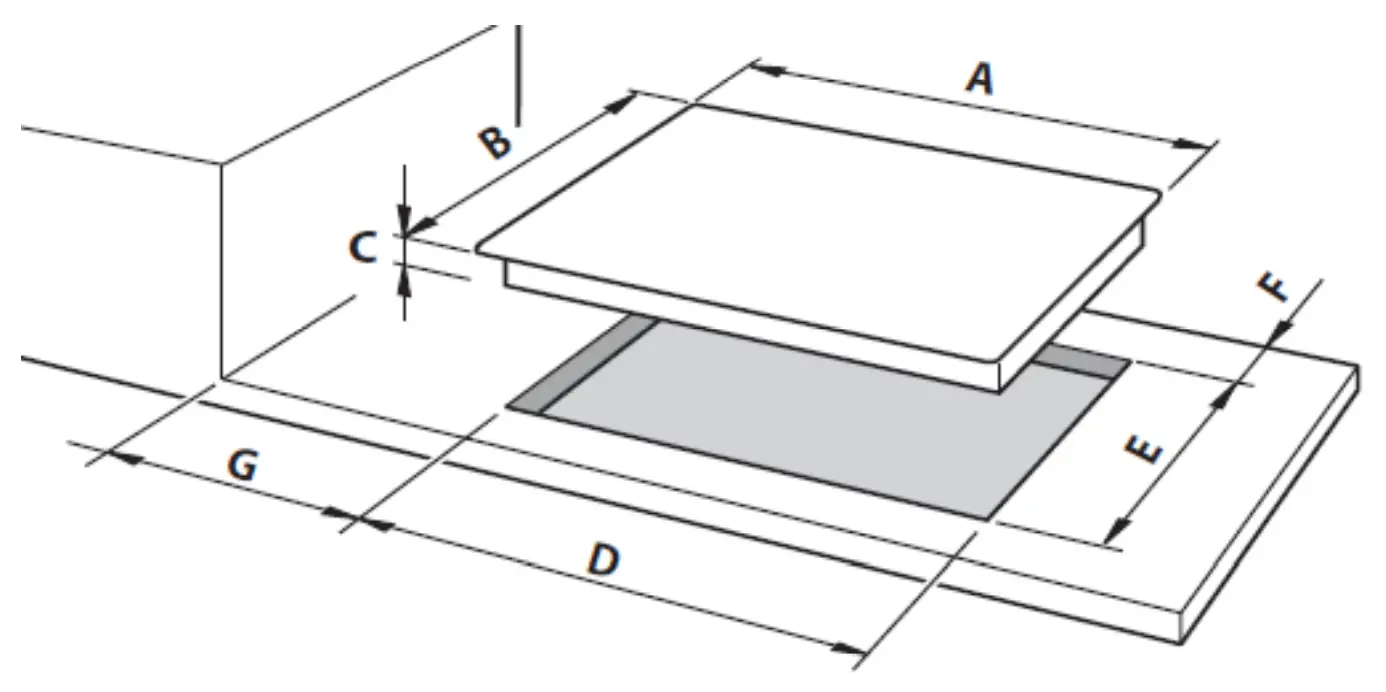

| Measures (mm) | |||||||
| Description | A | B | C | D | E | F (minimum) | G (minimum) |
| Model NSL 460 X | 600 | 510 | 49 (t) | 560 | 480 | 60 (“) | 200 (“1 |
The product dimensions and specifications on this page apply to the specific model at the time of issue Dimensions & specifications may change at any time.

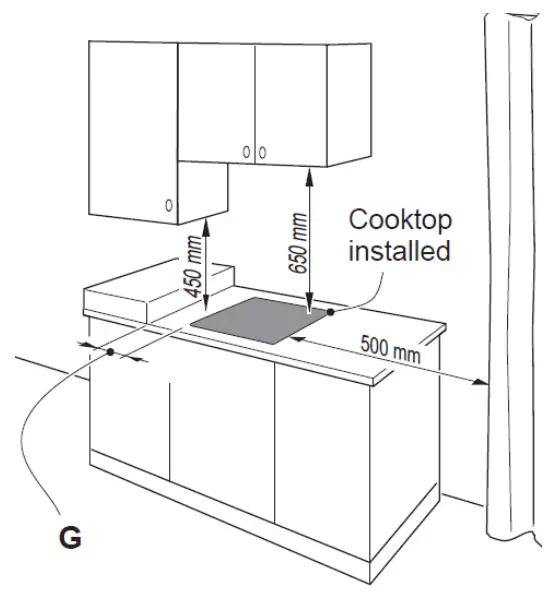

Diagrams are a guide only final fitting should
be made with actual product
