NSL 590D NCM 90cm 5 Burner Life Gas On Glass Cooktop
Owner’s Manual
NSL 590D NCM
90cm 5 Burner Life Gas On Glass Cooktop
NSL 590D NCM 90cm 5 Burner Life Gas On Glass Cooktop
5 Burner gas cooktop including:
o 3,8 kW Double ring burner
o Instant automatic ignition
o Simmer control for low heat cooking
o Heavy-Duty cast iron trivets
o Flame Failure safety cut-off on all burners
o Thermal shock resistant ceramic glass
o Contemporary black glass finish
o Suitable for LPG or Nat Gas (Conversion kit included)
Cast Iron Trivets
Cast iron pan supports provide stability for pots and pans. They are easy to clean and long lasting
Double Ring Burner
A powerful double ring burner provides heat from two fire crowns even heat distribution, making it perfect for wok cooking.
Instant Ignition
With just the push of the knob, an electronic device causes a continuous series of sparks to quickly and easily ignite the selected burner.
Precision Control
Go from simmering to fast boil, by using 9 levels of flame control. Accurate selection of the right flame for each recipe
Contemporary
frameless black glass design A low-profile cooktop designed to integrate into any workbench.
TECHNICAL SPECIFICATIONS
| Product Dimensions (H x W x D) | mm | 54 x 900 x 510 |
| Front Left Auxiliary Burner – LPG / Nat Gas | MJ/h | 4.20 / 4.20 |
| Rear Left Semi-Rapid Burner – LPG / Nat Gas | MJ/h | 6.2 / 6.6 |
| Rear Right Semi-Rapid Burner – LPG / Nat Gas | MJ/h | 6.2 / 6.6 |
| Front Right Rapid Burner – LPG / Nat gas | MJ/h | 10.78 / 11.75 |
| Centre Left Double Ring – LPG / Nat Gas | MJ/h | 14.10 / 13.70 |
| Total Gas Consumption – LPG | MJ/h | 41.48 |
| Total Gas Consumption – Natural | MJ/h | 42.85 |
| Warranty | 2 years |

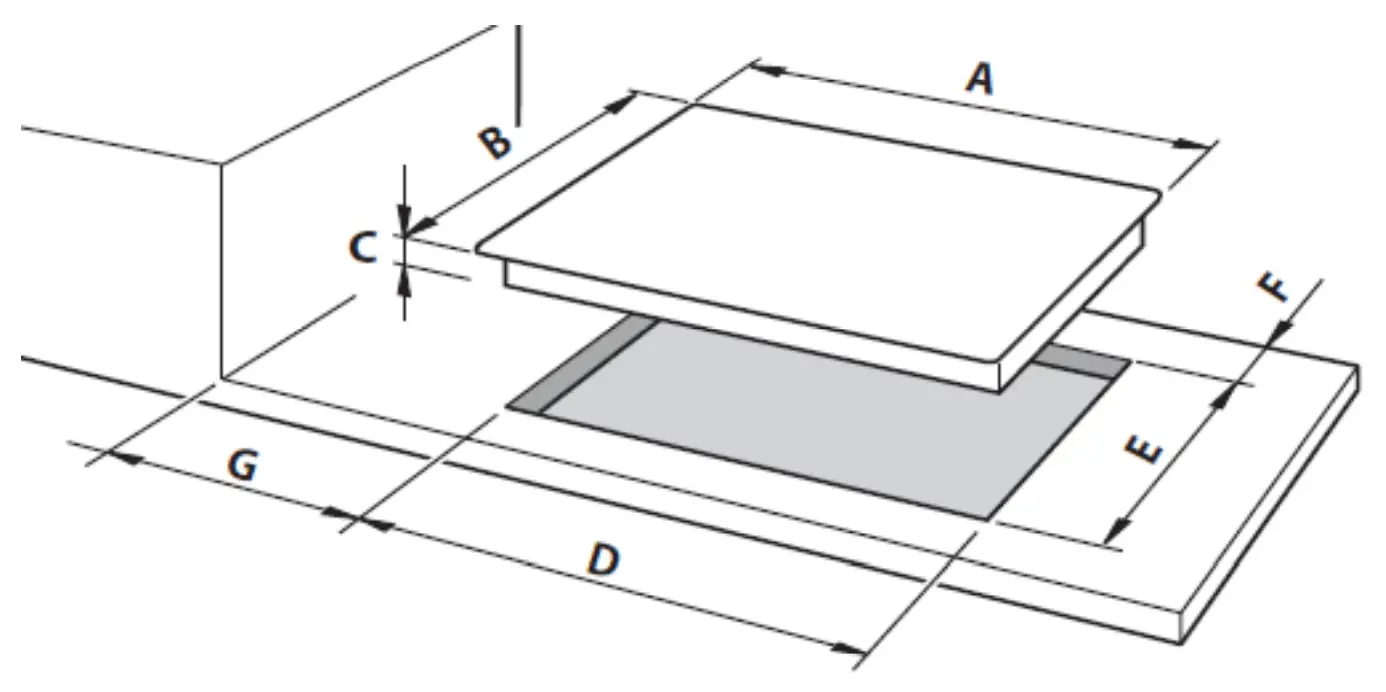

| Measures (mm) | |||||||
| Description | A | B | C | D | E | F (minimum) | G (minimum) |
| Model NSL590D NCM | 900 | 510 | 54 (*) | 840 | 480 | 60 (“) | 200 (“1 |
The product dimensions and specifications on this page apply to the specific model at the time of issue
Dimensions & specifications may change at any time.

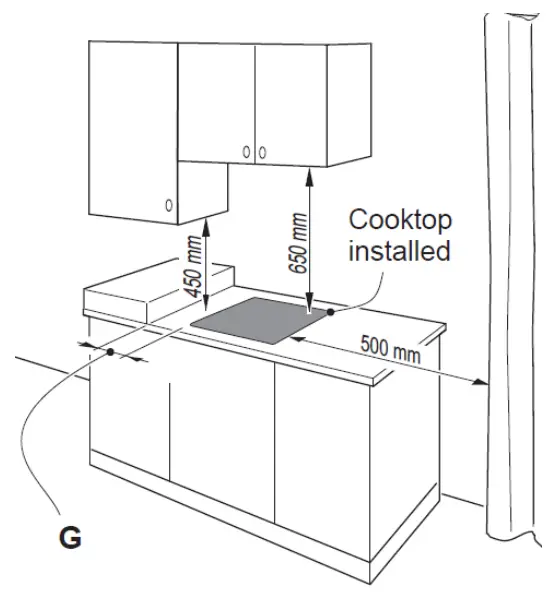

Diagrams are a guide only final fitting should
be made with actual product
