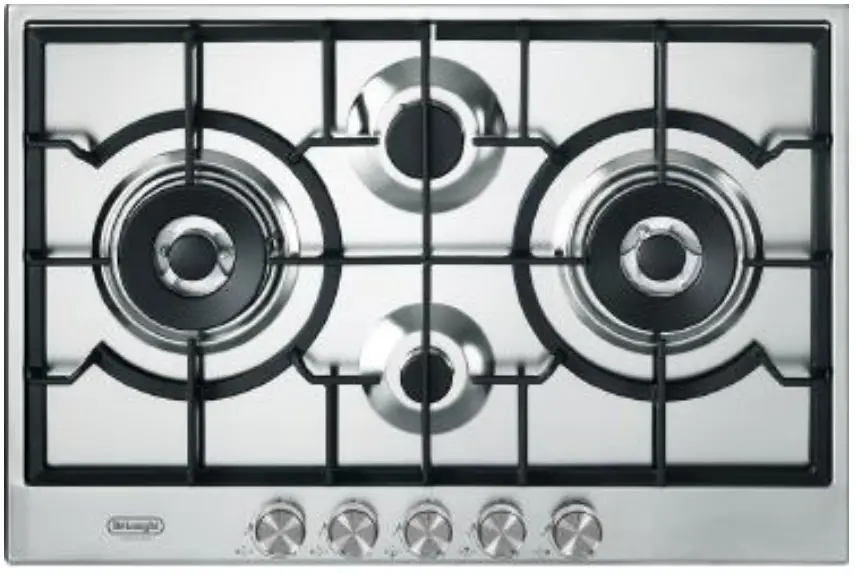

DeLonghi NSL 475 X Burner Life Slimline Gas Cooktop Owner’s Manual

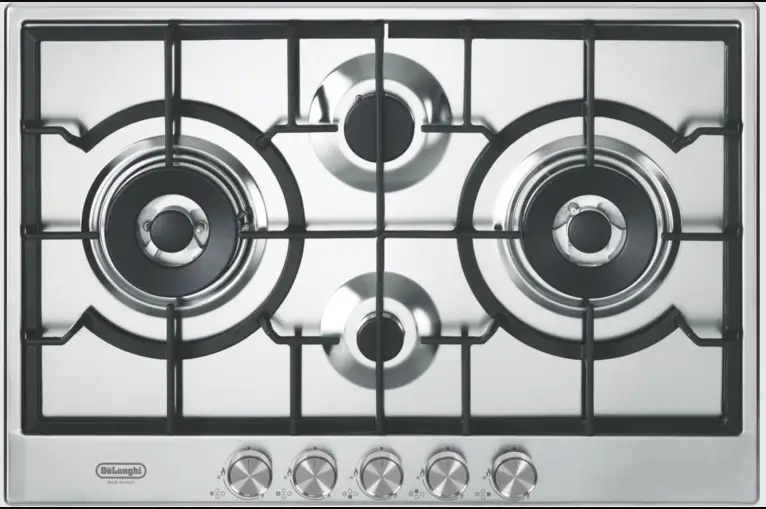

Features
4 burner gas cooktop including:
- Dual Burner
- Instant Automatic Ignition
- Simmer Control for low heat cooking
- Heavy-Duty cast iron trivets
- Flame Failure safety cut-off on all burners
- Recessed base to catch spills
- Stainless steel slimline design
- Suitable for LPG or Nat Gas (Conversion kit included)

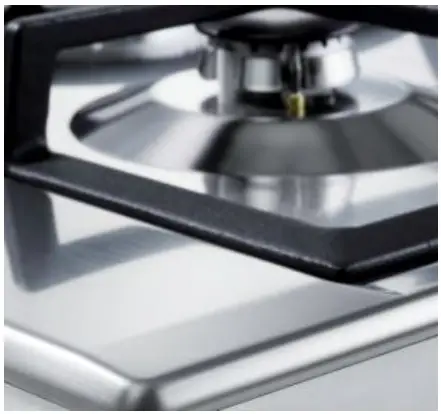

Cast Iron Trivets
Cast iron pan supports provide stability for pots and pans.
They are easy to clean and long lasting, providing a professional look for years to come.

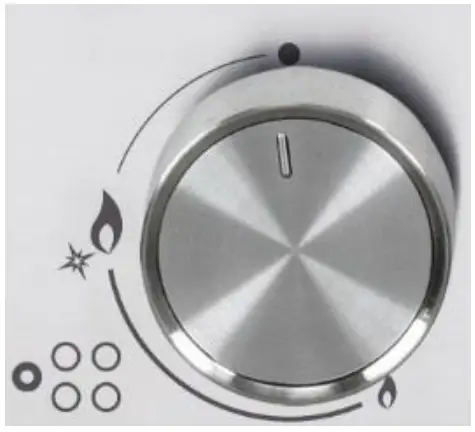

Instant Ignition
With just the push of the knob, an electronic device causes a continuous series of sparks to quickly and easily ignite the selected burner.

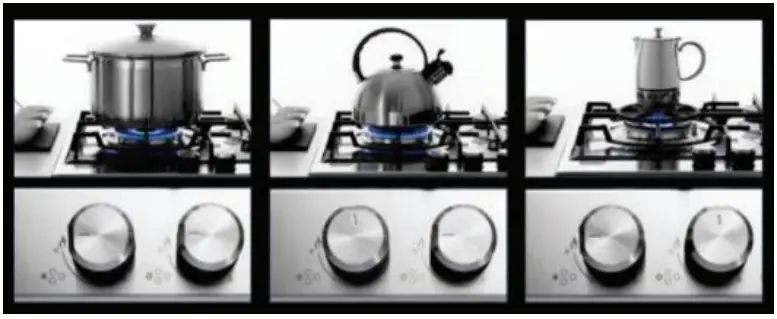

Dual Burner
Independent burner operation allows you use the burners either separately or together for greater control and cooking flexibility.
TECHNICAL SPECIFICATIONS
| Product Dimensions (H x W x D) | mm | 75 x 750 x 510 |
| Front Middle Auxiliary Burner – LPG / Nat Gas | MJ/h | 4.2/4.2 |
| Rear Middle Semi-Rapid Burner – LPG / Nat Gas | MJ/h | 6.20/6.60 |
| Right Double Ring Crown – LPG/Nat Gas | MJ/h | 14.10/13.70 |
| Left Dual Burner – LPG/Nat Gas Inner | MJ/h | 2.10/2.40 |
| Left Dual Burner – LPG/Nat Gas Outer | MJ/h | 11.40/13.80 |
| Total Gas Consumption | MJ/h | 38.0/40.7 |
| Warranty | 2 years |

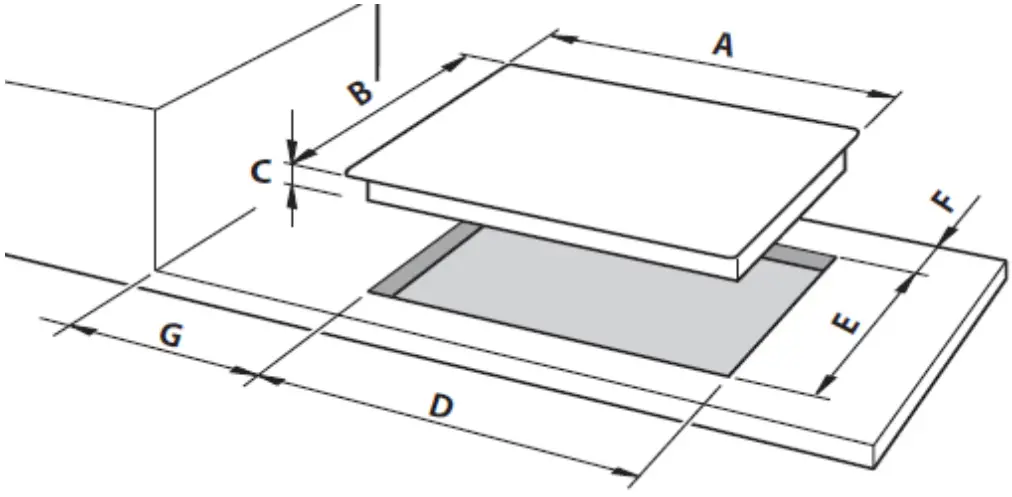

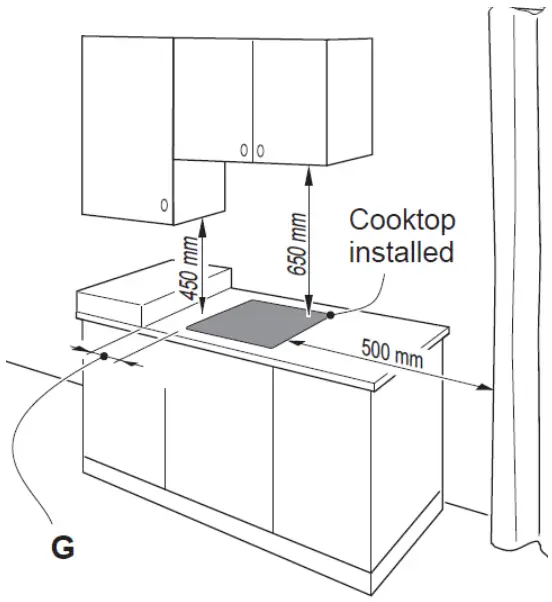

DIMENSIONS
Measures (mm) | |||||||
| Description | A | B | C | D | E | F | G |
| Model NSL 475 X | 750 | 510 | 49(*) | 560 | 480 | (minimum) | (minimum) |
The product dimensions and specifications on this page apply to the specific model at the time of issue Dimensions & specifications may change at any time.
