ecosmart Left Corner Fireplace
LEFT Corner fire places
Application Indoor & Outdoor
Materials Mild Steel (Zinc Sealed), Toughened
Glass, Stainless Steel & Black Glass
Charcoal as Decorative Media
Colours Black Firebox, Stainless Steel Burner/s
Fuel Type e-NRG Bioethanol

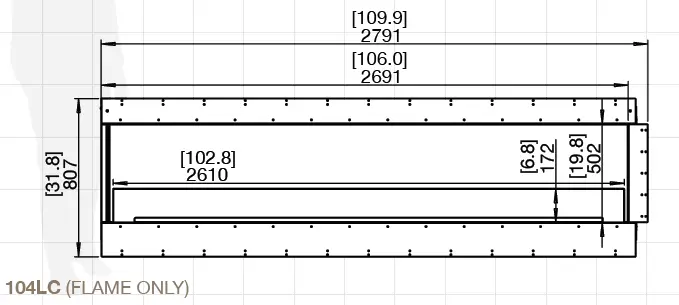

FLEX104
ESF.1.FX.104LC
Weight 149.5kg [328.9lbs] (Incl. burner/s, glass charcoal, glass)
Burner XL1200 x 2
Volume Capacity 10 Litres [2.6 Gallons] x 2
Heats on Average Over 130 square metres
[1400 square feet]
Burn Time 9 – 14 hours (approx)
Minimum 230 cubic metres
Room Size 230 cubic metres
Minimum 2,855mm [112in]
Wall Length

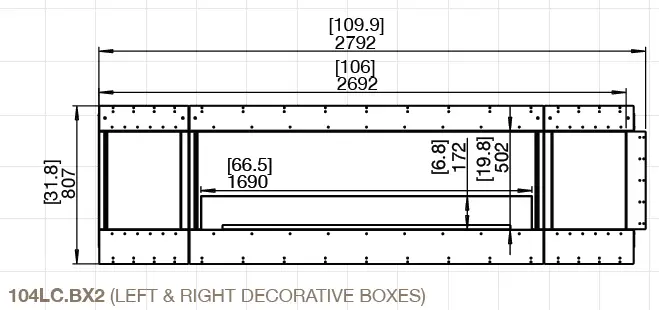

ESF.2.FX.104LC.BX2
Weight 146.9kg [323.2lbs] (Incl. burner/s, glass charcoal, glass)
Burner XL1200 x 1
Volume Capacity 10 Litres [2.6 Gallons] x 1
Heats on Average Over 65 square metres
[700 square feet]
Burn Time 9 – 14 hours (approx)
Minimum 115 cubic metres
Room Size [4061 cubic feet] per fireplace
Minimum 2,855mm [112in]
Wall Length

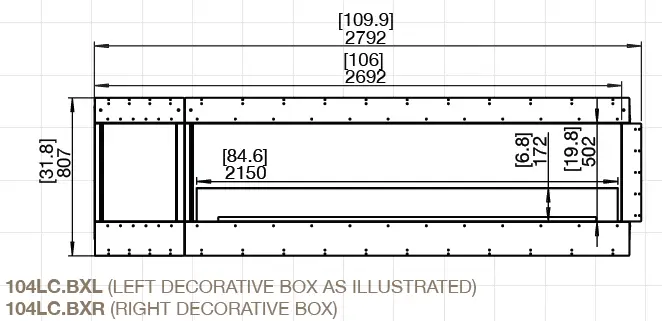

ESF.1.FX.104LC.BXL
ESF.1.FX.104LC.BXR
Weight 145.4kg [319.9lbs] (Incl. burner/s, glass charcoal, glass)
Burner XL900 x 2
Volume Capacity 9 Litres [2.4 Gallons] x 2
Heats on Average Over 120 square metres
[1290 square feet]
Burn Time 8 – 13 hours (approx)
Minimum 220 cubic metres
Room Size [7768 cubic feet] per fireplace
Minimum 2,855mm [112in]
Wall Length
For more information please reference the Clearance & Installation Manual
Disclaimer. All product specifications and data are subject to change without notice and believed to be correct at the time of publication. MAD Design Group (MDG), its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “MAD Design Group”), disclaim any and all liability for any errors,
inaccuracies or incompleteness contained herein or in any other disclosure relating to any product. MDG disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand
or otherwise modify MDG’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of MDG. Customers using or
selling MDG products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify MDG for any damages arising or resulting from such use or sale. Please contact authorised personnel from MDG to obtain written terms and conditions regarding products designed for such
applications. Images are indicative only. www.ecosmartfire.com
