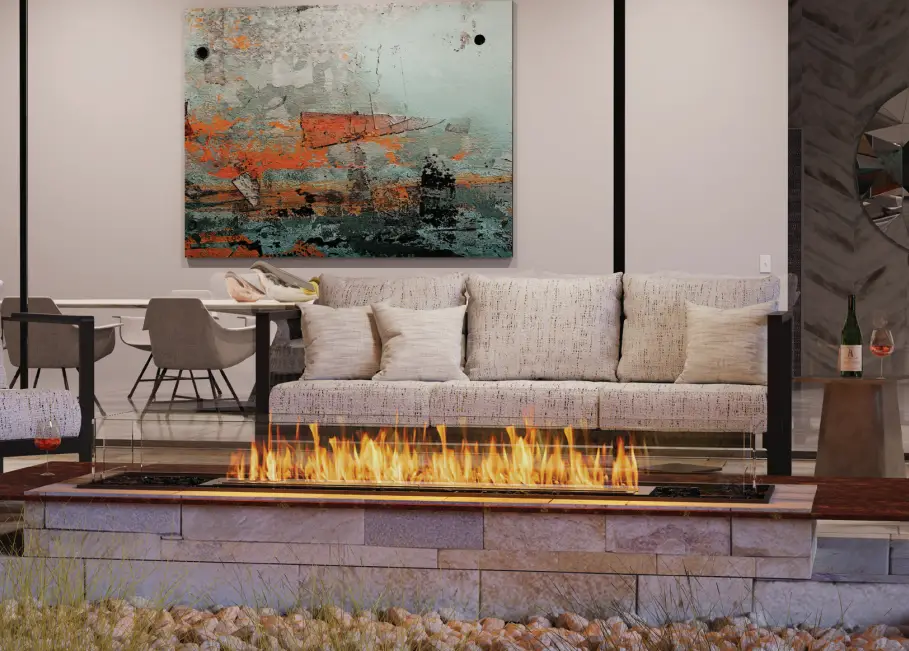

ECOSMART™ FLEX 68BN BENCH FIREPLACE USER MANUAL

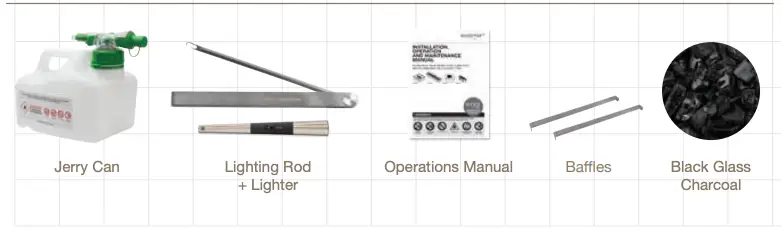

Included Accessories
Optional Accessory
Bench Fireplaces
| Award | 2020 BIMsmith Best Award (USA) |
| Application | Indoor & Outdoor |
| Materials | Mild Steel (Zinc Sealed), Toughened Glass, Grade 304 Stainless Steel |
| Colours | Black Firebox, Stainless Steel Burner/s |
| Fuel Type | e-NRG Bioethanol |
FLEX68

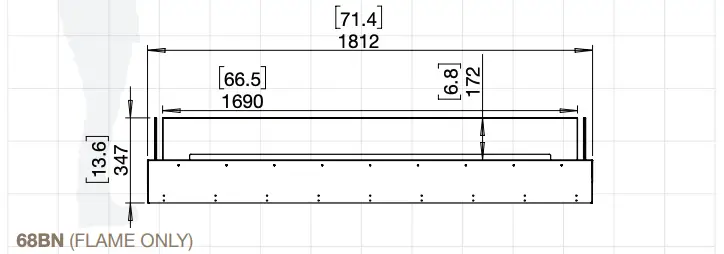

| ESF.2.FX.68BN | |
| Weight | 50.3kg [110.6lbs] (Incl. burner/s, glass charcoal, glass) |
| Burner | XL1200 x 1 |
| Volume Capacity | 10 Litres [2.6 Gallons] x 1 |
| Heats on Average | Over 65 square metres [700 square feet] |
| Burn Time | 9 – 14 hours (approx) |
| Minimum Room Size | 115 cubic metres [4061 cubic feet] per fireplace |
| ESF.1.FX.68BN.BX2 | |
| Weight | 49.3kg [108.5lbs] (Incl. burner/s, glass charcoal, glass) |
| Burner | XL500 x 1 |
| Volume Capacity | 5 Litres [1.3 Gallons] |
| Heats on Average | Over 40 square metres [430.6 square feet] |
| Burn Time | 10 – 13 hours (approx) |
| Minimum Room Size | 80 cubic metres [2825 cubic feet] per fireplace. |
| ESF.1.FX.68BN.BX1 | |
| Weight | 61.1kg [134.5lbs] (Incl. burner/s, glass charcoal, glass) |
| Burner | XL900 x 1 |
| Volume Capacity | 9 Litres [2.4 Gallons] |
| Heats on Average | Over 60 square metres [645 square feet] |
| Burn Time | 8 – 13 hours (approx) |
| Minimum Room Size | 110 cubic metres [3884 cubic feet] per fireplace. |
FOR MORE INFORMATION PLEASE REFERENCE THE CLEARANCE & INSTALLATION MANUAL

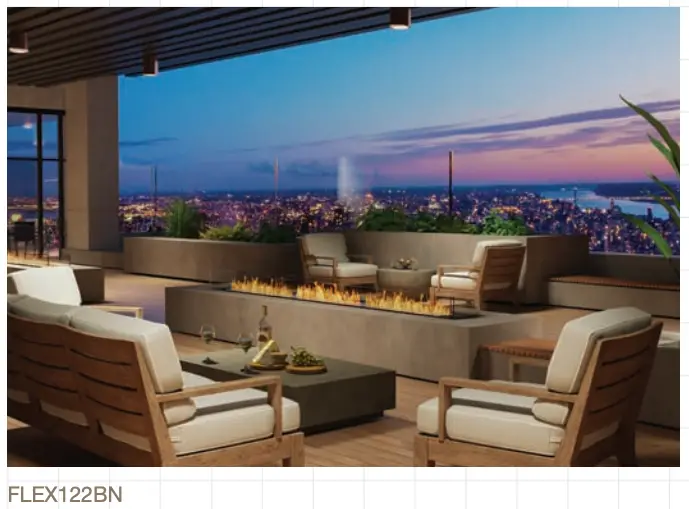

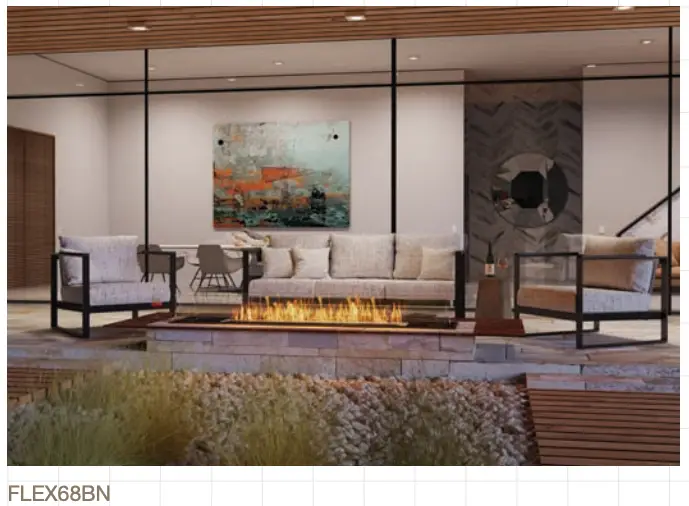

Bench Installations
