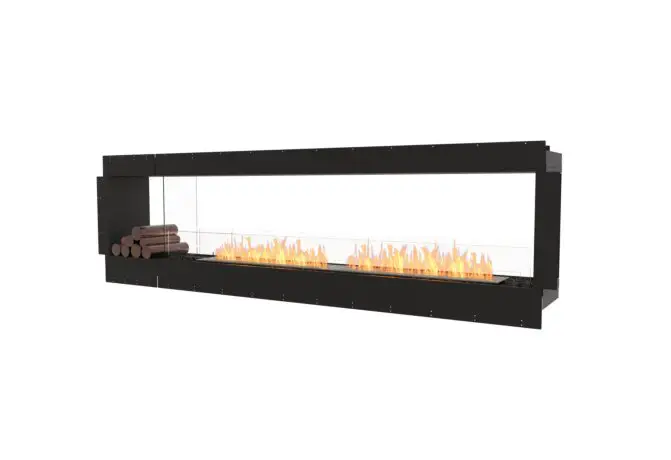

FLEX 104DB DOUBLE SIDED FIREPLACE USER MANUAL
*Image indicative of style only

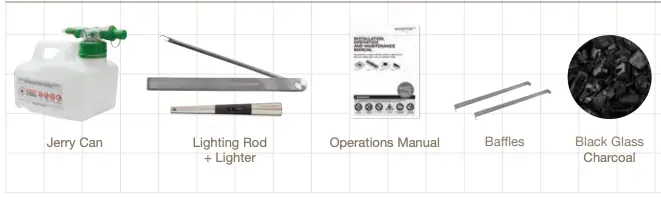

Included Accessories
Optional Accessory

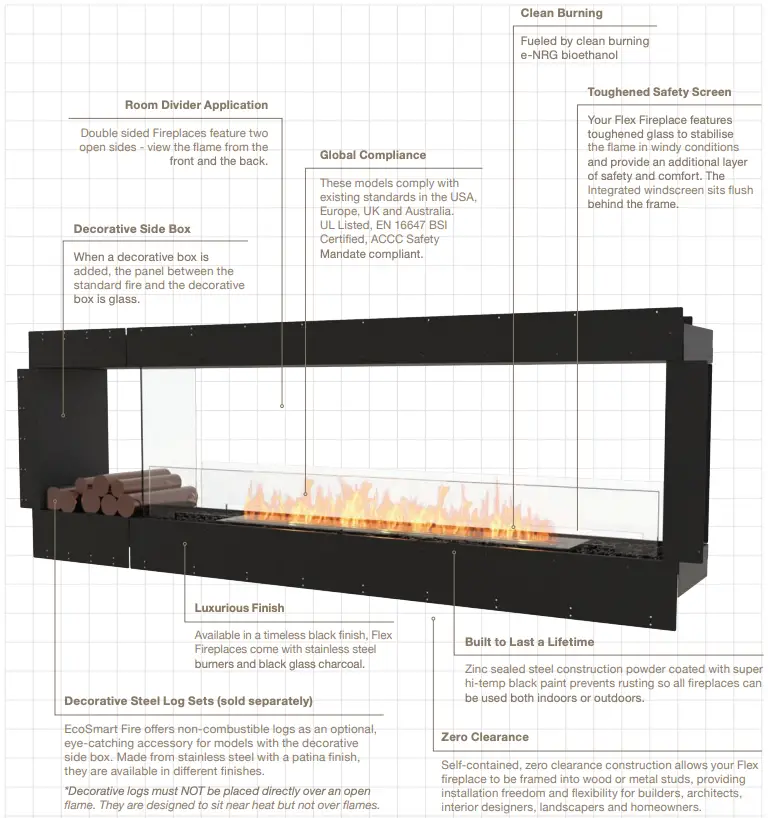

Double Sided Fireplaces
| Award | 2020 BIMsmith Best Award (USA) |
| Application | Indoor & Outdoor |
| Materials | Mild Steel (Zinc Sealed), Toughened Glass, Grade 304 Stainless Steel |
| Colours | Black Firebox, Stainless Steel Burner/s |
| Fuel Type | e-NRG Bioethanol |
FLEX104

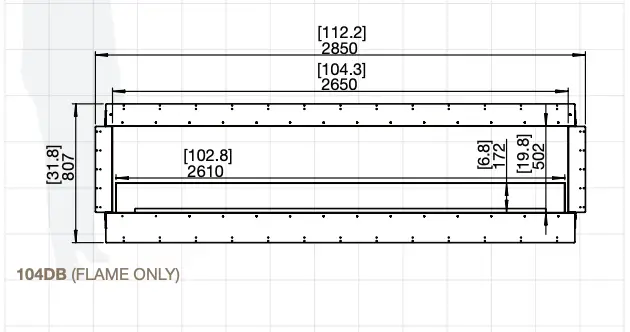

| ESF.1.FX.104DB | |
| Weight | 145.7kg [320.5lbs] (Incl. burner/s, glass charcoal, glass) |
| Burner | XL1200 x 2 |
| Volume Capacity | 10 Litres [2.6 Gallons] x 2 |
| Heats on Average | Over 130 square metres [1400 square feet] |
| Burn Time | 9 – 14 hours (approx) |
| Minimum Room Size | 230 cubic metres [8122 cubic feet] per fireplace |
| Minimum Wall Length | 2,855mm [112in] |

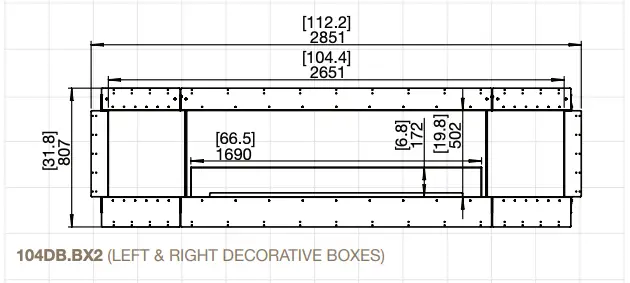

| ESF.2.FX.104DB.BX2 | |
| Weight | 142kg [312.4lbs] (Incl. burner/s, glass charcoal, glass) |
| Burner | XL1200 x 1 |
| Volume Capacity | 10 Litres [2.6 Gallons] x 1 |
| Heats on Average | Over 65 square metres [700 square feet] |
| Burn Time | 9 – 14 hours (approx) |
| Minimum Room Size | 115 cubic metres [4061 cubic feet] per fireplace |
| Minimum Wall Length | 2,855mm [112in] |

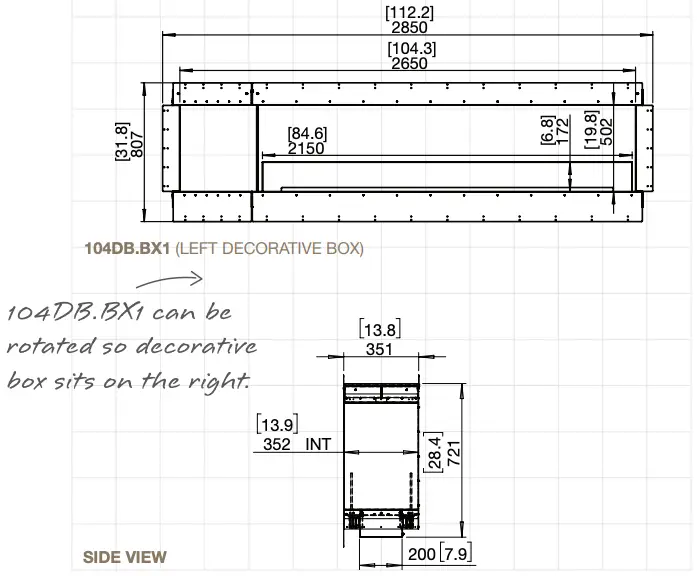

| ESF.1.FX.104DB.BX1 | |
| Weight | 127.1kg [279.6lbs] (Incl. burner/s, glass charcoal, glass) |
| Burner | XL900 x 2 |
| Volume Capacity | 9 Litres [2.4 Gallons] x 2 |
| Heats on Average | Over 120 square metres [1290 square feet] |
| Burn Time | 8 – 13 hours (approx) |
| Minimum Room Size | 220 cubic metres [7768 cubic feet] per fireplace |
| Minimum Wall Length | 2,855mm [112in] |
Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.
These values are indicative only and may vary depending on the model purchased, installation, and the seasonal resource used to manufacture e-NRG.
FOR MORE INFORMATION PLEASE REFERENCE THE CLEARANCE & INSTALLATION MANUAL

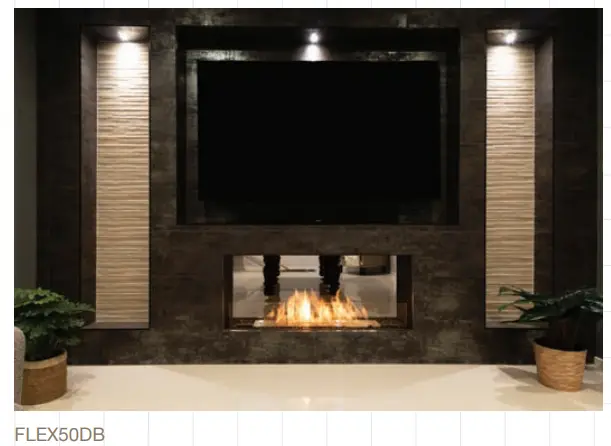

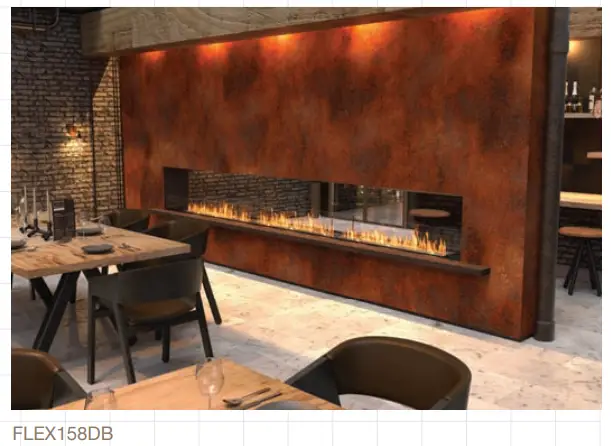

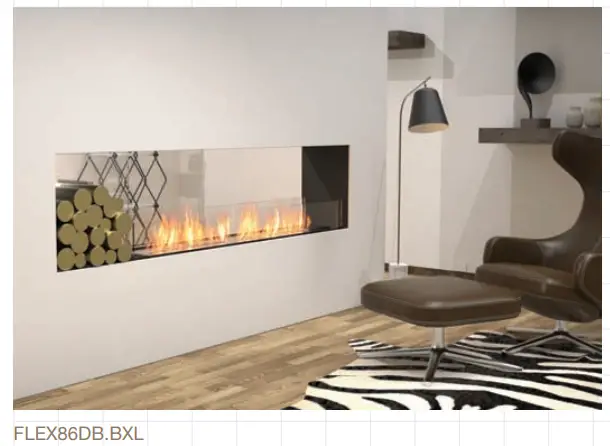

Double Sided Installations
Disclaimer. All product specifications and data are subject to change without notice and believed to be correct at the time of publication. MAD Design Group (MDG), its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “MAD Design Group”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product. MDG disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify MDG’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of MDG. Customers using or selling MDG products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify MDG for any damages arising or resulting from such use or sale. Please contact authorised personnel from MDG to obtain written terms and conditions regarding products designed for such applications. Images are indicative only.
© Copyright 2004 – 2020 MAD Design Group. All rights reserved. V0220
