2EDGJKM-3.5 PCB Terminals and Connectors
Instruction Manual

2EDGJKM-3.5 PCB Terminals and Connectors

PCB terminals and connectors
High-quality components and unique design-in services OMNIMATE® device connectivity
Device developments are designed with unique efficiency OMNIMATE ® during a typical device development phase
Efficient planning and design-in processes save you valuable time in product development. In addition to our PCB components, we offer a wide range of support tools and services.
24/7 Online-Services
The right know-how at any time, helpful support, and reliable services for your device development.

www.weidmueller.com/omnimate-services

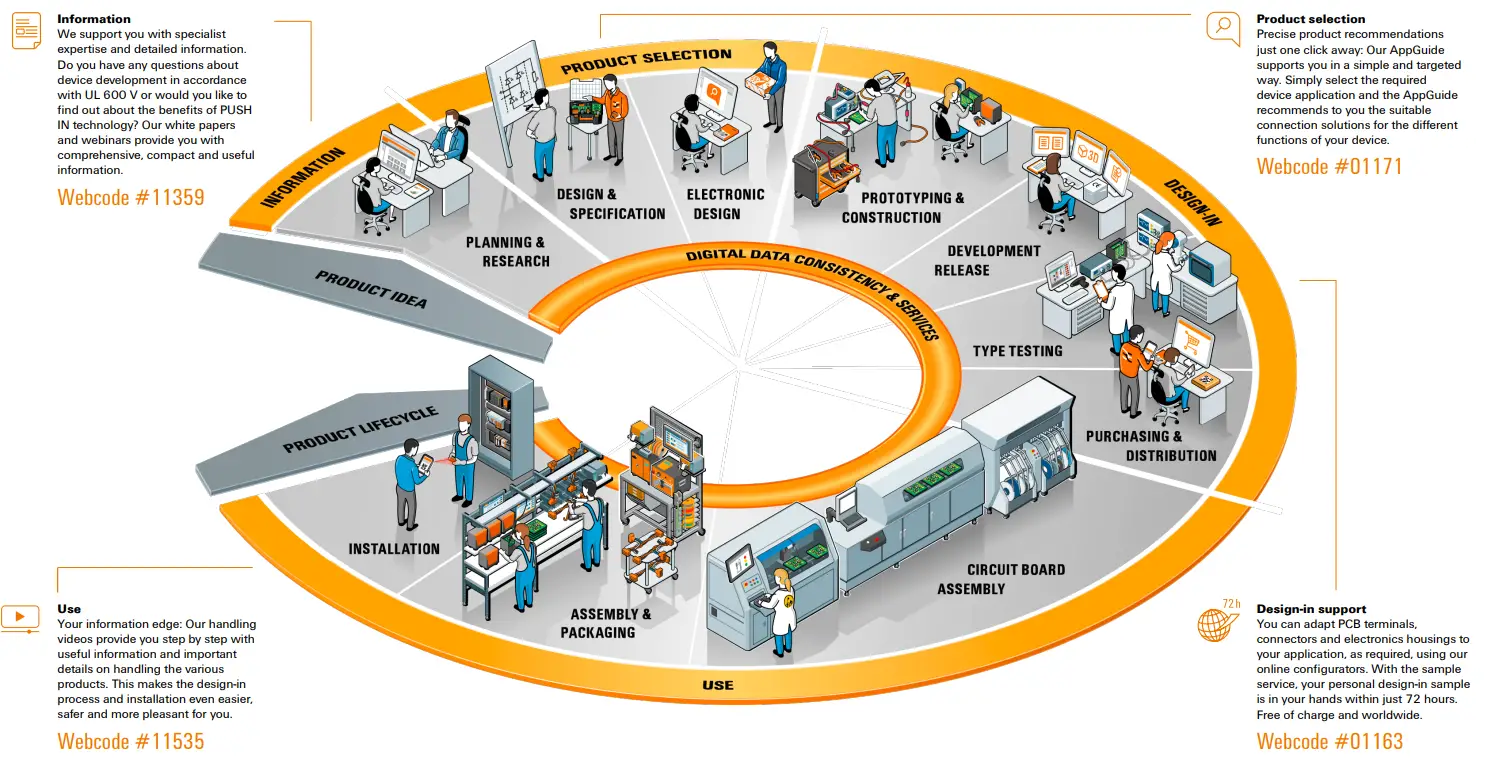

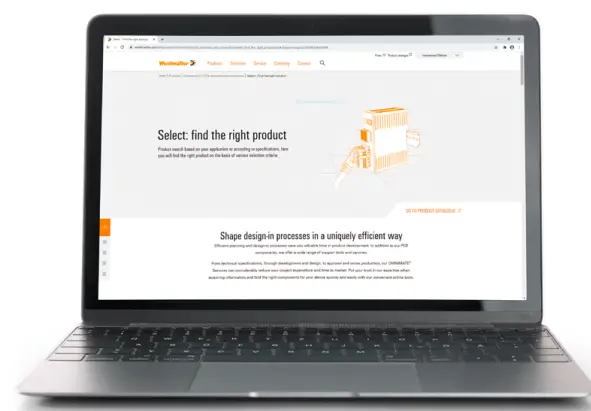

Many ways lead to the right product
Our online services as process-optimization tools
There is more than one route to the final layout. Our support concept will assist you in all of your searches and selection options.
Weidmüller has fundamentally re-designed the selection and ordering process for device connectivity in a way that better suits your application. In the future, there’ll no longer be just one path to the right product; there’ll just be the right path: yours.
Webcode selection
For an application, you need certain specifications for certain products. Our new web code allows you to go directly to the relevant products: simply choose the required product from the following pages and enter the hashtag with a five-digit code on our website, and you’ll be directed to the relevant details.

www.weidmueller.com

The AppGuide
When working with applications, you’ll need to find ways of successfully implementing your ideas. Simply select your device application in our AppGuide, and we will recommend a range of products for all the different functions of your device. Webcode #01171

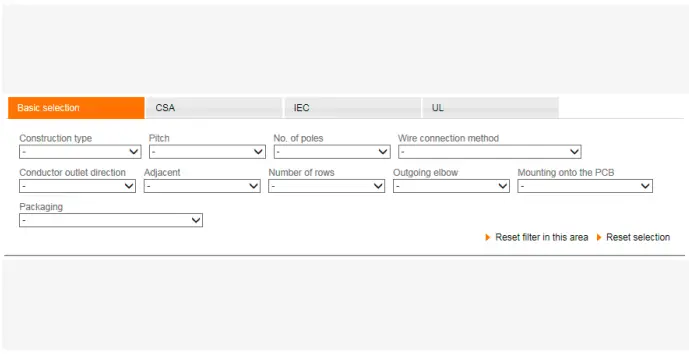

Specification filters

In our online catalog in the area of device connectivity, you filter the right product in seconds using your product and application requirements. Webcode #11534

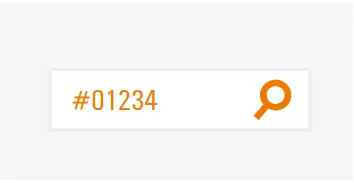

Webcode: the hashtag for easy product searching
A hashtag followed by five digits – that’s all you need to find out detailed information
about the products in our wide-ranging portfolio. Entering the sequence of characters
activates certain product groups or individual products.
Where can I find the web code?
Next to the product, either in this brochure or online.
Where do I enter the web code?
Just enter the code into the search screen on our website. *
Where will I be directed once I’ve entered the web code?
You’ll be taken to the product specifications and technical details, as well as additional info and downloads.
* Note: Make sure that the pop-up blocker settings are disabled

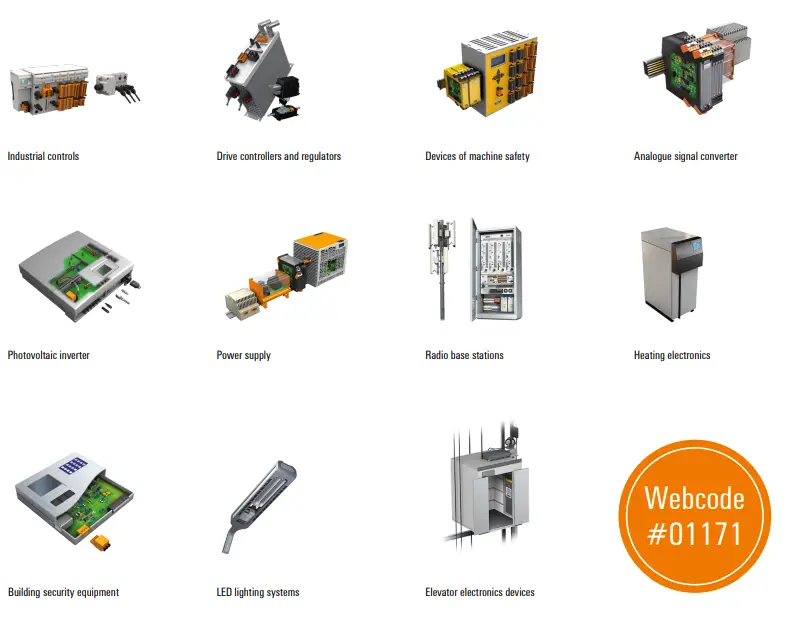

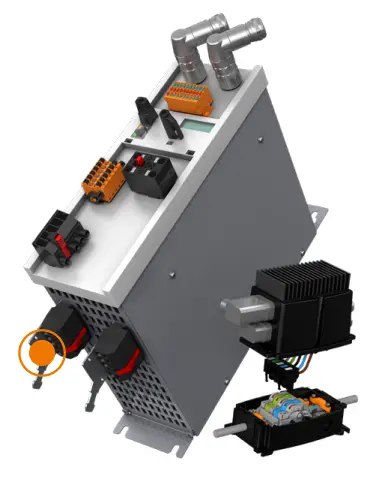

Your device application

Our AppGuide for device developers
Based on your application, AppGuide will show you a representative range of products for the different functions of your device.
The overview will show you the application as you know it. Move the cursor over the markings to find out information on the connection technology for sub-assemblies and components. And it’s just a few more clicks from here to your desired product.

AppGuide
Simply select your device application in our AppGuide, and we will recommend a range of products for all the different functions of your device.

www.weidmueller.com/appguide

Go directly to your application with the web codeWebcode #01171

1. Open the AppGuide Go to: www.weidmueller.com/appguide or use Web code #01171
2. Select the application Hotspots will show you the way to our recommended products
3. Select product group Use the hotspots to find the perfect products for your applications
4. Receive the product Configure your selection and use the available functions of our online catalog

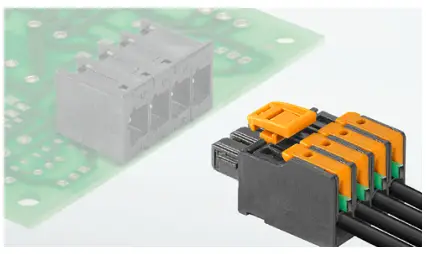

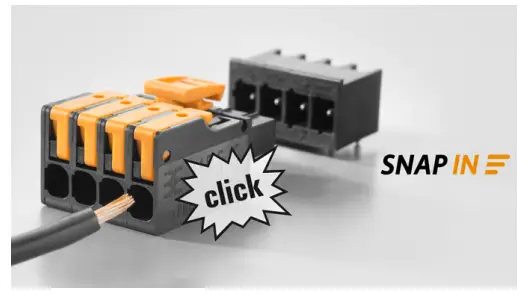

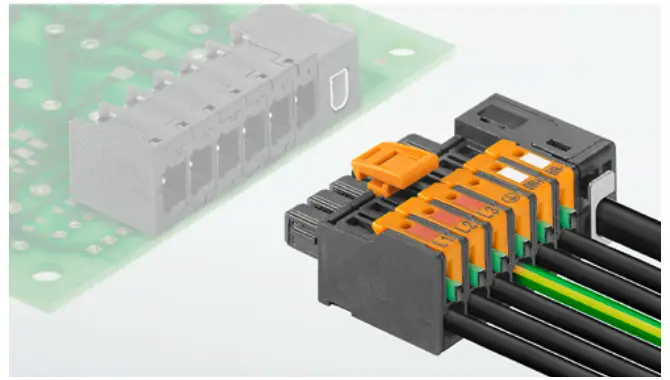

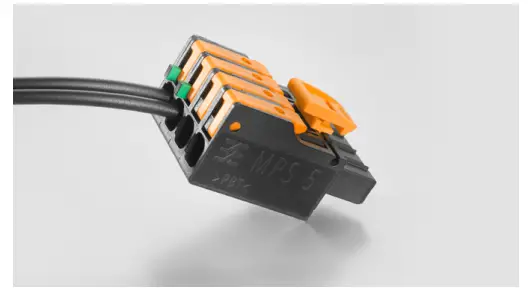

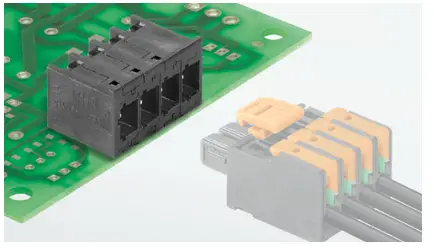

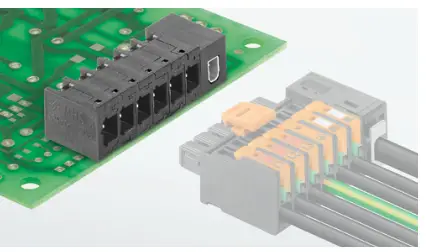

OMNIMATE® 4.0 – Fast. Flexible. Digital.

SNAP IN connectivity solutions for pioneers
The demands for the development of electrical devices are constantly increasing. This leads to higher complexity and challenges for device developers. OMNIMATE® 4.0 is the efficient solution for a continuous, digitalized device development process for the connected world of tomorrow.
ANIMATE ® 4.0 combines three innovations in one: super-fast wire connection technology, modular product design, and the fastest possible delivery. The innovative SNAP IN connection technology allows even flexible conductors without ferrules to be connected easily without tools. An indicator signals the secure connection both acoustically and visually. The modular product concept of OMNIMATE®  4.0 enables flexible configuration via the Weidmüller Configurator (WMC) for the design of your next-generation devices with reduced engineering efforts and all relevant digital data. Through this combination of modularity and a digital value chain, even highly individual products are ready to be shipped within 3 days – from samples to product series.

Maximum wiring speed
The innovative SNAP IN connection enables secure wiring in record time. With SNAP IN even flexible conductors without ferrules can be connected intuitively and completely tool-free – even in fully automated wiring processes.
Hearable and visible feedback
ANIMATE ® 4.0 with the visual safety indicator gives you direct feedback on the clamping situation. Besides a hearable “click” the green visual safety indicator increases the security of the proper wiring of the connector.

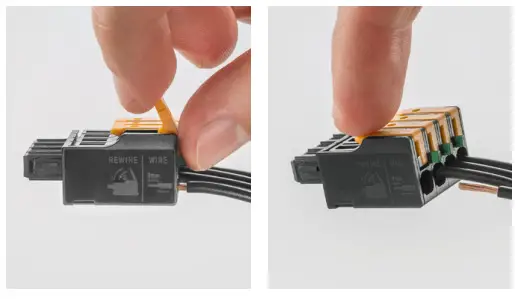

Easy and intuitive handling
The easy and one-hand usable top flange fixes the product and prevents undesired disconnection. The toolless re-wiring with the lever function brings the handling to a new level.

Learn more about the game changer in the connector market.
www.weidmueller.com/omnimate40

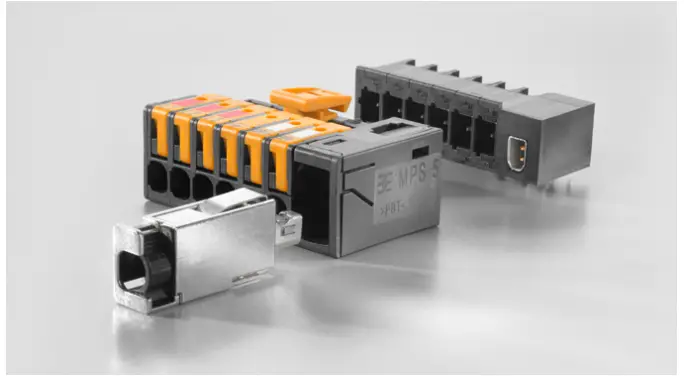

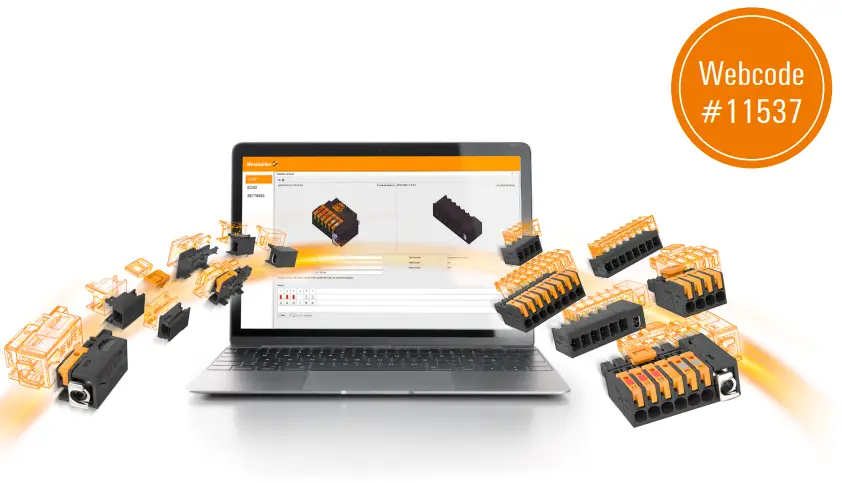

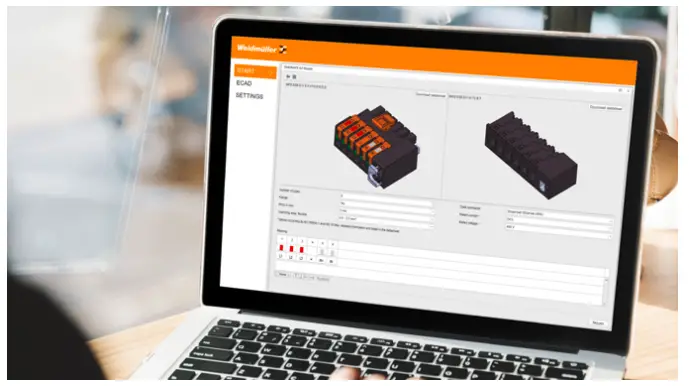

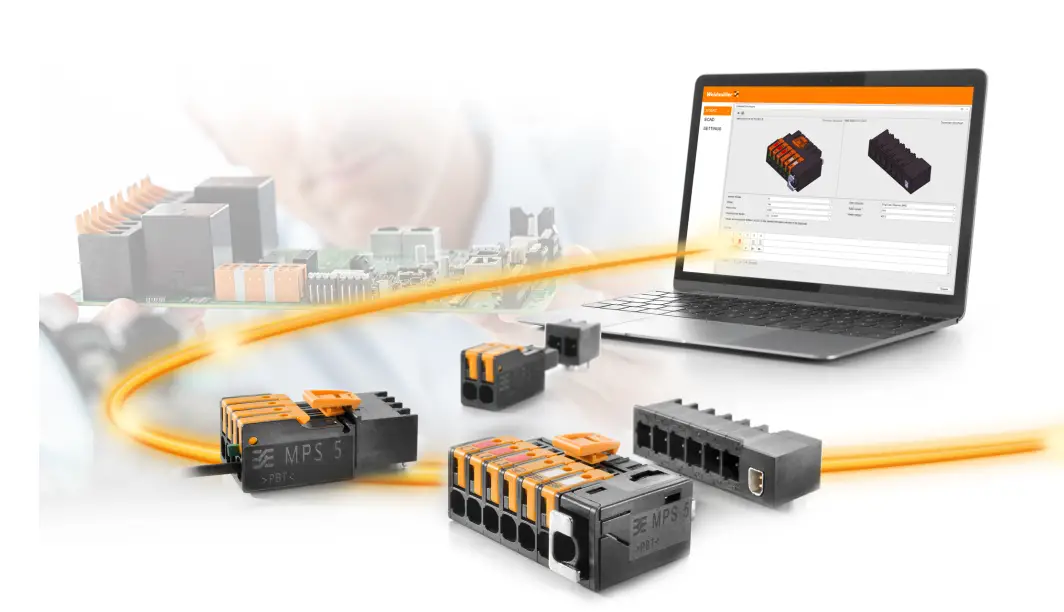

OMNIMATE® 4.0 in the Weidmüller Configurator

Create your own configuration
You are looking for a specific solution perfectly fitting your individual devices and their requirements.
The modular product concept of OMNIMATE® 4.0 enables flexible configuration and requests via the Weidmüller Configurator (WMC). The software tool significantly reduces your efforts and speeds up your engineering processes from product specification to the individual offer within minutes. Digital engineering can be as simple as that.

Integrated future-proof technologies
The modular design of OMNIMATE ® 4.0 provides a flexible product portfolio with unlimited variations. The individual configuration in the Weidmüller Configurator realized hybrid connectors with the next-generation technology Single Pair Ethernet (SPE).

The highest flexibility for your application
The Weidmüller Configurator (WMC) reduces your engineering efforts with intuitive usability as well as real-time feedback on your configuration. The configured product can be requested directly and the offer preparation will be automatically done within minutes.

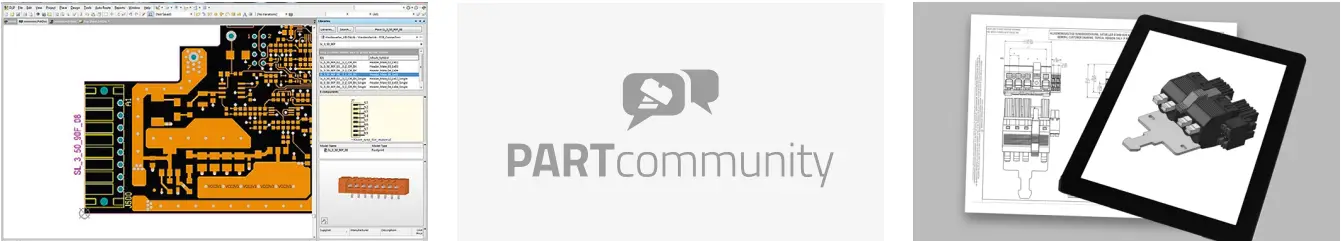

Full Design-in support
ANIMATE ® 4.0 brings full design in support for device manufacturers. That covers the easy configuration according to the requirements of your application as well as the provision of all digital engineering data. The availability of free samples within 3 days and the support with handling videos fulfill the OMNIMATE ® services.OMNIMATE® 4.0– SNAP-IN PCB connectors

Learn more about our digital engineering possibilities with unique services over the
Weidmüller Configurator (WMC).
www.weidmueller.com/configurator

Single Pair Ethernet

Data connection for the factory of the future In the factory of the future, machines, and systems will be connected to each other consistently via a data infrastructure. These cyber-physical systems can act independently in the Industrial Internet of Things (IIoT), communicate in real-time, and control production processes. In order to enable this, a continuous network with high-performance data connections from the sensor to the cloud is required. This pushes conventional Ethernet systems to their limits.
Single Pair Ethernet (SPE) facilitates the extension of the Ethernet to the sensor. It is compact, flexible, and enables high ranges. SPE provides for the extension of existing installations and supports consistent communication. Indeed, SPE is considered by Weidmüller as the missing component needed to close the current gap in the supply of standard Ethernet at the field level.
SPE runs at the same transmission speeds as conventional Ethernet but with data lines up to 1,000 m in length. Together with other new technologies like 5G, SPE enables both continuous IP communication between the server and the cloud, as well as supplying up to 60 Watts of power in complex IIoT solutions through PoDL (Power over Data Line).

Learn more about our next generation of IIoT-oriented Ethernets within
the connected world of today and tomorrow.
www.weidmueller.com/spe

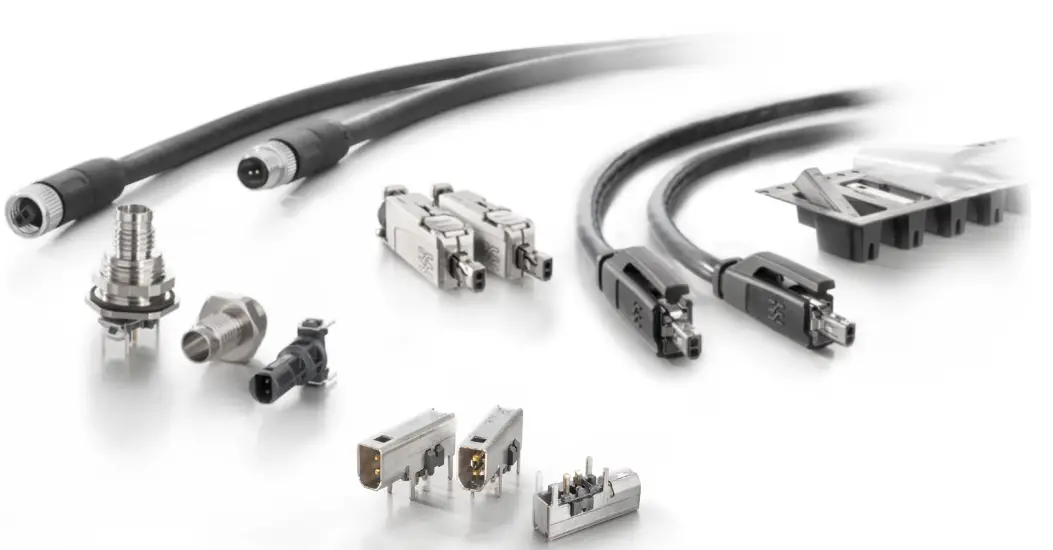

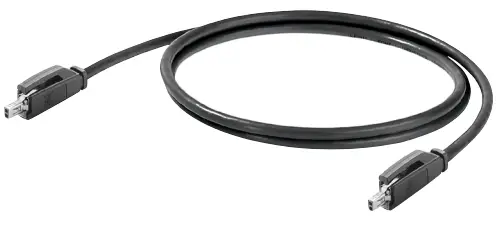

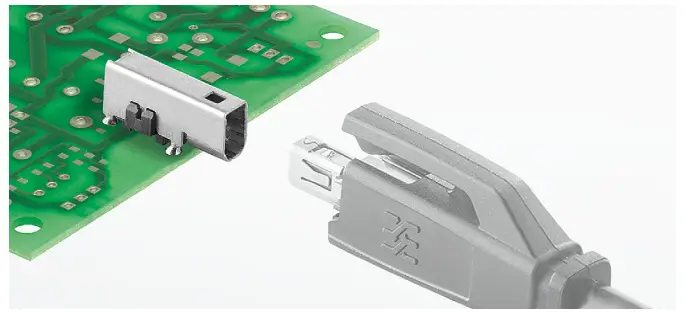

OMNIMATE® Data Single Pair Ethernet Connectors

• Devices can become significantly smaller – Most compact design for implementing IIoT devices (saving of > 50 %)
• Vibration-proof and insensitive to electromagnetic influences – Particularly robust, industry-compatible construction
• The color-coded two-wire connection technology saves installation time and avoids connection errors – Userfriendly structure for safe and quick installation
• Suitable for IIoT corresponds to the latest IEEE / IEC standards for data rates from 10Mbit/s to 1Gbit/s. – High future security through compliance with international standards
• Safe locking – Even in the smallest installation space, a robust locking mechanism up to 50N is ensured (acoustic feedback during the mating process)
• Reliable process – Trublefree assembly due to sharpened pin geometry, guide posts, and Tape Reel packaging

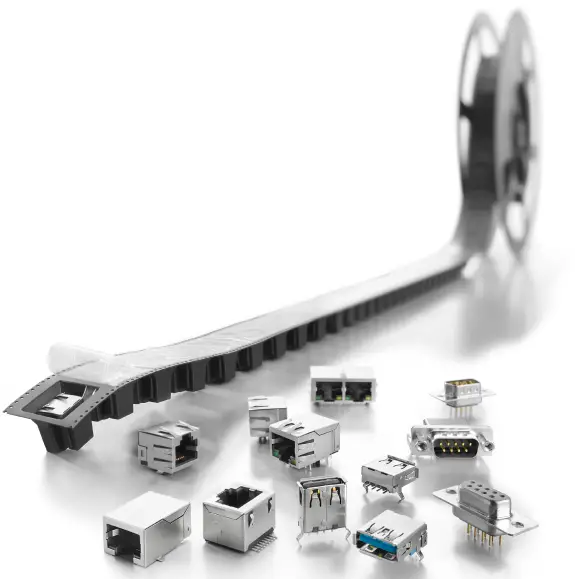

OMNIMATE ® Data
Reliable data interfaces for your device
Plug-in connectors and jacks for data transmission are already an integral part of the future-proof device design. In the industrial environment, they have to stand up to exacting requirements and the ever-increasing data transmission rates demand high-quality individual components.
The Weidmüller data connectors provide convincing solutions. RJ45, USB, and D-SUB PCB connectors ensure a safe and efficient interface for your device.
The fully shielded product range boasts high levels of electromagnetic compatibility, caters to all established outlet angles, and includes latching hooks on the top and bottom as well as an innovative STEADYTEC ® connection system for an industry-standard design.

OMNIMATE ® Data

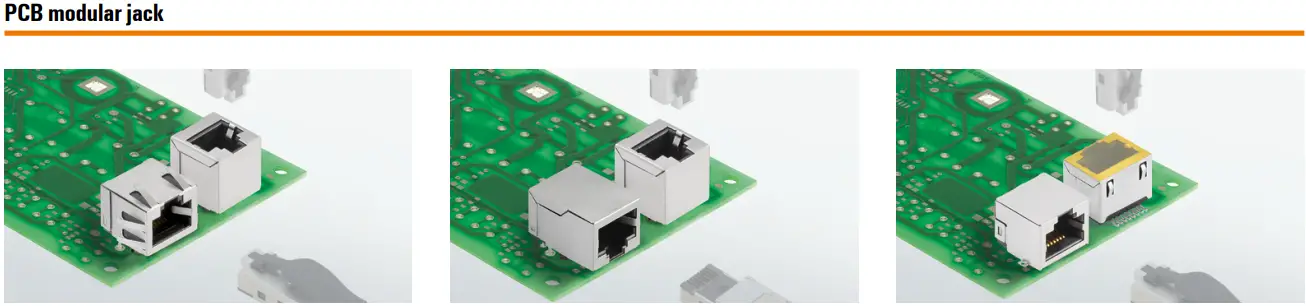

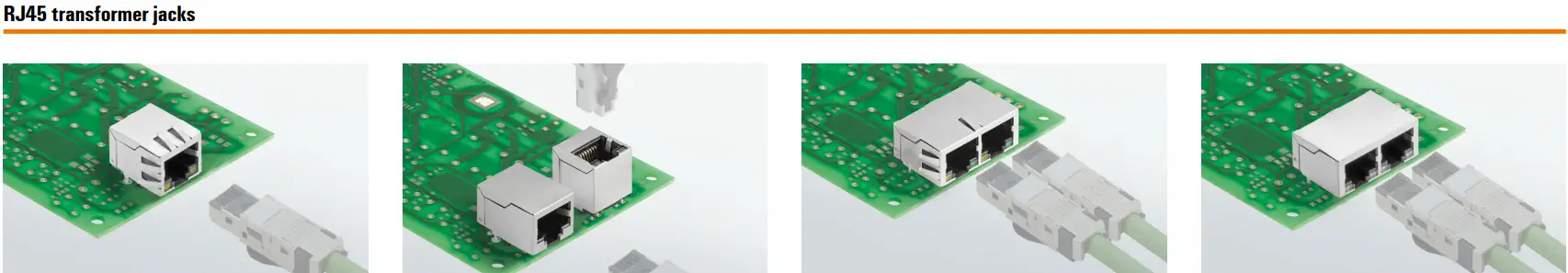

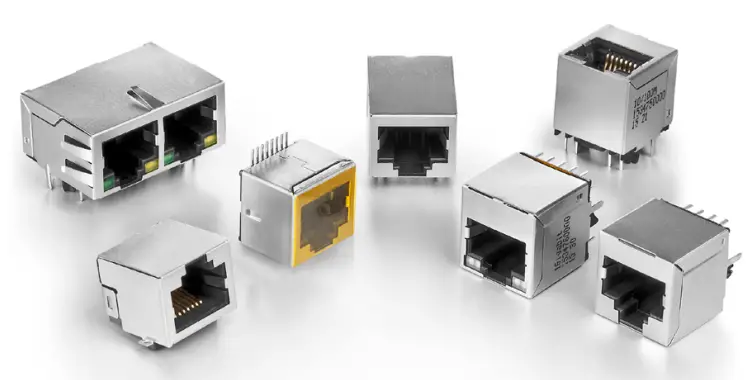

RJ45 modular and transformer jacks

• Future-proof transmission characteristics up to Cat 6 standard for a data rate of up to 1Gbit/s
• Electromagnetic compatibility and protection through 360° shielding
• RJ45 transformer jacks with integrated “magnetics” actively counteract faults and save space on the board
• A reinforced gold layer improves corrosion protection, reduces contact problems, and guarantees a long service life

OMNIMATE ® Data

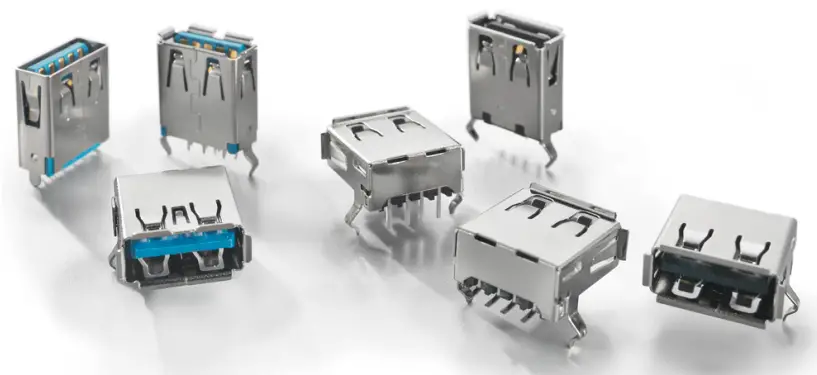

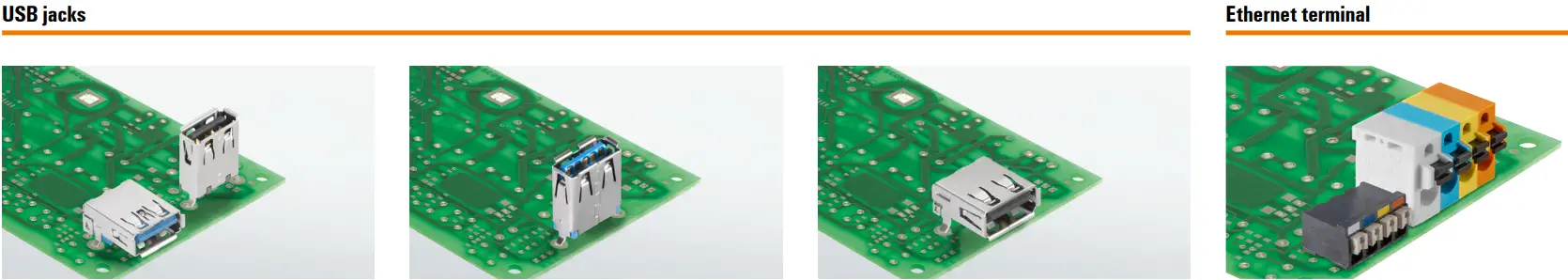

USB PCB jacks

• Robust plug & play operation – connect and disconnect without shutting down or restarting the system
• Reinforced gold surface – up to 1,500 plugging cycles meet the requirements for high resistance
• High rated current of up to 1.5 A provides sufficient safety reserves with a maximum charging current of 0.9 A
• Flexible deployment thanks to the compatibility of USB 3.0 hosts and devices with version 2.0

OMNIMATE ® Data

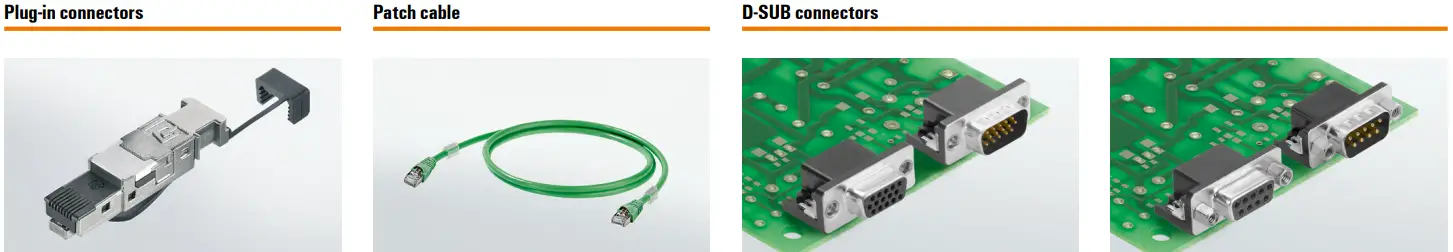

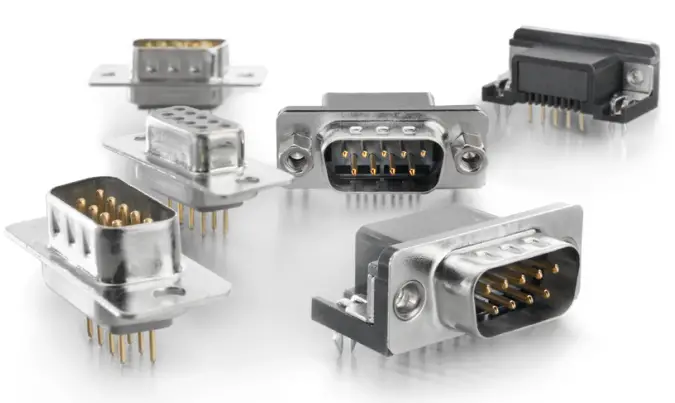

D-SUB PCB connectors

• Simple installation – Due to the straight and angled designs, the sockets integrate into any installation situation.
• High performance – Established locking systems in combination with polarization and protection of the contacts fulfill standards in electronical applications.
• A broad range of applications – In compliance with the dimensions according to IEC 60807-3 (IEC 807-3) and DIN 41652, a wide variety of applications, such as measuring devices, interfaces, and electronic devices, are covered.

Learn more about our plug-in jack for data transmission in
Industrial Ethernet environment.
www.weidmueller.com/omnimate-data

OMNIMATE® Data – PCB jacks and plug-in connectors

Webcode #11413	Webcode #11414	Webcode #11415
RJ45 solder connection for (THT) PCB jack for wave soldering process • Outlet direction: 90° and 180° • Catch mechanism: up and down • Performance Category: up to Cat 6 • Plugging cycles: 750 • With/without LEDs	RJ45 solder connection (THR) PCB jack for reflow and wave soldering process • Outlet direction: 90° and 180° • Catch mechanism: up and down • Performance Category: up to Cat 6 • Plugging cycles: 750 • With/without LEDs	RJ45 solder connection for (SMT) PCB jack for reflow soldering process • Outlet direction: 90° and 180° • Catch mechanism: up and down • Performance Category: up to Cat 5 • Plugging cycles: 750 • With/without LEDs

Webcode #11416	Webcode #11417	Webcode #11418	Webcode #11419
RJ45 solder connection for (THT) PCB jack for wave soldering process • Integrated magnetics • Outlet direction: 90° • Catch mechanism: up and down • Performance Category: up to 1Gbit/s • Plugging cycles: 750	RJ45 solder connection (THR) PCB jack for reflow and wave soldering process • Integrated magnetics • Outlet direction: 90° and 180° • Catch mechanism: up and down • Performance Category: up to 1Gbit/s • Plugging cycles: 750 • With/without LEDs	RJ45 solder connection (THT) multiport PCB jack for wave soldering process • Integrated magnetics • Outlet direction: 90° • Catch mechanism: up and down • Performance Category: up to 1Gbit/s • Plugging cycles: 750 • With/without LEDs	RJ45 solder connection (THR) multiport PCB jack for wave soldering process • Integrated magnetics • Outlet direction: 90° • Catch mechanism: up and down • Performance Category: up to 1Gbit/s • Plugging cycles: 750 • With/without LEDs

Webcode #11312	Webcode #11313	Webcode #11528	Webcode #11462
RJ45 connector „steadytec“ Tool-free and field-attachable plug for Industrial Ethernet • IDC connection, 4-8-core • Outlet direction: 180° • Category: Cat.5 and Cat.6A • AWG 26…AWG 22 / 0.48…0.76 mm²	RJ45 patch cable Freely configurable RJ45 cable in a wide range of colors • Protected latching hook, 8-core • Outlet direction: 90°, 180°, and 270° • Category: Cat.6A	High-Density D-SUB solder connection for (THT) PCB connectors for wave soldering process • Outlet direction: 90° • Gender: femal, male • Side termination: threaded nut • Packed in the tray	D-SUB solder connection for (THT) PCB connectors for wave soldering process • Outlet direction: 90° and 180° • Gender: femal, male • Side termination: hole, nut, bold • Packed in the tray

Webcode #11420	Webcode #11421	Webcode #11422	Webcode #11527
USB 3.0/2.0 solder connection (THT) PCB jack for wave soldering process • Outlet direction: 90° and 180° • Performance Category: up to 5 Gbit/s • Plugging cycles: ≥1.500 • Packed in the tray	USB 3.0 solder connection (THR) PCB jack for reflow and wave soldering process • Outlet direction: 180° • Performance Category: up to 5 Gbit/s • Plugging cycles: ≥1.500 • Packed in tray or ToR	USB 2.0 solder connection for (SMT) PCB jack for reflow soldering process (SMT) • Outlet direction: 90° • Performance Category: up to 5 Gbit/s • Plugging cycles: ≥1.500 • Packed in ToR	LSF-SMT and LMF PCB terminal for Ethernet-compliant data transmission e.g. for PROFINET (up to 100Mbps) • PUSH IN spring connection • Pitch: 3.50, 3.81, and 5.08 mm • Number of poles: 4 • For all IIoT devices

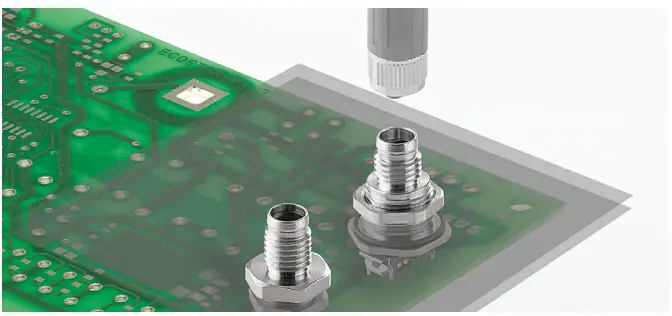

OMNIMATE® Data – M8 and M12 PCB jacks

Webcode #11364	Webcode #11366	Webcode #11368

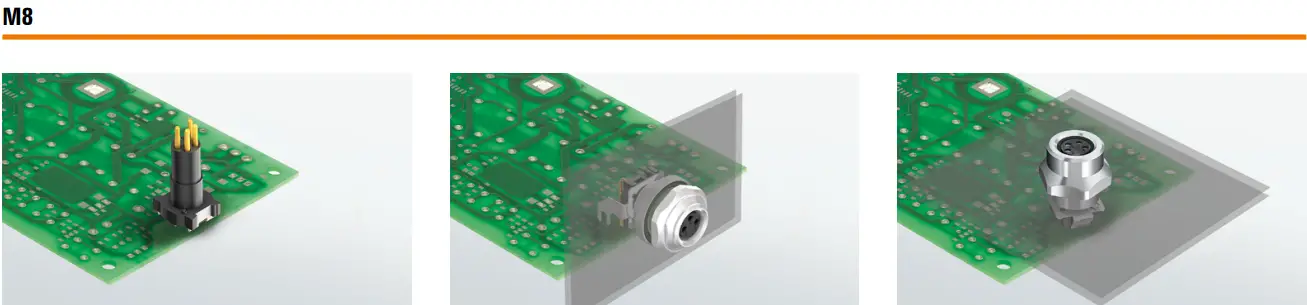

M8 Dome (individual part) PCB circular connector for automatic assembly and M8 threads. • Number of poles: 3, 4, 8 • Female and male contact • SMT, THE • Shielded and unshielded	M8 Front mounting PCB circular connector with M8 thread for the front mounting. • Number of poles: 3, 4, 8 • Female and male contact • Outlet direction: 180° • Shielded and unshielded	M8 Rear panel mounting PCB circular connector with M8 thread for rear panel mounting. • Number of poles: 3, 4, 8 • Female and male contact • Outlet direction: 90°, 180° • Shielded and unshielded

Webcode #11352	Webcode #11354	Webcode #11356	Webcode #11529

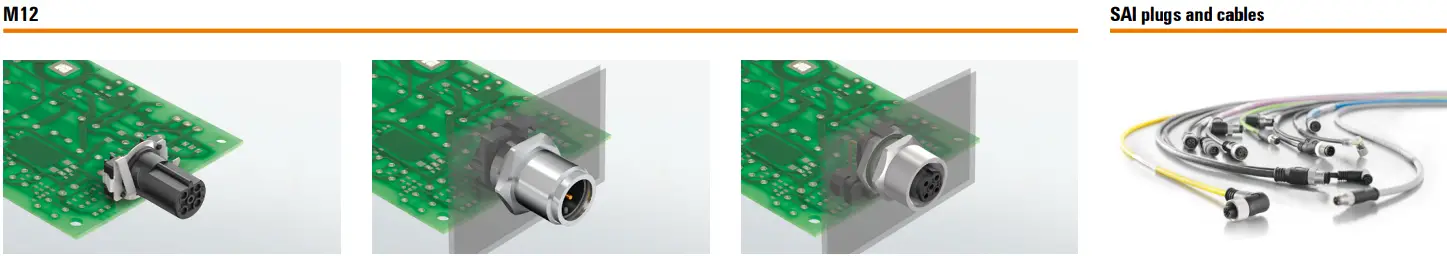

M12 Dome (individual part) PCB circular connector for automatic assembly and M12 threads. • Number of poles: 4, 5, 8 • Female and male contact • SMT • Shielded and unshielded • Coding: A, B, D	M12 Front mounting PCB circular connector with M12 thread for front mounting. • Number of poles: 4, 5, 8 • Female and male contact • Outlet direction: 90°, 180° • Shielded and unshielded • Coding: A, B, D, X	M12 Front mounting PCB circular connector with M12 thread for front mounting. • Number of poles: 4, 5, 8 • Female and male contact • Outlet direction: 90°, 180° • Shielded and unshielded • Coding: A, B, D, X	SAI round plug-in connectors and cables High IP rated connectivity range of M5, M8, M12, M16, and M23 • Different codings like A, B, and D • Up to protection degree IP 69K • For mechanically and chemically stressed applications

OMNIMATE ® Signal Transmit numerous signals in the smallest possible space

A reliable device connection is an absolute must for your customized applications. With OMNIMATE ® Signal, we can now offer you the right PCB connection to meet your exact requirements.
You can choose from a product range that includes compact PCB terminals and connectors, which, thanks to intelligent locking concepts and high-performance connection systems, provide your design-in process with a wide range of application-specific solutions.
We have also not forgotten about your production processes when formulating our product range, as our THR and SMD components ensure the highest productivity levels during the reflow soldering process.

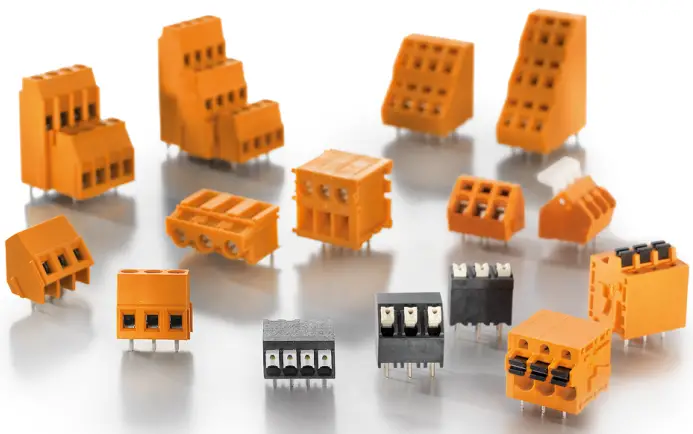

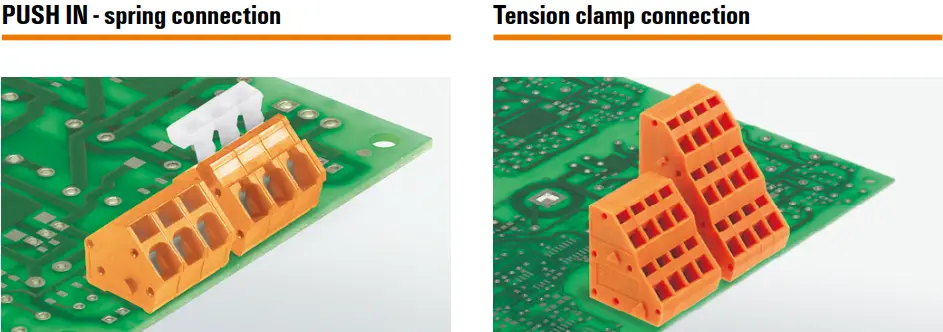

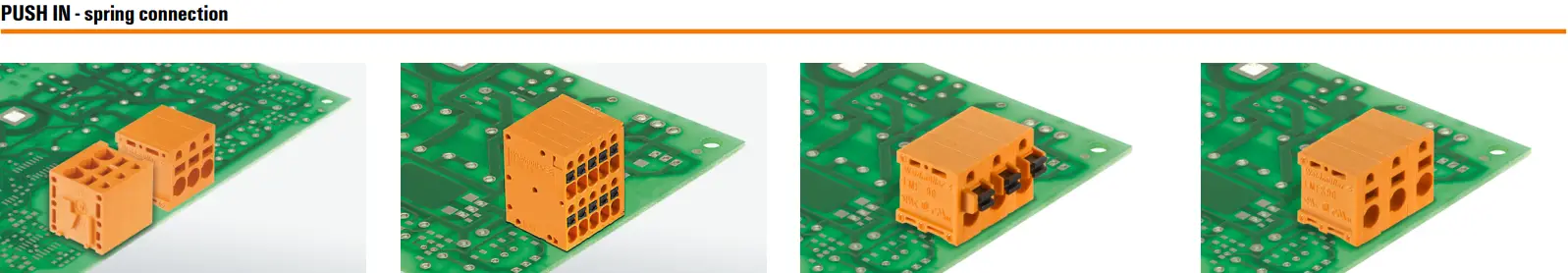

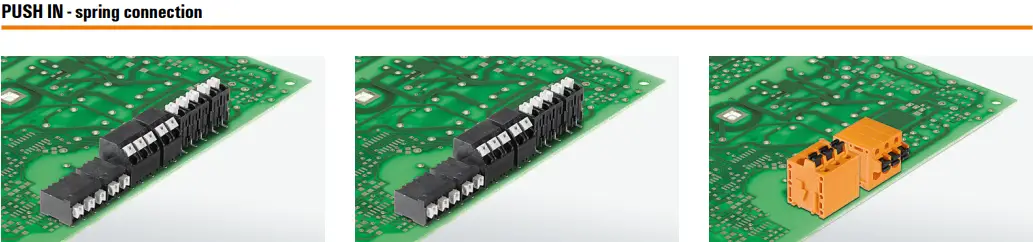

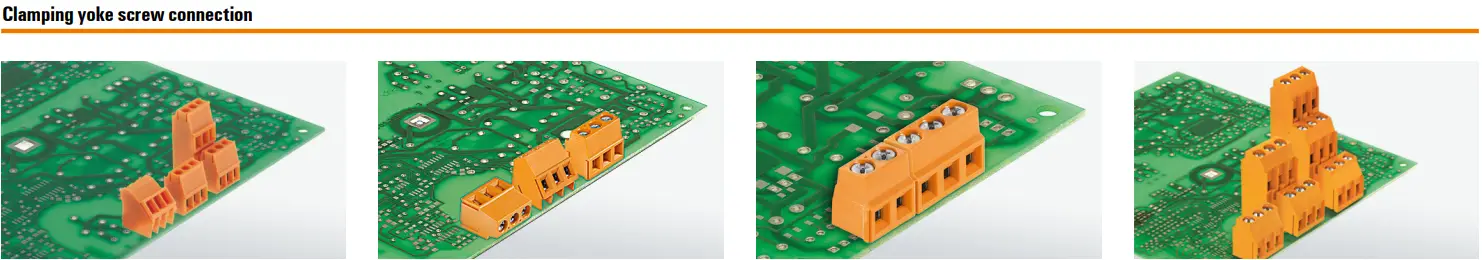

OMNIMATE ® Signal PCB terminals

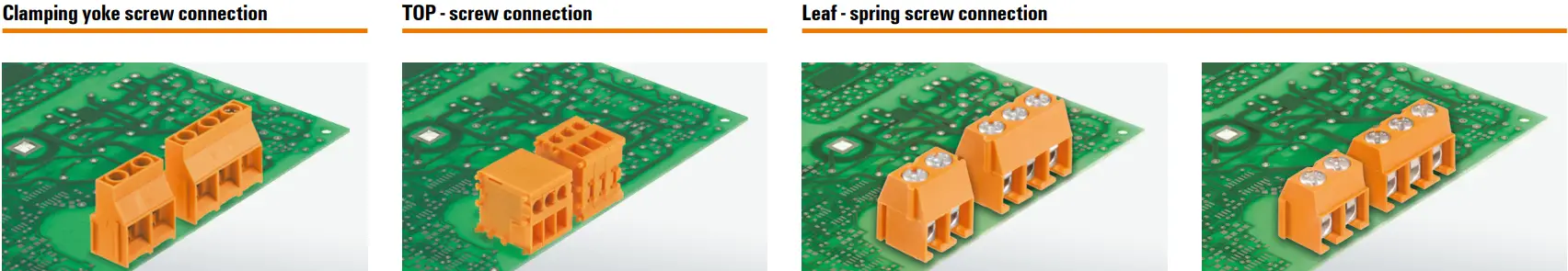

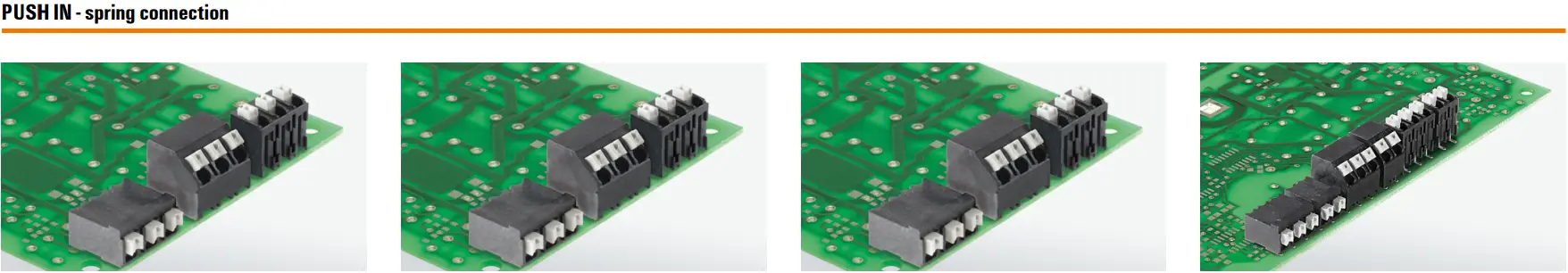

• Application-oriented connection systems ranging from clamping yoke screw connections to PUSH IN spring connections in all relevant cross-section ranges up to 6 mm²
• Can be used universally in all standard pitches from 3.50 mm to 7.62 mm
• A wide range of reflow-compatible products for automated SMT processes
• Compact, multi-layer designs up to 72-pole

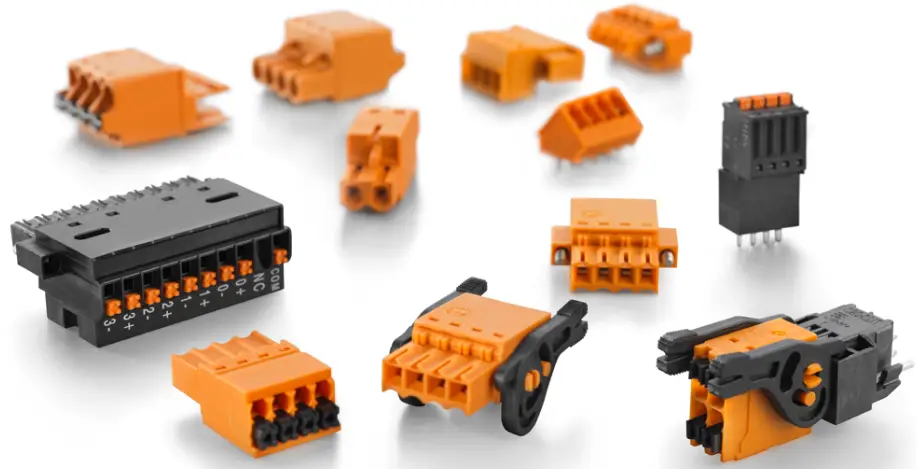

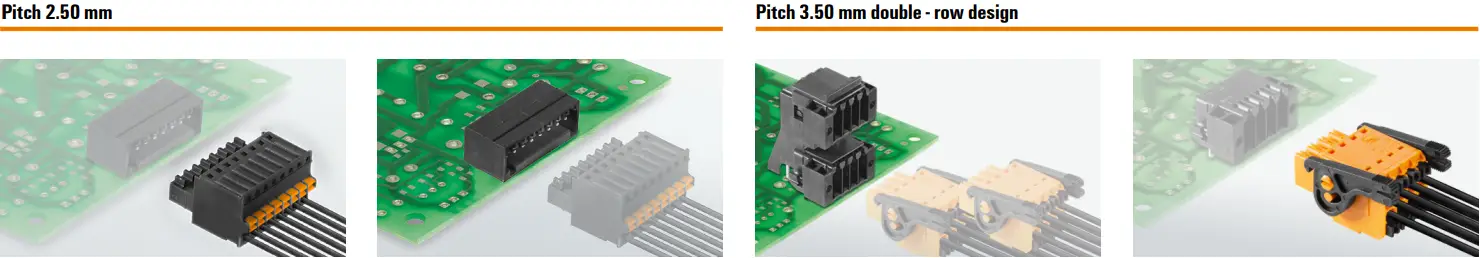

OMNIMATE ® Signal PCB plug-in connectors

• Compact at 2.50 mm pitch 36 connections at 3.50 mm pitch, the highest level of power reserves at 3.81 mm pitch, and the largest application area at 5.08 mm pitch
• Application-oriented connection systems range from clamping yoke screw connections to PUSH IN spring connections.
• A wide range of reflow-compatible products for automated SMT processes
• Multi-row and multi-layer designs up to 48-pole

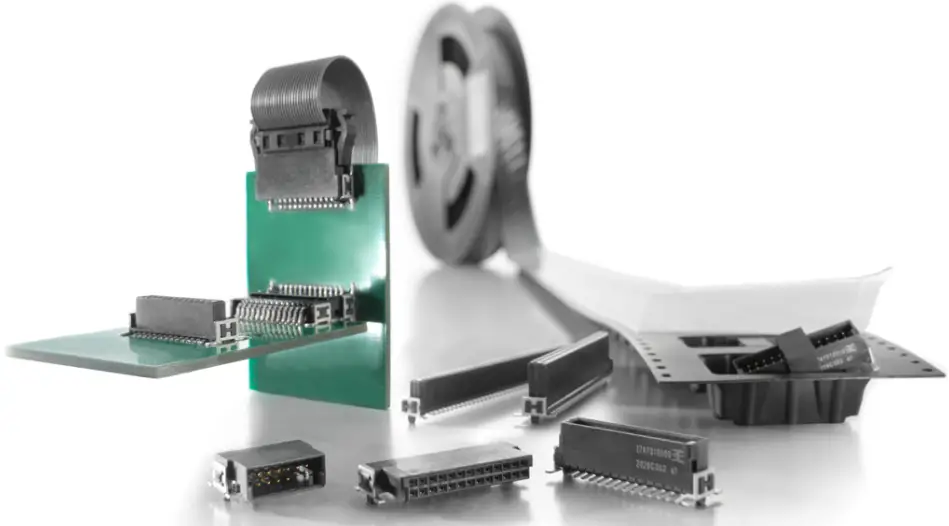

OMNIMATE ® Signal Board-to-Board connectors

• Industrial suitable density combined with highly flexible connection combinations (mezzanine, mother-to-daughter, extended-board, and Board-to-wire)

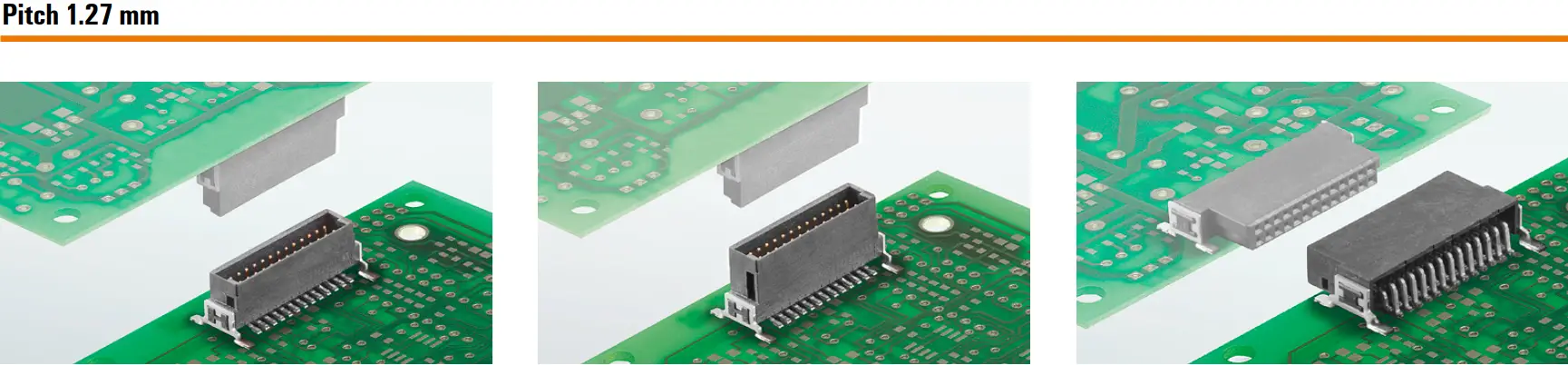

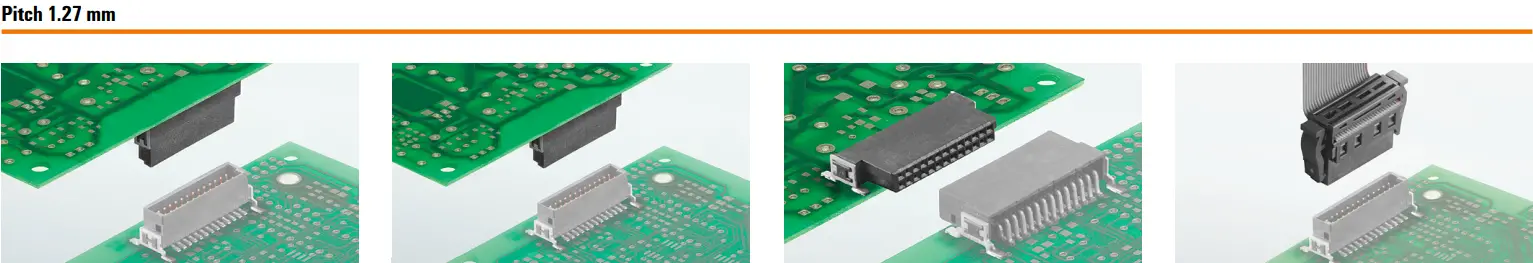

• Pitch 1,27mm from 12 – 80 poles in different outlet directions and heights
• Developed for automatic assembly with high precise pin coplanarity and SMT-fixation
• Reliable contact surface (PdNi-Au) equipped in high-performance material LCP and packed in Tape on the reel for automatic assembly

Learn more about our full-range signal solutions that include extremely compact PCB terminals and connectors.

www.weidmueller.com/omnimate-signal

OMNIMATE® Signal – PCB terminals

Webcode #01010	Webcode #01012	Webcode #01014	Webcode #01016
LM 3.50 / LM1N / LM2N Small, compact PCB terminal with conductor outlet direction of 90° or 135°. • Clamping yoke screw connection • Pitch: 3.50 mm • Number of poles: 2–12 • IEC: 320 V / 16 A / 0.2–1.5 mm² • UL: 300 V / 10 A / AWG 28–14	LM 5.00/5.08 Single-row PCB terminal with conductor outlet directions of 90°, 135°, and 180°. • Clamping yoke screw connection • Pitch: 5.00 mm / 5.08 mm • Number of poles: 2–24 • IEC: 630 V / 17.5 A / 0.2–2.5 mm² • UL: 300 V / 15 A / AWG 24–14	LS 5.08 Small, compact PCB terminal with conductor outlet direction of 90°. • Clamping yoke screw connection • Pitch: 5.08 mm • Number of poles: 2–12 • IEC: 630 V / 17.5 A / 0.08–1.5 mm² • UL: 300 V / 15 A / AWG 28–14	LL 5.00/5.08 Single-row PCB terminal with conductor outlet the direction of 90° and 180°. • Clamping yoke screw connection • Pitch: 5.00 mm / 5.08 mm • Number of poles: 2–24 • IEC: 500 V / 32.5 A / 0.5–6 mm² • UL: 300 V / 20 A / AWG 28–12

Webcode #01018	Webcode #01024	Webcode #01020	Webcode #01022
LL 9.52 Single-row PCB terminal with conductor outlet direction of 90°. • Clamping yoke screw connection • Pitch: 9.52 mm • Number of poles: 2–3 • IEC: 1,000 V / 32 A / 0.18–6 mm² • UL: 300 V / 30 A / AWG 26–10	TOP PCB terminal with conductor insertion and contact point actuation from the same direction. • TOP screw connection • Pitch: 5.08 mm / 6.35 mm / 7.62 mm • Number of poles: 2–24 • IEC: 630 V / 24 A / 0.2–2.5 mm² • UL: 300 V / 10 A / AWG 26–14	PS 3.5 Very small and compact PCB terminal with conductor outlet direction of 90°. • Leaf-spring screw connection • Pitch: 3.50 mm • Number of poles: 2–12 • IEC: 320 V / 17.5 A / 0.2–1.5 mm² • UL: 300 V / 10 A / AWG 28–16	PM 5.00/5.08 PCB terminal with conductor inlet direction of 90°. • Leaf-spring screw connection • Pitch: 5.00 mm / 5.08 mm • Number of poles: 2–12 • IEC: 600 V / 24 A / 0.13–2.5 mm² • UL: 300 V / 15 A / AWG 26–14

Webcode #01028	Webcode #01030	Webcode #01032	Webcode #01034
LSF-SMT 3.5 / 3.81 PCB terminal for fully automatic assembly for THR reflow soldering (SMT) and wave soldering. • PUSH IN spring connection • Pitch: 3.50 mm / 3.81 mm • Number of poles: 2–24 • IEC: 320 V / 17.5 A / 0.2–1.5 mm² • UL: 300 V / 12 A / AWG 24–16	LSF-SMT 5.00 / 5.08 PCB terminal for fully automatic assembly for THR reflow soldering (SMT) and wave soldering. • PUSH IN spring connection • Pitch: 5.00 mm / 5.08 mm • Number of poles: 2–8 • IEC: 500 V / 17.5 A / 0.2–1.5 mm² • UL: 300 V / 12 A / AWG 24–16	LSF-SMT 7.50 / 7.62 PCB terminal for fully automatic assembly for THR reflow soldering (SMT) and wave soldering. • PUSH IN spring connection • Pitch: 7.50 mm / 7.62 mm • Number of poles: 2–8 • IEC: 800 V / 17.5 A / 0.2–1.5 mm² • UL: 300 V / 12 A / AWG 24–16	LSF-SMD 3.5 PCB terminal for fully automatic assembly for reflow soldering (SMT). • PUSH IN spring connection • Pitch: 3.50 mm • Number of poles: 2–12 • IEC: 320 V / 17.5 A / 0.2–1.5 mm² • UL: 300 V / 12 A / AWG 24–16

Webcode #01036	Webcode #01038	Webcode #01040

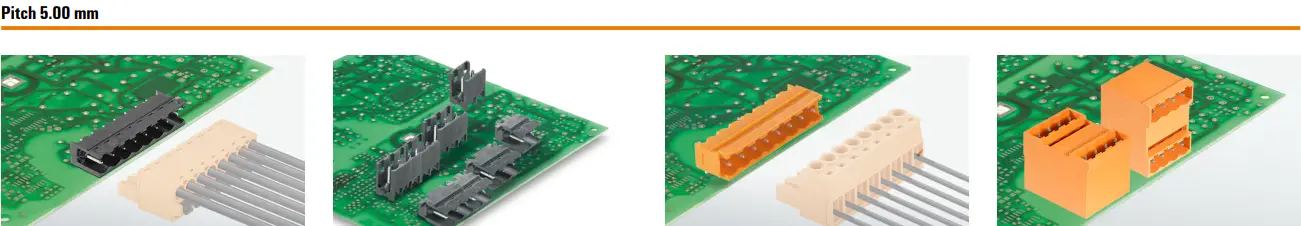

LSF-SMD 5.00 PCB terminal for fully automatic assembly for reflow soldering (SMT). • PUSH IN spring connection • Pitch: 5.00 mm • Number of poles: 2–8 • IEC: 500 V / 17.5 A / 0.2–1.5 mm² • UL: 300 V / 12 A / AWG 24–16	LSF-SMD 7.50 PCB terminal for fully automatic assembly for reflow soldering (SMT). • PUSH IN spring connection • Pitch: 7.50 mm • Number of poles: 2–6 • IEC: 800 V / 17.5 A / 0.2–1.5 mm² • UL: 300 V / 12 A / AWG 24–16	LMF 5.00/5.08 PCB terminal with pusher for opening the contact point and an integrated test point. • PUSH IN spring connection • Pitch: 5.00 mm / 5.08 mm • Number of poles: 2–24 • IEC: 400 V / 24 A / 0.2–2.5 mm² • UL: 300 V / 10 A / AWG 26–12

Webcode #01042	Webcode #01026	Webcode #11514	Webcode #11515

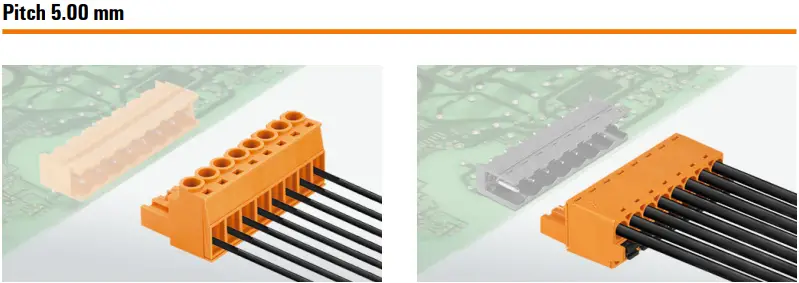

LMFS 5.00/5.08 PCB terminal without pusher; contact point can be opened using a screwdriver and integrated test point. • PUSH IN spring connection • Pitch: 5.00 mm / 5.08 mm • Number of poles: 2–24 • IEC: 400 V / 24 A / 0.2–2.5 mm² • UL: 300 V / 10 A / AWG 26–12	LS2HF 3.50 Double-storey PCB terminal for wave soldering processes, with conductor insertion and slider operation from the same direction (TOP). • PUSH IN spring connection • Pitch: 3.50 mm • Number of poles: 4–24 • IEC: 400 V / 10 A / 0.14–1.5 mm² • UL: 150 V / 12.5 A / AWG 26–16	LMF 7.50 PCB terminal with pusher for opening the contact point and an integrated test point. • PUSH IN spring connection • Pitch: 7.50 mm • Number of poles: 2–24 • IEC: 1000 V / 24 A / 0.2–2.5 mm² • UL: 300 V / 20 A / AWG 26–12	LMFS 7.50 PCB terminal without pusher; contact point can be opened using a screwdriver and integrated test point. • PUSH IN spring connection • Pitch: 7.50 mm • Number of poles: 2–24 • IEC: 1000 V / 24 A / 0.2–2.5 mm² • UL: 300 V / 20 A / AWG 26–12

Webcode #11448	Webcode #11447
LMZF Single-row PCB terminal with maintenance-free tension clamp connection and with conductor outlet direction of 135°. • Tension clamp connection • Pitch: 5, 7 & 10 mm • Number of poles: 2–24 • IEC: 630 V/24 A / 0.13 – 2.5 mm² • UL: 300 V/15 A / AWG 26-AUG 14	LM2NZF & LM3RZF Multi-level PCB terminal with conductor outlet in the direction of 135°. • Tension clamp connection • Pitch: 5.08 mm • Number of poles: 2–24 • IEC: 630 V/24 A / 0.13 – 2.5 mm² • UL: 300 V/15 A / AWG 26-AUG 14

OMNIMATE® Board-to-Board connectors

Webcode #11516	Webcode #11517	Webcode #11518
FMH1 Male header with stack height 1.75 mm • Reflow-soldering (SMT) -Pitch: 1.27 mm • Number of poles: 12–80 • Clear. and creepage distance: min. 0.4 mm • IEC: 2,8 A (20°C, 12 pole) • UL: 150 V / 1.7 A (12 pole)	FMH3 Male header with stack height of 3.25 mm • Reflow-soldering (SMT) -Pitch: 1.27 mm • Number of poles: 12–80 • Clear. and creepage distance: min. 0.4 mm • IEC: 2.8 A (20°C, 12 pole) • UL: 150 V / 1.7 A (12 pole)	FMH Male header, angled • Reflow-soldering (SMT) -Pitch: 1.27 mm • Number of poles: 12–80 • Clear. and creepage distance: min. 0.4 mm • IEC: 2.8 A (20°C, 12 pole) • UL: 150 V / 1.7 A (12 pole)

Webcode #11519	Webcode #11520	Webcode #11521	Webcode #11522
FFH6 Female header with a stack height of 6.25 mm • Reflow-soldering (SMT) -Pitch: 1.27 mm • Number of poles: 12–80 • Clear. and creepage distance: min. 0.4 mm • IEC: 2.8 A (20°C, 12 pole) • UL: 150 V / 1.7 A (12 pole)	FFH9 Female header with stack height of 9.05 mm • Reflow-soldering (SMT) -Pitch: 1.27 mm • Number of poles: 12–80 • Clear. and creepage distance: min. 0.4 mm • IEC: 2.8 A (20°C, 12 pole) • UL: 150 V / 1.7 A (12 pole)	FFH Female header, angled • Reflow-soldering (SMT) -Pitch: 1.27 mm • Number of poles: 12–80 • Clear. and creepage distance: min. 0.4 mm • IEC: 2.8 A (20°C, 12 pole) • UL: 150 V / 1.7 A (12 pole)	FFP Female plug • IDC-Connection • Pitch: 1.27 mm -Number of poles: 12–80 • Clear. and creepage distance: min. 0.4 mm • IEC: 2.8 A (20°C, 12 pole) • UL: 150 V / 1.0 A (12 pole) / AWG 30

Webcode #01068	Webcode #01072	Webcode #01066	Webcode #11410
SL-SMT 3.50 The high-temperature-resistant male header for reflow and wave soldering methods. • Male header • Pitch: 3.50 mm • Number of poles: 2–24 • IEC: 320 V / 15 A • UL: 300 V / 10 A	SL 3.50 The male header for wave soldering methods. • Male header • Pitch: 3.50 mm • Number of poles: 2–24 • IEC: 320 V / 17 A • UL: 300 V / 10 A	BL 3.50 Female plug for conductor connection with clamping yoke screw connection. • Clamping yoke screw connection • Pitch: 3.50 mm • Number of poles: 2–24 • IEC: 320 V / 17 A / 0.2–1.5 mm² • UL: 300 V / 10 A / AWG 28–14	BLF 3.5 Female plug with PUSH IN spring connection • PUSH IN spring connection • Pitch: 3.50 mm • Number of poles: 2–24 • IEC: 320 V / 14.5 A / 0.2 – 1.5 mm 2 • UL: 300 V / 9.5 A / AWG 28–16

Webcode #01064	Webcode #11445	Webcode #01076	Webcode #01080

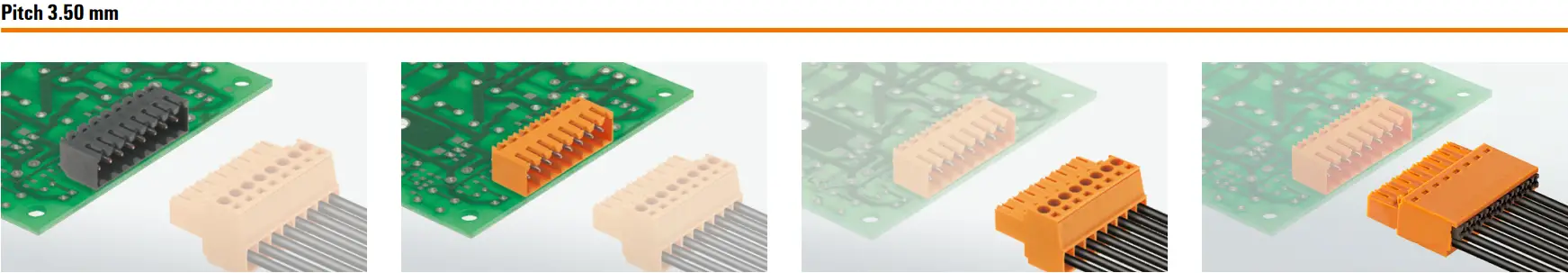

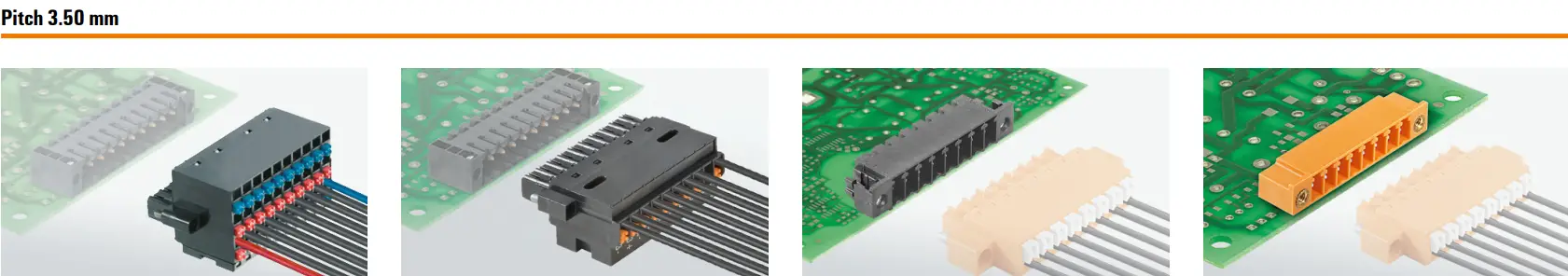

BL-I/O 3.5 Extremely compact female plug-in one or three-row design and with an integrated LED display. • PUSH IN spring connection • Pitch: 3.50 mm • Number of poles: 10 & 30 • IEC: 200 V / 2.2 A / 0.2–1 mm² • UL: 50 V / 5 A / AWG 24–16	BL I/O CJC Compact female plug with integrated cold junction compensation. • PUSH IN spring connection • Pitch: 3.50 mm • Number of poles: 10 • IEC: 50 -V / 2.2 A / 0.2 – 1.5 mm² • UL: 50 V / 5 A / AWG 24 – 16	SC-SMT 3.81 High-temperature-resistant male header with a very low profile for reflow and wave soldering methods. • Male header • Pitch: 3.81 mm • Number of poles: 2–16 • IEC: 320 V / 17.5 A • UL: 300 V / 10 A	SC 3.81 Male header with a very low profile for wave soldering methods. • Male header • Pitch: 3.81 mm • Number of poles: 2–20 • IEC: 320 V / 17.5 A • UL: 300 V / 10 A

OMNIMATE® Signal – PCB connectors

Webcode #11323	Webcode #11324	Webcode #01060	Webcode #01058
BLF 2.50 Female plug for conductor connection with PUSH IN spring connection. • PUSH IN spring connection • Pitch: 2.50 mm • Number of poles: 2–12 • IEC: 320 V / 6 A / 0.08 – 0.5 mm² • UL: 150 V / 5 A / AWG 28 – 20	SL 2.50 The male header for wave soldering methods for 2.50 mm pitch. • Male header • Pitch: 2.50 mm • Number of poles: 2–12 • IEC: 320 V / 6 A • UL: 320 V / 6 A	S2C 3.50 High-temperature-resistant, double-row male header for reflow and wave soldering methods. • Male header • Pitch: 3.50 mm • Number of poles: 4–36 • IEC: 200 V / 13.4 A • UL: 150 V / 10 A	B2CF 3.50 Compact double-row female plug with maximum connection density within an extremely small space. • PUSH IN spring connection • Pitch: 3.50 mm • Number of poles: 4–46 • IEC: 320 V / 13.4 A / 0.14–1.5 mm² • UL: 300 V / 9.5 A / AWG 26–16

Webcode #11316	Webcode #01074	Webcode #01078	Webcode #01082

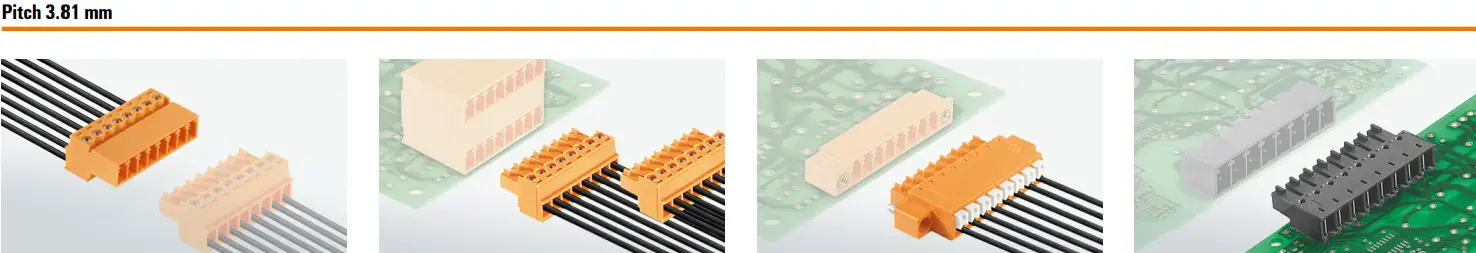

SCZ 3.81 Compact male plug for conductor connection with clamping yoke screw connection. • Clamping yoke screw connection • Pitch: 3.81 mm • Number of poles: 2–12 • IEC: 320 V / 17.5 A / 0.14–1.5 mm² • UL: 300 V / 10 A / AWG 28–16	BCZ 3.81 Compact female plug for conductor connection with clamping yoke screw connection. • Clamping yoke screw connection • Pitch: 3.81 mm • Number of poles: 2–20 • IEC: 320 V / 17.5 A / 0.14–1.5 mm² • UL: 300 V / 10 A / AWG 28–16	BCF 3.81 Female plug with a very low profile for conductor connection with PUSH IN spring connection. • PUSH IN spring connection • Pitch: 3.81 mm • Number of poles: 2–18 • IEC: 320 V / 17.5 A / 0.2–1.5 mm² • UL: 300 V / 10 A / AWG 28–16	BCL-SMT 3.81 High-temperature-resistant female header with a very low profile for reflow soldering methods. • Female header • Pitch: 3.81 mm • Number of poles: 2–12 • IEC: 320 V / 17.5 A • UL: 300 V / 10 A

Webcode #11444	Webcode #11443	Webcode #01095	Webcode #11461
SL-SMT 5.00HC High-temperature-resistant bent pin header, optimized for automatic assembly and reflow and wave soldering. • Male header • Pitch: 5.00 mm • Number of poles: 2–24 • IEC: 400 V / 27.5 A • UL: 300 V / 18.5 A	SL-SMarT 5.0xHC High-temperature-resistant, modular pin header. • High-current male header • Pitch: 5.0x mm • Number of poles: 2 & 3 • IEC: 400 V / 27.5 A • UL: 300 V / 15 A	SL 5.00 Pin headers with solder pin length optimized for wave flow soldering. • Male header • Pitch: 5.00 mm • Number of poles: 2–24 • IEC: 400 V / 24 A • UL: 300 V / 18.5 A	SLD 5.00 2-tier male header with parallel pin arrangement with outlet directions of 90° & 180°, optimized for wave soldering methods. • Male header • Pitch:5.00 mm • Number of poles: 4–48 • IEC: 400 V / 15 A • UL: 300 V / 10 A

Webcode #01165	Webcode #11442
BLZP 5.00HC High-current-female-plug for outlet direction of 90°, 180°, or 270°. • Clamping yoke screw connection • Pitch: 5.00 mm • Number of poles: 2–24 • IEC: 400 V / 23 A / 0.2–4 mm² • UL: 300 V / 20 A / AWG 30–12	BLF 5.00HC Compact high-current-female-plug for an outlet in the direction of 90°, 180°, or 270°. • PUSH IN spring connection • Pitch: 5.00 mm • Number of poles: 2–24 • IEC: 400 V / 24 A / 0.2–2.5 mm² • UL: 300 V / 18.5 A / AWG 26–12

Webcode #01090	Webcode #11441	Webcode #01094	Webcode #11440
SL-SMT 5.08HC Highly temperature-resistant angled male header optimized for automatic assembly and for reflow and wave soldering methods. • Male header • Pitch: 5.08 mm • Number of poles: 2–24 • IEC: 400 V / 27.5 A • UL: 300 V / 18.5 A	SLDV-THR 5.08 High-temperature resistant, double level, laterally offset, male connector with flange or solder flange. • Male header • Pitch: 5.08 mm • Number of poles: 4–48 • IEC: 400 V / 15 A • UL: 300 V / 10 A	SL 5.08HC Male headers in glass-fiber-reinforced plastic, optimized for wave soldering methods. • Male header • Pitch: 5.08 mm • Number of poles: 2–24 • IEC: 400 V / 24 A • UL: 300 V / 18.5 A	SLD 5.08 2-tier male header with parallel or laterally offset pin arrangement with outlet direction of 90° & 180°, optimized for wave soldering methods. • Male header, parallel or laterally offset • Pitch: 5.08 mm • Number of poles: 4–48 • IEC: 400 V / 15 A • UL: 300 V / 10 A

Webcode #01098	Webcode #01087	Webcode #01102	Webcode #01084

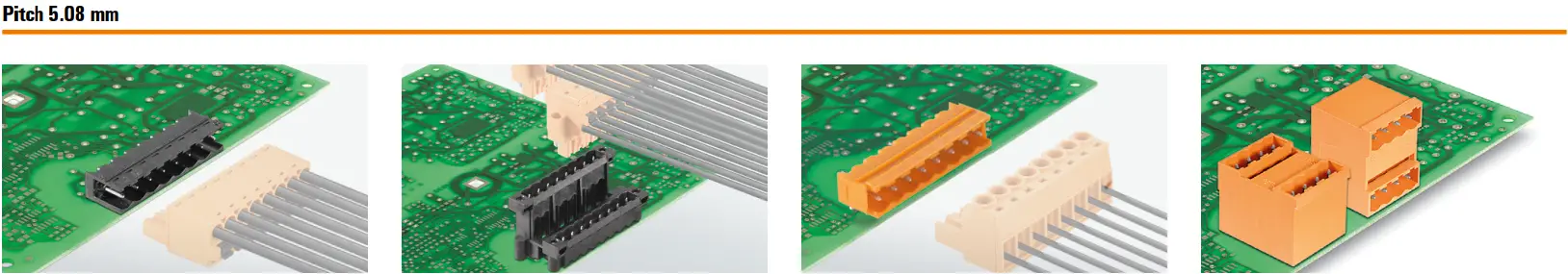

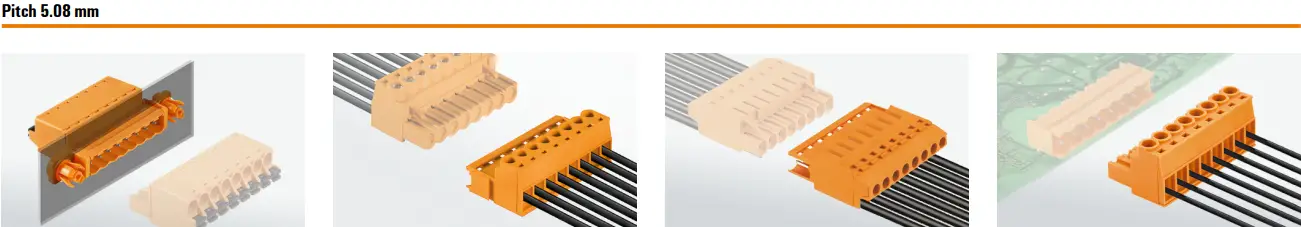

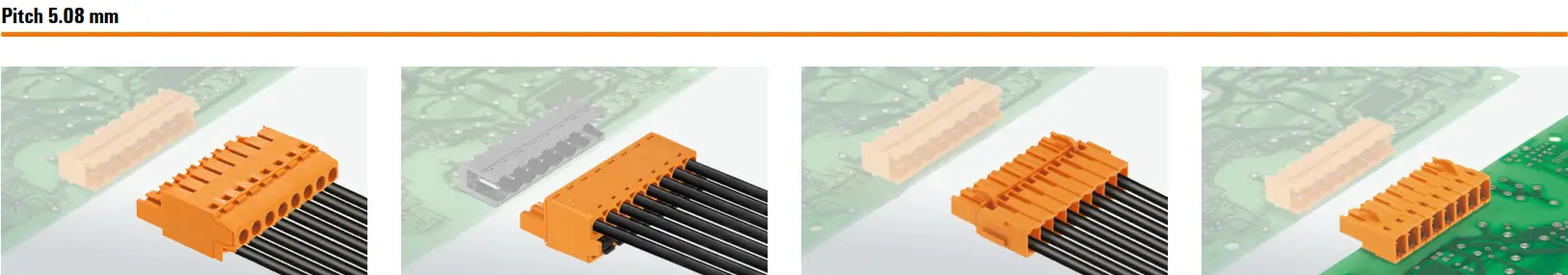

SLF 5.08 Male plugs with straight outlet direction provide space for labeling and can be coded. • PUSH IN spring connection • Pitch: 5.08 mm • Number of poles: 2–12 • IEC: 400 V / 25.9 A / 0.2–2.5 mm² • UL: 300 V / 14 A / AWG 26–12	SLS 5.08 Male plug with clamping-yoke screw wire-connect system.Clamping yoke screw connection • Pitch: 5.08 mm • Number of poles: 2–24 • IEC: 400 V/21.5 A / 0.2–2.5 mm² • UL: 300 V/14 A / AWG 26-AWG 12	SLT 5.08 Male plugs with straight outlet direction provide space for labeling and can be coded. • TOP screw connection system • Pitch: 5.08 mm • Number of poles: 2–16 • IEC: 400 V / 16 A / 0.2–2.5 mm² • UL: 300 V / 15 A / AWG 26–14	BLZP 5.08HC High-current female plug for conductor connection with 90°, 180° to 225°, and 270° outlet direction. • Clamping yoke screw connection • Pitch: 5.08 mm • Number of poles: 2–24 • IEC: 400 V / 23 A / 0.2–4 mm² • UL: 300 V / 20 A / AWG 30–12

Webcode #01092	Webcode #01088	Webcode #01096	Webcode #01100
BLT 5.08HC High-current female plug for conductor connection with a straight 180° outlet direction and space for labeling. • TOP screw connection • Pitch: 5.08 mm • Number of poles: 2–24 • IEC: 400 V / 27 A / 0.2–2.5 mm² • UL: 300 V / 17 A / AWG 26–14	BLF 5.08HC Compact high-current female plug for conductor outlet directions of 90° to 180° and 270°. • PUSH IN spring connection • Pitch: 5.08 mm • Number of poles: 2–24 • IEC: 400 V / 24 A / 0.2–2.5 mm² • UL: 300 V / 18.5 A / AWG 26–12	BLC 5.08 Female plug to allow for the pre-assembly of wiring harnesses in large quantities. • Crimp connection system • Pitch: 5.08 mm • Number of poles: 2–16 • IEC: 400 V / 21 A • UL: 300 V / 10 A / AWG 26–14	BILL 5.08 The female header for PCB assembly with 90° and 180° outlet direction and optimized solder pin length for wave soldering methods. • Female header • Pitch: 5.08 mm • Number of poles: 2–24 • IEC: 400 V / 23 A • UL: 300 V / 15 A

Webcode #11360	Webcode #01106	Webcode #11439	Webcode #11438

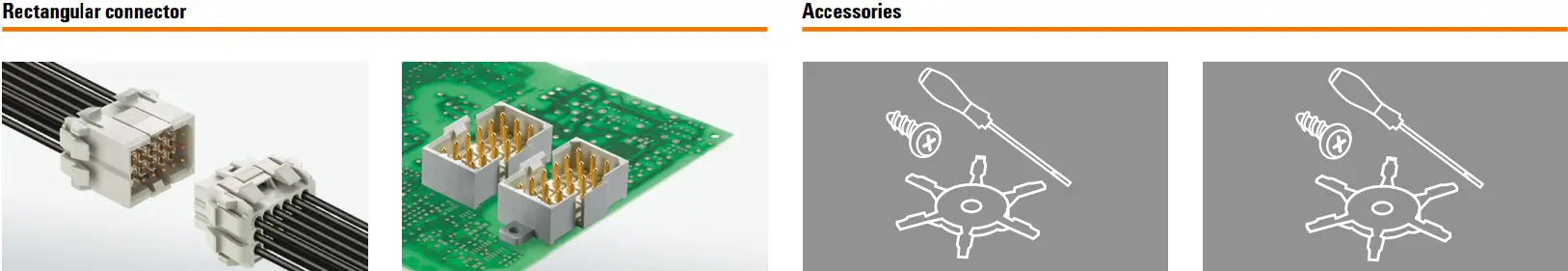

RSV 1.6 C Rectangular connector for a high component density, for use as a free coupling or a PCB variant. • Crimp connection system • Pitch: 5.00 mm • Number of poles: 4–36 • IEC: 630 V / 17 A • UL: 600 V / 10 A / AWG 26–12	RSV 1.6 L Rectangular connector with solder pin and solder jack contacts for PCB applications. • Solder pin contacts • Pitch: 5.00 mm • Number of poles: 4–36 • IEC: 500 V / 14 A • UL: 300 V / 10 A	Accessories For signal PCB terminals	Accessories For signal PCB connectors

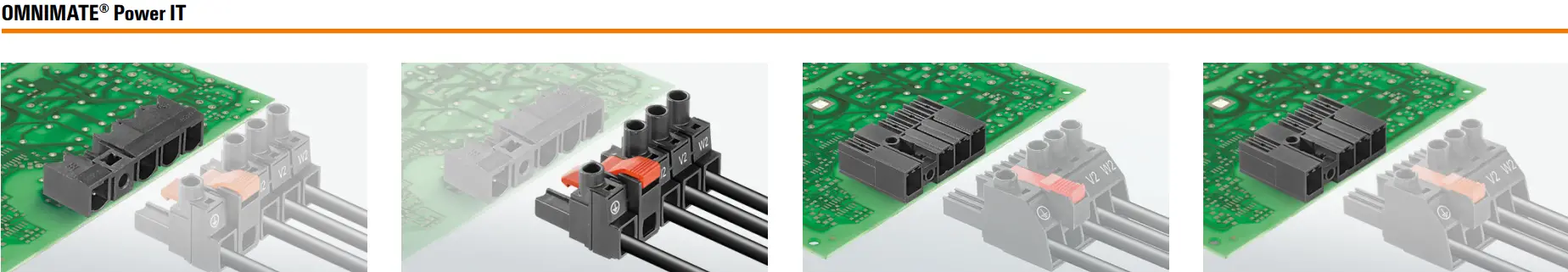

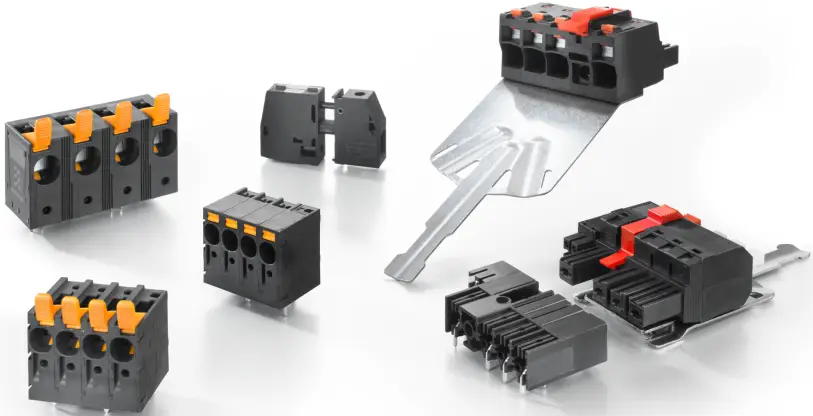

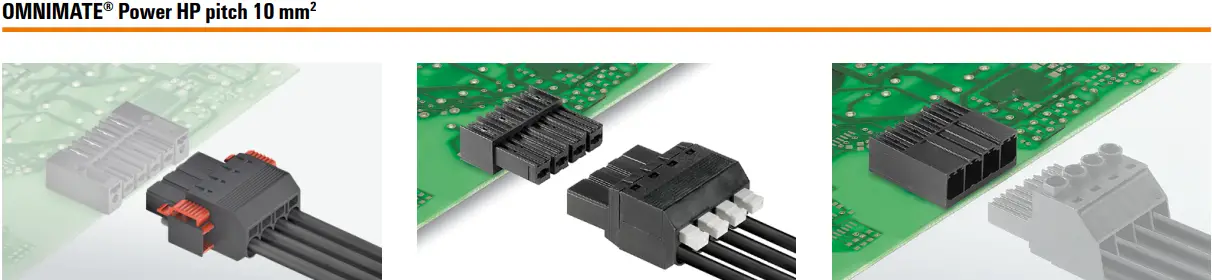

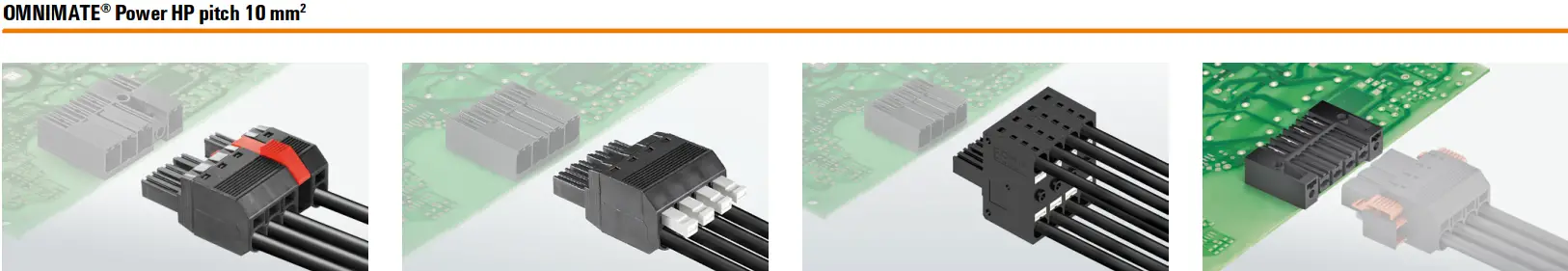

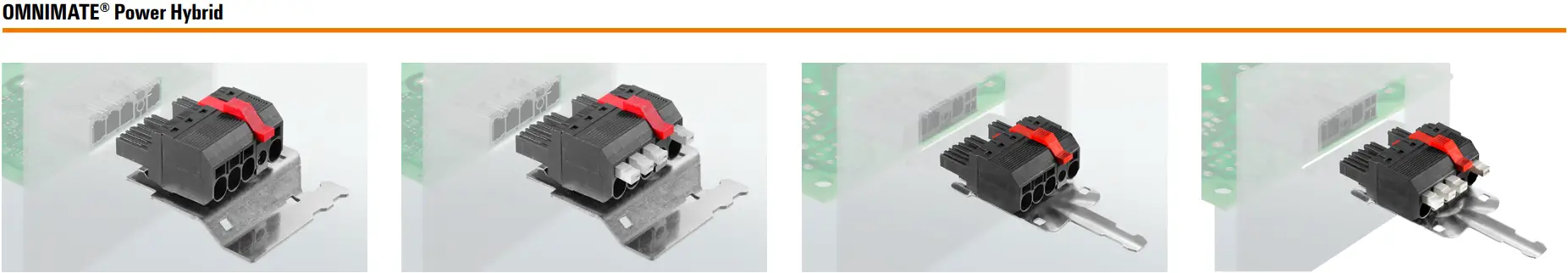

OMNIMATE ® Power
Powerful connections with maximum security

New products and innovations help to shake up the market. Many power electronics applications are constantly evolving at a rapid pace, causing the requirements placed on connection systems to increase as well.
As specialists with a great deal of experience, we know the maximum power and security requirements that you place on your electronic devices. Our high-performance PCB terminals, PCB connectors, and panel feedthrough terminal blocks therefore also comply with applicable device standards such standards for speed-controlled drive technology.
Our Power products also fully achieve 600 volts in accordance with UL standards. PCB terminal blocks with PUSH IN wire connection and application-specific plug-in connectors for motor connection with shield support complete the range.

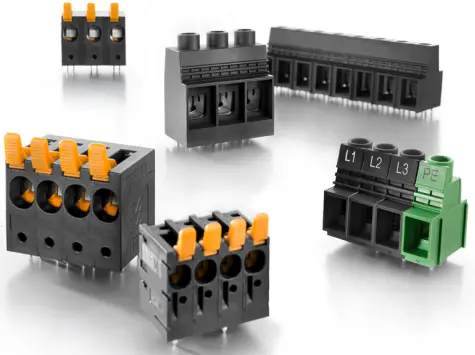

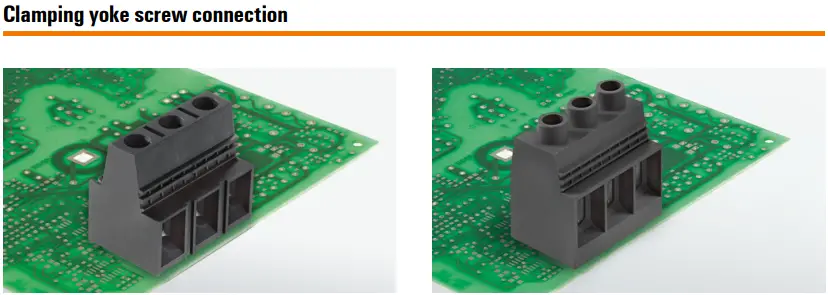

OMNIMATE ® Power PCB terminals

• High-power to 150 A / 1000 V (IEC) or 127 A / 600 V (UL)
• Application-oriented scalability with connection cross-sections from 16 mm² to 50 mm²
• Simple UL device approval up to 600 V
• PUSH IN wire connection up to 16 mm²

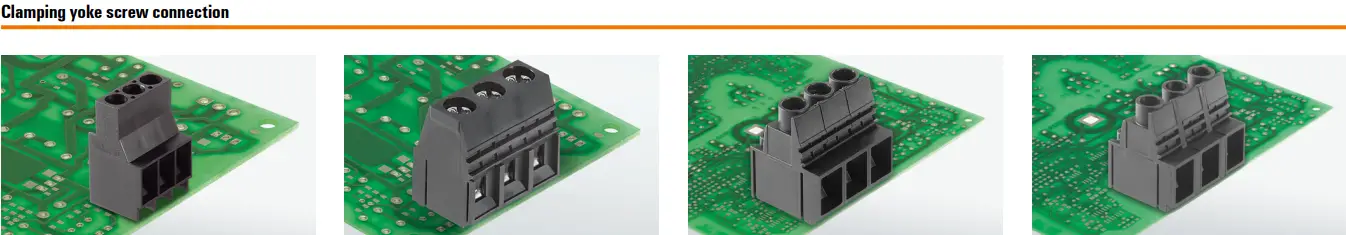

• Maintenance-free steel clamping yoke for vibration-resistant screw connections

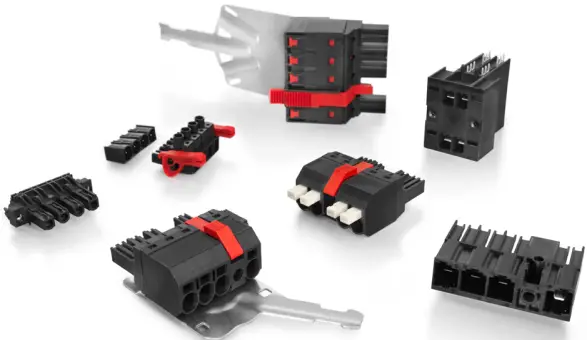

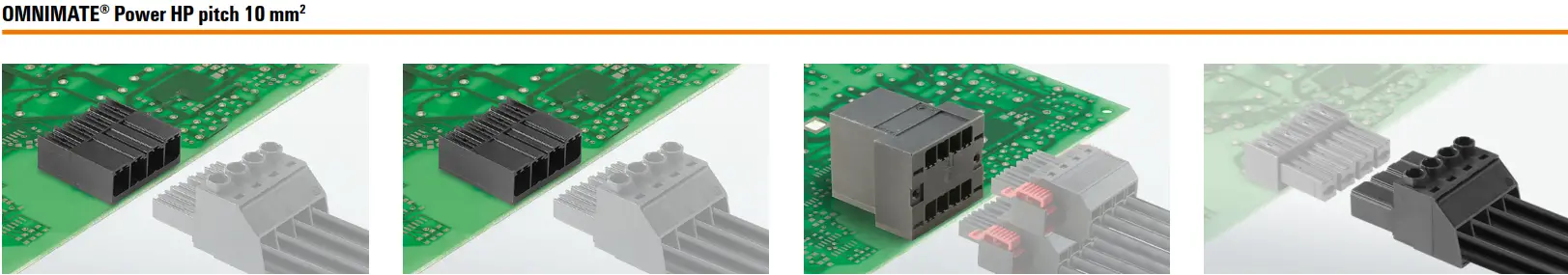

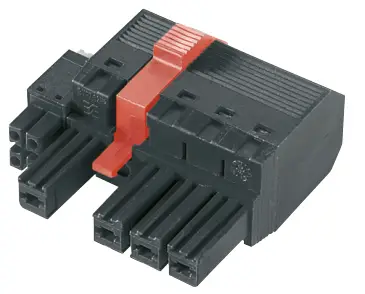

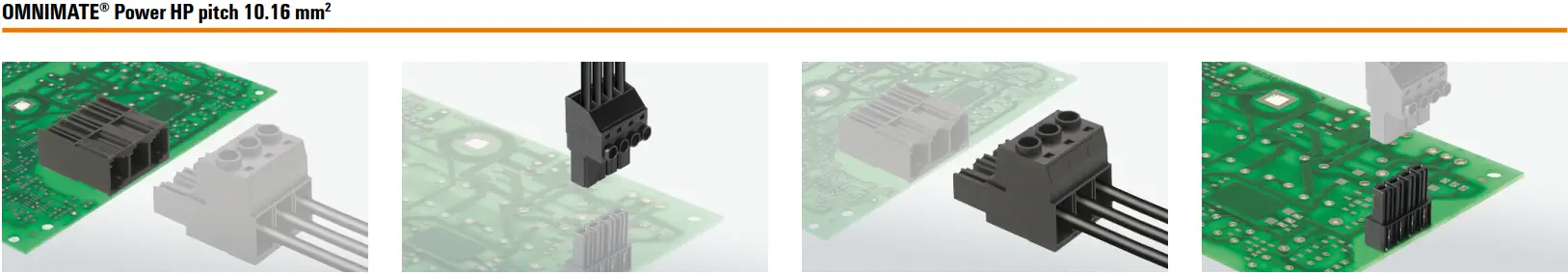

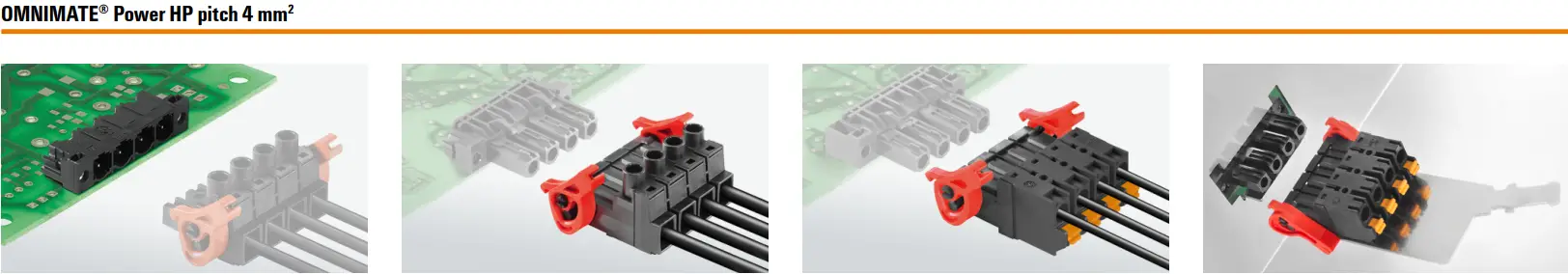

OMNIMATE ® Power PCB plug-in connectors

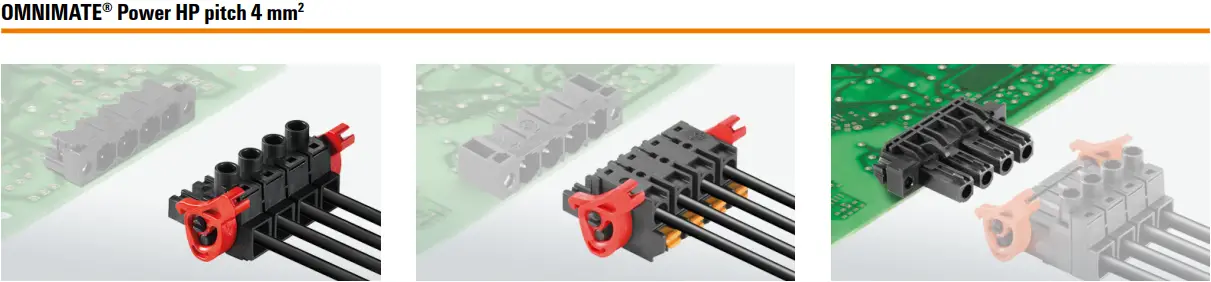

• Application-oriented scalability: from the compact 4 mm² connectors for 29 A (IEC) or 20 A (UL) up to the sturdy 16 mm² connectors for 76 A (IEC) or 60 A (UL)
• Unlimited usage up to 1000 V (IEC) or 600 V (UL)
• A variety of application-optimized mounting options

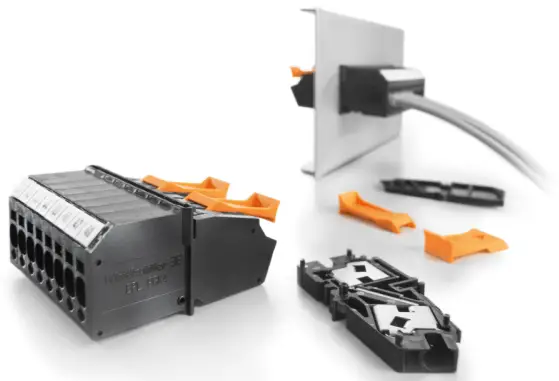

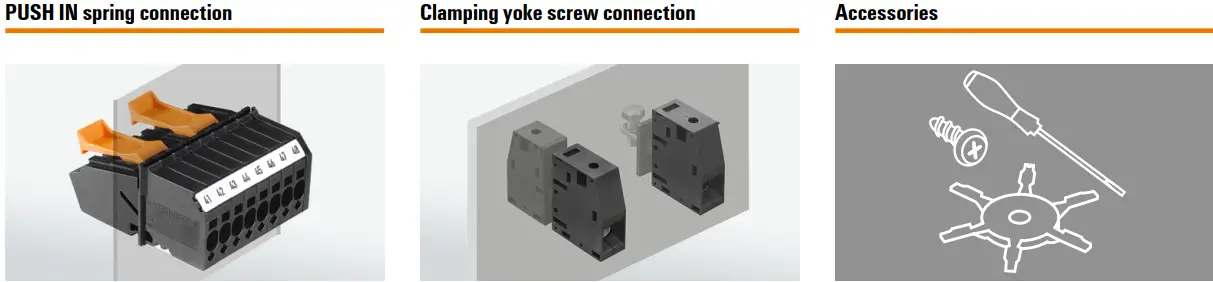

OMNIMATE ® Power Panel feedthrough terminal blocks

• Clamping yoke screw connection
• PUSH IN wire connection
• Wall and housing feedthrough
• Simple, flexible, and cost-saving assembly and connection of conductors
• Cable lug
• Solder connection

Learn more about our application-oriented connection solutions for your power electronics devices at:

www.weidmueller.com/omnimate-power

OMNIMATE® Power – PCB terminals

Webcode #01044	Webcode #01048	Webcode #01050	Webcode #01052
LL 6.35 High-performance PCB terminal with offset solder pins and conductor outlet direction of 90°. • Clamping yoke screw connection • Pitch: 6.35 mm • Number of poles: 2–12 • IEC: 1.000 V / 32 A / 0.18–6 mm² • UL: 600 V / 30 A / AWG 26–10	LU 10.16 High-performance PCB terminal with offset solder pins and conductor outlet direction of 90°. • Clamping yoke screw connection • Pitch: 10.16 mm • Number of poles: 2–10 • IEC: 1.000 V / 76 A / 0.5–16 mm² • UL: 300 V / 65 A / AWG 26–6	LUP 10.16 V with test point High-performance PCB terminal with integrated test point and conductor outlet direction of 90°. • Clamping yoke screw connection • Pitch: 10.16 mm • Number of poles: 2–9 • IEC: 1.000 V / 76 A / 0.5–16 mm² • UL: 600 V / 51 A / AWG 26–6	LUP 12.70 with test point High-performance PCB terminal with integrated test point and conductor outlet direction of 90°. • Clamping yoke screw connection • Pitch: 12.70 mm • Number of poles: 2–9 • IEC: 1.000 V / 76 A / 0.5–16 mm² • UL: 600 V / 58 A / AWG 26–6

Webcode #01054	Webcode #01056
LX 15.00 with test point High-performance PCB terminal with integrated test point and conductor outlet the direction of 90°. • Clamping yoke screw connection • Pitch: 15.00 mm • Number of poles: 1–9 • IEC: 1.000 V / 101 A / 1.5–25 mm² • UL: 600 V / 85 A / AWG 16–4	LXXX 15.00 with test point High-performance PCB terminal with integrated test point and conductor outlet the direction of 90°. • Clamping yoke screw connection • Pitch: 15.00 mm • Number of poles: 1–9 • IEC: 1.000 V / 150 A / 0.5–50 mm² • UL: 600 V / 127 A / AWG 20–1

Webcode #11408	Webcode #01046	Webcode #11409
LLF / LLFS 7.5 Highly reliable PCB terminals with integrated test point and conductor outlet direction of 90° and 180°. • PUSH IN spring connection • Fast wiring without a tool (LLF 7.50) • Pitch: 7.5 mm • Number of poles: 1–12 • IEC: 1.000 V / 41 A / 0.5–6 mm² • UL: 600 V / 35 A /AWG 24–8	LUF / LUFS 10 Highly reliable PCB terminals with integrated test point and conductor outlet direction of 90° and 180°. • PUSH IN spring connection • Fast wiring without a tool (LUF10) • Pitch: 10.00 mm • Number of poles: 1–12 • IEC: 1.000 V / 76 A / 0.5–16 mm² • UL: 600 V / 61 A / AWG 18–6	LUF / LUFS 15 Highly reliable PCB terminals with integrated test point and conductor outlet direction of 90° and 180°. • PUSH IN spring connection • Fast wiring without a tool (LUF 15) • Pitch: 15.00 mm • Number of poles: 2–8 • IEC: 1.000 V / 76 A / 0.5–16 mm² • UL: 1.000 V / 57 A / AWG 18–6

Webcode #11437	Webcode #01112	Webcode #11465	Webcode #11466
SV-SMT 7.62 hybrid High-temperature-resistant hybrid male header with energy and signal contacts. • Male header • Pitch: 7.62 mm • Pole count: 2/4–5/8 • IEC: 1.000 V / 41 A • UL: 300 V / 35 A	SV 7.62 hybrid Hybrid male header with energy and signal contacts. • Male header • Pitch: 7.62 mm • Pole count: 2/4–5/8 • IEC: 1.000 V / 41 A • UL: 300 V / 35 A	BVF 7.62HP hybrid Hybrid female plug – the perfect 2-in-1 solution for the simultaneous combination of energy and signals. Available with plug-in EMC shield support on request. • PUSH IN spring connection • Pitch: 7.62 mm • Pole count: 2/4–5/8 • IEC: 1.000 V / 38 A / 0.5–10 mm² • UL: 600 V / 35 A / AWG 24–8	BVFL 7.62 hybrid Hybrid female plug with Wire-Ready PUSH IN the perfect 2-in-1 solution for the simultaneous combination of energy and signals. • Wire-Ready PUSH-IN spring connection • Pitch: 7.62 mm • Pole count: 2 / 4–5 / 8 • IEC: 1.000 V / 38 A / 0.5–6 mm • UL: 600 V / 35 A / AWG 24–8

Webcode #11467	Webcode #11468	Webcode #11481	Webcode #11480
BVF 7.62 hybrids with pluggable shield connection Hybrid female plug with pluggable shield connection to the printed circuit board. • PUSH IN spring connection • Pitch: 7.62 mm • Pole count: 4–4 • IEC: 1.000 V / 38 A / 0.5–10 mm • UL: 600 V / 35 A / AWG 24–8	BVLF 7.62 hybrids with pluggable shield connection Hybrid female plug with Wire-Ready PUSH IN and pluggable shield connection to the printed circuit board. • Wire-Ready PUSH IN spring connection • Pitch: 7.62 mm • Pole count: 4–4 • IEC: 1.000 V / 38 A / 0.5–6 mm • UL: 600 V / 35 A / AWG 24–8	BVF 7.62 hybrids with pluggable shield connection Hybrid female plug with pluggable shield connection to the device metal housing. • PUSH IN spring connection • Pitch: 7.62 mm • Pole count: 4–4 • IEC: 1.000 V / 38 A / 0.5–10 mm • UL: 600 V / 35 A / AWG 24–8	BVFL 7.62 hybrids with pluggable shield connection Hybrid female plug with Wire-Ready PUSH-IN and pluggable shield connection to the device metal housing. • Wire-Ready PUSH IN spring connection • Pitch: 7.62 mm • Pole count: 4–4 • IEC: 1.000 V / 38 A / 0.5–6 mm • UL: 600 V / 35 A / AWG 24–8

Webcode #01116	Webcode #01114	Webcode #11469	Webcode #01120
SL 7.62IT Male header with optional solder flange attachment and with leading contact for IT networks. • Male header • Pitch: 7.62 mm • Number of poles: 2–6 • IEC: 630 V / 29 A • UL: 300 V / 20 A	BLZ 7.62IT Female plug with 180° outlet direction and touch safety for IT networks with self-locking center flange. • Clamping yoke screw connection • Pitch: 7.62 mm • Number of poles: 2–6 • IEC: 1,000 V / 41 A / 0.2–6 mm² • UL: 600 V / 40.5 A / AWG 24–8	SV-SMT 7.62IT High temperature-resistant male header with leading contact for IT networks. • Male header • Pitch: 7.62 mm • Number of poles: 2–5 • IEC: 1.000 V / 41 A • UL: 300 V / 40.5 A	SV 7.62IT Male header with optional solder flange attachment and with leading contact for IT networks. • Male header • Pitch: 7.62 mm • Number of poles: 2–4 • IEC: 1.000 V / 41 A • UL: 300 V / 40.5 A

OMNIMATE® Power – PCB connectors

Webcode #01118	Webcode #01124	Webcode #01122	Webcode #11479
BVZ 7.62IT Female plug with 180° outlet direction and touch safety for IT networks with self-locking center flange. • Clamping yoke screw connection • Pitch: 7.62 mm • Number of poles: 2–4 • IEC: 1,000 V / 41 A / 0.2–6 mm² • UL: 600 V / 40.5 A / AWG 24–8	SU 10.16IT Male header with optional solder flange attachment and with leading contact for computer networks. • Male header • Pitch: 10.16 mm • Number of poles: 2–4 • IEC: 1,000 V / 76 A • UL: 300 V / 60 A	BUZ 10.16IT Female plug with 180° outlet direction and touch safety for IT networks with self-locking center flange. • Clamping yoke screw connection • Pitch: 10.16 mm • Number of poles: 2–4 • IEC: 1,000 V / 78 A / 0.2–16 mm² • UL: 300 V / 60 A / AWG 22–4	BUZ 10.16IT SH Female plug with 180° outlet direction and touch safety for IT networks with self-locking center flange and pluggable shield connection to the device metal housing. • Clamping yoke screw connection • Pitch: 10.16 mm • Number of poles: 3–4 • IEC: 1,000 V / 76 A / 2.5–16 mm² • UL: 600 V / 55 A / AWG 22–4

Webcode #11407	Webcode #11471
BUF 10.16IT Female plug with 180° outlet direction for IT networks with self-locking center flange. • PUSH IN spring connection • Pitch: 10.16 mm • Number of poles: 2–5 • IEC: 1,000 V / 76 A / 2,5 – 16 mm² • UL: 600 V / 55 A / AWG 12 – AWG 4	BUF 10.16IT SH Female plug with 180° outlet direction and touch safety for IT networks with self-locking center flange and pluggable shield connection to the device metal housing. • PUSH IN spring connection • Pitch: 10.16 mm • Number of poles: 3–4 • IEC: 1,000 V / 76 A / 2.5–16 mm² • UL: 600 V / 55 A / AWG 12–4

Webcode #01130	Webcode #01132	Webcode #01134	Webcode #11472
SL 7.62HP Male header with single compartment mating profile and touch protection. • Male header • Pitch: 7.62 mm • Number of poles: 2–12 • IEC: 630 V / 29 A • UL: 300 V / 20 A	SLZ 7.62HP Male plug with single compartment mating profile with 180° outlet direction as a touch-safe solution for the reverse voltage in HP networks. • Clamping yoke screw connection • Pitch: 7.62 mm • Number of poles: 2–5 • IEC: 1,000 V / 20 A / 0.5–2.5 mm² • UL: 600 V / 17 A / AWG 20–12	SLF 7.62HP Male plug with single compartment mating profile with 180° outlet direction as a touch-safe solution for the reverse voltage in HP networks. • PUSH IN spring connection • Pitch: 7.62 mm • Number of poles: 2–5 • IEC: 1,000 V / 24 A / 0.5–2.5 mm² • UL: 600 V / 20 A / AWG 20–12	SLF 7.62HP SH Male plug with single compartment mating profile with 180° outlet direction as a touch-safe solution for the reverse voltage in HP networks, with a pluggable shield connection to the device’s metal housing. • PUSH IN spring connection • Pitch: 7.62 mm • Number of poles: 4 • IEC: 1,000 V / 24 A / 0.5–2,5 mm² • UL: 600 V / 20 A / AWG 20–12

Webcode #01126	Webcode #01128	Webcode #01136
BLZ 7.62HP Female plug with single compartment mating profile with 180° outlet direction and touch protection for HP networks. • Clamping yoke screw connection • Pitch: 7.62 mm • Number of poles: 2–12 • IEC: 630 V / 29 A / 0.2–4 mm² • UL: 600 V / 20 A / AWG 20–12	BLF 7.62HP Female plug with single compartment mating profile with 180° outlet direction and touch protection for HP networks. • PUSH IN spring connection • Pitch: 7.62 mm • Number of poles: 2–12 • IEC: 1,000 V / 24 A / 0.5–2.5 mm² • UL: 600 V / 20 A / AWG 20–12	BLL 7.62HP Touch-safe female header with a single compartment mating profile for the PCB with one-hand safety interlock. • Female header • Pitch: 7.62 mm • Number of poles: 2–5 • IEC: 630 V / 24 A • UL: 300 V / 20 A

Webcode #11473	Webcode #01142	Webcode#11474	Webcode #01144
SV-SMT 7.62HP High temperature-resistant single-row male the header for pole-loss-safe attachment or for use with patented multi-function flanges for TNC(S) networks. • Male header • Pitch: 7.62 mm • Number of poles: 2–5 • IEC: 1,000 V / 41 A • UL: 300 V / 40.5 A	SV 7.62HP The high-performance single-row male header for pole-loss-safe attachment or for use with patented multi-function flanges for TNC(S) networks. • Male header • Pitch: 7.62 mm • Number of poles: 2–12 • IEC: 1,000 V / 41 A • UL: 300 V / 40.5 A	SVD 7.62HP Double-row high-current, high-performance pin headers for pole-loss-safe attachment or for use with patented multi-function flanges for TNC(S) networks. • Male header • Pitch: 7.62 mm • Number of poles: 4–12 • IEC: 1,000 V / 47 A • UL: 300 V / 30 A	SVZ 7.62HP High-performance male plug for pole-loss-safe attachment or for use with patented multifunction flanges for TNC(S) networks. • Clamping yoke screw connection • Pitch: 7.62 mm • Number of poles: 2–7 • IEC: 1,000 V / 41 A / 0.2–6 mm² • UL: 600 V / 35 A / AWG 24–10

Webcode #11475	Webcode #11476	Webcode #01138
SVF 7.62HP High-performance male plug with 180° outlet direction as a three-flange version for the housing feedthrough for TNC(S) networks. • PUSH IN spring connection • Pitch: 7.62 mm • Number of poles: 2–6 • IEC: 1,000 V / 41 A / 0.5–10 mm² • UL: 600 V / 35 A / AWG 24–10	SVFL 7.62HP High-performance male plug with 180° outlet direction as a three-flange version for the housing feedthrough for TNC(S) networks. • Wire-Ready PUSH IN spring connection • Pitch: 7.62 mm • Number of poles: 2–6 • IEC: 1,000 V / 41 A / 0.5–6 mm² • UL: 600 V / 35 A / AWG 24–10	BVZ 7.62HP High-performance female plug for pole-loss-safe attachment or for use with patented multifunction flanges for TNC(S) networks. • Clamping yoke screw connection • Pitch: 7.62 mm • Number of poles: 2–12 • IEC: 1,000 V / 41 A / 0.2–6 mm² • UL: 600 V / 40.5 A / AWG 24–8

Webcode #11477	Webcode #11478	Webcode #11512	Webcode #01148
BVF 7.62HP High-performance female plug with 180° outlet direction as a touch-safe solution for the power output for TNC(S) networks. • PUSH IN spring connection • Pitch: 7.62 mm • Number of poles: 2–7 • IEC: 1.000 V / 41 A / 0.5–10 mm² • UL: 600 V / 35 A / AWG 24–8	BVFL 7.62HP High-performance female plug with 180° outlet direction as a touch-safe solution for the power output for TNC(S) networks. • Wire-Ready PUSH-IN spring connection • Pitch: 7.62 mm • Number of poles: 2–5 • IEC: 1.000 V / 41 A / 0.5–6 mm² • UL: 600 V / 35 A / AWG 24–8	BVDF 7.62HP Bus connector with two connections per pole with the time-saving 6mm² PUSH IN connection system • Female header • Pitch: 7.62 mm • Number of Poles: 2–8 • IEC: 600 V / 46 A / 0.5 – 10 mm² • UL: 600 V / 35 A / AWG 24 – AWG 8	BVL 7.62HP The high-performance female header for pole-loss safe attachment or for use with patented multifunction flanges for TNC(S) networks. • Female header • Pitch: 7.62 mm • Number of poles: 2–7 • IEC: 1.000 V / 41 A • UL: 300 V / 35 A

Webcode #01152	Webcode #01154	Webcode #01150	Webcode #01156
SU 10.16HP The high-performance single-row male header for pole-loss-safe attachment or for use with patented multi-function flanges for TNC(S) networks. • Male header • Pitch: 10.16 mm • Number of poles: 2–9 • IEC: 1.000 V / 76 A • UL: 300 V / 60 A	SUZ 10.16HP High-performance male plug with 180° outlet direction and high-strength contact system for TNC(S) networks. • Clamping yoke screw connection • Pitch: 10.16 mm • Number of poles: 2–9 • IEC: 1.000 V / 78 A / 0.2–16 mm² • UL: 600 V / 54 A / AWG 24–6	BUZ 10.16HP High-performance female plug with 180° outlet direction for pole-loss-safe attachment or for use with patented multi-function flanges for TNC(S) networks. • Clamping yoke screw connection • Pitch: 10.16 mm • Number of poles: 2–9 • IEC: 1.000 V / 78 A / 0.2–16 mm² • UL: 600 V / 60 A / AWG 22–4	BUL 10.16HP High-performance female header with 180° outlet direction and high-strength contact system for TNC(S) networks. • Female header • Pitch: 10.16 mm • Number of poles: 2–4 • IEC: 1.000 V / 76 A • UL: 300 V / 57 A

Webcode #01158	Webcode #01160	Webcode #11463
PGK Device feedthrough terminal blocks with disc design and intuitive locking for a quick and compact solution. • PUSH IN spring connection • Connection cross-section: up to 4 mm² • IEC: 500 V / 32 A / 0.5–4 mm² • UL: 300 V / 30 A / AWG 24–10	WGK High-current feed-through terminals as a the universal solution to guide currents of various scales through the device wall. • Clamping yoke screw connection • Connection cross-section: 6 to 95 mm² • IEC: 1.000 V / 232 A / 0.5–95 mm² • UL: 600 V / 230 A / AWG 24–4/0	Accessories For Power feed-through terminals

OMNIMATE® Power – PCB- connector cross connection / DC – link

Webcode #11513	Webcode #11512
PB 160 Modular current bar solution, for multi-axis servo amplifiers intermediate circuit and 24 V control voltage supply. • Modular SNAP-IN bus system • Tool-less connection • Number of poles: 2 • IEC: 1000 V / 160 A • UL: 750 V dc / 160 A	BVDF 7.62HP Bus connector with two connections per pole with the time-saving 6 mm² PUSH IN connection system. • Female header • Pitch: 7.62 mm • Number of Poles: 2–8 • IEC: 600 V / 46 A / 0.5 –10 mm² • UL: 600 V / 35 A / AWG 24 – AWG 8

Shape design-in processes in a uniquely efficient way

Our services make sure you get perfect results
They develop connection systems for PCBs and devices based on the final application. Our specialists will gladly provide you with really concrete support with your design-in process, with expertise, advice, and a range of useful services.
Our design-in application specialists know your working environment intimately and will support you from the specifications stage right through to the series production of your individual solution. Not only will you benefit from our OMNIMATE ® services such as the product configurator with 3D models available for download, or the unparalleled 72-hour sample service for your free design-in samples; but you’ll also have access to a wide range of additional services designed to make your day-to-day work quicker, easier and more professional.

Webcode #01163	Webcode #01201	Webcode #11359
72-hour sample service Just order your design-in samples, quickly and easily. Make the most of the free 72-hour sample service for OMNIMATE ®. Wherever you’re situated, we always keep our word and deliver your samples to the desired location within 72 hours.	Webinars on practical issues Exciting online seminars on relevant issues relating to device connection systems will help you with the practical aspects of your project. All webinar services are free of charge. You can find out dates, topics, and presenters quickly and easily using the corresponding web code.	Whitepaper We share our expertise: Find out detailed information and interesting facts about trend topics in the field of device connectivity in our Whitepaper section.

Webcode #01203	b2b.partcommunity.com	Webcode #11347
Component library for electronic PCB design Switching symbols and the painstaking creation of footprints are now things of the past. We offer extensive component libraries of OMNIMATE ® PCB terminals and PCB connectors for a wide range of different EDA systems. Simply download and import the data set and you’re ready to go.	CAD models in the Part Community CAD models for our OMNIMATE ® PCB connection systems can be found in one of the industry’s most important online forums. The “Part Community” allows engineers and technicians to trade knowledge on technical topics in all fields. The Community’s online catalog contains the exact dimensions and all other relevant data for our products.	Technical information The OMNIMATE ® device connection methodology is highly flexible, ensuring your application requirements are met. The more familiar you are with it, the easier it is to find the optimum component.

Safe and easy product handling	On-site advice by application specialists	Ready-to-connect cables for every requirement
A QR code on the product and the outer packaging leads directly to the corresponding handling video. The individual installation steps can be followed directly during processing.	We develop connection systems for PCBs and devices based on the application. And if you can involve us in your development at an early stage – even better. As part of our personal on-site customer consultancy service, our application specialists will meet with your technicians to discuss questions and problems relating to your project.	From pre-assembled cabling solutions to bespoke special cables, ensuring reliable and efficient connections is a challenging task. We support you with our demand-oriented assembly services to handle even the most complex of cabling tasks.

Online and personal support
From planning through installation to operation, we can provide exactly the right help and information for each step of your application based on our solutions and products: up-to-date, uncomplicated and comprehensive, around the clock, online or in person.

Visit our website for more information

http://www.weidmueller.com/service

Weidmüller – Your partner in Industrial Connectivity

As experienced experts, we support our customers and partners around the world with products, solutions, and services in the industrial environment of power, signal and data. We are at home in their industries and markets and know the technological challenges of tomorrow. We are therefore continuously developing innovative, sustainable, and useful solutions for their individual needs. Together we set standards in Industrial Connectivity.
We cannot guarantee that there are no mistakes in the publications or software provided by us to the customer for the purpose of making orders. We try our best to quickly correct errors in our printed media.
All orders are based on our general terms of delivery, which can be reviewed on the websites of our group companies where you place your order. On-demand we can also send the general terms of delivery to you.

Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
32758 Detmold, Germany
T +49 5231 14-0
F +49 5231 14-292083
www.weidmueller.com
Personal support can be found on our website:
www.weidmueller.com/contact Made in Germany
Order number: 2811880000/03/2021/SMM

References

• 3D CAD Models Community - PARTcommunity - 3D & 2D CAD Models
• Weidmüller: Industrial Connectivity from Detmold with Love
• Select - Find the right product
• Weidmüller Configurator – Simple digital engineering
• Locations
• OMNIMATE® Data
• OMNIMATE Power
• PCB plug-in terminals and PCB plug-in connectors
• OMNIMATE® Signal
• OMNIMATE® 4.0
• Service
• Single Pair Ethernet
