Instruction Manual
Interface GmbH Co. KG; Klingenbergstraße
26, 32758 Detmold-Germany
Modular Terminal Blocks: ZDU/ZPE
| Version: | ZDU 4/4AN* | Order No 7904290000 |
| in conjunction with: | ZPE 4/4AN* | Order No 7904280000 |
| Accessoriesend plate end bracket | Type ZAP/TW4/4AN* ZEW 35* | Order No 7904210000 9540000000 |
| Terminal rail | TS 35/… acc. to DIN EN 60715 | |
| Cross-connection | Plugable* SVQ 4/2 GE SVQ 4/3 GE SVQ 4/4 GE SVQ 4/5 GE SVQ 4/6 GE SVQ 4/7 GE SVQ 4/8 GE SVQ 4/9 GE SVQ 4/10 GE | Order No 1608950000 1608960000 1608970000 1608980000 1608990000 1609000000 1609010000 1609020000 1609030000 |
Insulation material:
- Type
- Tracking resistance (A) to IEC 60112
- Flammability class to UL 94
- Operating temperature range
- Ambient temperature range
- Ambient temperature range
- Ambient temperature range
* in all colors.
Wemid CTI ≥ 600 V0 - 60°C…+110°C (insulating material limit)
- 60°C…+40°C (for T6 applications)
- 60°C…+55°C (for T5 applications)
- 60°C…+70°C (for T4 applications)
Technical data according to IEC/EN 60079-7 (increased safety “eb”):
| ZDU 4/4AN | ZPE 4/4AN | |
| – Rated voltage | 550 V | |
| – Rated current | 28 A / ΔT 40 K | |
| – Temperature rise with rated current | ≤ 40 K / 28 A | |
| – Rated current with ZQV | 28 A / ΔT 40 K | |
| – Contact resistance | 0,7 mΩ | 0,7 mΩ |
| with the rated conductor, 4 mm² | ||
| – Rated conductor cross-section | 4 mm² | 4 mm² |
| – Conductor cross-section solid | 0,5 – 6 mm² | 0,5 – 6 mm² |
| – Conductor cross-section stranded | 0,5 – 6 mm² | 0,5 – 6 mm² |
| – Conductor cross-section flexible | 0,5 – 6 mm² | 0,5 – 6 mm² |
| – cross-section, American Wire Gauge | 26 – 10 AWG | 26 – 10 AWG |
| – Stripping length | 12 mm | 12 mm |
IECEx / ATEX / UKCA Terminal and Cross-Connection Arrangements:
Max voltage data according to IEC/EN 60079-7 in conjunction with protective earth terminal blocks of the ZPE-Series, (increased safety “eb”):
Application Case
| A – Continuous |  |

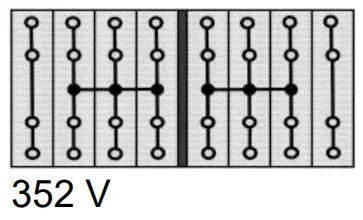

| C – Adjacent – separated by an end plate |  |
| D – Intermediate – bridging one or more unconnected terminals |  |
| – Next to a protective conductor terminal (earth) without an end plate |  |
Information for further cross-connector arrangements will be provided on request.
Note: If smaller cross sections than the rated cross-section are used, the belonging lower current has to be laid down in the IECEx/EC-Type Examination Certificate of the complete apparatus.
Mounting instructions:
The ZDU/ZPE series is suitable for application in enclosures in atmospheres with flammable gases or combustible dust. For use in flammable gases, these enclosures must satisfy the requirements according to IEC/EN60079-0 and IEC/EN60079-7. For use in combustible dust, these enclosures must satisfy the requirements according to IEC/EN60079-0 and IEC/EN60079-31. Regarding the use of accessories, the instructions of the manufacturer must be followed.
Schedule of Limitations:
The ZDU/ZPE terminals are suitable for use in enclosures in atmospheres with flammable gases or combustible dust. For flammable gases, these enclosures must satisfy the requirements according to IEC/EN60079-0 and IEC/EN60079-7. For combustible dust, the enclosure must satisfy the requirements according to IEC/EN60079-0 and IEC/EN60079-31. The terminal blocks shall be placed inside a suitable IECEx/ATEX/UKCA certified IP54 enclosure for gas atmosphere. For dust atmosphere, the terminal blocks shall be mounted inside a suitable IECEx/ATEX/UKCA certified certified ‘t’ enclosure (IEC/EN60079-31). Under normal operating conditions the temperature rise of the terminal blocks is a maximum of 40 K, measured at the maximum permitted rated current. Due to the above-mentioned, the terminal blocks may be used in apparatus of temperature classes T6..T1 as long as the terminal block ambient temperature range is not exceeded. No part of a terminal block must exceed 110 °C under any condition.
T6 (- 60°C … +40 °C)
T5 (- 60°C … +55 °C)
T4 (- 60°C … +70 °C)
When using the types ZDU and ZPE especially with other terminal blocks series or sizes or accessories the requirements for clearance and creepage distances according to IEC/EN60079-7 must be observed. Regarding the use of covers, cross-connectors, and end brackets the instructions of the manufacturer must be followed. For cross connection accessories’ current rating, and resistance across the terminal please refer to the table under “Technical data” above. No other wire sizes or types than the ones specified in the instructions must be used. The terminal blocks must either be mounted next to another block of the same type and size or with an end plate. If smaller conductor cross sections than the rated conductor cross sections are used, then the corresponding lower current shall be stated in the Certificate of the complete apparatus.
– Cross connections with blank ends shall not be used.
– Manually cut cross connections shall not be used.
Essential Health and Safety Requirements:
Concerning ESRs this Schedule verifies compliance with the Annex II of ATEX / Schedule 1 of UKCA directive and Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres Regulations 2016 only. By placing the product on the market, the manufacturer declares compliance with other relevant Directives and all other safety-related requirements including those of Annex II / Schedule 1 of these Directives.
INSTALLATION INSTRUCTIONS & CONDITIONS FOR SAFE USE
II 2 GD
Ex eb IIC Gb
Ex eb IIC Gb
Modular TERMINAL Blocks: Z- Series
DEMKO 15 ATEX 1467U
IECEx ULD 15.0008U
Notified Body No. of Ex – QA: 0344
Label print on package unit: 0344
UL21UKEX2117U
Approved Body No. of UK Ex – QA: XXXX
(see product marking)
Standards:
EN IEC 60079-0:2018 and EN IEC 60079-7:2015 A1:2018
IEC 60079-0: 7th Edition and IEC 60079-7: 5.1th Edition
Version: ZDU/ZPE 4/4AN; 10318038 Index: 02 Date: 08.202
