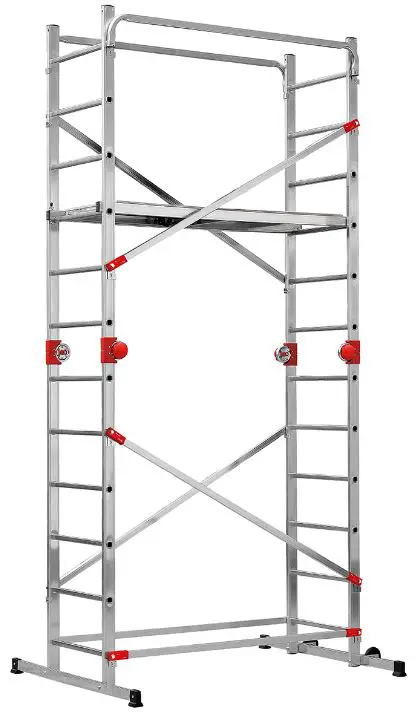

Hellweg 916105 Series Scaffold Instruction Manual (+ PDF)

Contents hide

Note: For further assistance or information, please contact the manufacturer, KRAUSE-Werk GmbH & Co. KG.

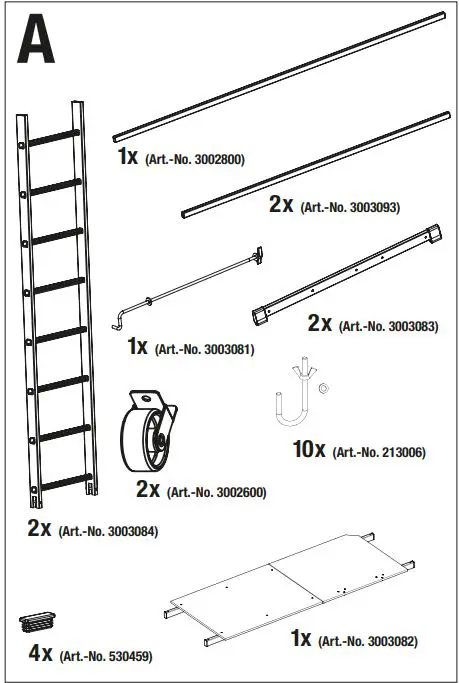

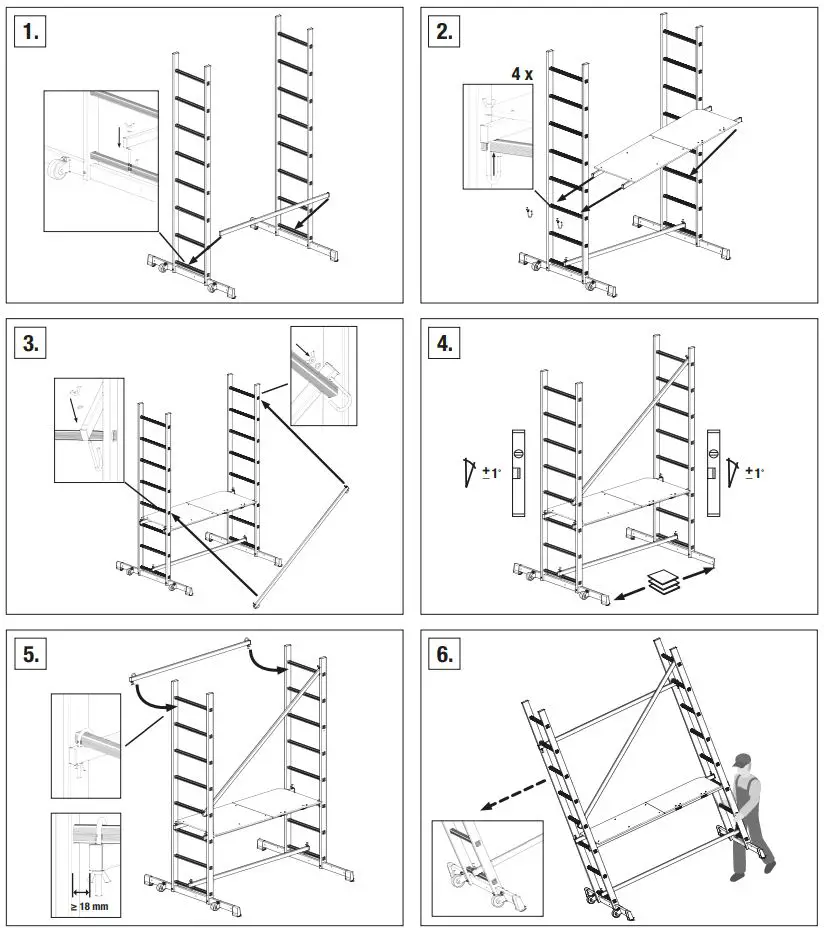

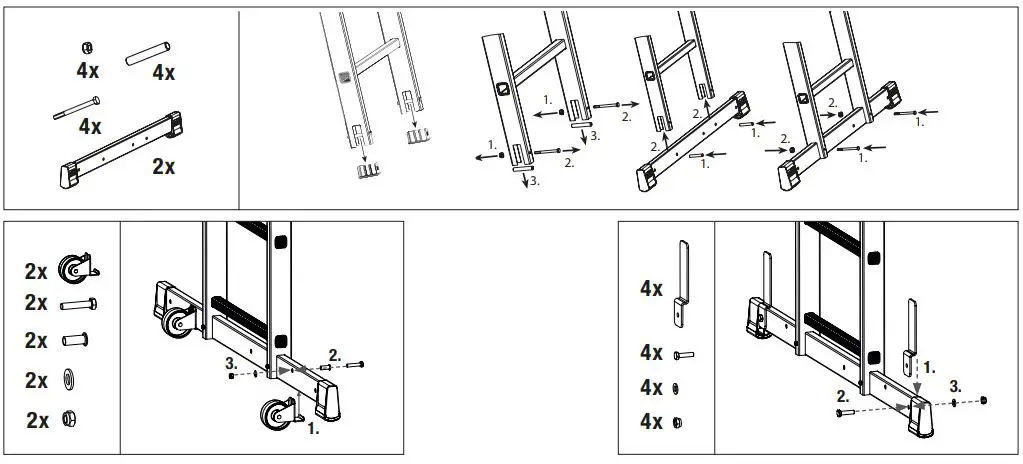

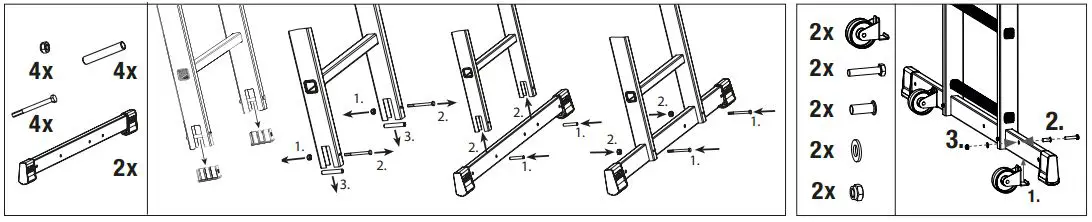

Parts: A

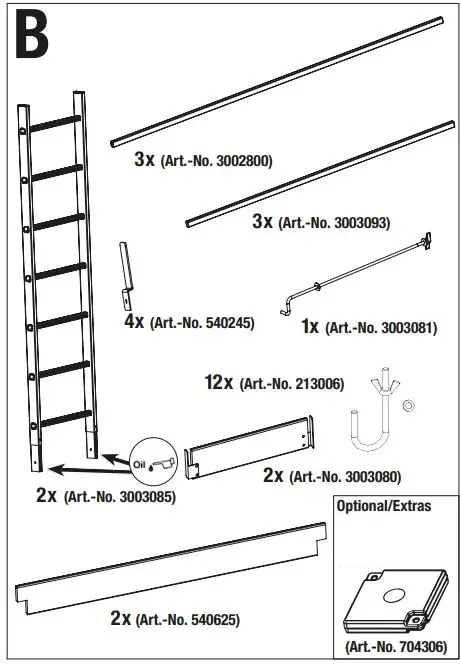

Parts: B

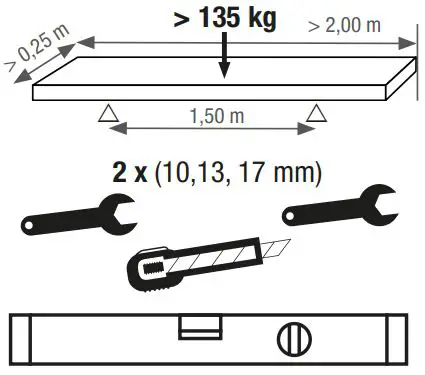

Not included in the scope of delivery

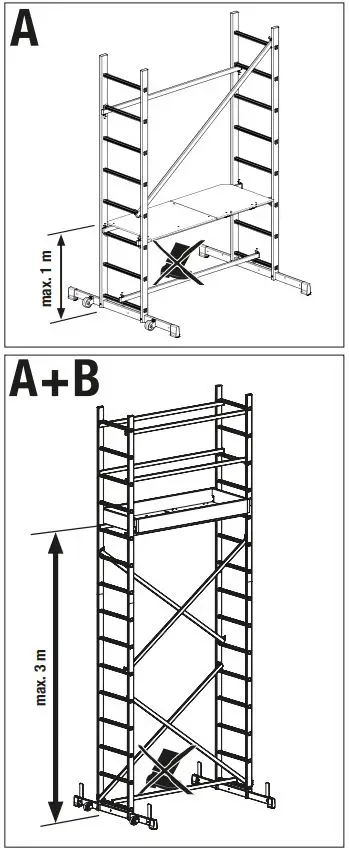

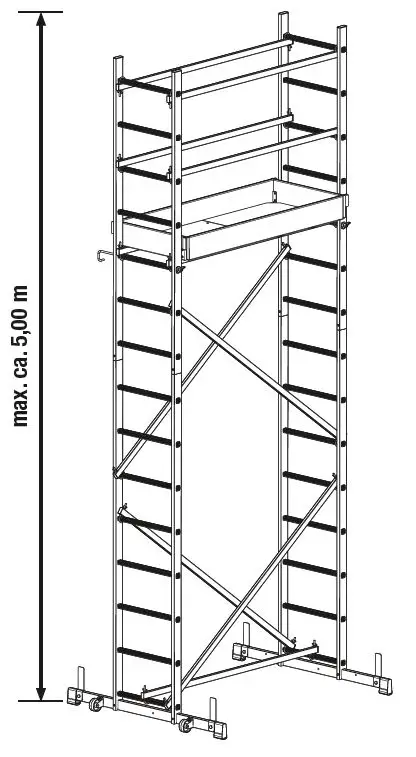

Dimension Of A+B

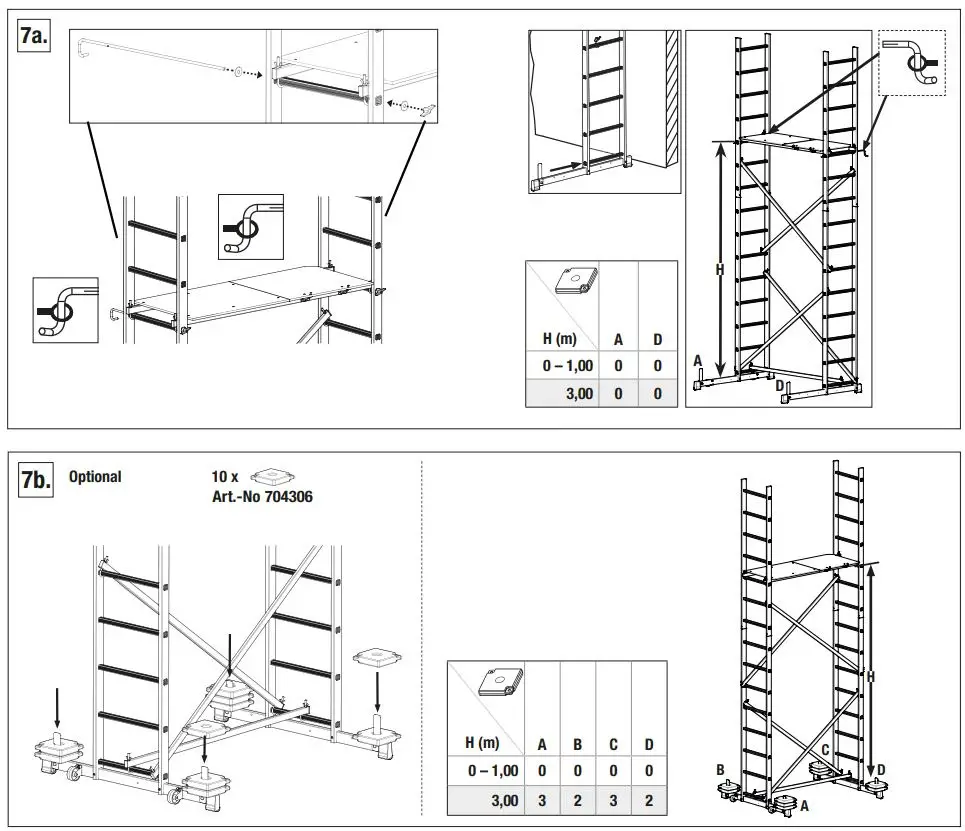

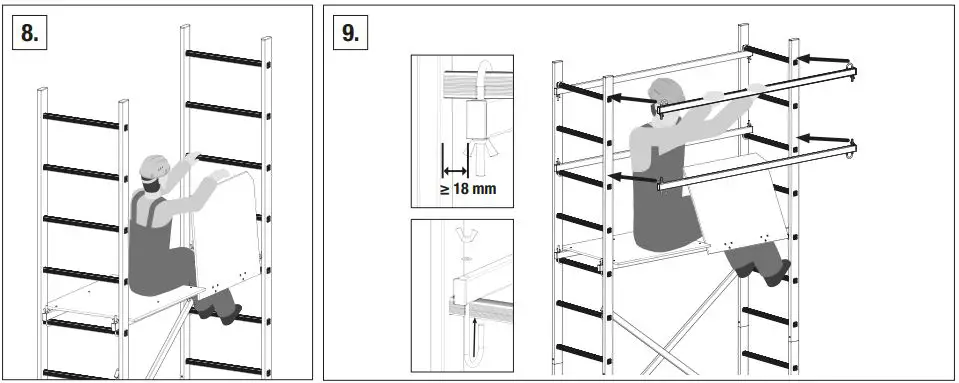

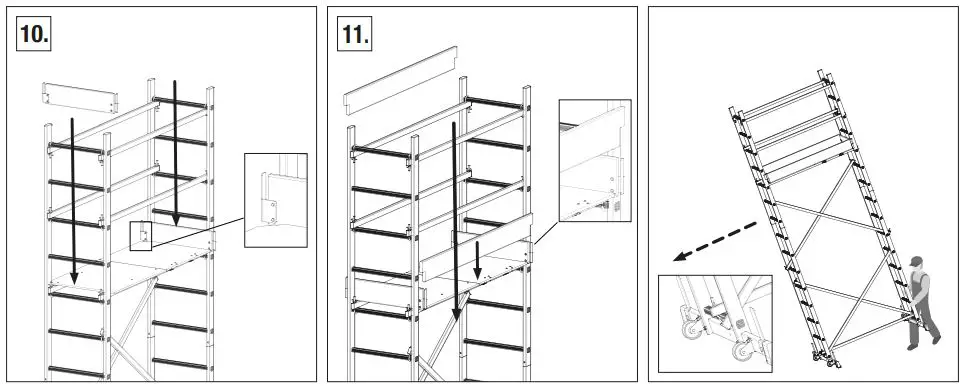

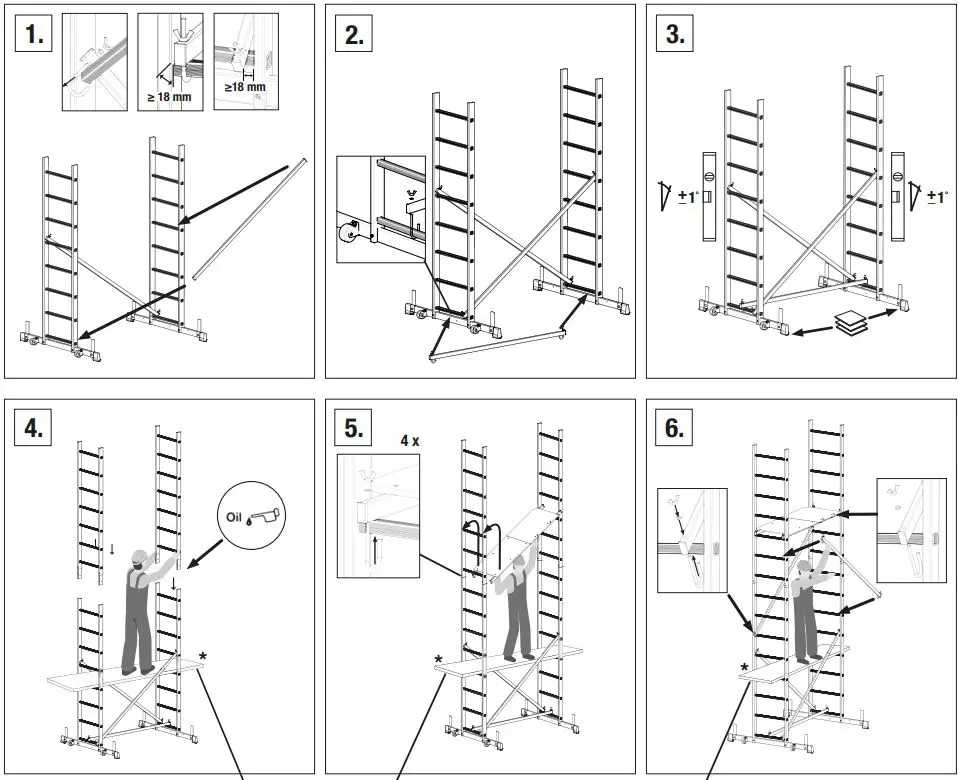

Anchorage of the scaffold at a wall

Starting with package A, the scaffold must be fastened to the wall using one stabilizing set when in use as wall scaffold. When using package A+B with two wall clearance anchors.
While using the stabilizing sets it is important to ensure that they are always installed below the top platform.
To fix the stabilizing sets in the wall, 12 mm diameter eyebolts must be used. Selection of appropriate dowels depends on the wall structure.

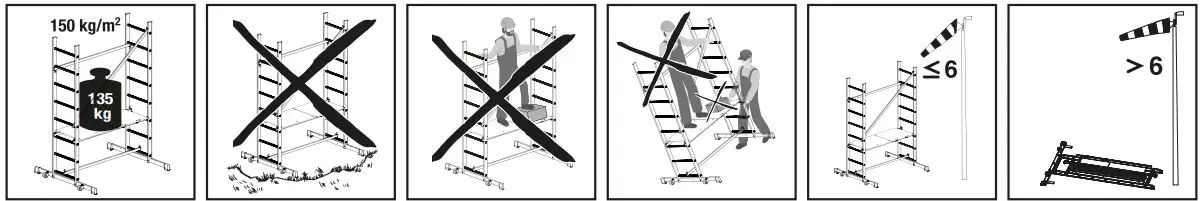

Warning

Prior to assembly of the scaffold all parts must be checked for possible damage and damaged parts must be replaced. Original spare parts may be used only.
All welding seams and other materials must undergo a visual magnaflux inspection. Further, the scaffold components must not be deformed or crushed. Flawless functionality of construction components such as jaws, mandrels, wheels etc. must be ensured.
The parts must be thrown to avoid damage.
The scaffold components must be stored in such a way that they cannot be damaged.
The individual parts must be stored laying and sheltered from the weather.
During the transport, the construction components must be secured against damage inflicted by slipping, bumping, falling etc.
For cleaning of scaffold components use water and customary cleansing agents. Colour stains can be removed by using turpentine.
The assembly scaffold must be anchored and secured against unauthorized use after the end of work.
Extras, accessories, assembly aids etc. are not included in the scope of delivery.
No liability for improper use.
