KL9309 | Adapter terminal for manual
operating modules

Contents hide

Product status: Regular delivery

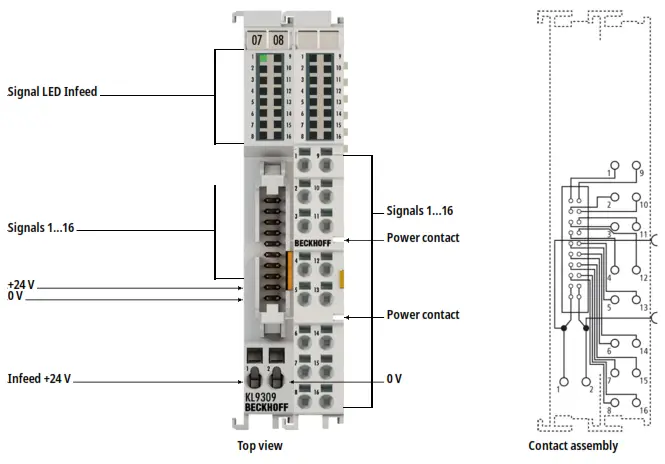

The KL9309 adapter terminal has 16 terminal points, which provide the I/Os of the KL85xx manual operating modules. In addition, 24 V DC is fed in via two terminal points (1 x 0 V, 1 x 24 V). The terminal can be connected to the manual operating module via a shielded ZK8500-8282-70×0 signal cable (3…5 m) using a 20-pin contact strip with locking. The KL9309 has a modular design and can be incorporated seamlessly on the DIN rail. K-bus communication is passed on by the terminal, but the terminal itself is not visible to the K-bus and is therefore also not recognized by the bus coupler.
The 24 V and 0 V DC feed is passed on to the subsequent terminals on two power contacts. The 24 V DC feed is made available to the manual operating modules as a power supply via four contacts (2 x 0 V, 2 x 24 V) on the 20-pin contact strip.

Product information

Technical data

Technical data	KL9309
Power supply	24 V DC (-15 %/+20 %)
Power contacts	max. 24 V DC/max. 10 A
Nominal voltage	24 V DC (-15 %/+20 %)
Electrical isolation	500 V (power contact/supply voltage/ﬁeldbus)
Special features	passive Bus Terminal for the connection of KL85xx manual operating modules
Weight	approx. 85 g
Operating/storage temperature	0…+55 °C/-25…+85 °C

Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
