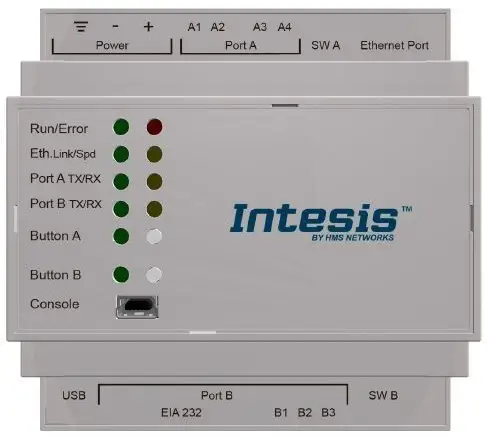

Intesis INBACMBM1000000 Modbus TCP & RTU Master to BACnet IP & MS/TP Server Gateway User Manual

Integrate any Modbus RTU or TCP server device, or both at the same time, with a BACnet BMS or any BACnet IP or BACnet MS/TP controller. The aim of this integration is to make accessible Modbus system signals and resources from a BACnet based control system or device, as if it was a part of the own BACnet system and vice-versa.

FEATURES

UL Certified
BTL Certified
Support for BACnet IP Client and MSTP Master
BACnet Advanced features available (Trend logs, Calendars, etc.)
Support for 2 independent RTU ports for integration into BACnet IP < NEW!
Up to 5 Modbus TCP nodes/devices
Up to 32 Modbus devices per RTU node (without repeater) and up to 255 in total
Possibility to generate/download templates of your Modbus products
Easy integration & updates with Intesis MAPS

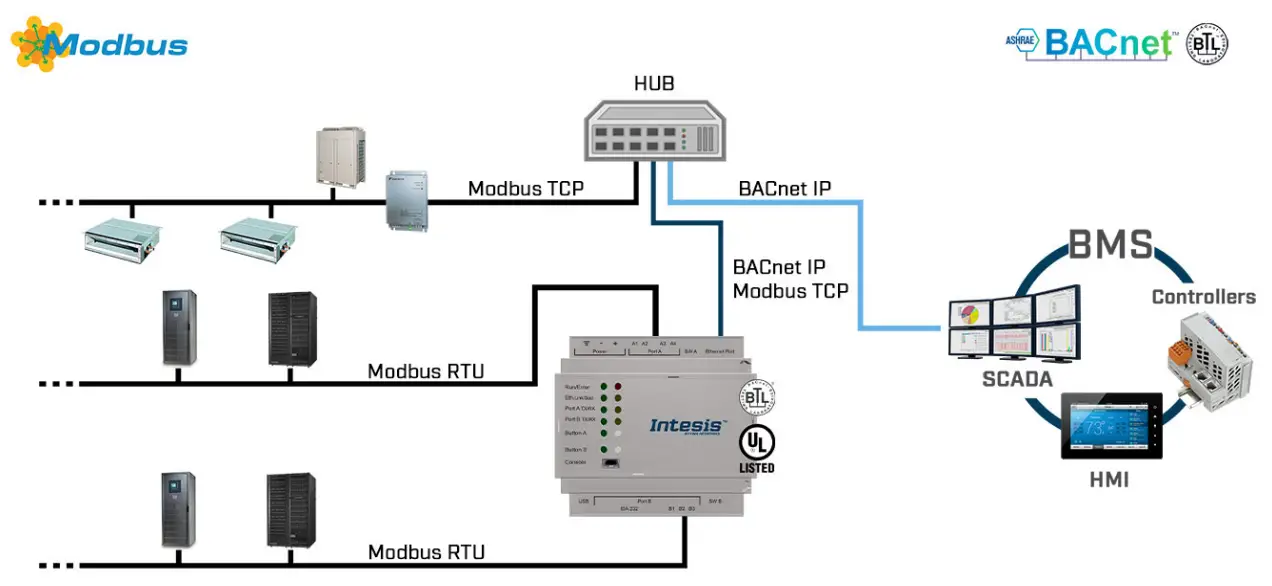

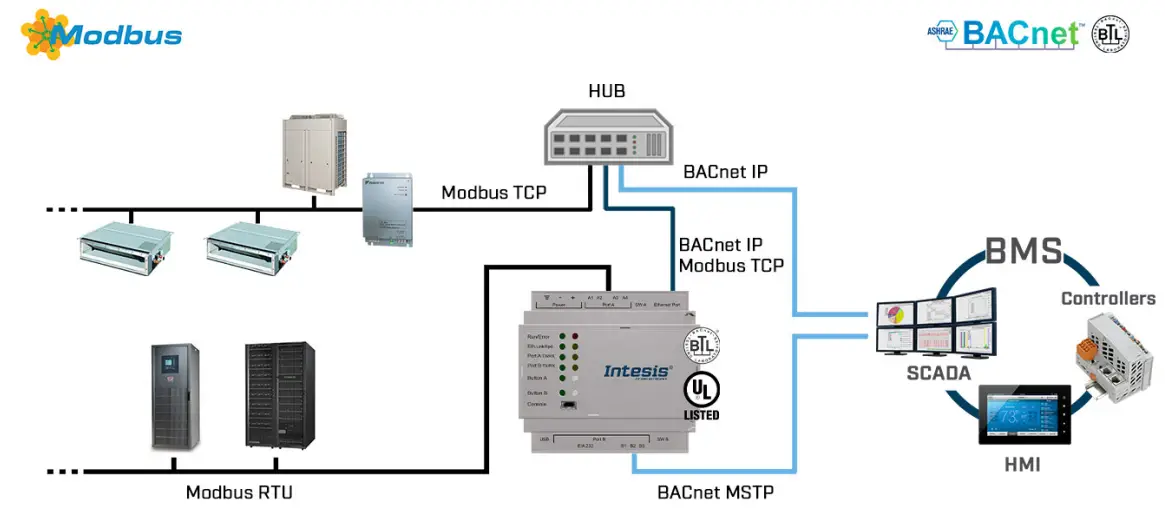

Use Case

Integration of Modbus RTU and TCP devices into a BACnet BMS.

Description

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.
The BTL mark ensures 100% compatibility and, at the same time, guarantees a seamless integration with any BACnet device.
The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.

Technical Documentation

• Click here to ask for a product upgrade and increase the gateway’s capacity

Programming Tools

Commercial Documentation

ORDER CODES

INCLUDED COMPONENTS

Intesis Gateway.
Installation Manual.
USB Configuration cable.
(Power supply not included).

Warranty: 36 months.
