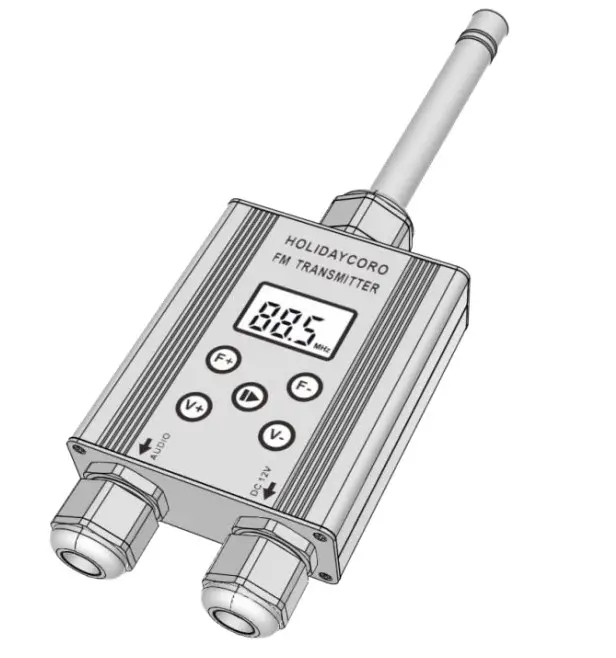

FMTXV2 FM Transmitter
User Guide
Attention
- Use of this product must comply with local regulations.
- Do not use this product in flammable/explosive environments such as gas stations/extreme hot places.
- Do not use this product outdoors during thunderstorms.
Packing List
- FM transmitter unit – 1 pc
- DC12V Power adapter – 1pc
- 3.5mm stereo audio cable – 1pc
Warning:
Changes or modifications not expressly approved by HolidayCoro could void the user’s authority to operate the equipment.
Specifications
| Item# | Attribute | Value |
| 1 | Working Voltage | DC 12V |
| 2 | Working Current | 35mA |
| 3 | Transmit Distance | 100 feet |
| 4 | Frequency Range | 88.1-107.7Mhz |
| 5 | Frequency Resolution | 0.1Mhz |
| 6 | Output Impedance | 500 |
| 7 | Degree of Separation | _-35 dB |
| 8 | SNR(Signal Noise Ratio) | ..-60 dB |
| 9 | Audio Frequency Input Range | 50Hz-18KHz |
| 10 | Unit Size (antenna included) | 200*63*25mm |
| 11 | Unit net weight | 135g |
Federal Communications Commission Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
