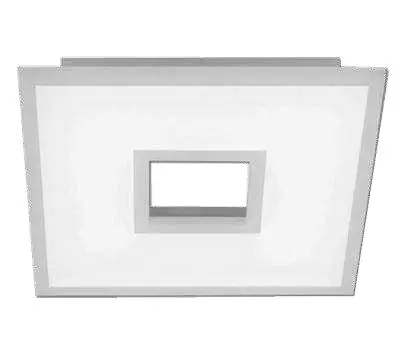

270386 Freddi Frameless LED Ceiling Light
Instruction Manual
This product contains a light source of energy efficiency class <E>.
 |  |

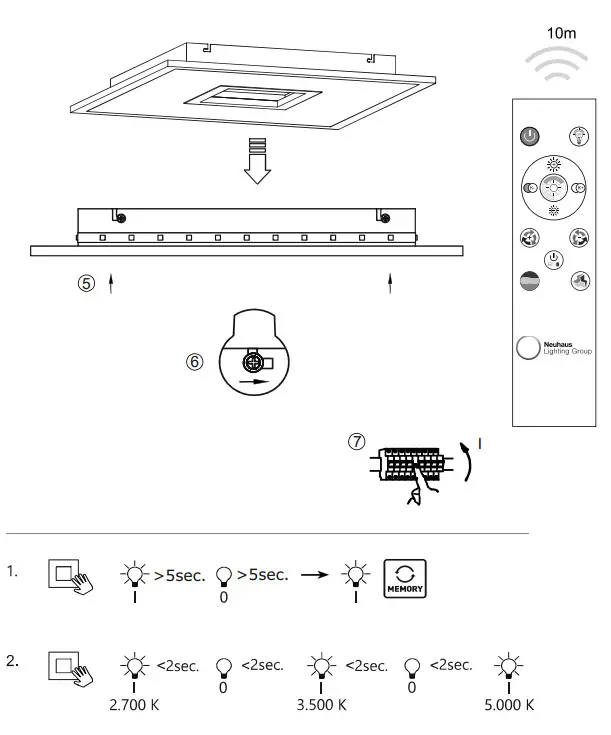

Radio remote control operating instructions
 | short press: switch all off the long press: teach the remote control to the light. If the light flickers three times, the light has been taught to the remote control. |
 | short press: CCT function is switched on/off long press: night light function (warm white/10%brightness) Turn off the light using the remote control, and press the night light button again to switch to night light mode. |
 | Set brightness/speed: Increase the brightness when only white is switched on. Increase the speed of the RGB color modes. |
 | CCT Steps: 3500 K – 5000 K – 2700 K |
 | Reduce the color temperature |
 | Increase the color temperature |
 | Set brightness/speed: Reduce the brightness if only white is switched on. Reduce the speed of the RGB color modes |
 | RGB color mode: switch mode |
 | RGB color mode: switch back mode Switch RGB on/off |
 | RGB |
 | Start/stop RGB color change |
| Description | Operation Data |

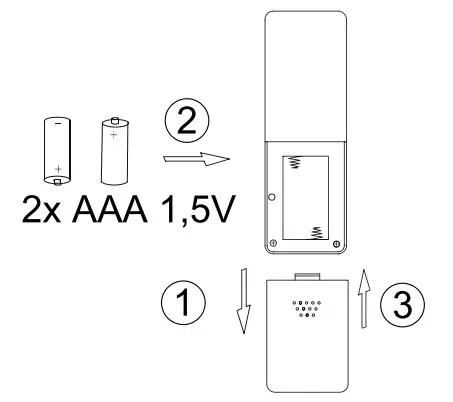

| Battery | 2x 1,5V AAA |
| Transmission frequency | 2,4GHz |
| Transmitting power | max. 0,1dBm |
| No-load current | 5uA |
| Operating current | 300uA |
| Range of the remote control | 510m |
