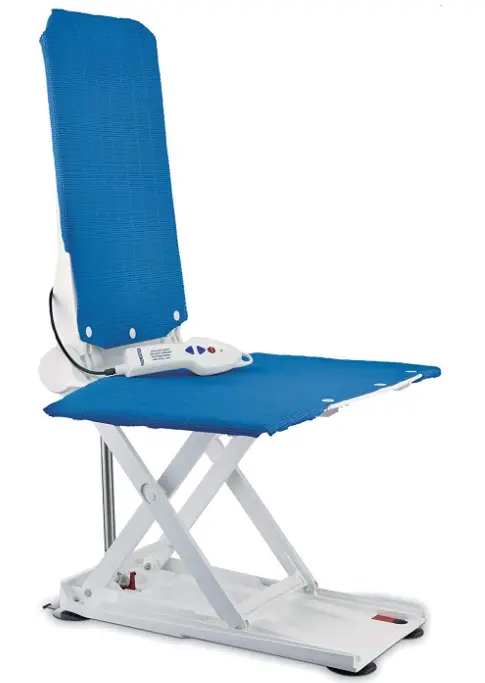

AQUATEC A1470751 Bath Lift

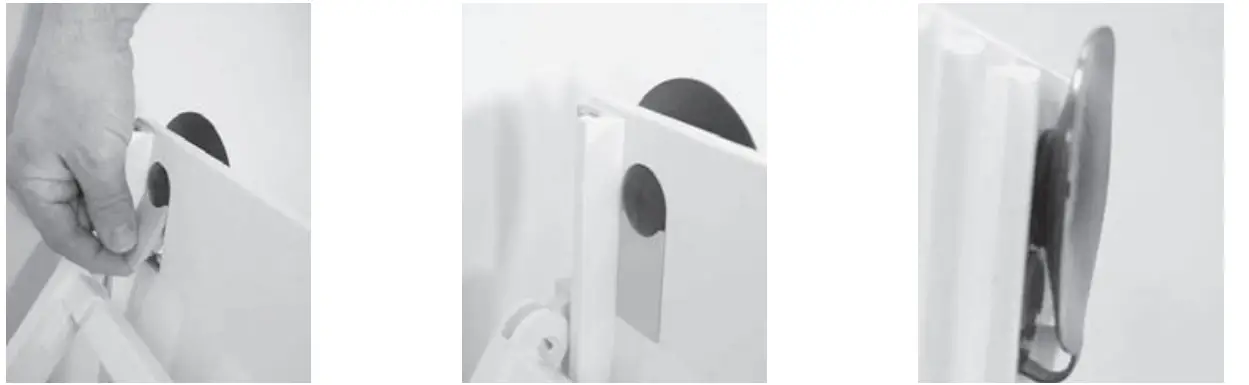

Front suction cups

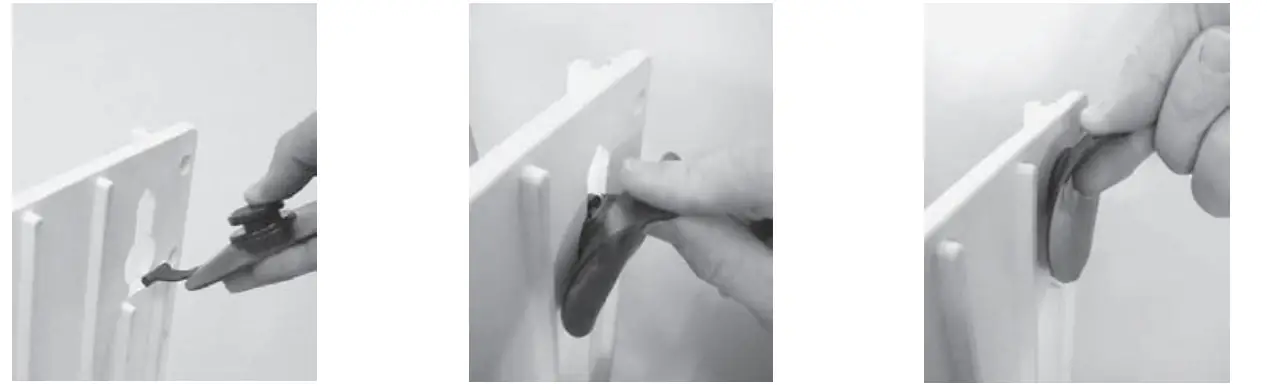

self-releasing suction cups with toggle
- Put the toggle through the keyhole bore and place it in the corresponding recess.
- Feed the head of the suction cup through the bore and pull the suction cup upwards.
- Fix the suction cup with the red lid – ready!

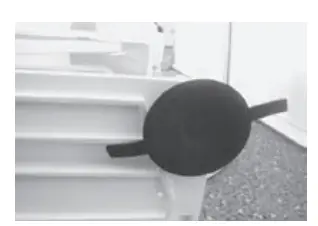

rear suction cups
- Put the suction cup with the threaded bolt on the sleeve nut and screw it in – ready!
Invacare GmbH
Am Achener Hof 8
88316 Isny
Stand: 10/2021 • Art.-Nr.: 15312~A
