PART NO. INV03177
F-REVXL-T Revolution XL Pool Lift
Instructions
FEATURES
- UL CERTIFIED
- 500 LB. (226 kg.) WEIGHT CAPACITY
- SETBACK RANGE 9″ TO 50″ (22 – 127 cm)
- CLEARANCES VARY BY WALL HEIGHT & WIDTH
- WATER DRAFT 13″
- 360 ROTATION
- FLIP UP ARMREST
- ALL STAINLESS STEEL CONSTRUCTION
- DURABLE POWDER COAT FINISH
- RECHARGEABLE BATTERY & WALL MOUNT CHARGER
- FIVE YEAR STRUCTURAL WARRANTY
- FIVE YEAR PRO-RATED ELECTRONICS WARRANTY
CLICK HERE TO VIEW THIS PRODUCT: https://aquacreekproducts.com
| PART NO. | CATALOG NO. | PLASTIC COLOR | POWDER COATING COLOR |
| INV03177 | F-REVXL | BLUE | WHITE |
| INV03312 | F-REVXL-G | GRAY | WHITE |
| INV03313 | F-REVXL-T | TAN | WHITE |
| INV03314 | F-REVXL-W | WHITE | WHITE |
| INV03315 | F-REVXL-C | CUSTOM | CUSTOM |

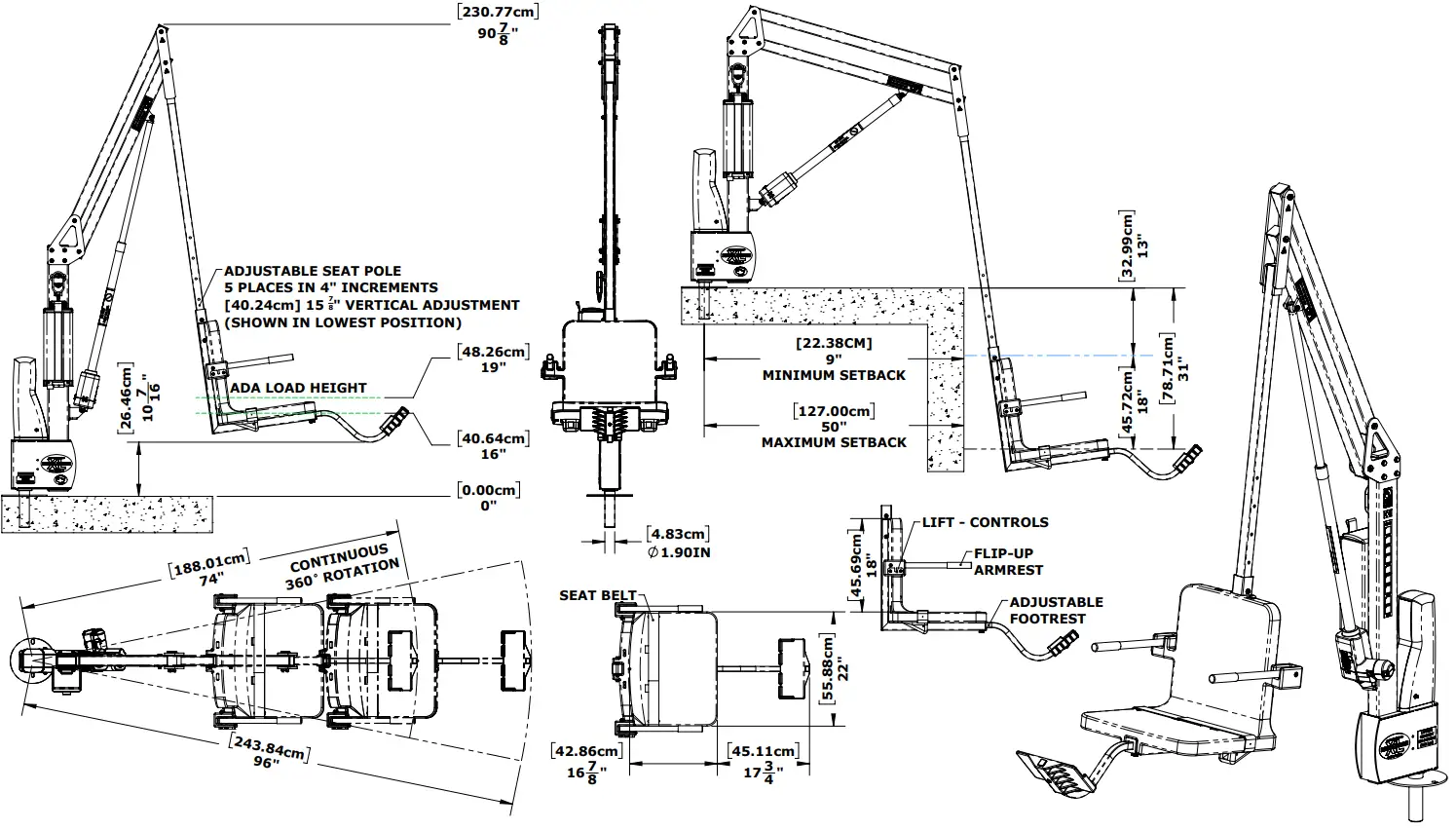

TOLERANCES
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE SHOWN
FRACTIONAL: ………………. 1/16
ANGULAR: …………………… 1
TWO PLACE DECIMAL: …. .01
THREE PLACE DECIMAL: .. .005
MATERIAL: 304 STAINLESS STEEL
FINISH: POWDER COAT – WHITE
APPROX. WEIGHT: 206.69 LBS.
PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS THE SOLE PROPERTY OF AQUA CREEK PRODUCTS LLC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN PERMISSION FROM AQUA CREEK IS PROHIBITED.
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
| REVISIONS | |||
| REV. | DESCRIPTION | DATE | APPROVED |
| P1 | INITIAL RELEASE | 1/5/2023 | J.MAXWELL |
9889 GARRYMORE LANE
MISSOULA, MT 59808
(406) 549-0769
FAX (406) 549-2602
www.AquaCreek.com
© 2020 AQUA CREEK PRODUCTS. ALL RIGHTS RESERVED.
