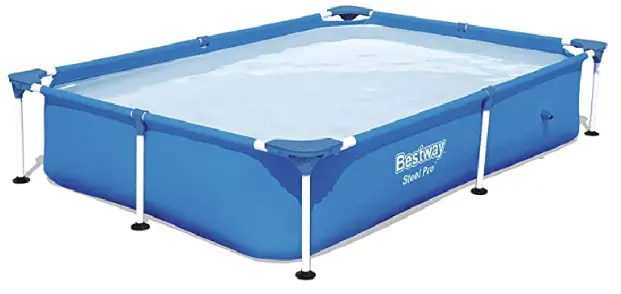

Bestway Steel Pro Swimming Pool

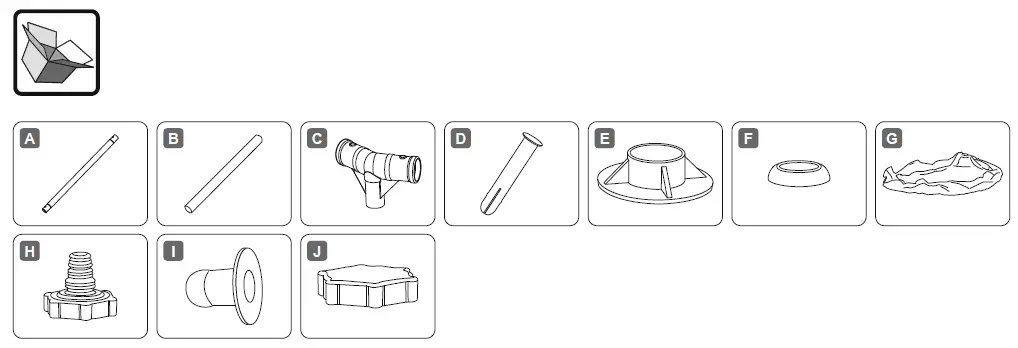

IN THE BOX
| STEEL PRO™ | 2.74 m x 66 cm (9′ x 26″) | 3.05 m x 66 cm (10′ x 26″) | 3.05 m x 76 cm (10′ x 30″) | 3.66 m x 76 cm (12′ x 30″) | 3.96 m x 84 cm (13′ x 33″) |
| 5612F | 56985 | 56677 / 56678 / 56679 | 56681 / 56680 / 56706 | 5612D / 5612E | |
| A | x9 | x10 | x10 | x12 | x13 |
| B | x9 | x10 | x10 | x12 | x13 |
| C | x9 | x10 | x10 | x12 | x13 |
| D | x20 | x22 | x22 | x26 | x28 |
| E | x9 | x10 | x10 | x12 | x13 |
| F | x20 | x22 | x22 | x26 | x28 |
| G | x1 | x1 | x1 | x1 | x1 |
| H | x1 | x1 | x1 | x1 | x1 |
| I | x2 | x2 | x2 | x2 | x2 |
| J | x1 | x1 | x1 | x1 | x1 |

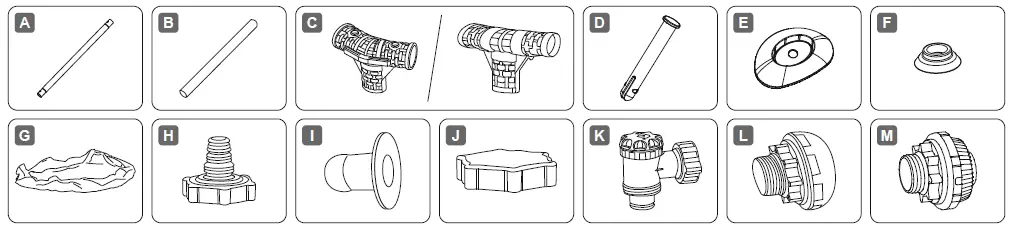

PARTS
| STEEL PRO MAX™ | 3.05 m x 76 cm (10′ x 30″) | 3.66 m x 76 cm (12′ x 30″) | 3.66 m x 1.00 m (12′ x 39.5″) | 3.66 m x 1.22 m (12′ x 48″) | 3.96 m x 1.22 m (13′ x 48″) | 4.27 m x 84 cm (14′ x 33″) |
| 56406 / 56407 56408 | 56416 / 56417 | 56260 / 56418 56419 / 5614X 56709 / 56731 | 56420 / 56421 | 5618V / 5618W | 56595 / 56597 | |
| A | x10 | x12 | x12 | x12 | x13 | x14 |
| B | x10 | x12 | x12 | x12 | x13 | x14 |
| C | x10 | x12 | x12 | x12 | x13 | x14 |
| D | x22 | x26 | x26 | x26 | / | / |
| E | x10 | x12 | x12 | x12 | x13 | x14 |
| F | x22 | x26 | x26 | x26 | / | / |
| G | x1 | x1 | x1 | x1 | x1 | x1 |
| H | x1 | x1 | x1 | x1 | x1 | x1 |
| I | x2 | x2 | x2 | x2 | x2 | x2 |
| J | x1 | x1 | x1 | x1 | x1 | x1 |
| K | x0 | x0 | x0 | x0 | x0 | x0 |
| L | x0 | x0 | x0 | x0 | x0 | x0 |
| M | x0 | x0 | x0 | x0 | x0 | x0 |
| STEEL PRO MAX™ | 4.27 m x 1.07 m (14′ x 42″) | 4.27 m x 1.22 m (14′ x 48″) | 4.57 m x 1.07 m (15′ x 42″) | 4.57 m x 1.22 m (15′ x 48″) | 4.88 m x 1.22 m (16′ x 48″) | 5.49 m x 1.22 m (18′ x 48″) |
| 56949 / 56950 5614Z | 5612X / 5612Y 5619D / 5619G | 56488 / 56686 | 56438 / 56439 | 5612Z / 5613A 5619E / 5619H | 56462 / 56463 5618X / 5618Y | |
| A | x14 | x14 | x15 | x15 | x16 | x18 |
| B | x14 | x14 | x15 | x15 | x16 | x18 |
| C | x14 | x14 | x15 | x15 | x16 | x18 |
| D | / | / | / | / | / | / |
| E | x14 | x14 | x15 | x15 | x16 | x18 |
| F | / | / | / | / | / | / |
| G | x1 | x1 | x1 | x1 | x1 | x1 |
| H | x1 | x1 | x1 | x1 | x1 | x1 |
| I | x2 | x2 | x2 | x2 | x0 | x0 |
| J | x1 | x1 | x1 | x1 | x1 | x1 |
| K | x0 | x0 | x0 | x0 | x2 | x2 |
| L | x0 | x0 | x0 | x0 | x1 | x1 |
| M | x0 | x0 | x0 | x0 | x1 | x1 |
| POWER STEEL™ | 3.96 m x 1.07 m (13′ x 42″) | 4.88 m x 1.22 m (16′ x 48″) | 5.49 m x 1.22 m (18′ x 48″) |
| 5614U / 5614V | 56725 / 56726 | 56976 / 56977 | |
| A | x13 | x16 | x18 |
| B | x13 | x16 | x18 |
| C | x13 | x16 | x18 |
| D | x13 | x16 | x18 |
| E | x1 | x1 | x1 |
| F | x1 | x1 | x1 |
| G | x2 | x0 | x0 |
| H | x1 | x1 | x1 |
| I | x0 | x2 | x2 |
| J | x0 | x1 | x1 |
| K | x0 | x1 | x1 |

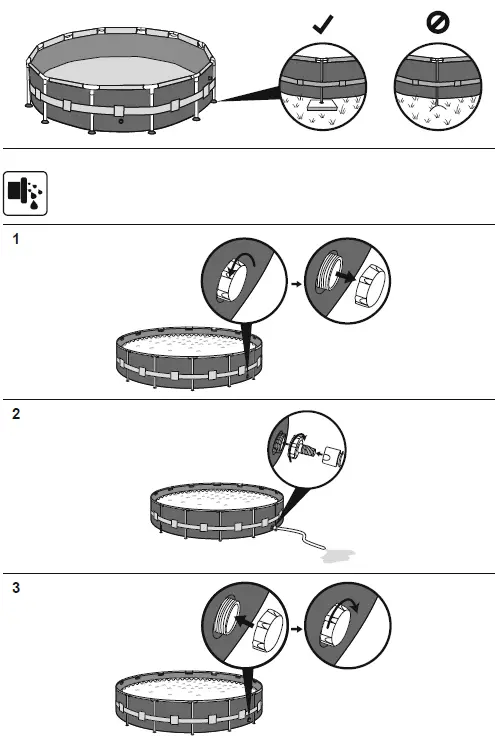

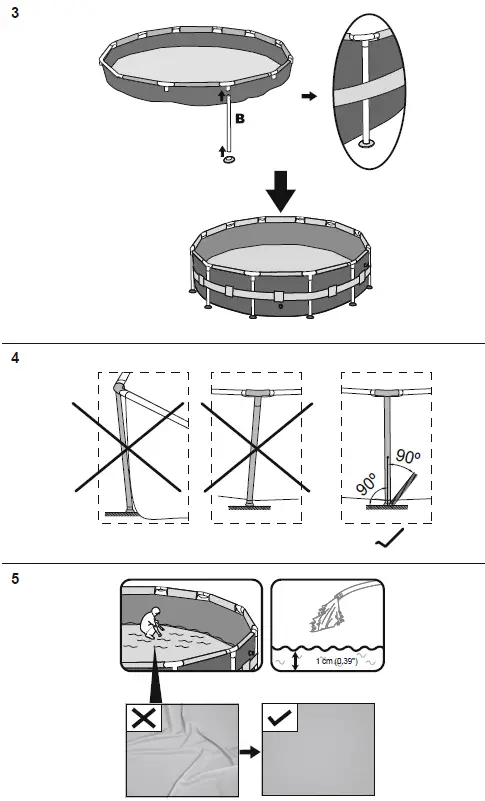

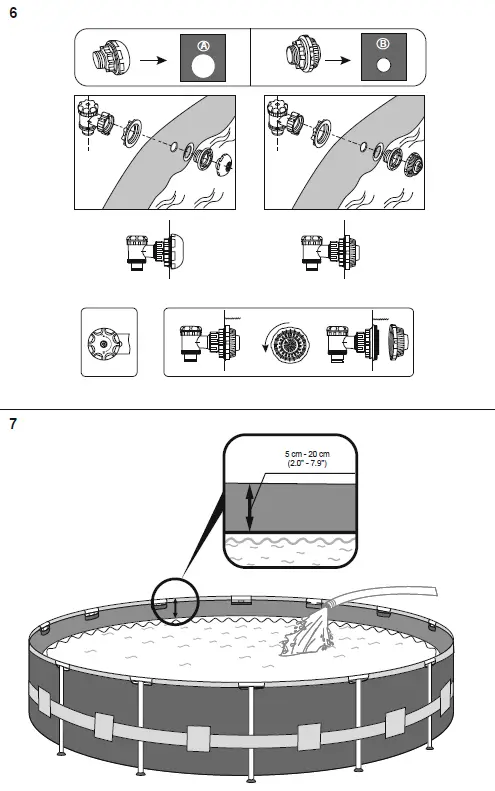

INSTALLATION INSTRUCTION
Bestway Central & South America Ltda, Salar Ascotan 1282, Parque Enea, Pudahuel, Santiago, Chile
Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia
Tel: Australia: (+61) 2 9037 1388; New Zealand: 0800 142 101
Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL
Exported by/Exporté par/Exportado por/Exportiert von/Esportato da Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong www.bestwaycorp.com
