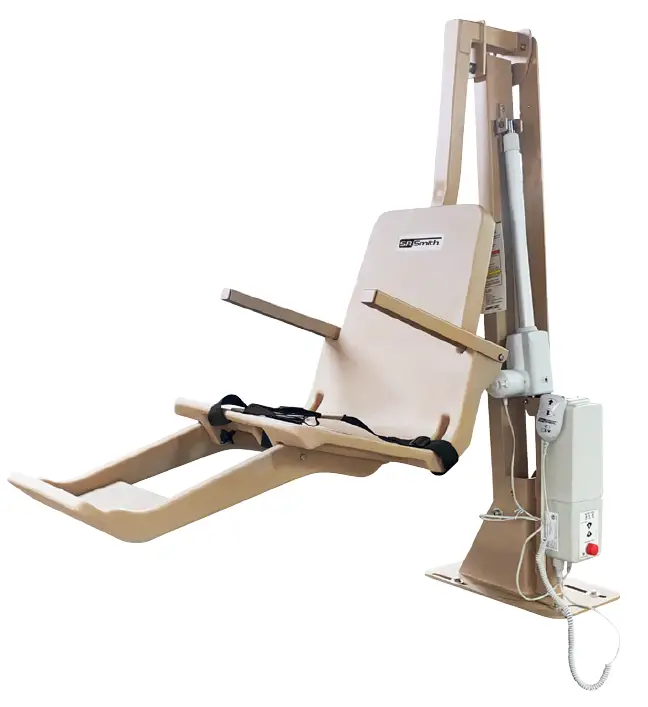

S R Smith 580-0000 MultiLift 2 Pool Lift
COLORS
Due to printing technology actual color may differ.
The multiLift2 with its field reversible seating design brings increased performance and flexibility to our best selling flange mount series.
- Field reversible seat with integrated armrests
- Rotomolded seat and footrest
- Powder-coated stainless steel and aluminum construction
- 350 lb/159kg lifting capacity
- Retrofit anchor jig is standard
- LiftOperator® Intelligent Controller
- California CEC Compliant
- Third-party tested and verified ADA compliant
- Made in the USA
| Part # | Description | Shipping | |
| 580-0000 | multiLift2, Gray Mist | ||
| 580-0000-ST | multiLift2, Slate | Box 1 | |
| 580-0000-TP | multiLift2, Taupe | ||
| 100 lbs 60.5”L x 24.25”W x 18.5”H | |||
| 580-0000N | multiLift2 w/o anchor, Gray Mist | Box 2 | |
| 40 lbs 24” x 24” x 30” | |||
| 580-0000N-ST | multiLift2 w/o anchor, Slate | ||
| 580-0000N-TP | multiLift2 w/o anchor, Taupe |
Includes battery, charger, battery console cover, water-resistant hand control, footrest, seat belt assembly, armrests and retrofit anchor jig.
Parts and Accessories
| Part # Description | ||||
| 1001495 | Battery | |||
| 900-1000 | Seat Belt | |||
| 300-6700A | Anchors, set of 4 | |||
| 300-6900 | Retrofit Anchor Jig | |||
| 300-6800A | Anchor Bolts, set of 4 | |||
| 970-5000T | Seat Saver Cover | |||
| 900-6000 | Stability Strap | |||
| 170-3000A | Armrest Replacement | (pair) | Gray Mist | |
| 170-3000A-TP | Armrest Replacement | (pair) | Taupe | |
| 70-3000A-ST | Armrest Replacement | (pair) | Slate | |
| 1001601 | Hand Control | |||
New Construction Guidelines
| Scenario | Pool Lift | Anchor Jig to Order | |
| Order a Pool Lift and new jig at the same time | construction | 580-0000-X* | 500-5000 (no anchors) |
| Order a new construction pool lift | jig ahead of | 580-0000N-X* | 500-5000A (anchors included) |

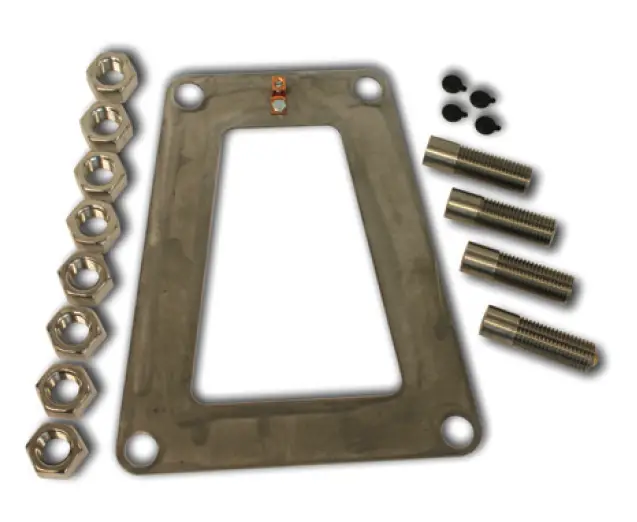

New Construction Jig with Anchors
580-5000A
A completed Deck Profile form is required with your pool lift order. See srsmith.com/configurators
