accessibility equipment
LiftOperator® Intelligent Control
400-7001 LiftOperator Intelligent Control

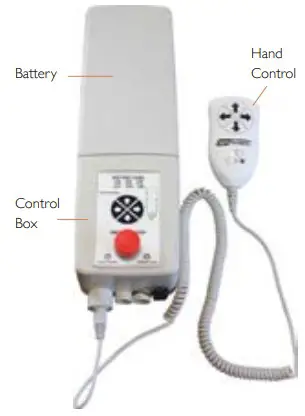

A standard feature with all S.R.Smith ADA compliant pool lifts, the LiftOperator is the most technologically advanced pool lift control on the market.

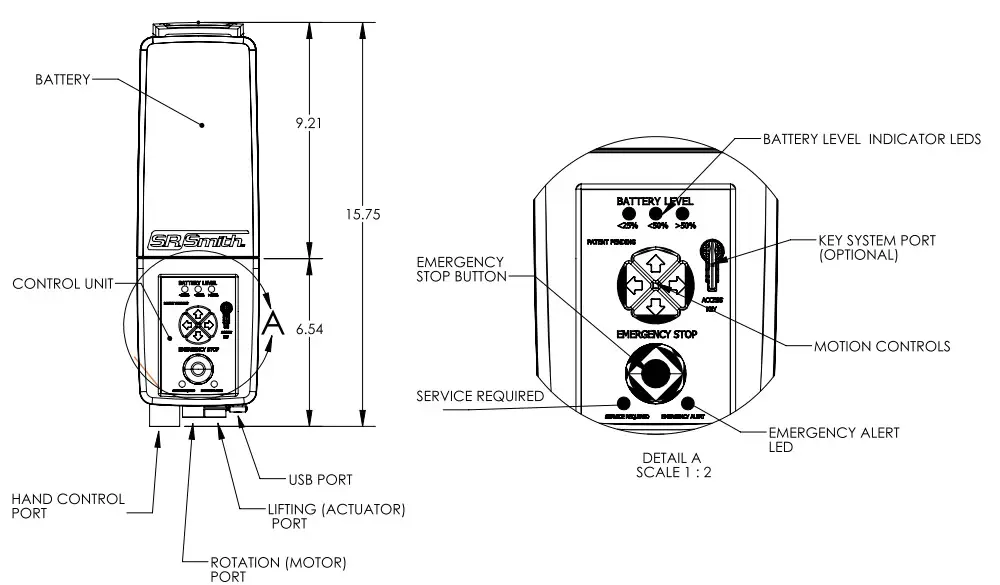

- Emergency stop button sounds an audible alarm and can stop the lift • Bright LED color-coded indicator shows battery life
- Service notification light meets ADA guidelines for scheduled maintenance, promoting regular service checks (based on 3–4 months average usage)

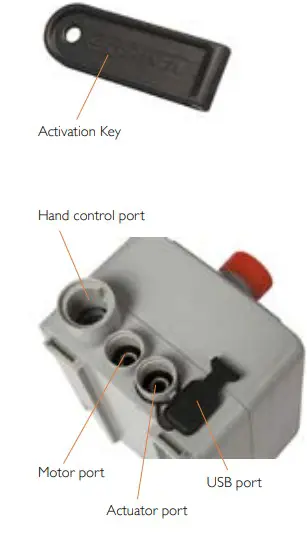

- USB port transfers usage data to a USB memory stick for review on PC n key to prevent unauthorized use
| Shipping | |||||
| Model No. | Description | Weight Length | Width | .Height | |
| 400-7001 | 2-Button Control Box | ||||
| 400-7001K | 2-Button Control Box & Activation Key | 1 5 lbs | 16″ | 5″ | 5″ |
| 400-7000 | 4-Button Control Box | 0.7kg | 40.6cm | 12.7cm | 12.7cm |
| 400-7000K | 4-Button Control Box & Activation Key | ||||
Notes:
- 2-Button control for multiLift and ML300
- 4-Button control for PAL, PAL2, Splash! and aXs lifts
Optional Parts & Accessories:
- 1001495 Battery (standard)
- 1001530 Charger
- 910-1000 Cover, blue
- 1001601 2-Button Hand Control
- 1001600 4-Button Hand Control
- 1001515 Activation Keys (set of 4)
LiftOperator ® Upgrade Kits
| Description | Part No. |
| 4 button | 1001550 |
| 4 button keyed | 1001555 |
| 2 button | 1001540 |
| 2 button keyed | 1001545 |
Upgrade Kits — from LINAK to LiftOperator;
Upgrade Kit includes: Mounting Plate, Lock, Battery,
Charger and LiftOperator Control Unit
www.srsmith.com
/ 800.824.4387
Copyright © 2016, S.R.Smith, LLC. All rights reserved.
For the latest version of this document, see srsmith.com
