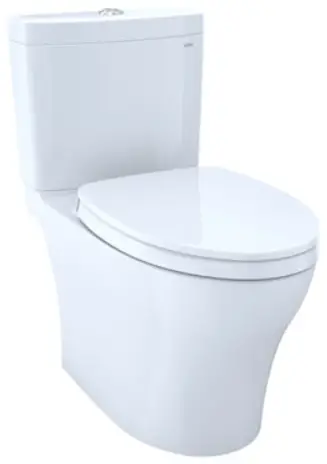

TOTO CST446CEMG Aquia IV Close Coupled Toilet 1.28 and 0.8 GPF Installation Guide
FEATURES
- Dyna Max™ Tornado Flush® utilizes 360º cleaning power to reach every part of the bowl
- Ultra high-efficiency dual flush 1.28 & 0.8 GPF (4.8 & 3.0 LPF)
- CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
- Design of the bowl reduces water flow resistance resulting in a quieter flushing sound
- Completely skirted design for a sleek and understated look that’s easier to clean
- Elongated front bowl and tank set, less toilet seat
- Chrome push-button
- 12″ Rough-in
MODELS
- CST446CEMG (#01)
With CEFIONTECT ceramic glaze
COMPONENTS
- CT446CUG
Elongated bowl with CEFIONTECT - ST446EMA
Tank and cover only
Optional Components
- SS124
Soft Close Seat - SS234
Soft Close Seat - TSU08W.10
10″ Unifit Rough-In - TSU08W.14
14″ Unifit Rough-In - 9AU321-A
WASHLET® adapter
(Required for WASHLET installation)
COLORS/FINISHES
- #01 Cotton
 | Dyna Max Tornado Flush |
 | Skirted Design |
 | CEFIONTECT |
PRODUCT SPECIFICATION
The two-piece, ultra high-efficiency, Dyna Max Tornado Flush toilet shall be dual flush 1.28 GPF/0.8 GPF.
Toilet shall be coated with CEFIONTECT, elongated front bowl, high profile tank, complete skirted bowl and chrome push-button. Toilet shall be TOTO Model CST446CEMG.
CODES/STANDARDS
- Meets and exceeds ASME A112.19.2/CSA B45.1, ASME A112.19.14
- Certifications: IAPMO(cUPC®), EPA Water Sense, State of Massachusetts, and others
- Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
- Legislative Compliance: California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
- Complies with CA Prop 65 warning requirements.
SPECIFICATIONS
| Water Use | 1.28 & 0.8 GPF (4.8 & 3.0 LPF) |
| Flush System | Dyna Max™ Tornado Flush® |
| Min. Water Pressure | 8 psi (Flowing) |
| Water Surface | 5-5/8″ x 4-1/8″ |
| Trap Diameter | 2-1/2″ |
| Rough-in | 12″ (10″ & 14″ Optional) |
| Trap Seal | 2-1/8″ |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
| Shipping Weight | CT446CU(G) 85 lbs ST446EMA 29 lbs |
| Shipping Dimensions | CT446CU(G) 30-3/4″L x 17-3/8″W x 20-1/2″H ST446EMA 17-1/4″L x 7-7/8″W x 17-1/2″H |
INSTALLATION NOTES

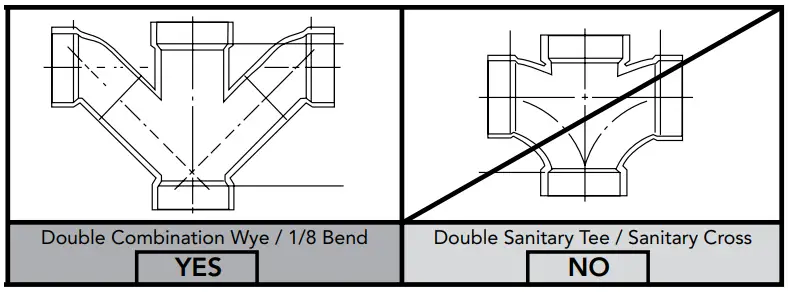

Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed, double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the tank and wall, mount the floor flange at a nominal 12” rough-in distance.
DIMENSIONS
These dimensions and specifications are subject to change without notice
CUSTOMER SUPPORT
Ph: (888) 295-8134
Fax: (800) 699-4889
www.totousa.com
