KLUS Plakin-Duo LED Wall Profile Instructions

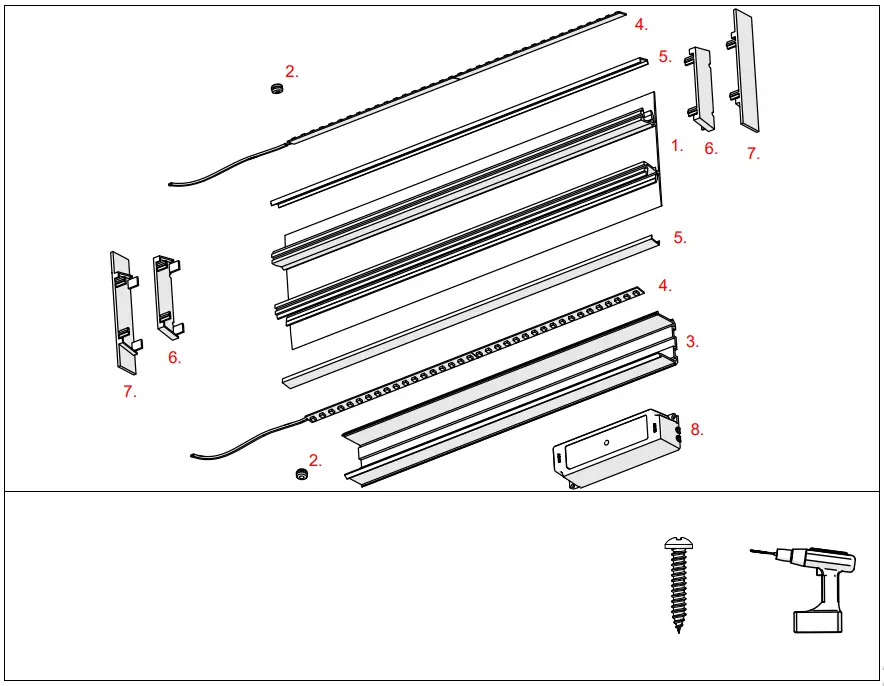

Product overawe

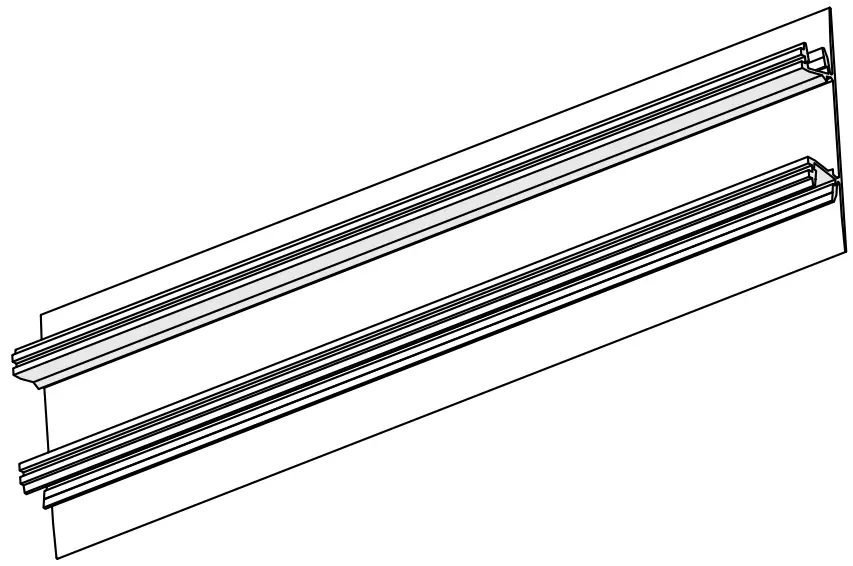

1. PLAKIN-DUO Profile (Ref. C4106)

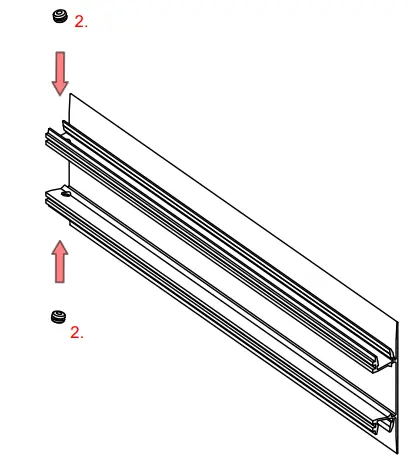

2. Gland*

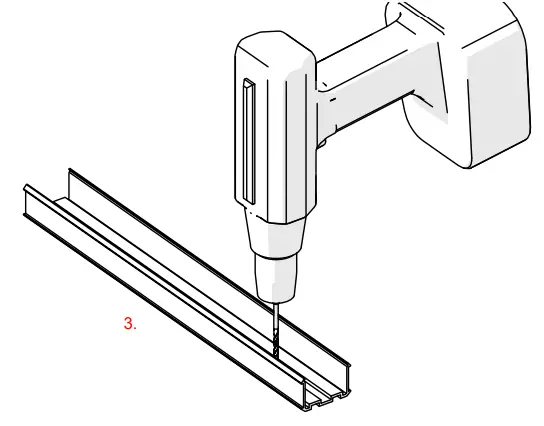

3. T-40 mounting strip (Ref. 70608)
4. LED tape*

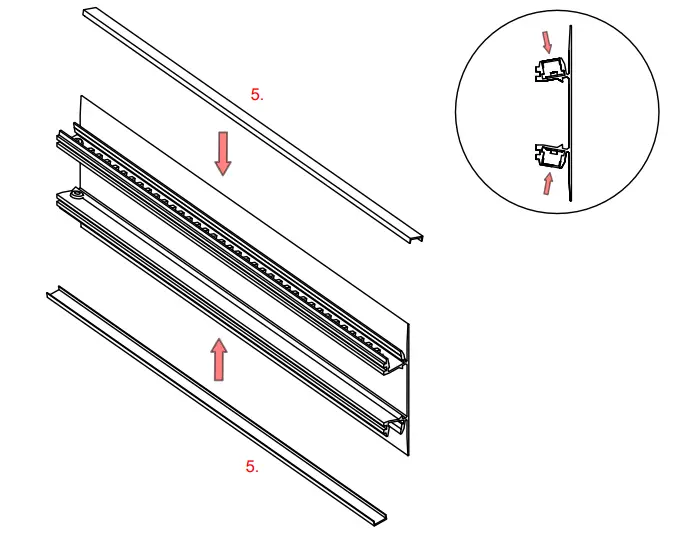

5. Cover*
6. PLAKIN-DUO-IN End cap (Ref. C24470)

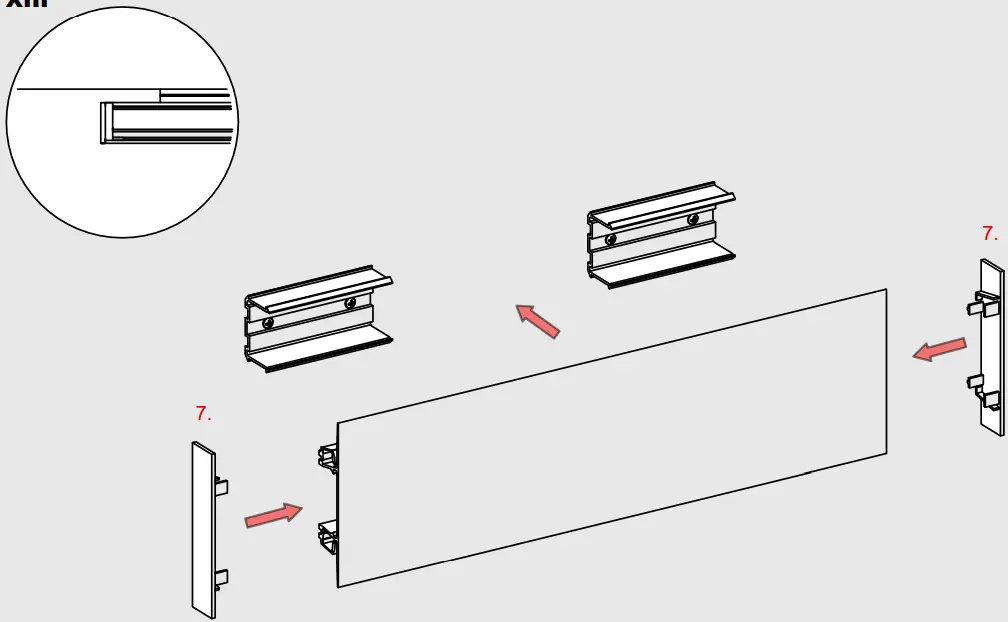

7. PLAKIN-DUO End cap (Ref. C24469)

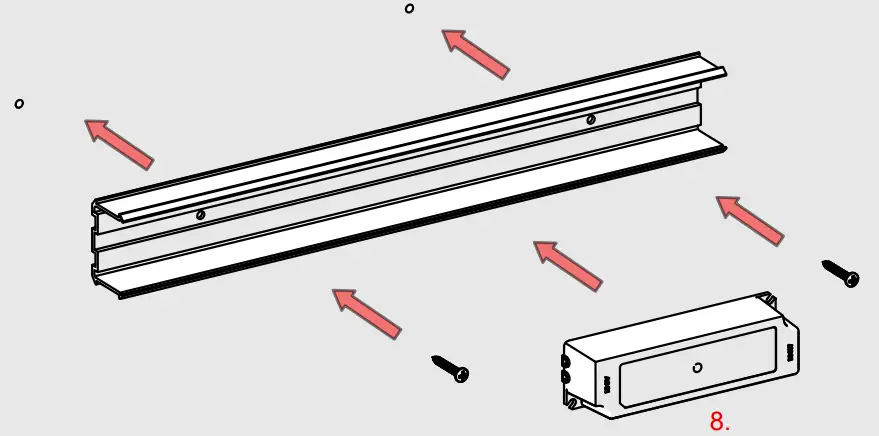

8. Power supply*

* The full range of accessories and electronics is available at www.KlusDesign.eu

NOTE! ! All LED tapes must be connected to a 12 V or 24 V power supply.

IMPORTANT: Not all possible mounting procedures are presented here.
More mounting procedures and related accessories can be found at www.KlusDesign.eu. Drawings in these instructions are simplified and only approximate the actual shapes.

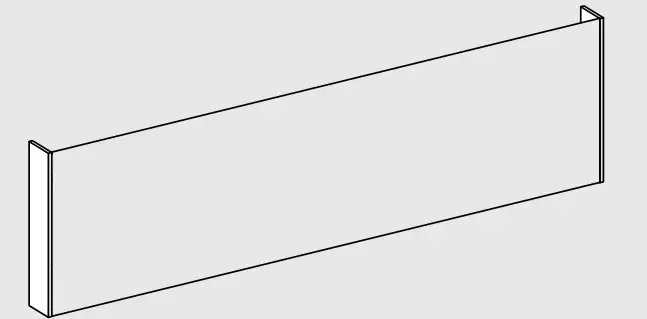

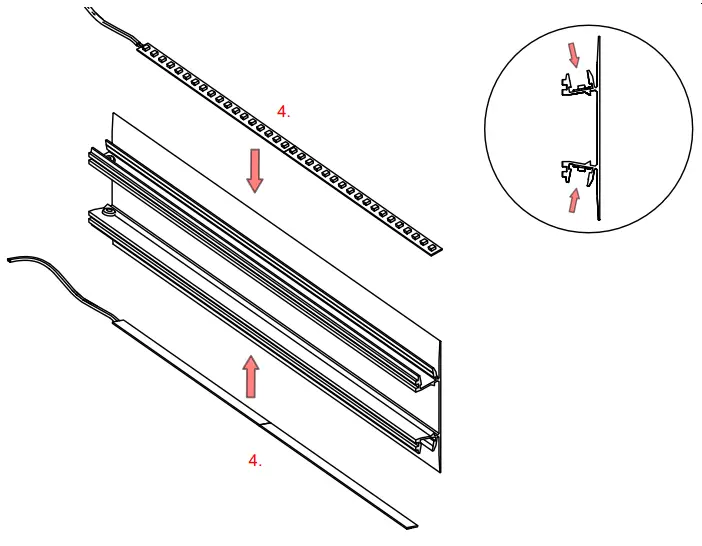

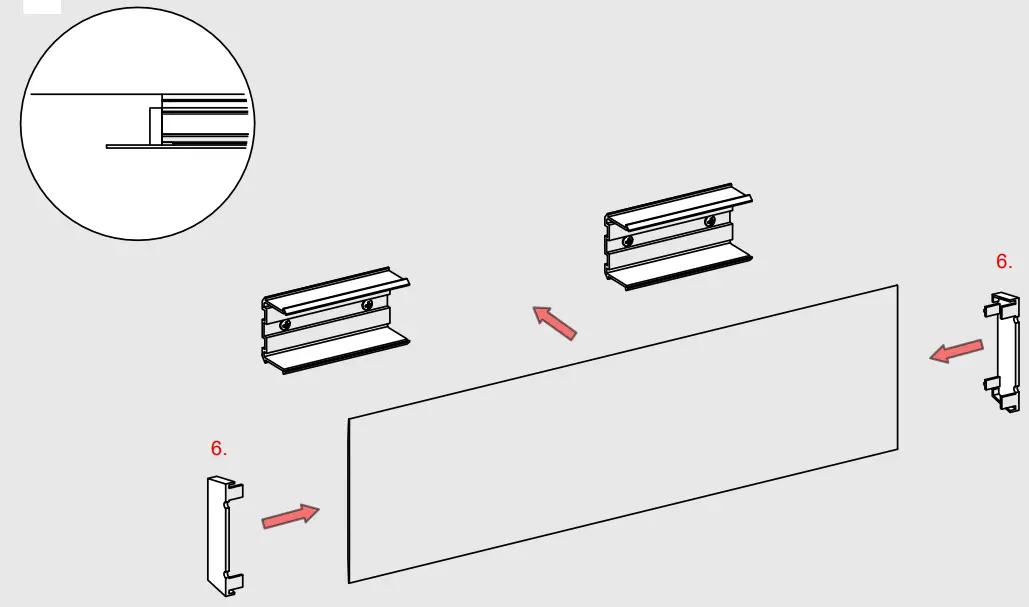

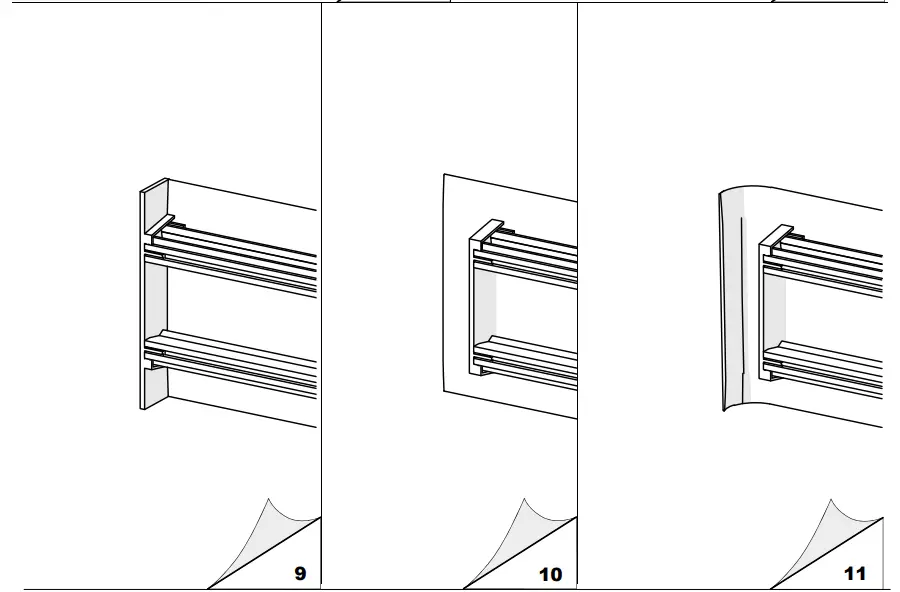

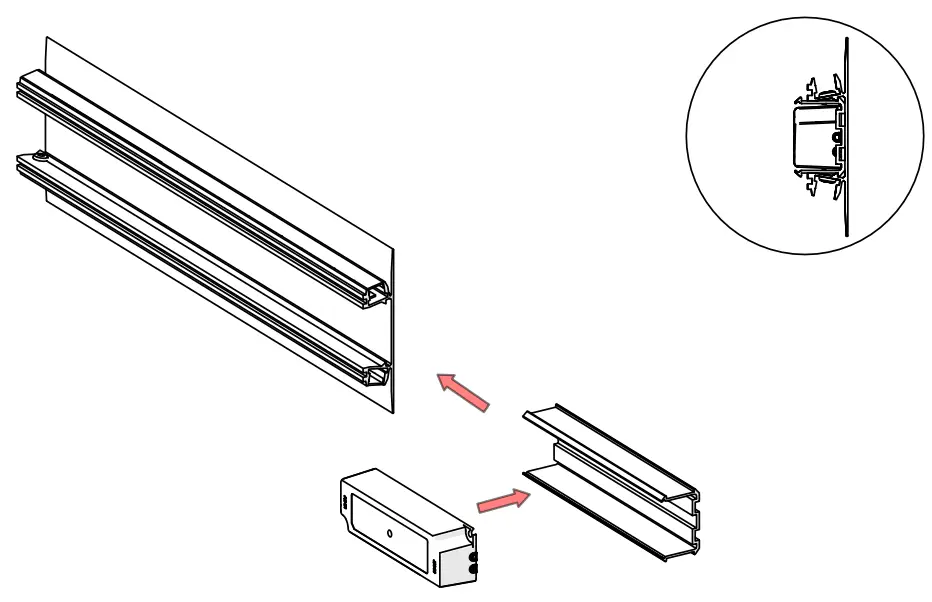

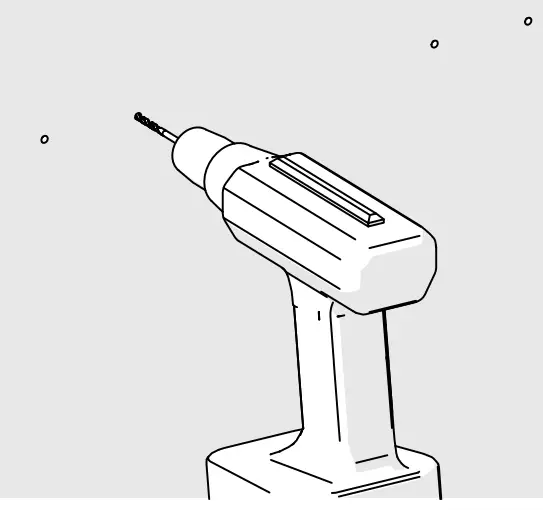

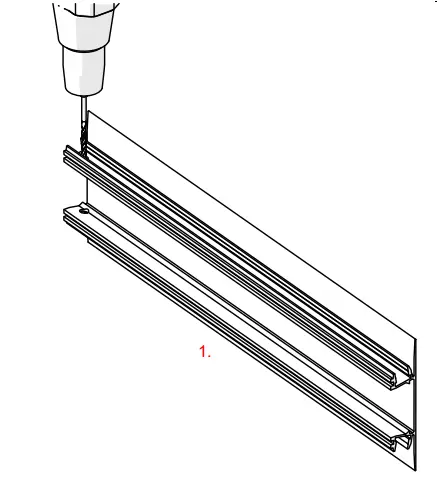

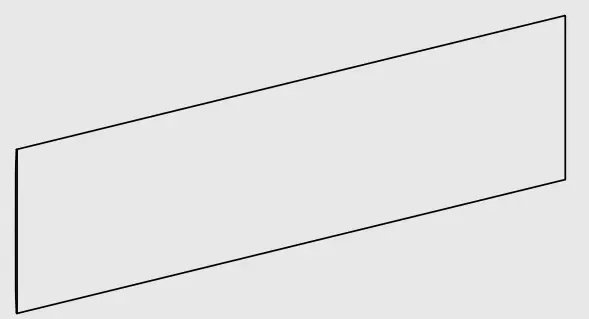

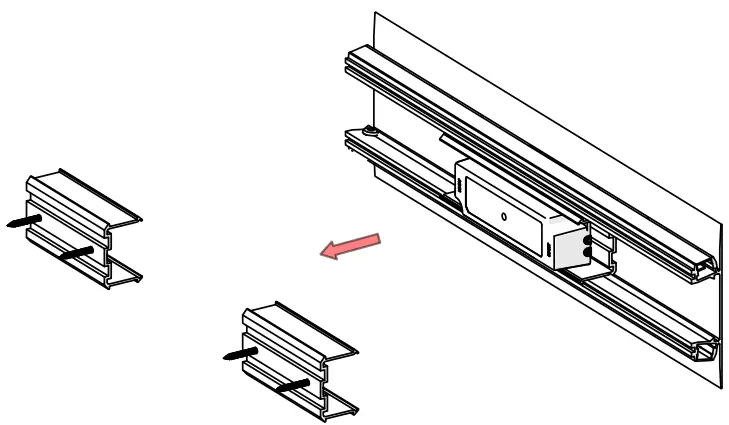

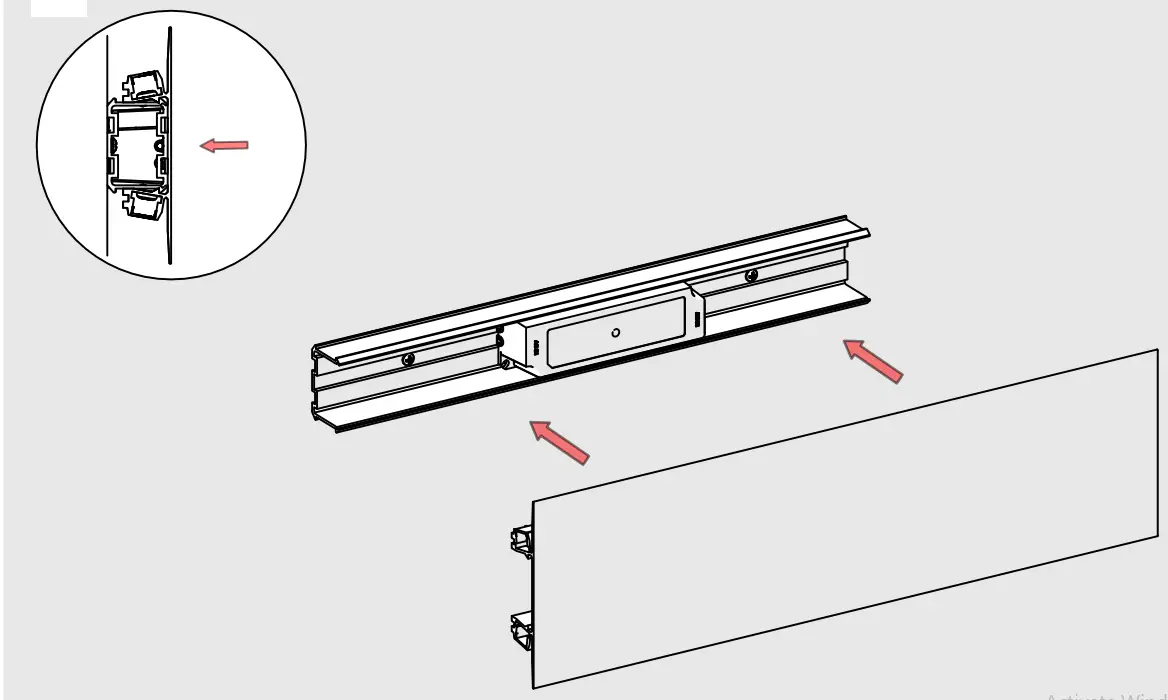

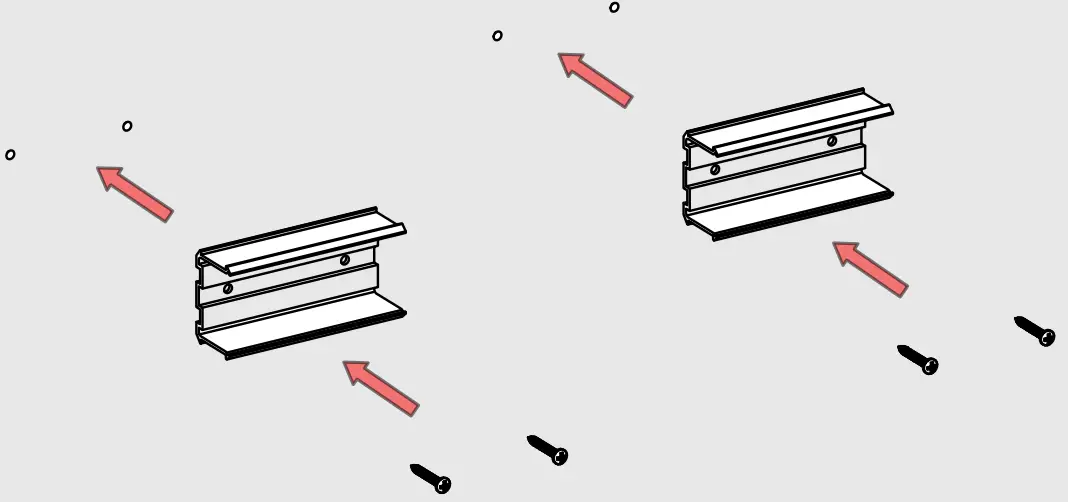

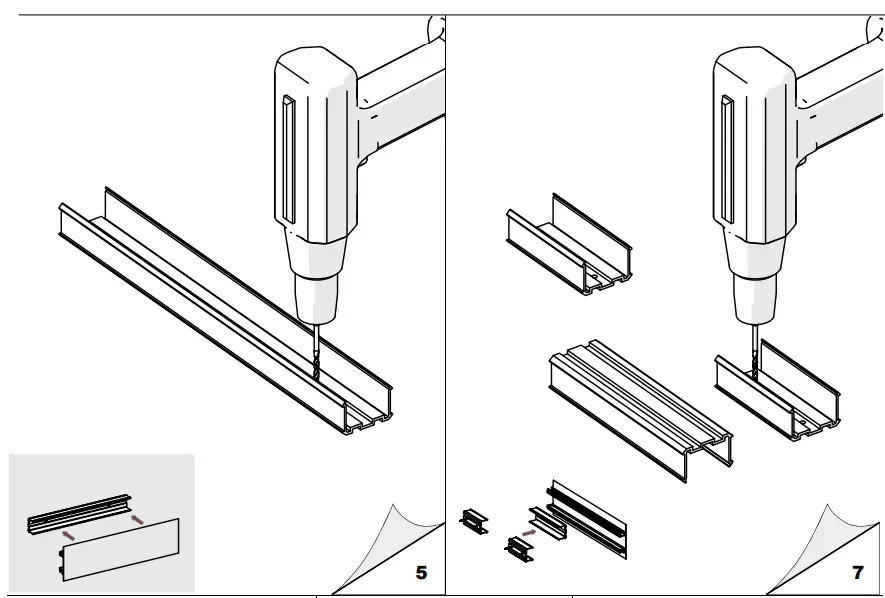

Installations Instructions
