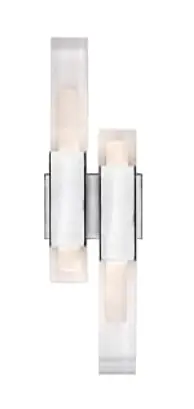

WS53318 LED Wall Sconce
Instruction Manual
START FROM HERE
- Make sure POWER is COMPLETELY OFF at the fuse box
- Have your fixture installed by a qualified licensed electrician
- Prepare everything in a clear area
- Wear gloves at all times during this installation
- Read instructions carefully before you start assembly
- Keep this installation sheet for future reference
Technical Support:
1-855-855-8926
Please Note:
- This Kuzco LED fixture comes with a pre-wired LED module(s).
- Unless instructed to do so, please do not touch any part of the LED module(s) as any unnecessary contact with the module could cause permanent damage.
- For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.
- Remove the fixture from its original packaging.

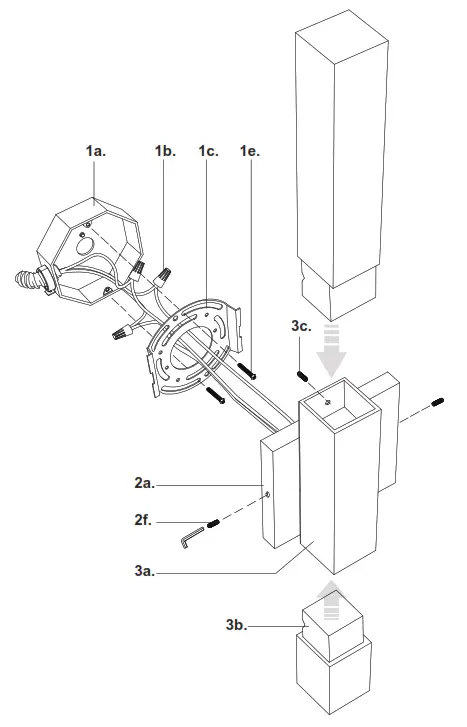

- Separate mounting plate (1c) from the canopy (2a) by removing set screws (2f) with Allen key
- Attach mounting plate (1c) to electrical junction box (1a) using junction box screws provided (1e) in the hardware package
- The secure acrylic glass (3b) to fixture (3a) with set screws (3c) and Allen key
- Make proper electrical connections (black to hot “L”, white to neutral “N”, ground to “GND”) with wire nuts (1b) provided in the hardware package
- Attach canopy (2a) to mounting plate (1c) with set screws (2f) and Allen key
