Puig 20327 Naked Spoilers

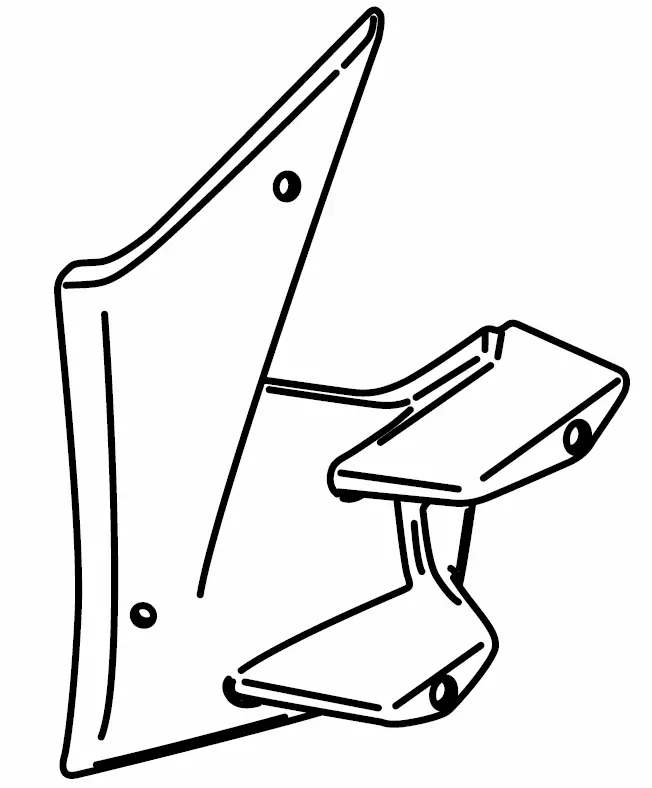

PACKAGE CONTENT
| ID. | PART | DESCRIPTION | QTY. | REF.: |

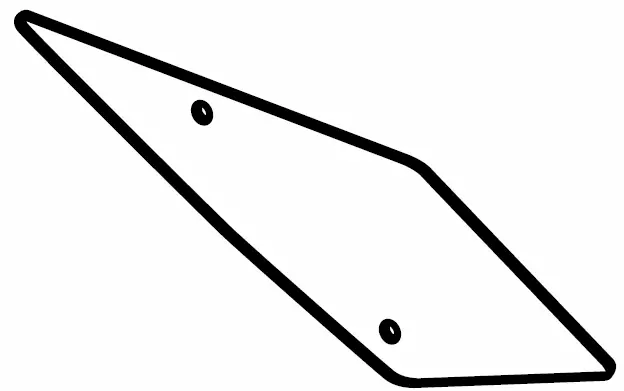

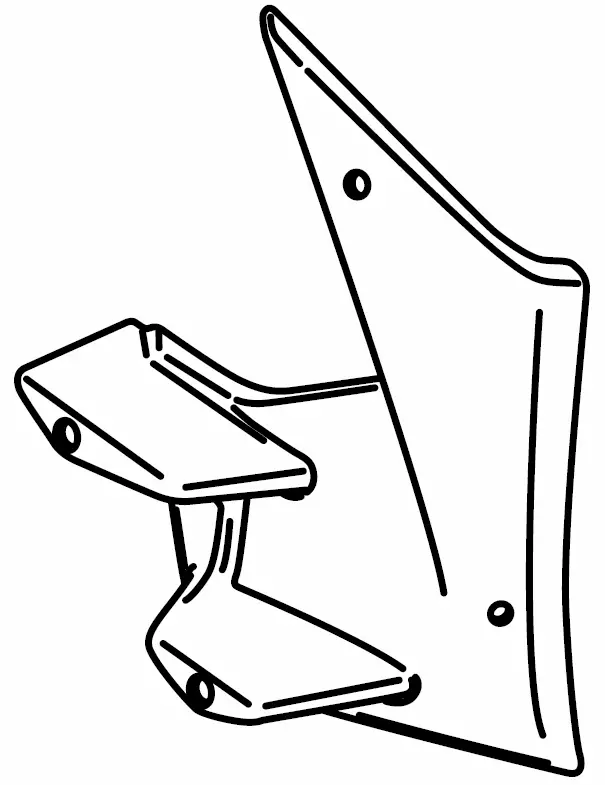

| 1 |  | Right cover | 1 | 10770JM3 |

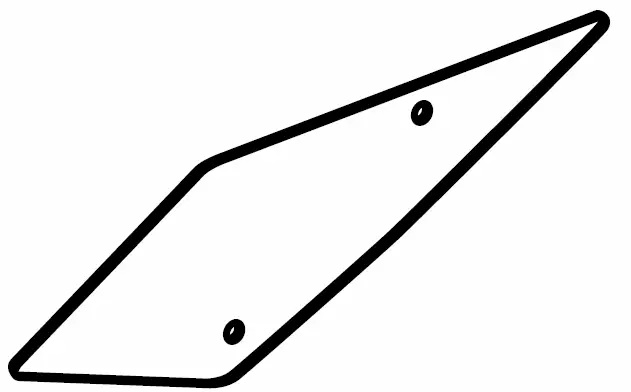

| 2 |  | Right deflector | 1 | 20329N/VM3 |
| 3 |  | Left cover | 1 | 10770JM3 |
| 4 |  | Left deflector | 1 | 20329N/VM3 |

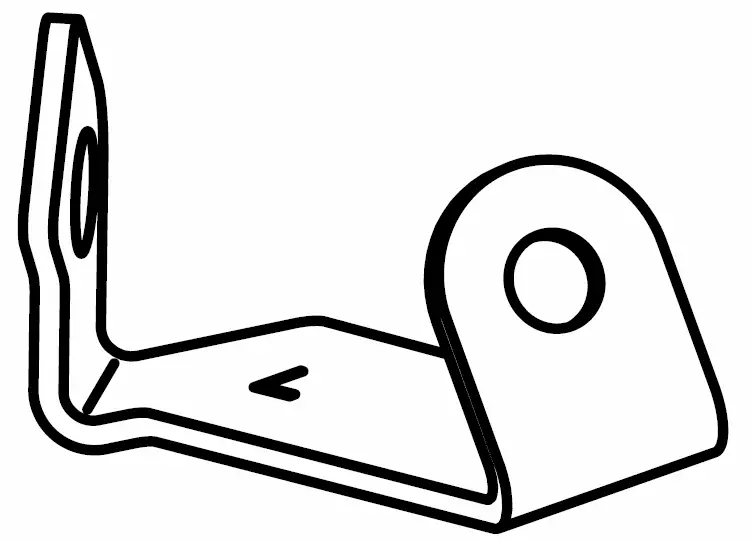

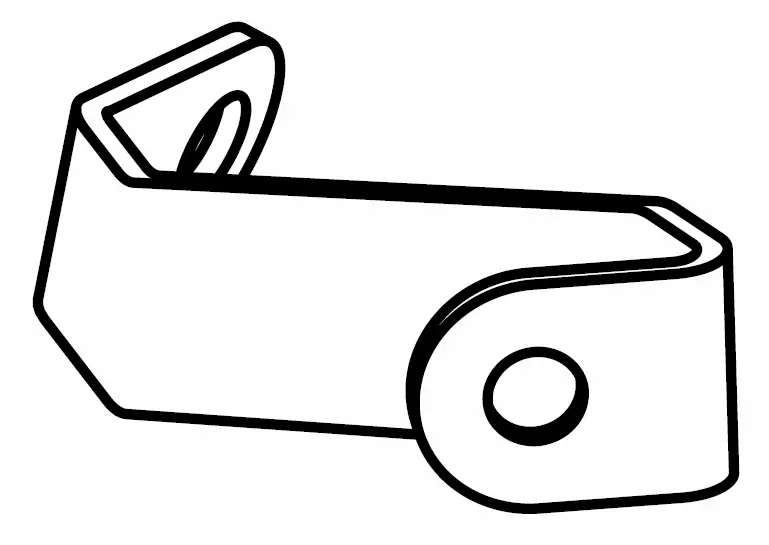

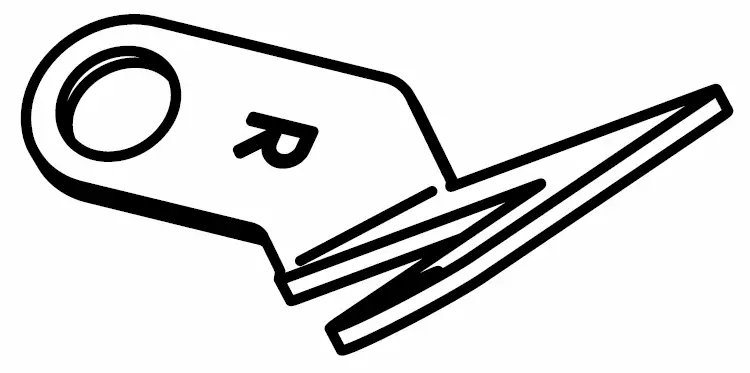

| 5 |  | Right support R1 | 1 | SOPOR6P2R120237 |
| 6 |  | Right support R2 | 1 | SOPOR6P2R220237 |

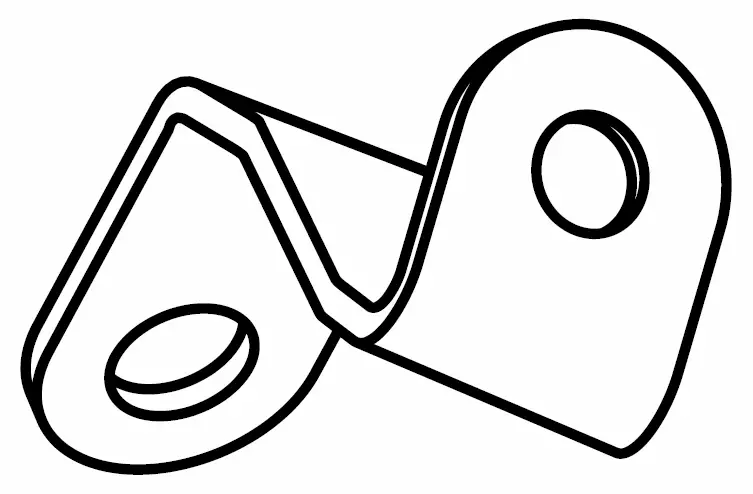

| 7 |  | Right support R3 | 1 | SOPOR6P2R320237 |

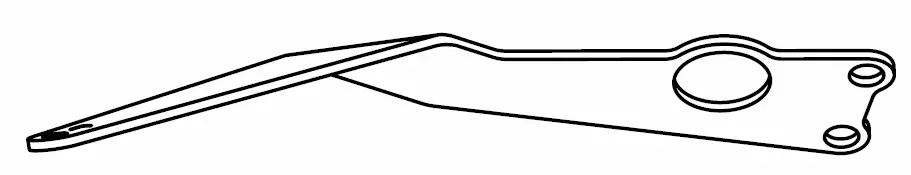

| 8 |  | Left support L1 | 1 | SOPOR6P2L120237 |
| 9 |  | Left support L2 | 1 | SOPOR6P2L220237 |
| 10 |  | Left support L3 | 1 | SOPOR6P2L320237 |
| 11 |  | M4x0,5 nylon washer | 4 | ARNV00000000311 |
| 12 |  | M4x16 ISO 7380 screw | 4 | TORNIAI7380-310 |
| 13 |  | M4 silentblock | 4 | SILENBTM4—062 |

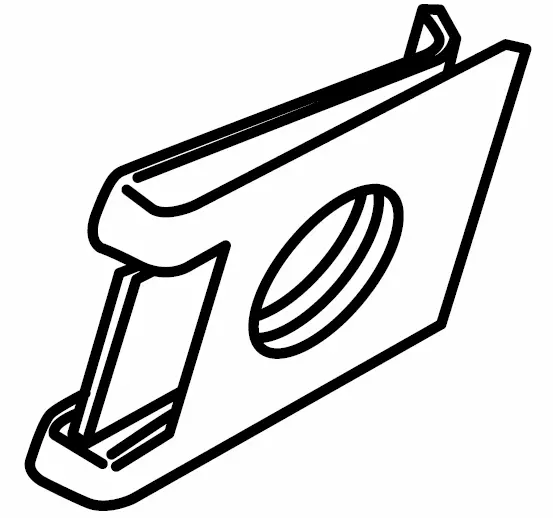

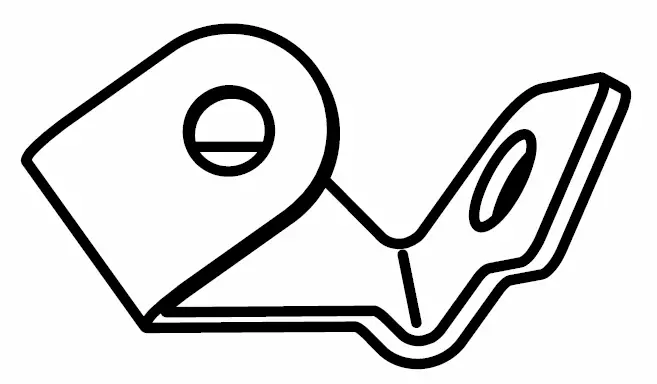

| 14 |  | M5 clip nut | 2 | TUERCA-TRT-M5– |

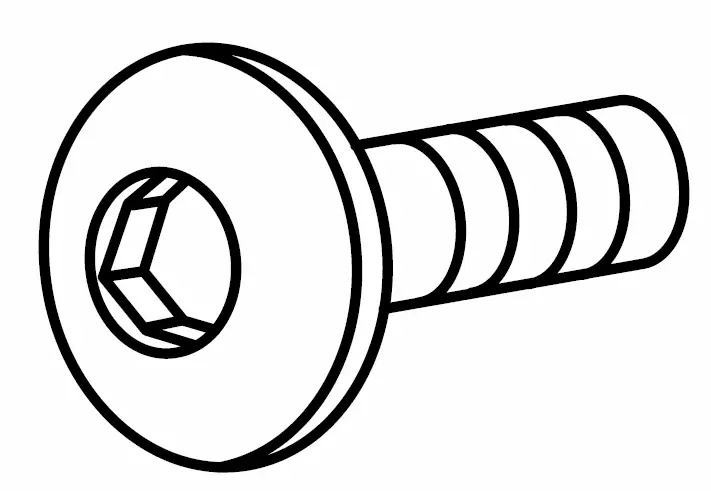

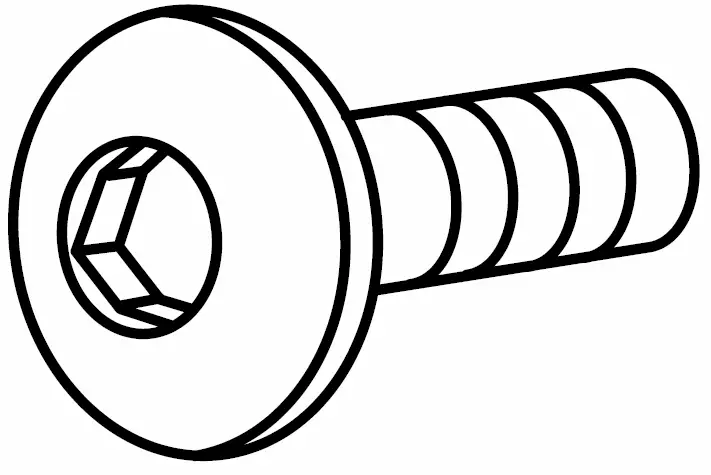

| 15 |  | M5x16 Ø11 ISO 7380 allen screw | 8 | TORNI-I7380-493 |

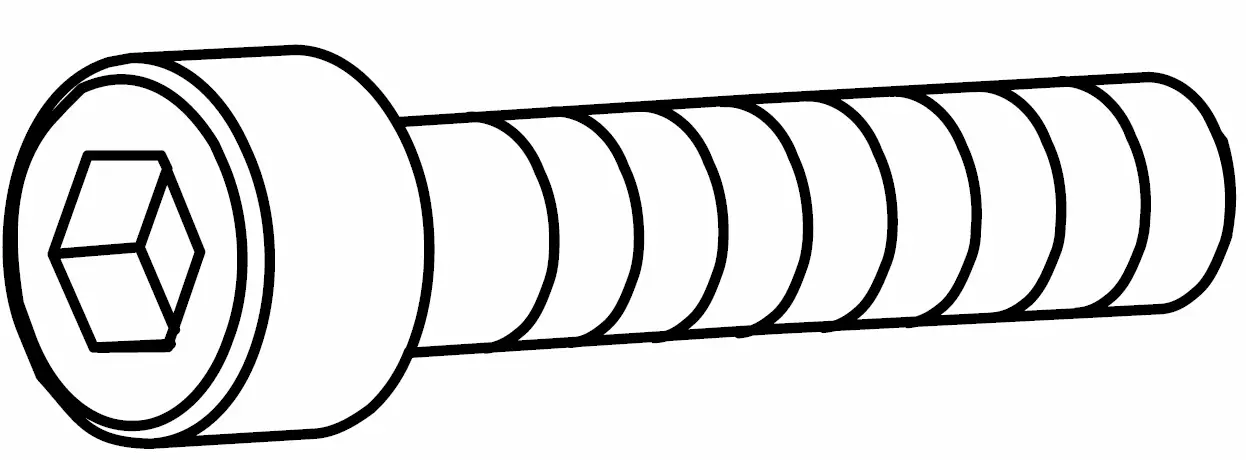

| 16 |  | M8x25 DIN 912 screw | 1 | TORNI-D912–241 |

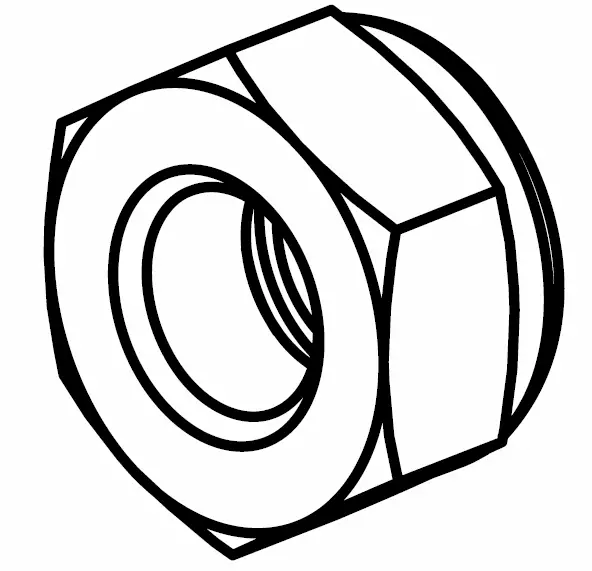

| 17 |  | M8 Lock Nut | 1 | TUEA-D985.8-M8- |

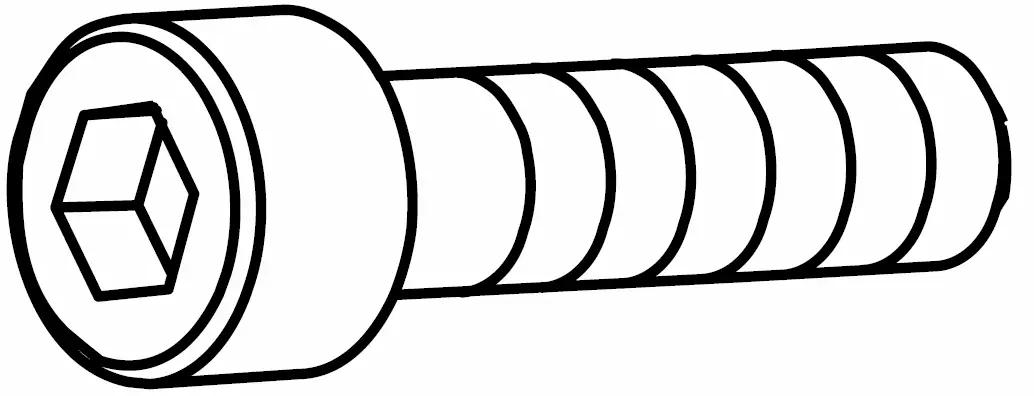

| 18 |  | M8x20 DIN 912 screw | 2 | TORNI-D912–164 |

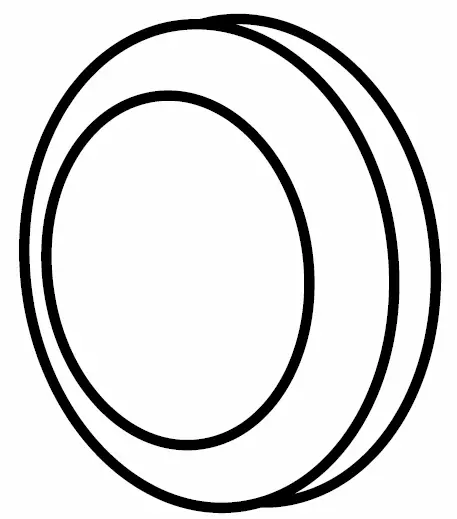

| 19 |  | M5 ISO 7380 allen screw cap | 6 | TAPON——- 85 |

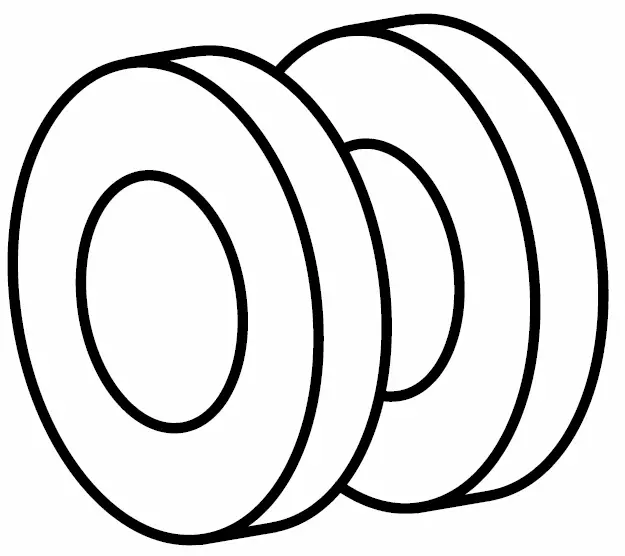

| 20 |  | Ø9 xØ6 x8mm silentblock | 6 | AROPASACABLES-3 |

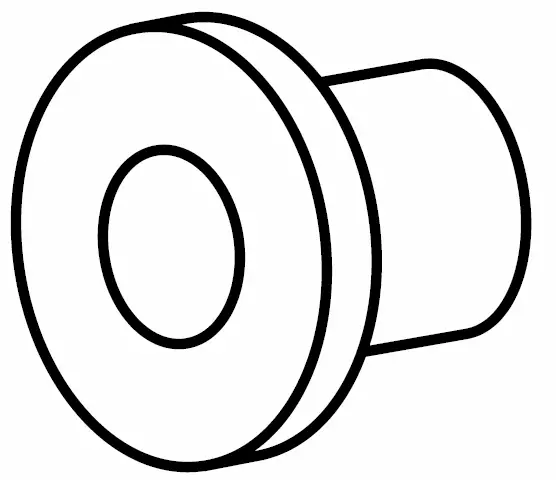

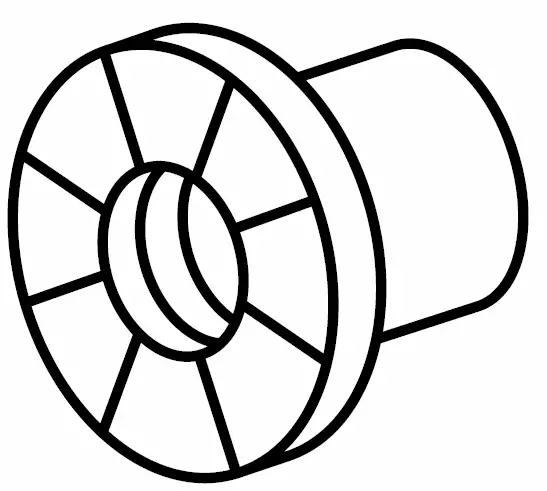

| 21 |  | Ø12xØ6,8×7,3 bush with flange | 6 | CASQUI-1A—750 |

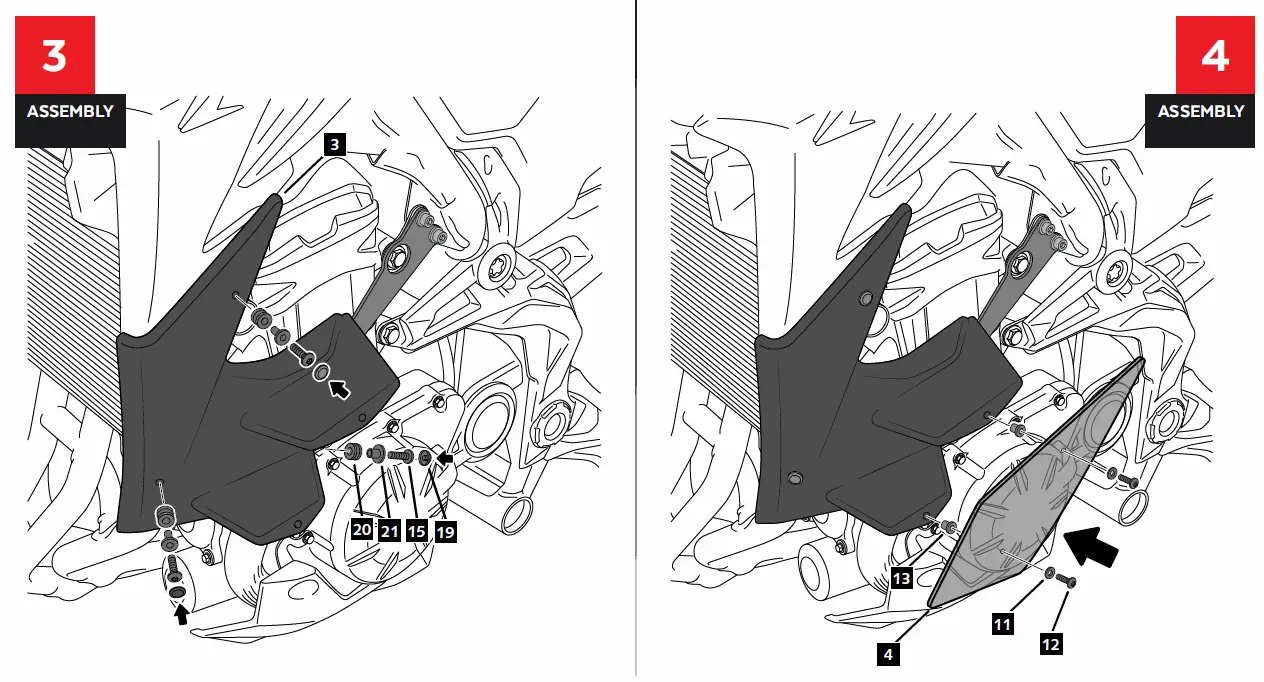

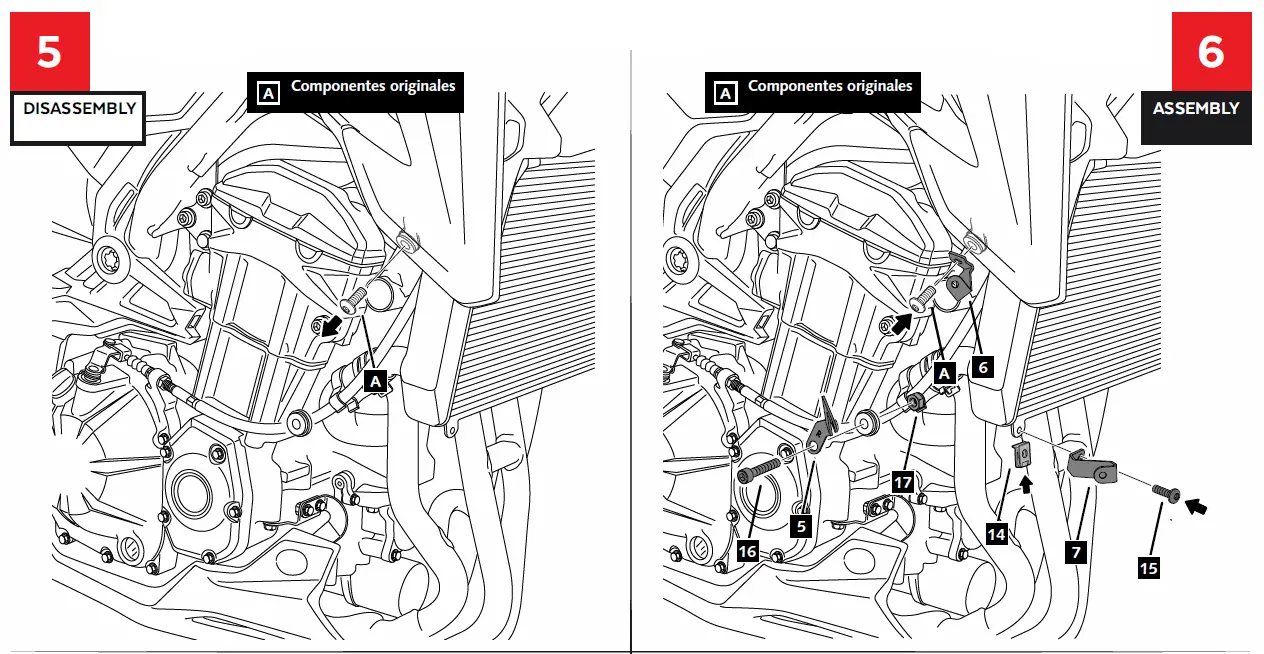

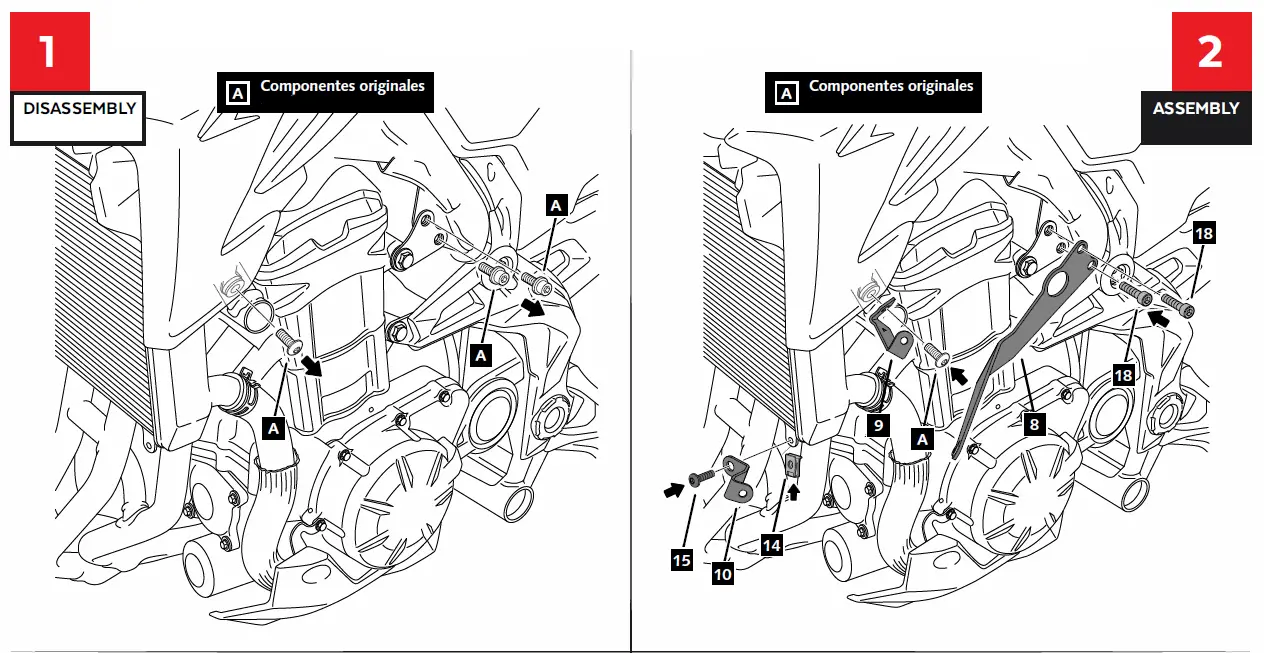

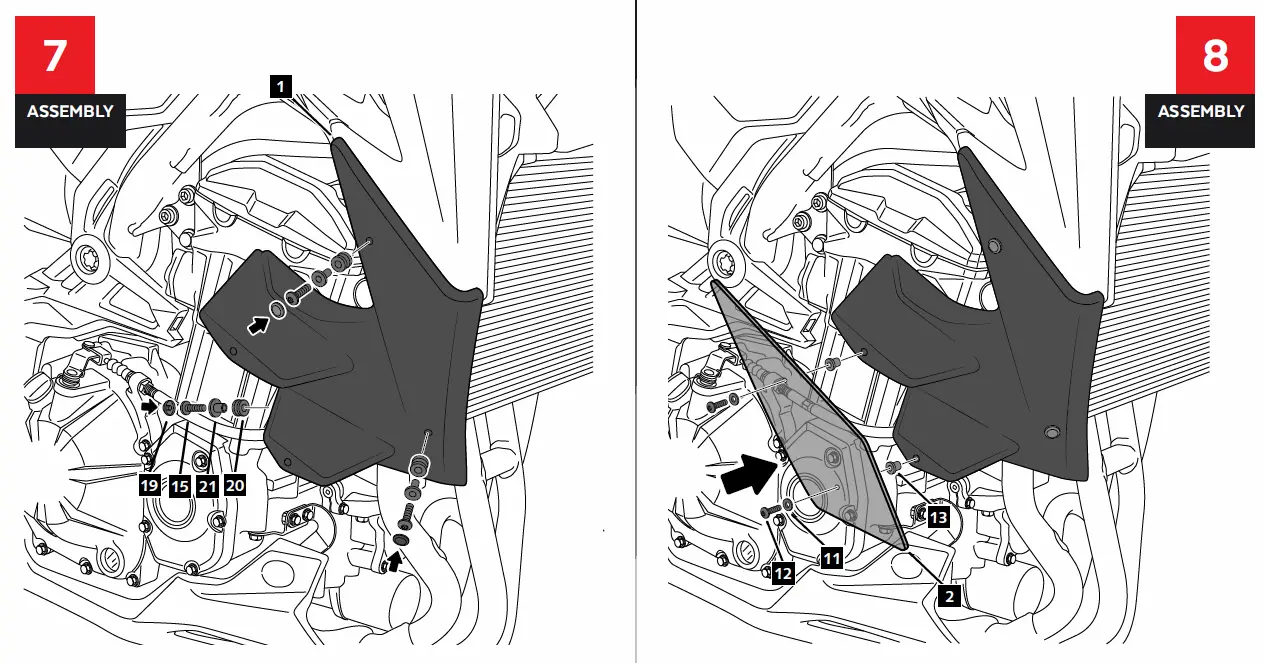

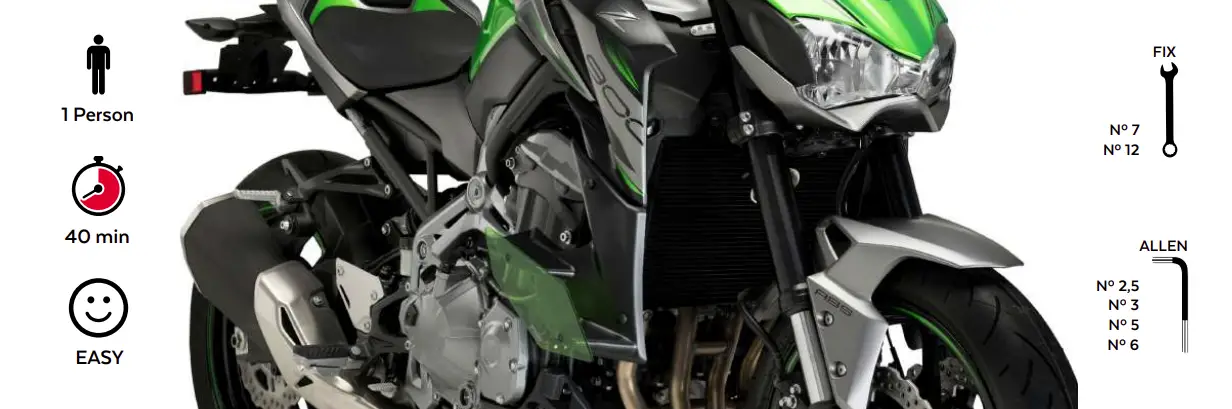

MOUNTING INSTRUCTIONS
LEFTSIDE
RIGHTSIDE
