Puig 21405 Belly Pan Fairing Spoiler Matte Black KTM Instruction Manual
ENGINE SPOILER
1 Person
40 min
EASY

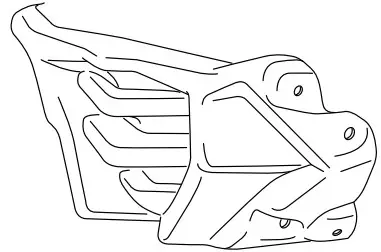

| ID | PART | DESCRIPTION | QTY | REF |
| 1 |  | Central engine spoiler | 1 | 21405J/CM3 |
| 2 |  | Right interior lateral | 1 | 21405J/CM3 |
| 3 |  | Right exterior lateral | 1 | 21405J/CM3 |
| 4 |  | Left interior lateral | 1 | 21405J/CM3 |
| 5 |  | Left exterior lateral | 1 | 21405J/CM3 |
| 6 |  | Right front support | 1 | SOP6P1-RF-21405 |
| 7 |  | Right posterior support | 1 | SOP6P1-RP-21405 |
| 8 |  | Right lower support | 1 | SOP6P1-RL-21405 |
| 9 |  | Left front support | 1 | SOP6P1-LF-21405 |
| 10 |  | Left posterior support | 1 | SOP6P1-LP-21405 |
| 11 |  | Left lower support | 1 | SOP6P1-LL-21405 |
| 12 |  | M6 Lock nut | 10 | TUERCAJFM6–319 |
| 13 |  | M6x20 ISO7380 allen screw | 10 | TORNI-I7380-404 |
| 14 |  | Silentblock | 10 | SILENGONE–064 |
| 15 |  | Bush with flange | 10 | CASQUI-1A—324 |
| 16 |  | M5x16 ISO7380 allen screw | 6 | TORNI-I7380-493 |
| 17 |  | M5 nylon washer | 6 | ARNV00000000245 |
| 18 |  | M5 silentblock | 6 | SILENBTM5-046/1 |
| 19 |  | Vinyl stickers set | 1 | ADHESI——- 222 |

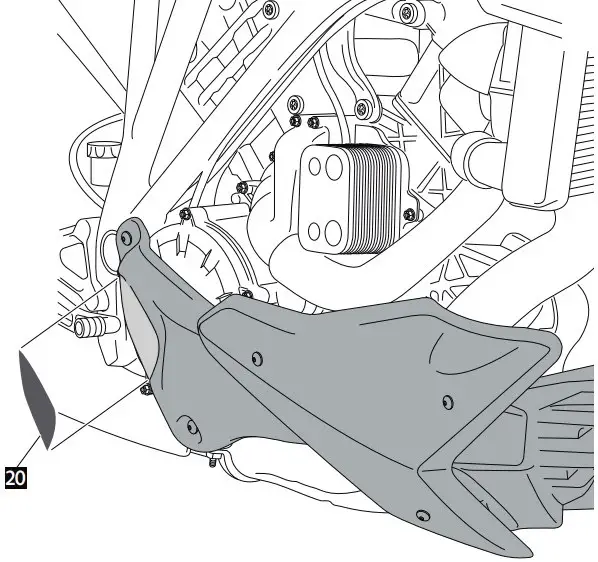

| 20 |  | Carbon sticker | 1 | ADHESI——- 223 |
| 21 |  | M5 ISO 7380 screw cap | 6 | TAPON——– 85 |

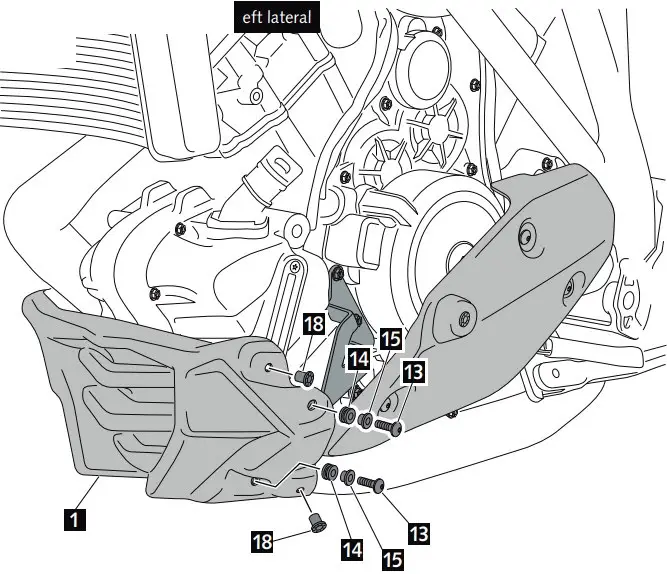

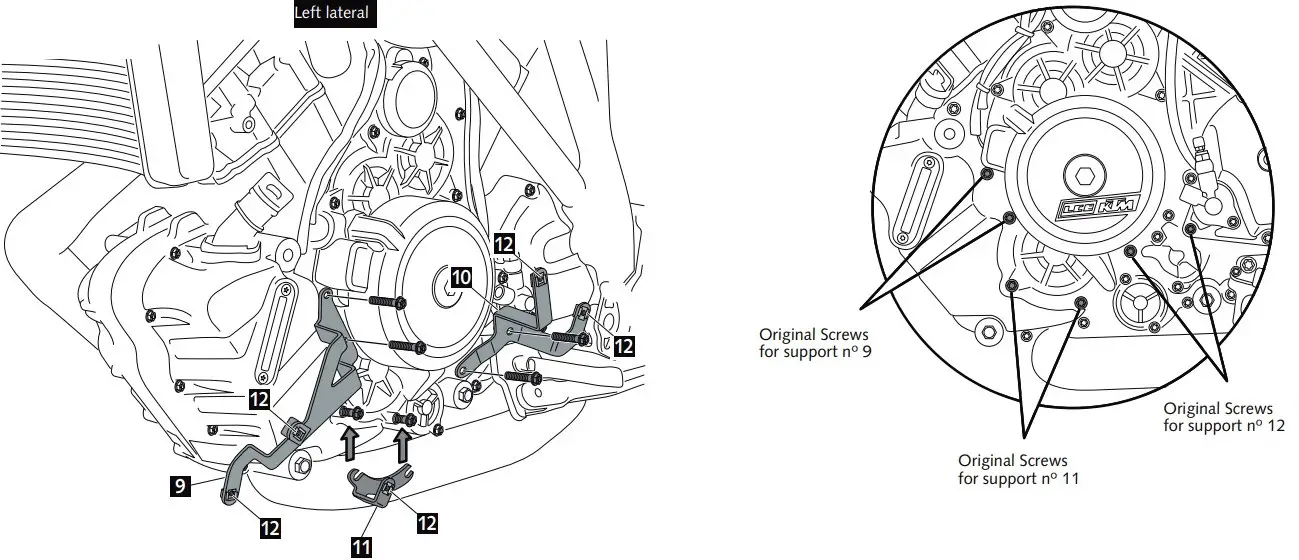

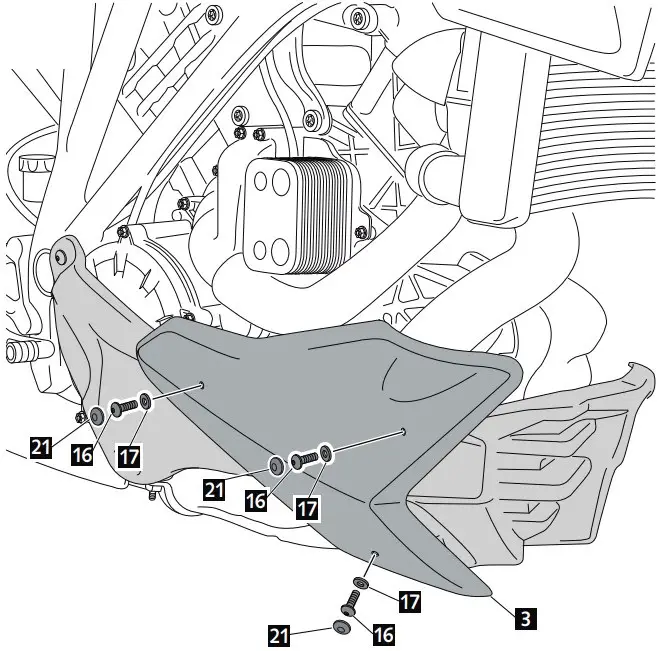

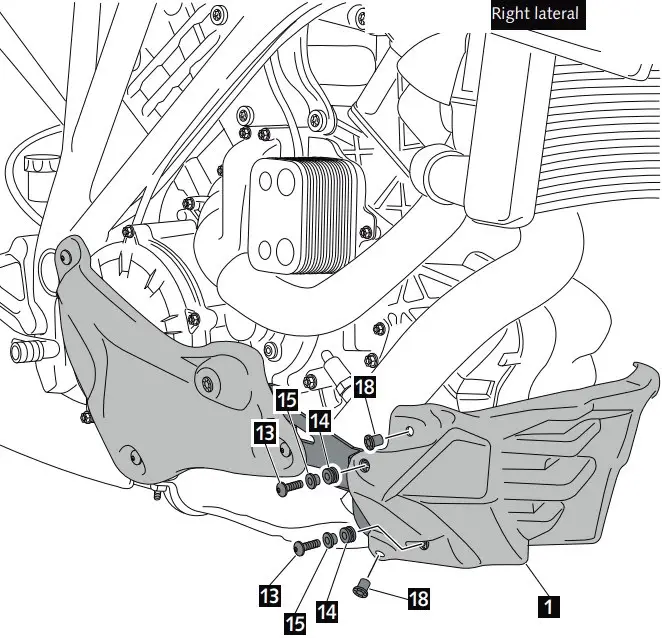

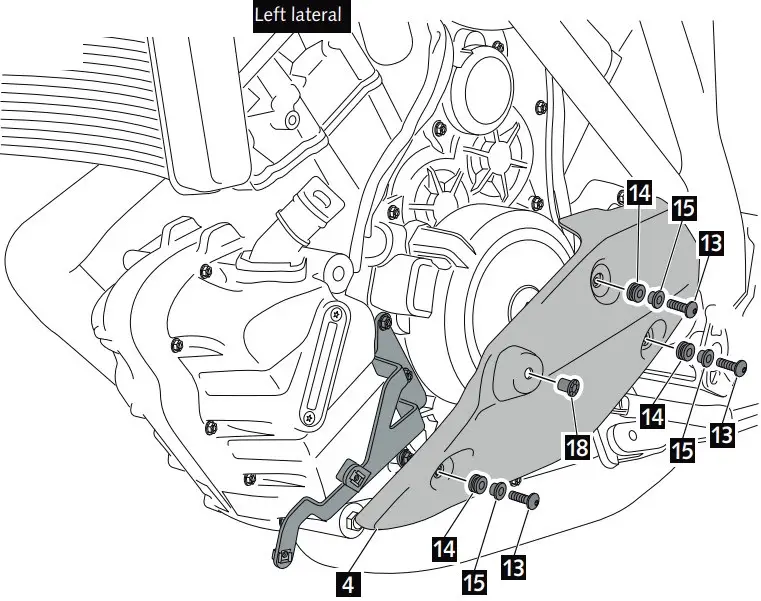

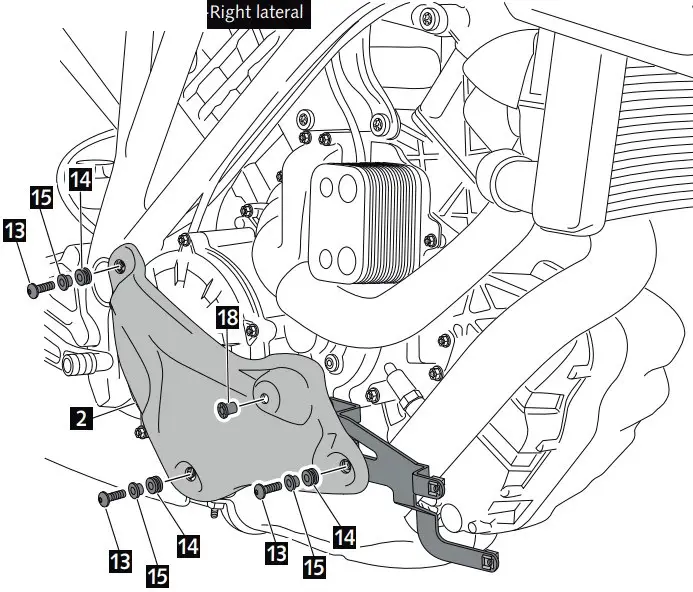

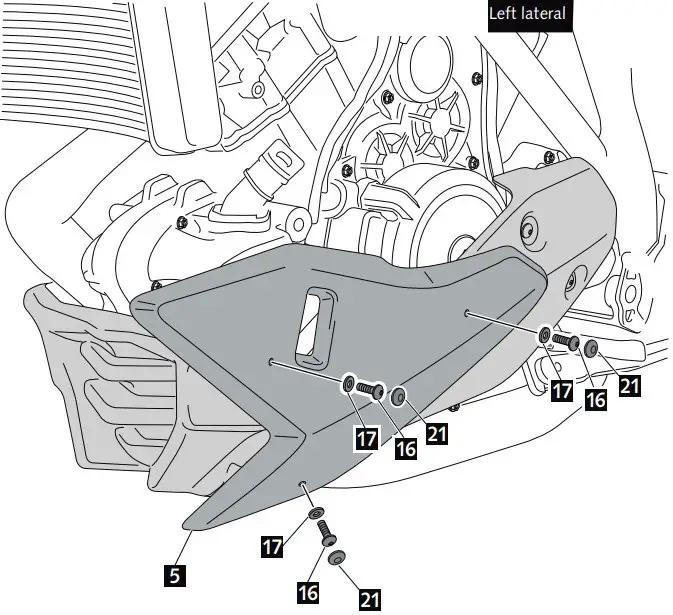

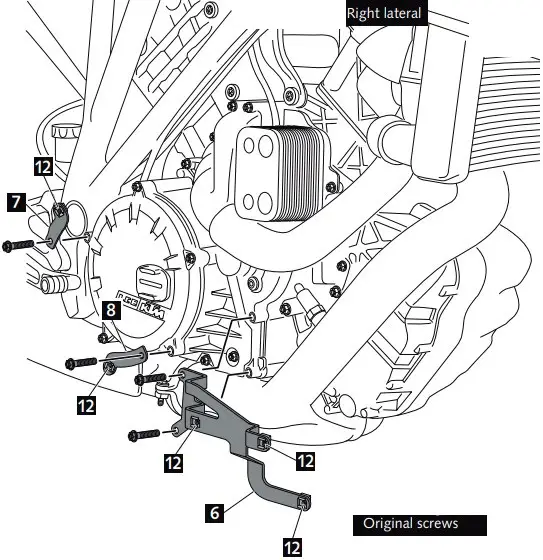

MOUNTING INSTRUCTIONS

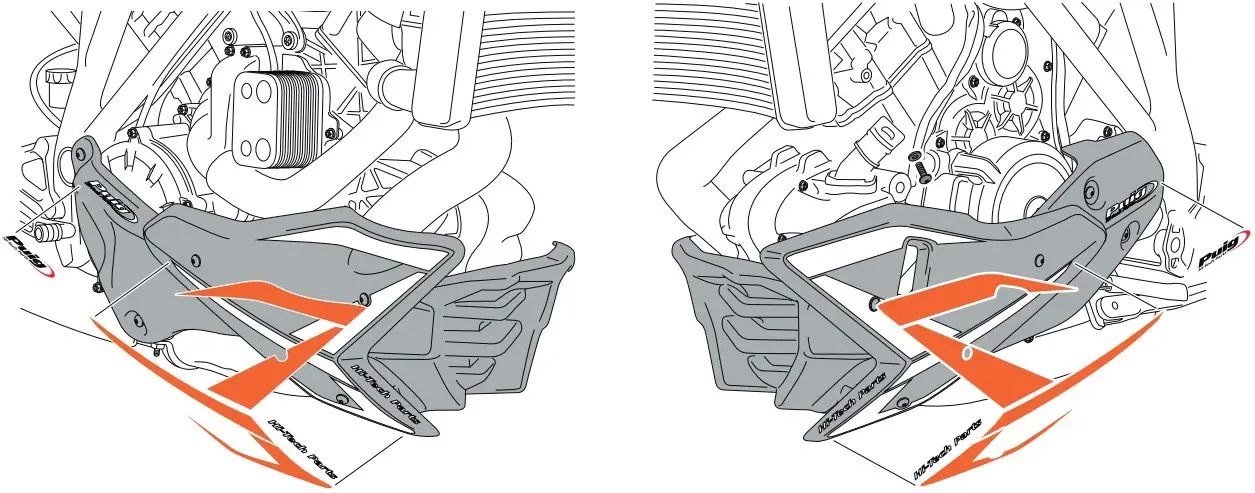

Vinyl stickers set
