Hi-Tech Parts
YAMAHA MT07 ‘21-

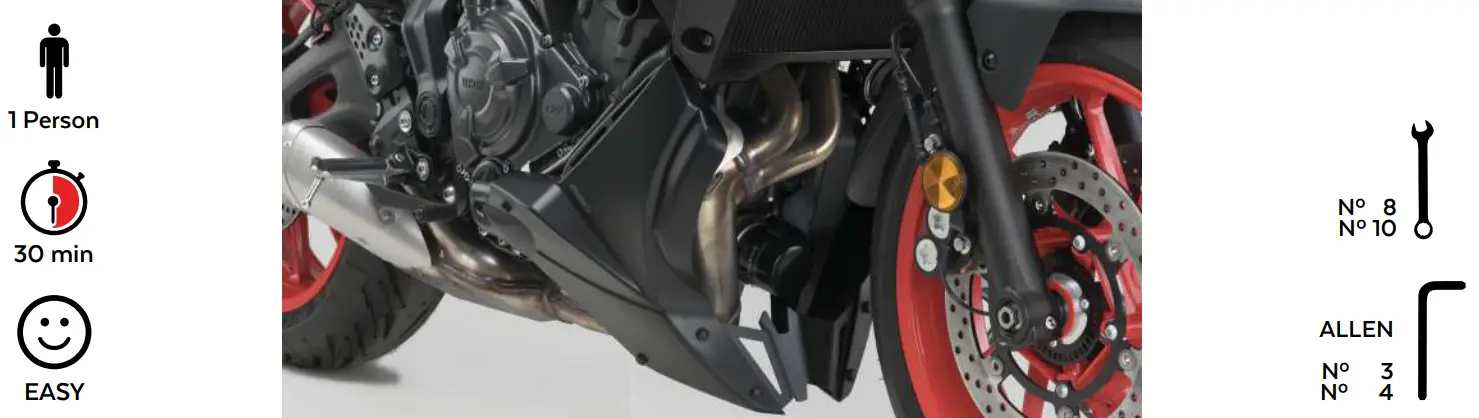

MOUNTING INSTRUCTIONS

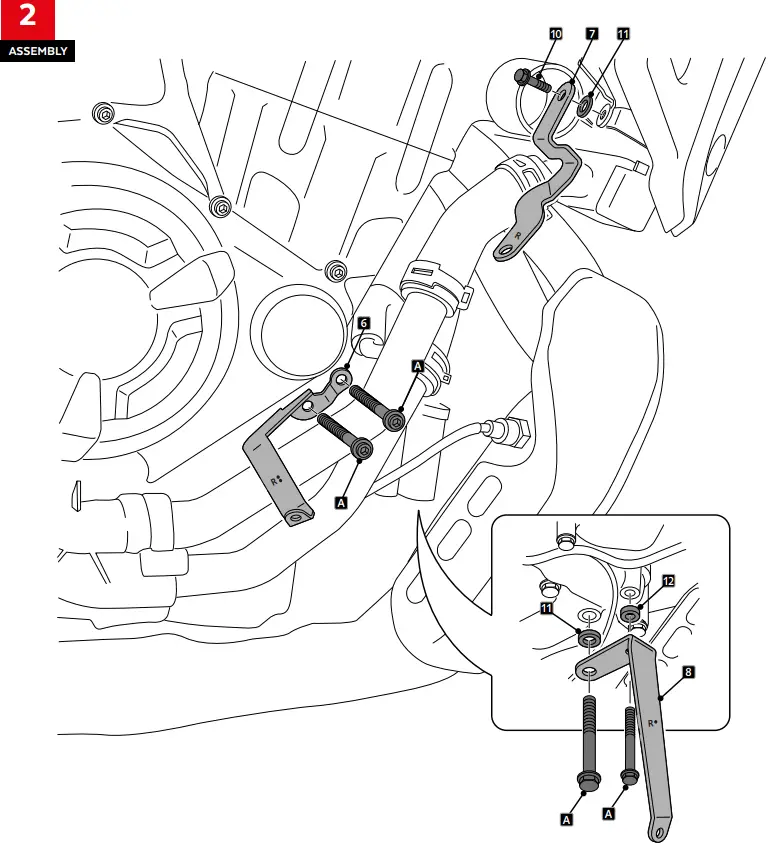

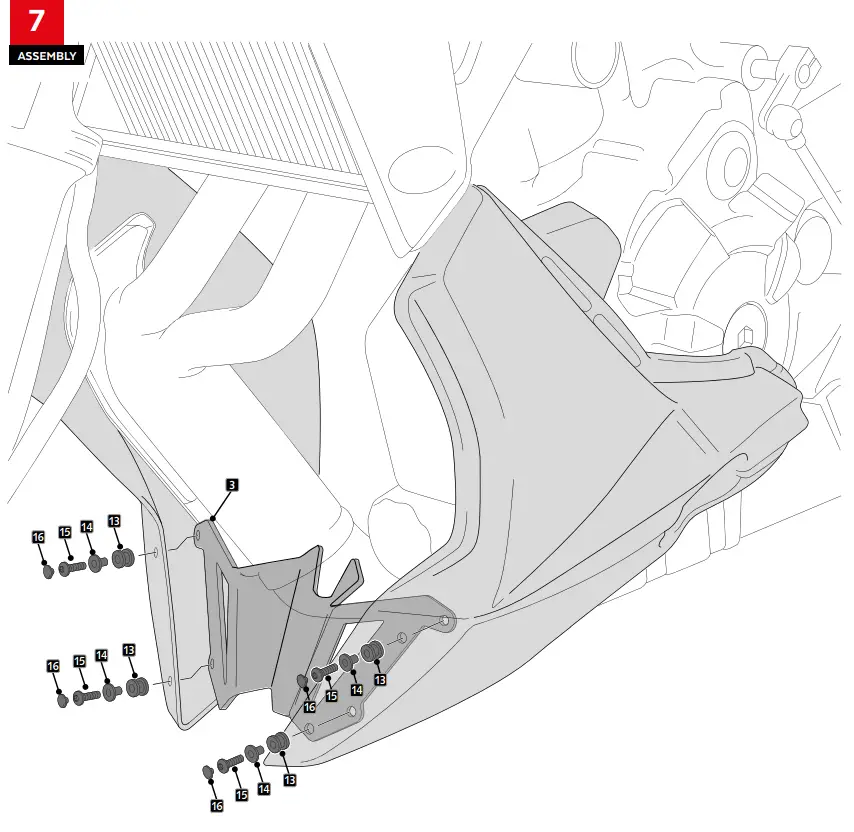

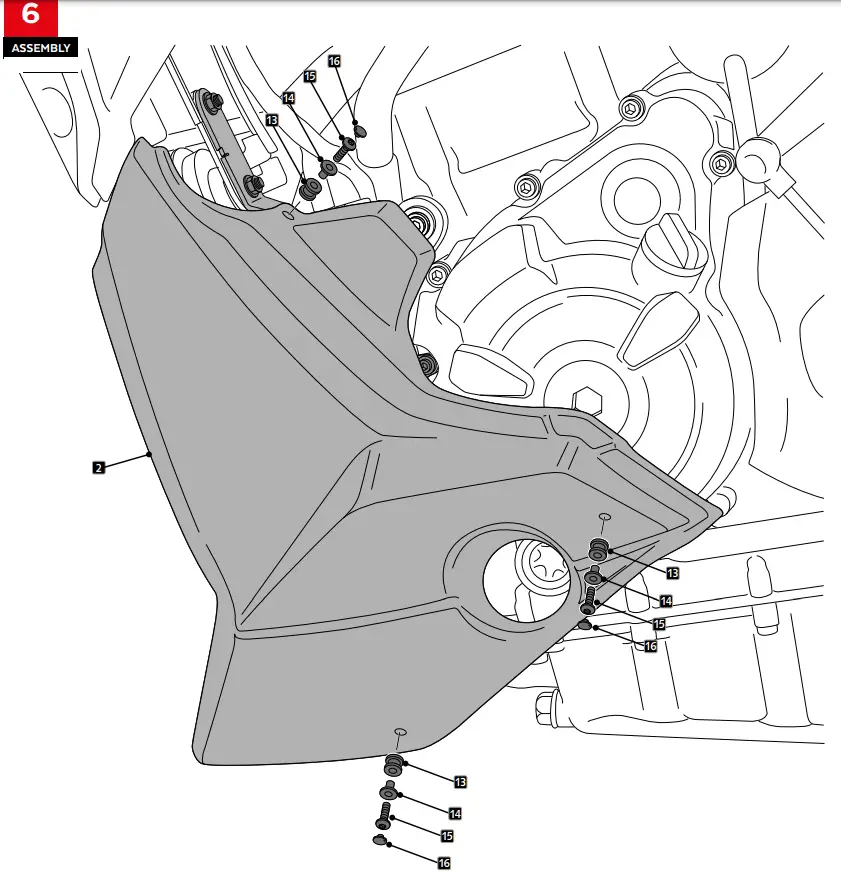

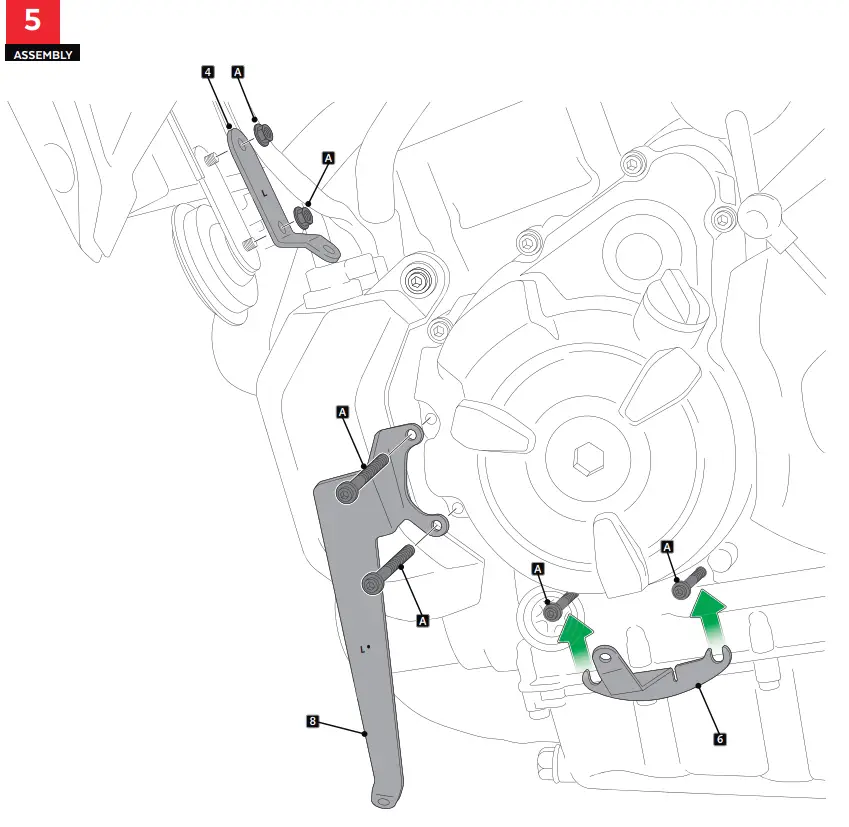

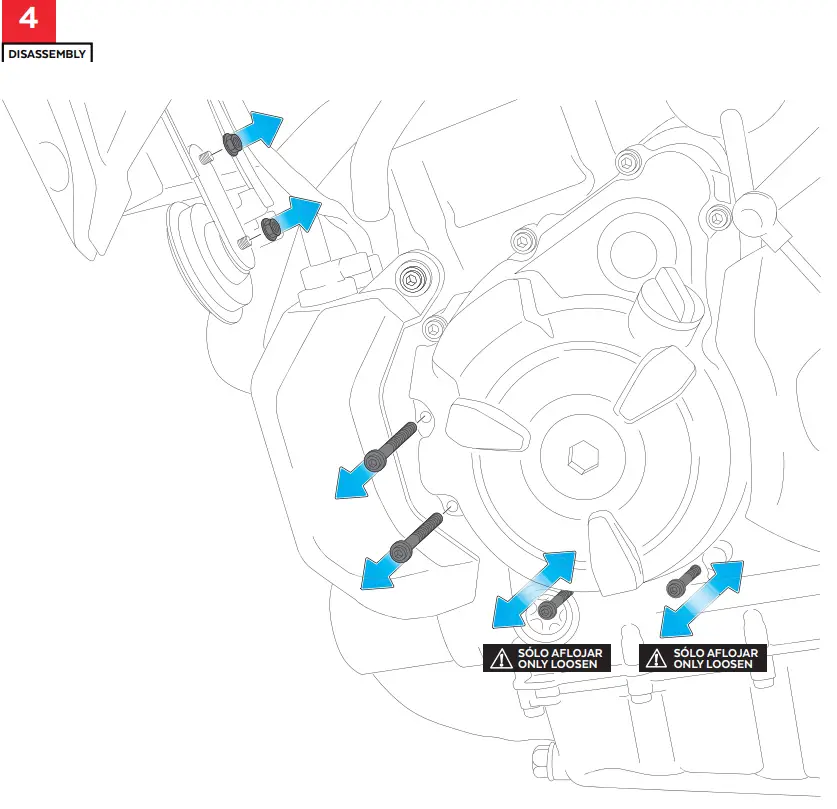

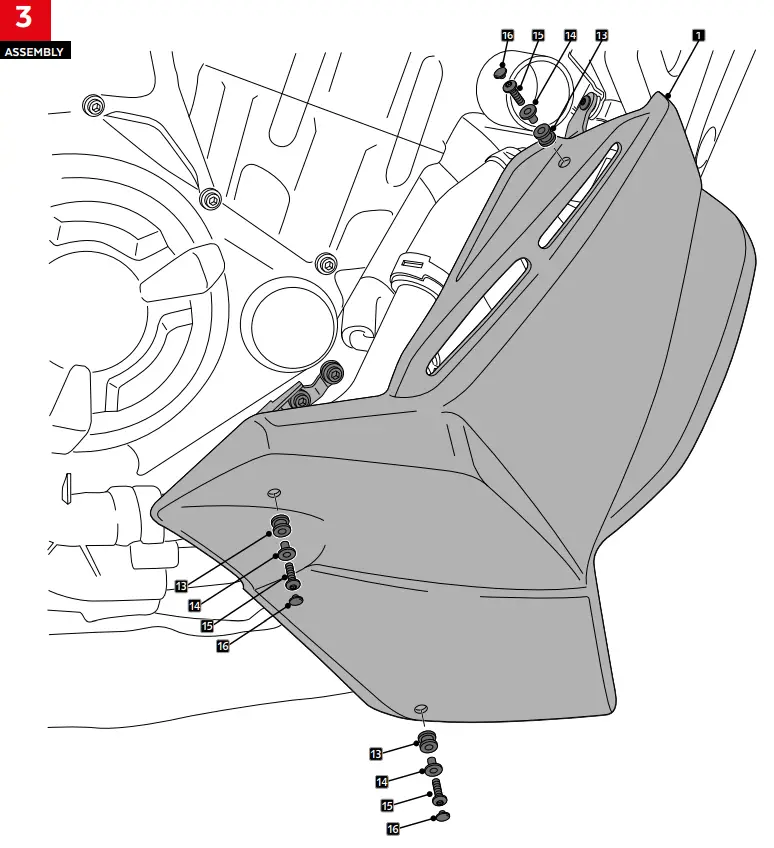

| ID | PART | DESCRIPTION | QTY | REF |
| 1 |  | Engine spoiler Right side (ABS) | 1 | 20624C/JM3 |
| 2 |  | Engine spoiler Left side (ABS) | 1 | 20624C/JM3 |
| 3 |  | Central engine spoiler (METAL) | 1 | SOPOR7P8–20624 |
| 4 |  | Soporte delantero izquierdo (L) | 1 | SOPOR7P8L120624 |
| 5 |  | Left central support (L ) | 1 | SOPOR7P8L220624 |
| 6 |  | Left rear support (L ) | 1 | SOPOR7P8L320624 |
| 7 |  | Soporte delantero derecho (R) | 1 | SOPOR7P8R120624 |
| 8 |  | Right central support (R ) | 1 | SOPOR7P8R220624 |
| 9 |  | Right rear support (R ) | 1 | SOPOR7P8R320624 |
| 10 |  | M6x20 DIN6921 screw | 1 | TORNIED6921-343 |
| 11 |  | Ø8,5xØ13x 3,5 arrowhead | 2 | CASQUI——-775 |
| 12 |  | Ø8,5xØ13x 6 arrowhead | 1 | |
| 13 |  | Ø9xØ6x8mm Silentblock | 10 | AROPASACABLES-1 |
| 14 |  | Ø12xØ6,8×7,3 Bush with flange | 10 | CASQUE-1A—750 |
| 15 |  | M5x16 Ø11 ISO 7380 Allen screw | 10 | TORNI-I7380-493 |
| 16 |  | M5 ISO 7380 screw cap | 10 | TAPON——–85 |
 |  |
 |  |
 |  |
