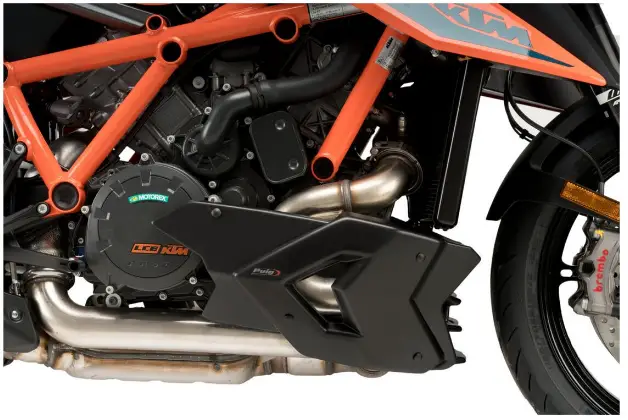

RevZilla KTM 1290 SUPERDUKE R 20 Puig Engine Spoiler

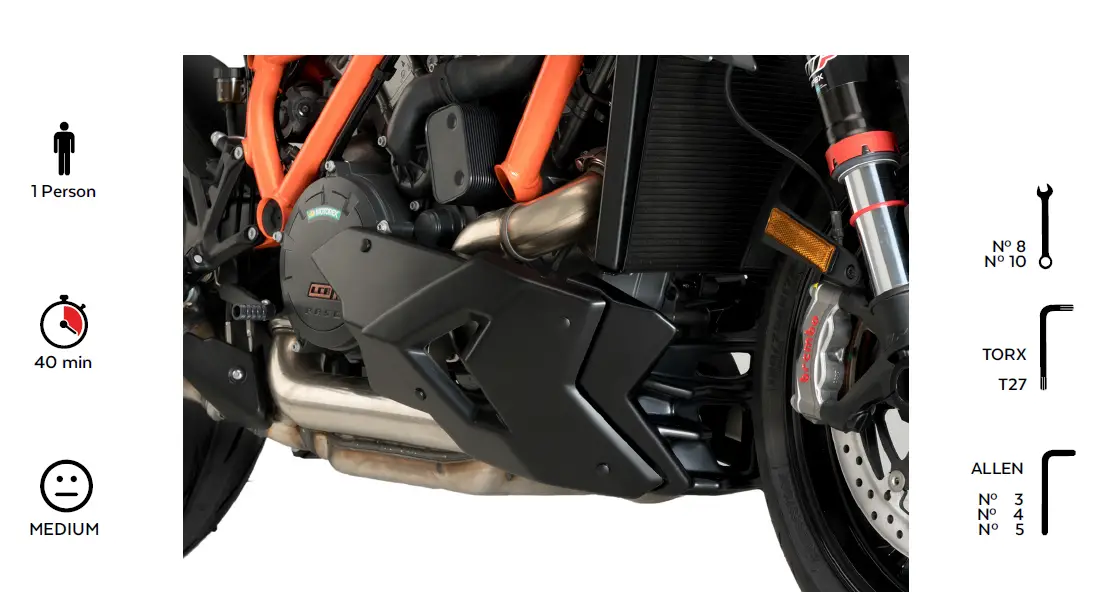

ENGINE SPOILER
MOUNTING INSTRUCTIONS

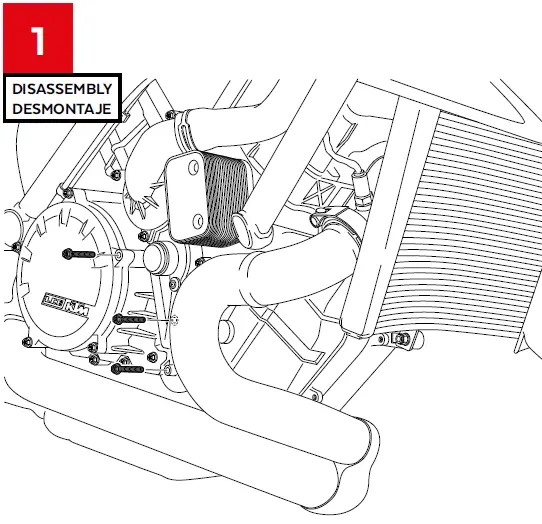

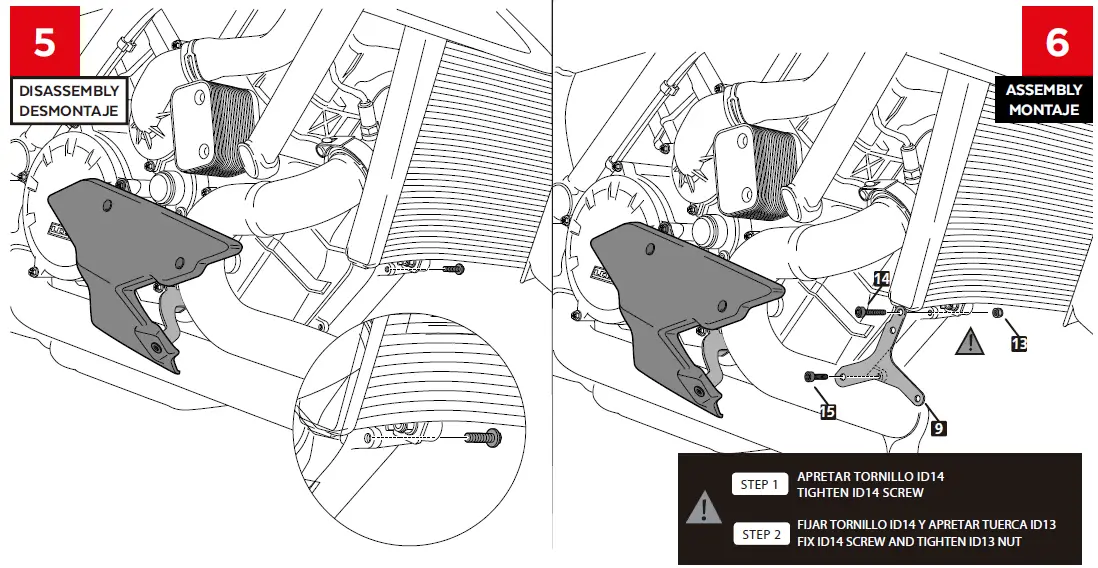

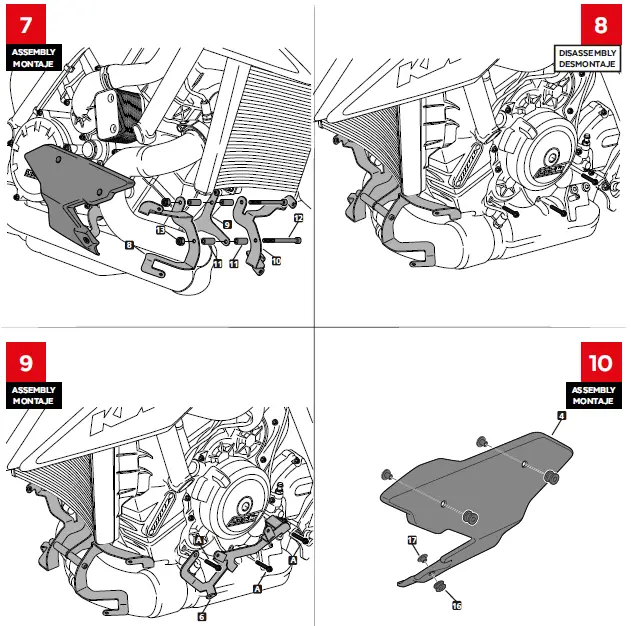

STEP 1
APRETAR TORNILLO ID14
TIGHTEN ID14 SCREW

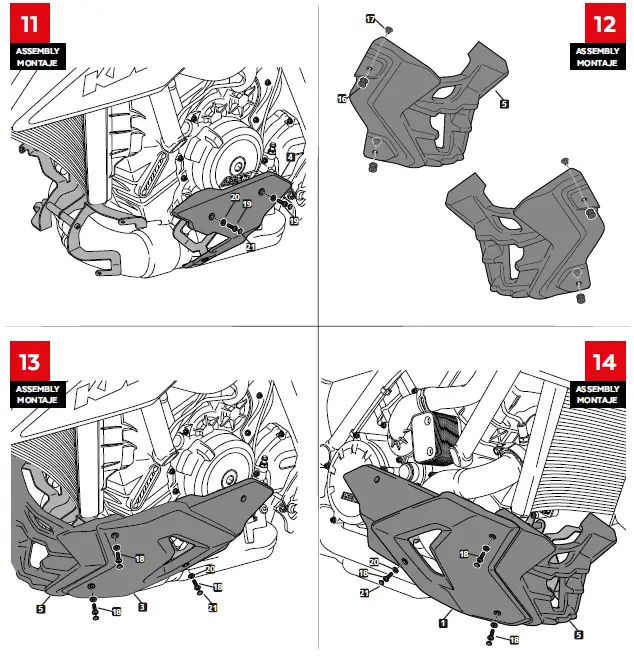

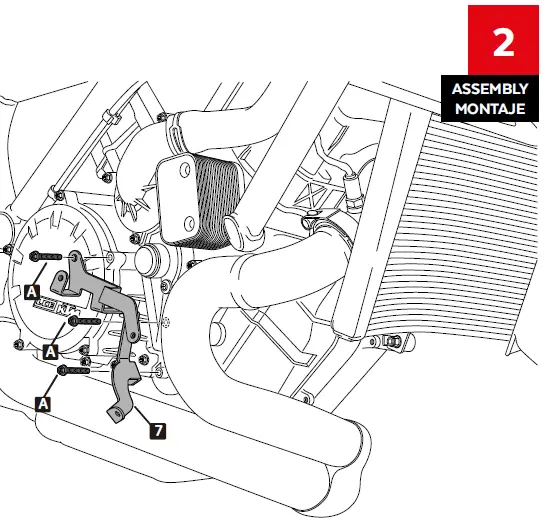

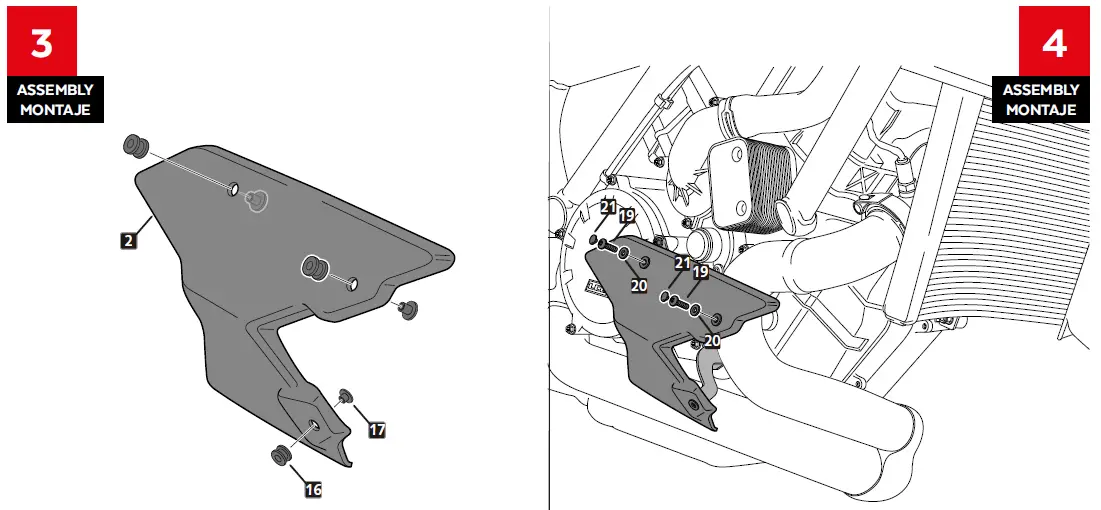

STEP 2
FIJAR TORNILLO ID14 Y APRETAR TUERCA ID13 FIX ID14 SCREW AND TIGHTEN ID13 NUT
PIEZA ORIGINAL A ORIGINAL PART
DESCRIPTION
| ID | PIEZA/PART | DESCRIPTION | QTY | REF | |
| 1 |  |
| Right front engine spoiler | 1 | 20428C/JM3 |
| 2 |  | Right rear engine spoiler | 1 | 20428C/JM3 | |
| 3 |  |
| Left front engine spoiler | 1 | 20428C/JM3 |
| 4 |  | Left rear engine spoiler | 1 | 20428C/JM3 | |
| 5 |  | Central engine spoiler | 1 | 20428C/JM3 | |
| 6 |  | Left side support ( L1 ) | 1 | SOPOR5P2L120428 | |
| 7 |  | Right side support ( R1 ) | 1 | SOPOR5P2R120428 | |
| 8 |  | Right metal support ( R2 ) | 1 | SOPOR5P2R220428 | |
| 9 |  | Central support | 1 | SOPOR5P2-C20428 | |
| 10 |  | Left central support ( L2 ) | 1 | SOPOR5P2L220428 | |
| 11 |  | Ø14x Ø8,25x 44 arrowhead | 4 | CASQUI——- 877 | |
| 12 |  | M6x105 DIN 912 screw | 2 | TORNI-D912–878 | |
| 13 |  | M6 DIN982 Nut | 3 | TUERCA-D982-745 | |
| 14 |  | DIN912 M6x30 screw | 1 | TORNI-D912–725 | |
| 15 |  | DIN912 M6x15 screw | 1 | TORNI-AD912-430 | |
| 16 |  | Ø9 xØ6 x8mm silentblock | 10 | AROPASACABLES-1 | |
| 17 |  | Ø12xØ6,8×7,3 busch with flange | 10 | CASQUI-1A—750 | |
| 18 |  | M5x20 Ø11 ISO 7380 Allen screw | 6 | TORNI-I7380-730 | |
| 19 |  | M5x16 Ø11 ISO 7380 Allen screw | 4 | TORNI-I7380-493 | |
| 20 |  | M5x1 Nylon washer | 10 | ||
| 21 |  | M5 ISO7380 screw cap | 10 | TAPON——– 85 | |
| V0.07/21 Illustrations and layout by: www.ciandisseny.com | |||||
