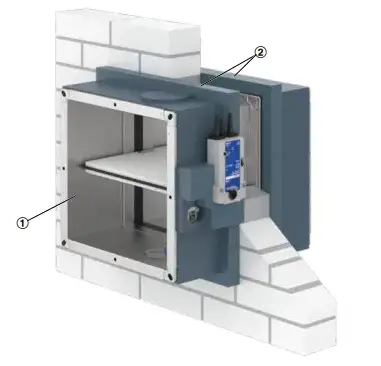

TROX FK2-EU Fire Damper
Product Information
The installation kit GLK is designed for the fire damper type FK2-EU. The kit includes connecting clips, GLK stripes H-side, and a special tool. The product is manufactured by TROX GmbH and is available in Neukirchen-Vluyn, Germany.
Product Usage Instructions
To install the left and right fire dampers using the GLK installation kit, follow the steps below:
- Place both fire dampers on Pos. 180 and push together.
- Place two GLK strips between the fire dampers.
- Rotate the left fire damper to 180 degrees (operation side left).
- Use the special tool to insert the connecting clips between the GLK strips and the fire dampers.
- Attach the GLK stripes H-side to the fire dampers using screws (not included in the kit).
- Refer to the installation and operating manual FK2-EU for further installation details with GLK.
Scope of delivery
TROX GmbH
- Heinrich-Trox-Platz
- D-47504 Neukirchen-Vluyn, Germany
- Telefon / Phone +49(0)28 45/2 02-0
- Telefax / Fax +49(0)28 45/2 02-2 65
- www.trox.de/www.troxtechnik.com

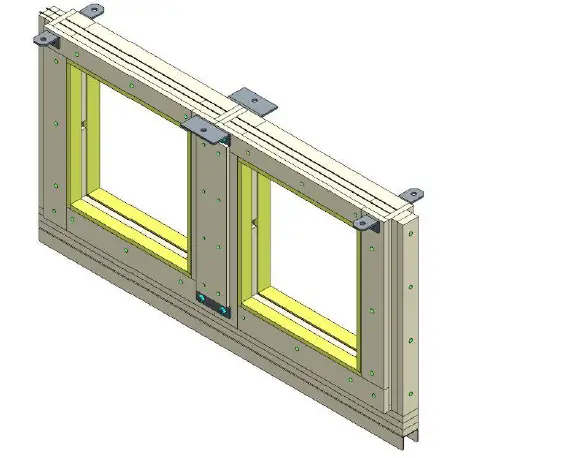

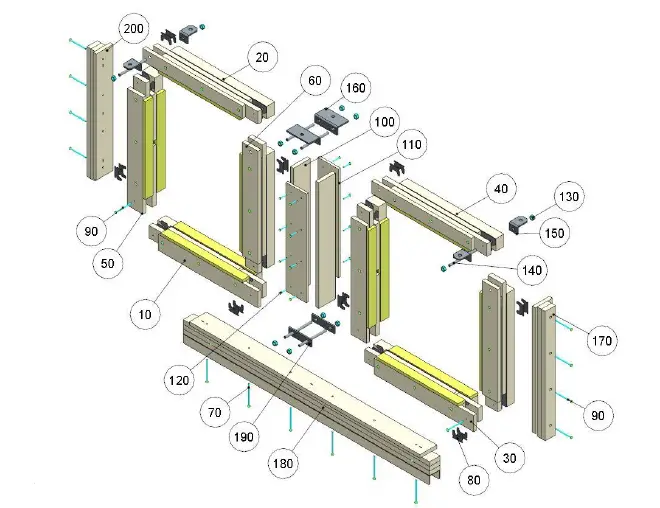

| Lieferumfang / Scope of delivery | ||
| Position / Item | Benennung / Name | Stück / Quantity |
| 10 | Installation kit B-side below, left fire damper | 1 |
| 20 | Installation kit B-side above, left fire damper | 1 |
| 30 | / Installation kit B-side below, right fire damper | 1 |
| 40 | Installation kit B-side above, right fire damper | 1 |
| 50 | Installation kit H-side left (inside with axle recess) | 2 |
| 60 | Installation kit H-side right (inside with axle recess) | 2 |
| 70 | Chipboard screw 5 × 100 mm | 3 – 9 (2) |
| 80 | Connecting clip | 16 |
| 90 | Chipboard screw 5 × 80 mm | 8 – 14 (2) |
| 100 | GLK stripes H-side (d = 15 mm) | 2 (1) |
| 110 | Cover B-side (d = 10 mm) | 2 |
| 120 | 4 × 35 mm / Half-round chipboard screw 4 × 35 mm | 8 – 20 (2) |
| 130 | M10 / hexagon nut M10 | 12 |
| 140 | 130 mm / Threaded rod M10, length approx. 130 mm | 6 |
| 150 | 57 × 40 × 5 mm / Steel angle approx. 57 × 40 × 5 mm | 4 |
| 160 | ca. 57 × 110 × 5 mm / Double hole angle approx. 57 × 110 × 5 mm | 2 |
| 170 | Multilayer section H-side right, right fire damper | 1 (1) |
| 180 | Multilayer section B-side including metal profile below | 1 (1) |

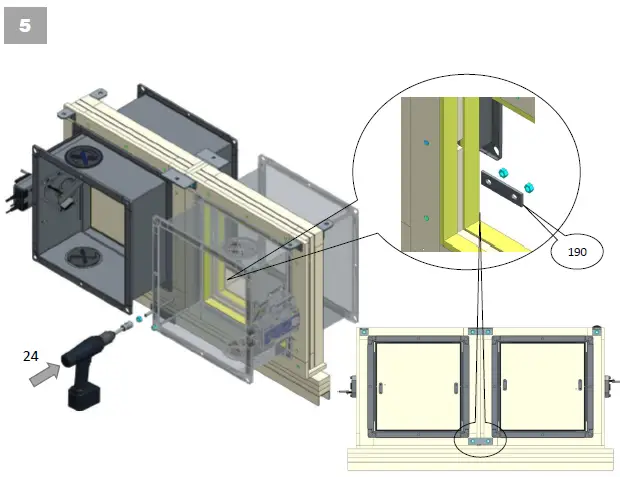

| 190 | . 110 × 30 × 5 mm / GLK flat steel approx. 110 × 30 × 5 mm | 2 |
| 200 | Multilayer section H-side left, left fire damper | 1 (1) |

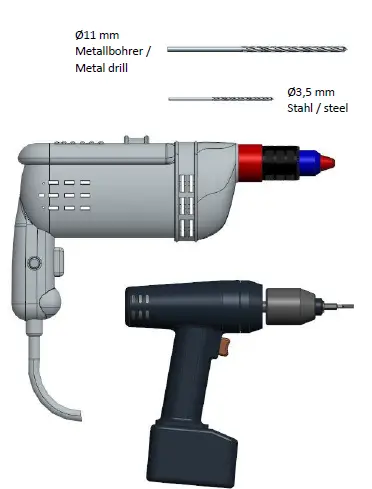

Special Tool
Installation

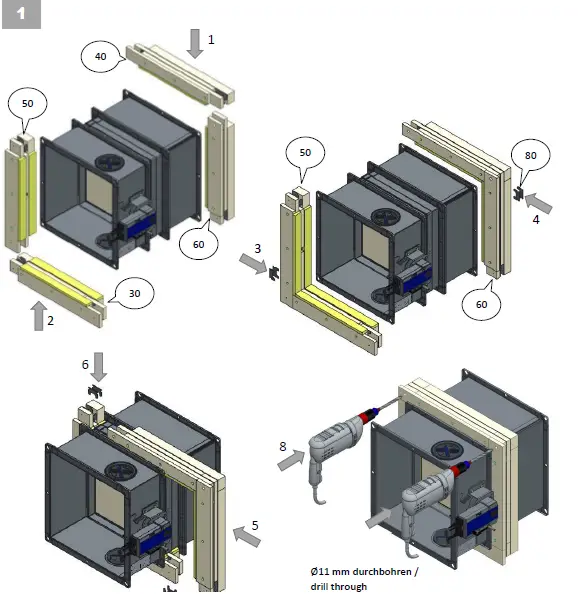

- Work steps for the right fire damper

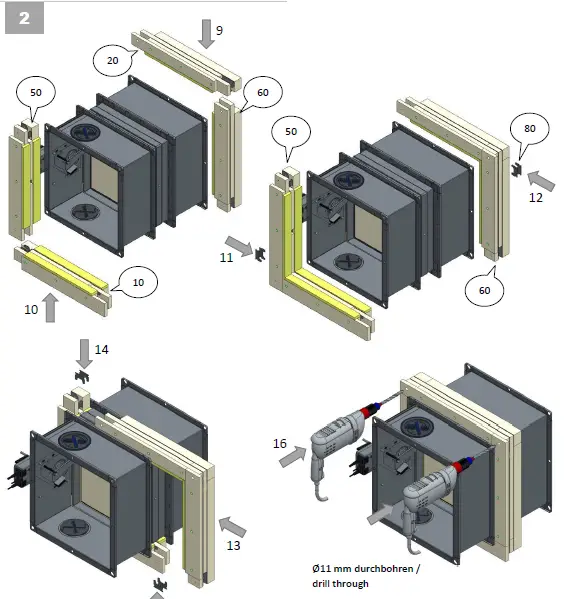

- Work steps for the left fire damper
- left fire damper is rotated to 180 degrees (operation side left)
- Work steps for the left fire damper
- Work steps for the right fire damper
- place both fire dampers on Pos. 180 and push together

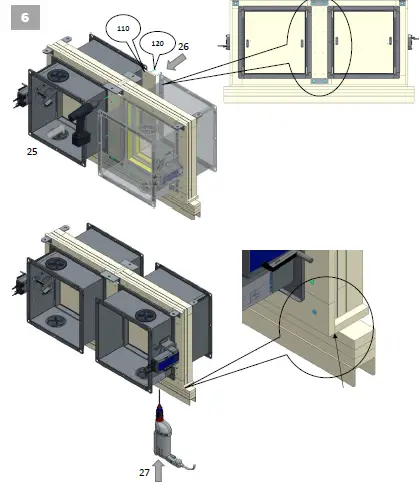

- Depending on the size of the installation kit GLK

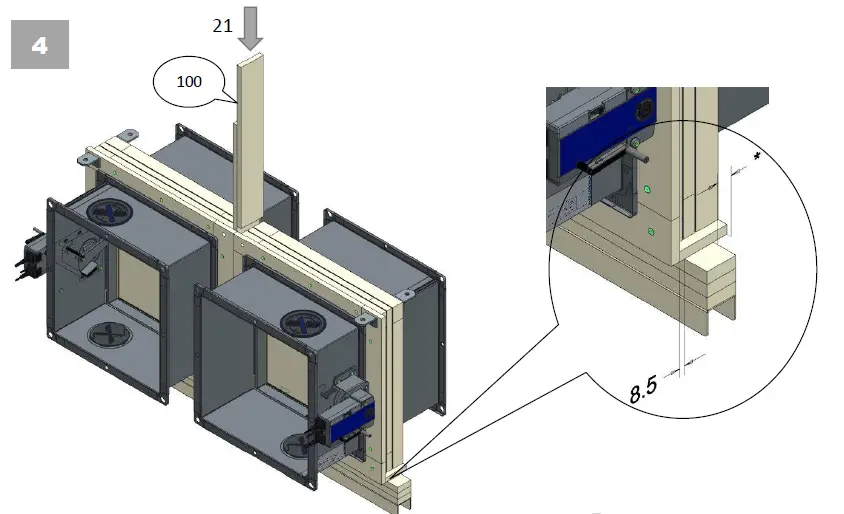

- Place two GLK strips between the fire dampers

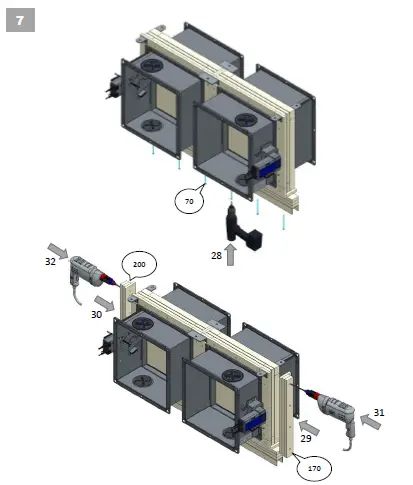

- Rearview of the installation kit

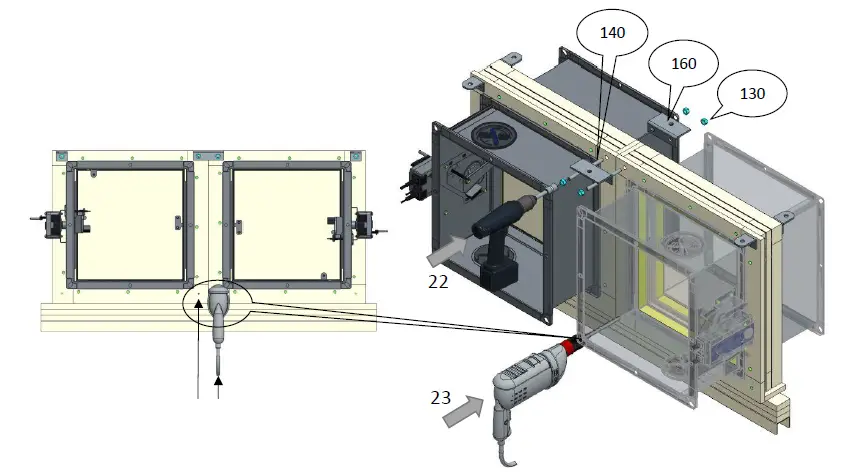

- Ø3,5 mm Stahl Bohrer / Metal drill
- 100 mm tief / deepFlush right and left

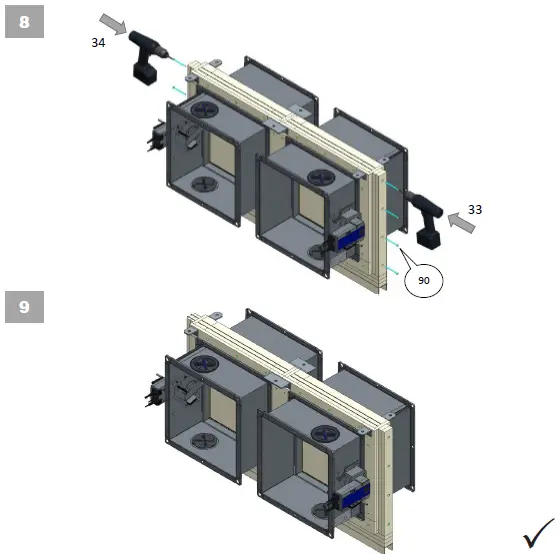

- Ø3,5 mm Stahl Bohrer / Metal drill
- 80 mm tief / deep
Next Step
Further installation details with GLK… see installation and operating manual FK2-EU
Montageanleitung FK2-EU Einbausatz GLK / Installation manual FK2-EU installation kit GLK (08_2022 3891599.asm
