XR80 Series Antenna Solutions
User Guide
XR routers feature FAKRA antenna connectors – the antenna kits and options below are configured with FAKRA-type connectors for a simple plug-and-play installation.

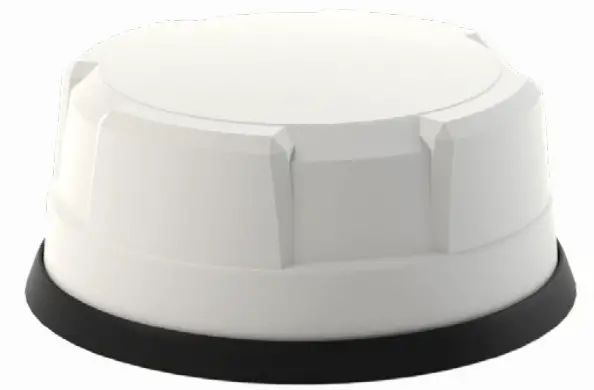

1x LTE Core + External WiFi
All in One
LG-IN2536-W-LC
FEATURES
*Part number indicates model in white housing
Low profile antenna with 10 functions in 1 4×4 MiMo 4G/5G LTE cellular
4×4 MiMo +1 Dual Band WiFi 6 & GPS/GNSS in one housing
Antenna solution with full FAKRA cable assembly kit
The LG-IN2536 range has been designed to provide 4×4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 4×4 MiMo +1 Dual Band WiFi 2.4/5GHz.

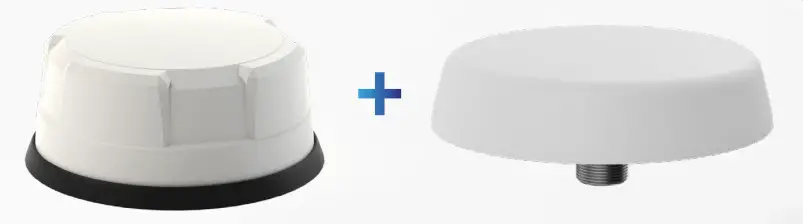

1x LTE Core + Internal WiFi
LG-IN2634-W-LC + LPM4W-24-58-4FIJ
FEATURES
*Part number indicates model in white housing
Low profile antenna with 5 functions in 1
4×4 MiMo 4G/5G LTE cellular
Integrated GPS/GNSS in one housing
Antenna solution with full FAKRA cable assembly kit
The LG-IN2634 range has been designed to provide 4×4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package.
The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS.

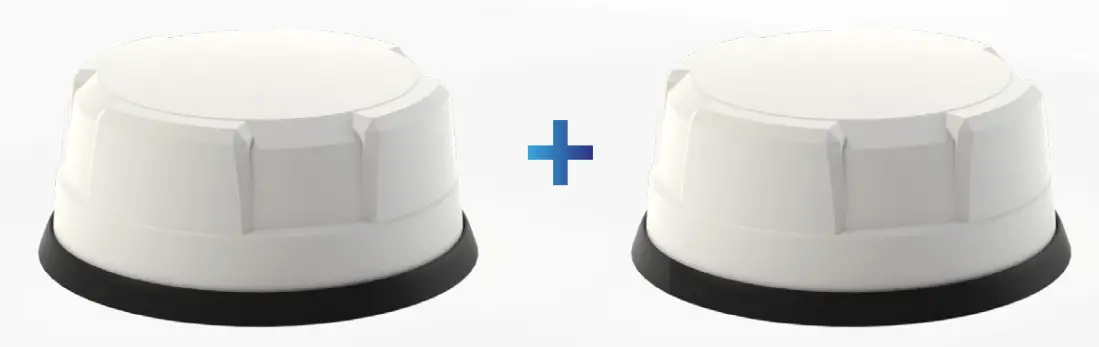

2x LTE Core + External WiFi
LG-IN2536-W-LC + LP-IN2539-W-LC
*Part number indicates model in white housing
FEATURES
Low profile antenna with 10 functions in 1
4×4 MiMo 4G/5G LTE cellular
4×4 MiMo +1 Dual Band WiFi 6 & GPS/GNSS in one housing
Antenna solution with full FAKRA cable assembly kit
The LG-IN2536 range has been designed to provide 4×4 4G/5G
MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 4×4 MiMo +1 Dual Band WiFi 2.4/5GHz.
Low profile antenna with 4 functions in 1
4×4 MiMo 4G/5G LTE cellular
Antenna solution with full FAKRA cable assembly kit
The LG-IN2539 range has been designed to provide 4×4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package.

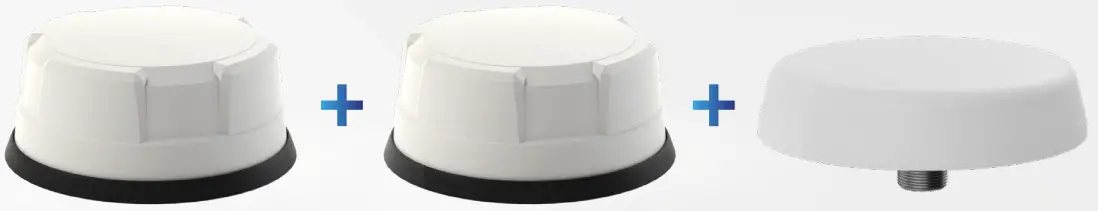

2x LTE Core + Internal WiFi
LG-IN2634-W-LC + LP-IN2539-W-LC + LPM4W-24-58-4FIJ
*Part number indicates model in white housing
FEATURES
Low profile antenna with 5 functions in 1
4×4 MiMo 4G/5G LTE cellular
Integrated GPS/GNSS in one housing
Antenna solution with full FAKRA cable assembly kit
The LG-IN2634 range has been designed to provide 4×4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS.
Low profile antenna with 4 functions in 1 4×4 MiMo 4G/5G LTE cellular
Antenna solution with full FAKRA cable assembly kit
The LG-IN2539 range has been designed to provide 4×4 4G/5G MiMo performance from
617-960/1710-6000MHz in a robust low profile package
Low profile antenna with 4 functions in 1 4×4 MiMo Dual Band WiFi 6
EN45545-2 & EN50155 certified
IP69K and IK10 approved
The LPM4W-24-58-4FIJ has been designed to provide MiMo dual band WiFi coverage in an ultra-low profile package. The compact, robust low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz.
Add-ons for LPWA function:
 | EF-BC3G-26-3FAKRAD 700-2600MHz Cellular On-Glass Antenna |
 | PWB-BC3G-38-RFDJ 700-3800MHz Cellular Paddle Antenna |
 | EF-24-58-3FIJ 2.4/5GHz On-Glass Antenna |
 | PWB-24-58-RFIJ 2.4/5GHz WiFi Paddle Antenna |
Important Notice: The data given above are indicative of the performance of the products under particular conditions and does not imply a guarantee of performance. This document is provided on an ‘as is basis and is subject to change without notice. The Sierra Wireless product names and images, brand collateral, and other intellectual property are used without permission and remain the property of Sierra Wireless. Panorama Antennas Ltd (and its subsidiaries) are not part of or affiliated with Sierra Wireless in any way except as a supplier of antenna products and nothing in this document is intended to imply such affiliation or relationship. Panorama Antennas’ name, logo, and brand collateral remain the property of Panorama Antennas Ltd.
Copyright © Panorama Antennas Ltd. and/or Inc. All rights reserved.
