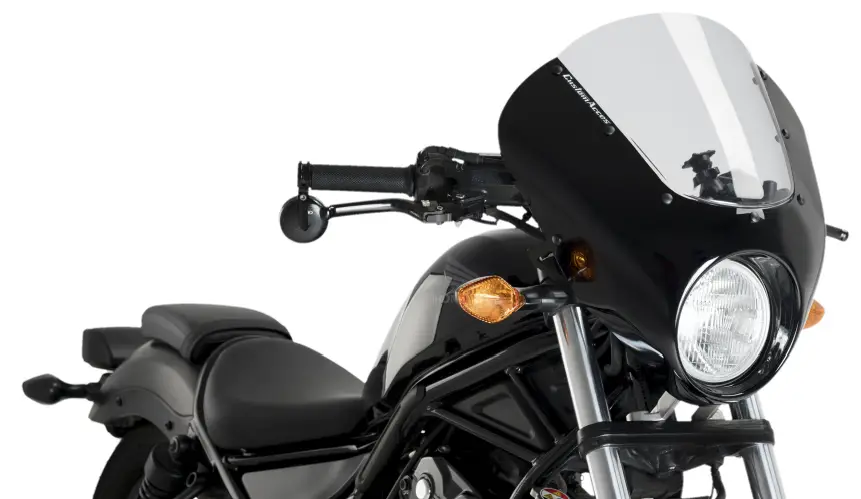

Puig CUP0011 Dark Night Semi-Fairing
DESCRIPTION
It would be convenient to retight the semi fairing screws, specially the ones that are fixed to the motorcycle, whenever you maintain the vehicle. Thanks for your attention.
| ID. | DESCRIPTION | QTY. | REF. |
| 1 | Dark Night semifairing | 1 | 10902J |
| 2 | screen | 1 | 10904H/FM3 |
| 3 | Upper Right support (SR) | 1 | SOP4P7SRCUP0011 |
| 4 | Upper Left support (SL) | 1 | SOP4P7SLCUP0011 |
| 5 | Lower Right support (IR ••) | 1 | SOP4P7IRCUP0011 |
| 6 | Lower Left support (IL •) | 1 | SOP4P7ILCUP0011 |
| 7 | M8x45 ISO 7380 Allen screw | 2 | TORNI-I7380-817 |
| 8 | Ø14 x Ø8 x 9 spacer | 2 | CASQUI—- 0100 |
| 9 | Ø9 x Ø6 x 8mm silentblock | 4 | AROPASACABLES-3 |
| 10 | Ø12 x Ø6,8 x 7,3 bush with flange | 4 | CASQUI-1A—750 |
| 11 | M5x16 Ø11 ISO 7380 allen screw | 11 | TORNI-I7380-493 |
| 12 | Ø4,5 x Ø11 x 2mm Rubber washer | 2 | ARAND-EPDM–722 |
| 13 | M5x1 nylon washer | 7 | ARNV0000000245 |
| 14 | M5 ISO 7380 screw cap | 11 | TAPON——– 85 |
| 15 | M5 silentblock | 7 | SILENBTM5-046/1 |
| 16 | M5x11 Ø11 ISO 7380 Allen screw | 2 | TORNI-AI—- 520 |

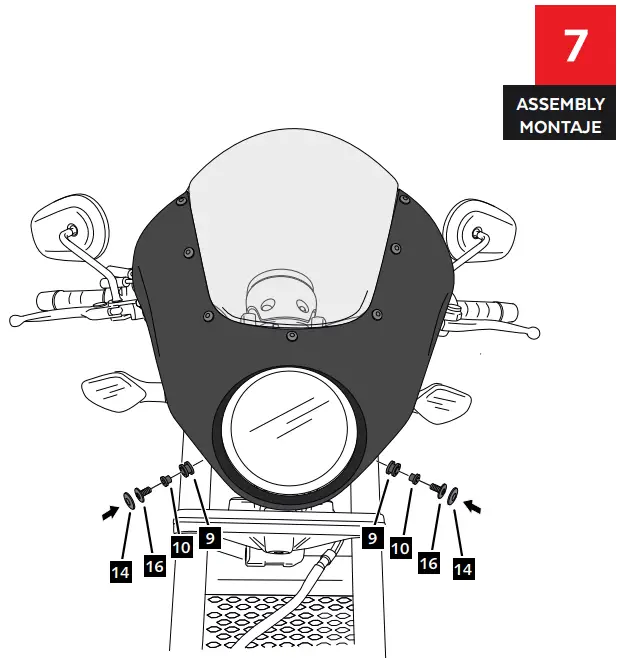

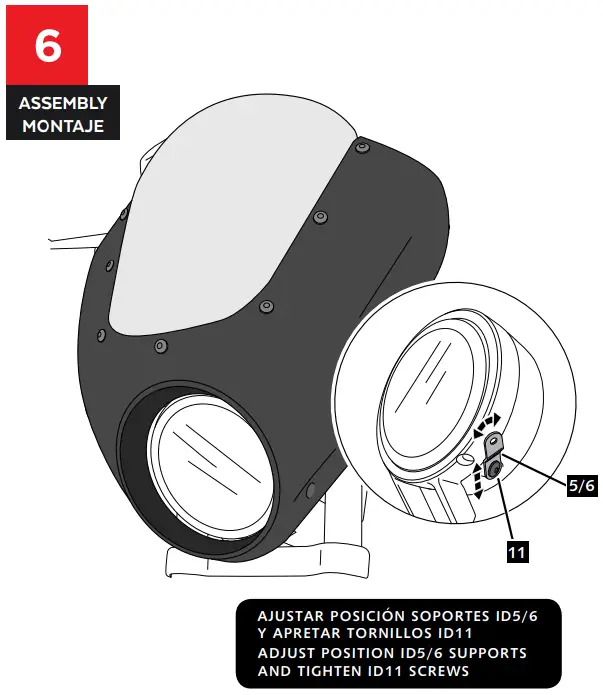

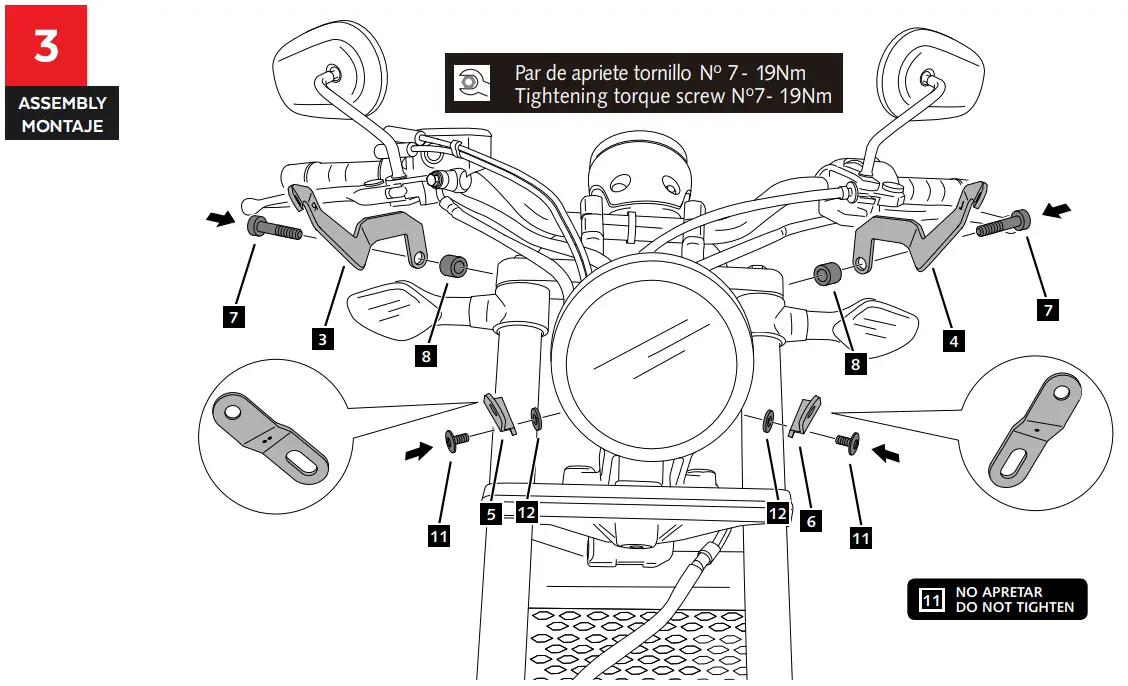

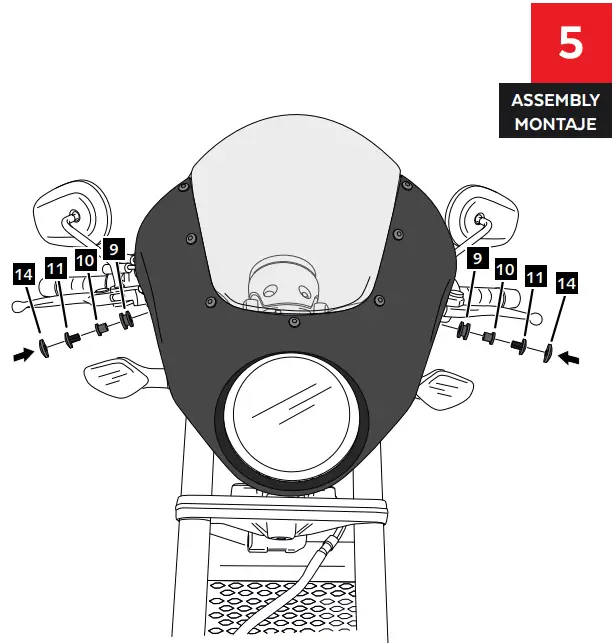

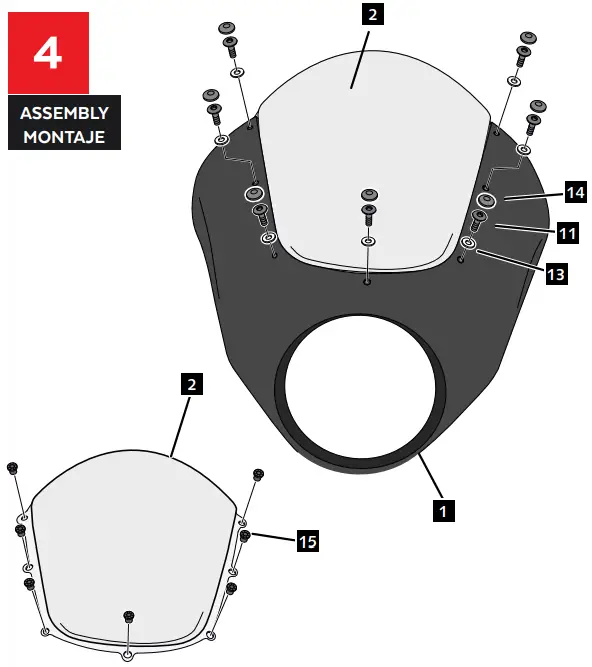

MOUNTING INSTRUCTIONS
